ns3::Ipv4AddressValue Class Reference

AttributeValue implementation for Ipv4Address. More...

#include "ipv4-address.h"

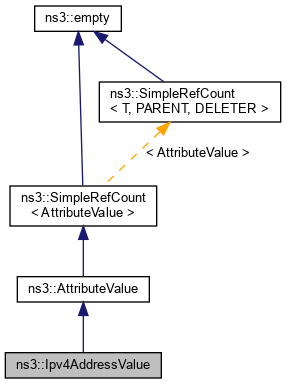

Inheritance diagram for ns3::Ipv4AddressValue:

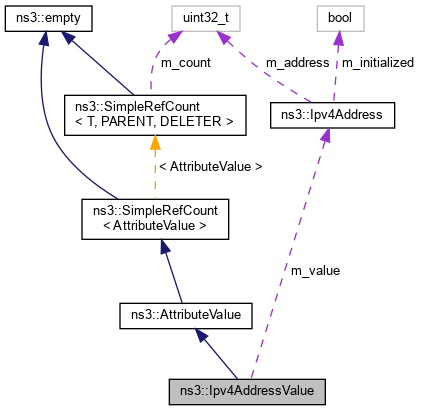

Collaboration diagram for ns3::Ipv4AddressValue:

Public Member Functions
	Ipv4AddressValue ()
	Ipv4AddressValue (const Ipv4Address &value)
	Copy constructor. More...
virtual Ptr< AttributeValue >	Copy (void) const
virtual bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)
Ipv4Address	Get (void) const
template<typename T >
bool	GetAccessor (T &value) const
	Access the Ipv4Address value as type T. More...
virtual std::string	SerializeToString (Ptr< const AttributeChecker > checker) const
void	Set (const Ipv4Address &value)
	Set the value. More...
Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()
virtual	~AttributeValue ()
Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Ipv4Address	m_value
	The stored Ipv4Address instance. More...

Detailed Description

AttributeValue implementation for Ipv4Address.

See also

AttributeValue

Definition at line 341 of file ipv4-address.h.

Constructor & Destructor Documentation

Ipv4AddressValue() [1/2]

ns3::Ipv4AddressValue::Ipv4AddressValue

(

)

Definition at line 446 of file ipv4-address.cc.

Ipv4AddressValue() [2/2]

Ipv4Address ns3::Ipv4AddressValue::Ipv4AddressValue

(

const Ipv4Address &

value

)

Copy constructor.

Parameters

[in]

value

The Ipv4Address value to copy.

Definition at line 446 of file ipv4-address.cc.

Member Function Documentation

Copy()

Ptr< AttributeValue > ns3::Ipv4AddressValue::Copy ( void  ) const

virtual

Returns

a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 446 of file ipv4-address.cc.

DeserializeFromString()

bool ns3::Ipv4AddressValue::DeserializeFromString ( std::string  value, Ptr< const AttributeChecker >  checker  )

virtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns

true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 446 of file ipv4-address.cc.

Get()

Ipv4Address ns3::Ipv4AddressValue::Get

(

void

)

const

Returns

The Ipv4Address value.

Definition at line 446 of file ipv4-address.cc.

GetAccessor()

template<typename T >

bool ns3::Ipv4AddressValue::GetAccessor ( T &  value ) const

inline

Access the Ipv4Address value as type T.

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out]

value

The Ipv4Address value, as type T.

Returns

true.

Definition at line 341 of file ipv4-address.h.

SerializeToString()

std::string ns3::Ipv4AddressValue::SerializeToString ( Ptr< const AttributeChecker >  checker ) const

virtual

Parameters

[in]

checker

The checker associated to the attribute

Returns

A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 446 of file ipv4-address.cc.

Set()

void ns3::Ipv4AddressValue::Set

(

const Ipv4Address &

value

)

Set the value.

Parameters

[in]

value

The value to adopt.

Definition at line 446 of file ipv4-address.cc.

Member Data Documentation

m_value

Ipv4Address ns3::Ipv4AddressValue::m_value

private

The stored Ipv4Address instance.

Definition at line 341 of file ipv4-address.h.

---

The documentation for this class was generated from the following files:

• src/network/utils/ipv4-address.h
• src/network/utils/ipv4-address.cc
• doc/introspected-doxygen.h
