ns3::Ipv6ExtensionHeader Class Reference
Internet » IPv6 classes and sub-modules » IPV6 Header extension system.

Header for IPv6 Extension. More...

#include "ipv6-extension-header.h"

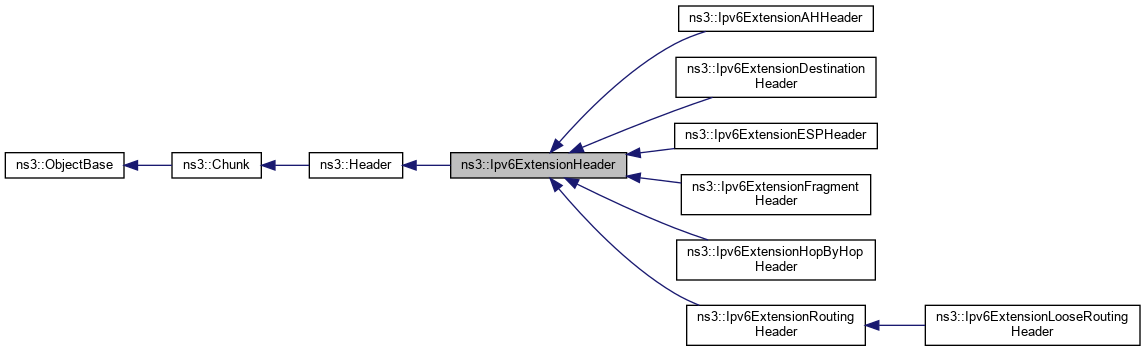

+ Inheritance diagram for ns3::Ipv6ExtensionHeader:

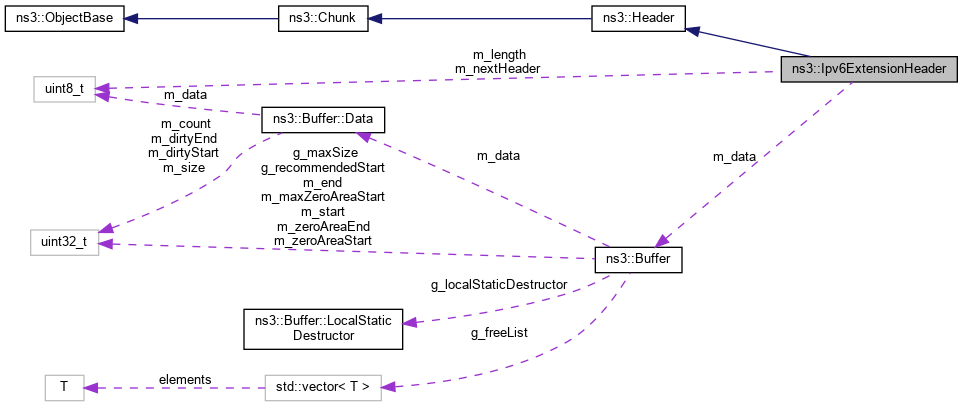

+ Collaboration diagram for ns3::Ipv6ExtensionHeader:

Public Member Functions

 Ipv6ExtensionHeader ()
 Constructor. More...

virtual ~Ipv6ExtensionHeader ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

uint16_t GetLength () const
 Get the length of the extension. More...

uint8_t GetNextHeader () const
 Get the next header. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size of the packet. More...

virtual void Print (std::ostream &os) const
 Print some information about the packet. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetLength (uint16_t length)
 brief Set the length of the extension. More...

void SetNextHeader (uint8_t nextHeader)
 Set the "Next header" field. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Attributes

uint8_t m_length
 The "length" field. More...


Private Attributes

Buffer m_data
 The data of the extension. More...

uint8_t m_nextHeader
 The "next header" field. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid (void)
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

Header for IPv6 Extension.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 40 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

◆ Ipv6ExtensionHeader()

ns3::Ipv6ExtensionHeader::Ipv6ExtensionHeader ( )

Constructor.

Definition at line 48 of file ipv6-extension-header.cc.

◆ ~Ipv6ExtensionHeader()

ns3::Ipv6ExtensionHeader::~Ipv6ExtensionHeader ( )
virtual

Destructor.

Definition at line 55 of file ipv6-extension-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Ipv6ExtensionHeader::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startBuffer iterator
Returns
size of the packet

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 102 of file ipv6-extension-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), data, GetLength(), GetSerializedSize(), ns3::Buffer::GetSize(), m_data, m_length, m_nextHeader, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::Buffer::RemoveAtEnd(), visualizer.core::start(), and ns3::Buffer::Iterator::Write().

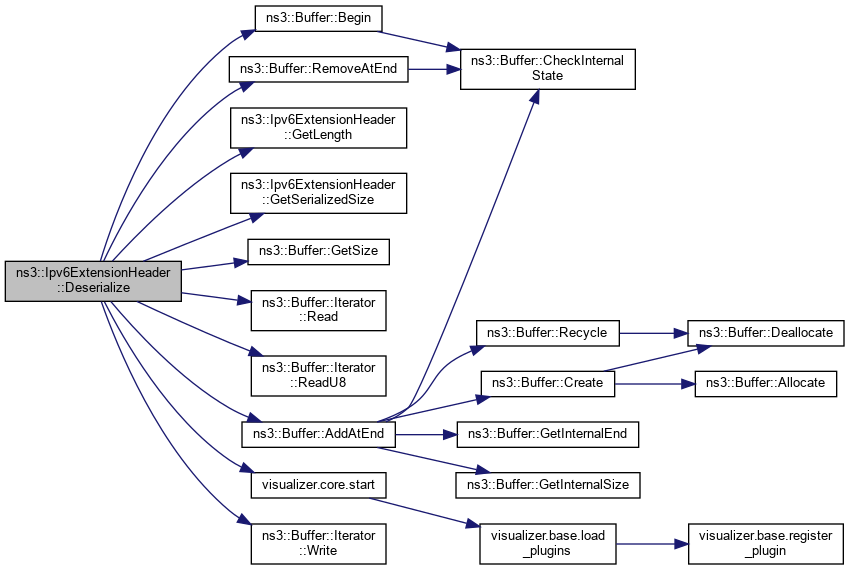

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Ipv6ExtensionHeader::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 43 of file ipv6-extension-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetLength()

uint16_t ns3::Ipv6ExtensionHeader::GetLength ( void  ) const

Get the length of the extension.

Returns
the length of the extension

Definition at line 78 of file ipv6-extension-header.cc.

References m_length.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), Print(), ns3::Ipv6ExtensionHopByHopHeader::Print(), ns3::Ipv6ExtensionDestinationHeader::Print(), ns3::Ipv6ExtensionFragmentHeader::Print(), ns3::Ipv6ExtensionRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionHopByHop::Process(), ns3::Ipv6ExtensionDestination::Process(), and ns3::Ipv6ExtensionLooseRouting::Process().

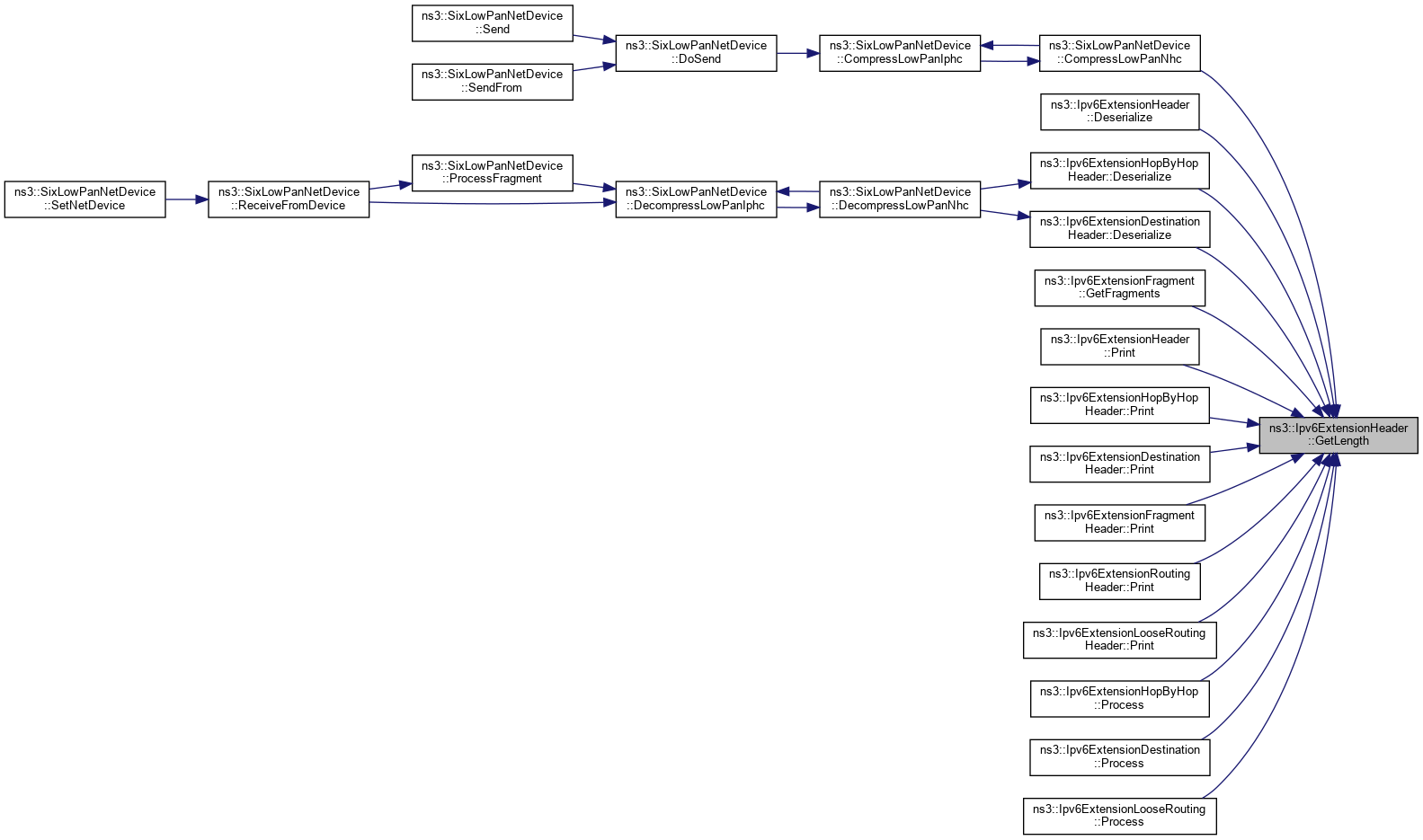

+ Here is the caller graph for this function:

◆ GetNextHeader()

uint8_t ns3::Ipv6ExtensionHeader::GetNextHeader ( ) const

Get the next header.

Returns
the next header number

Definition at line 64 of file ipv6-extension-header.cc.

References m_nextHeader.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), ns3::Ipv6ExtensionFragment::GetFragments(), Print(), ns3::Ipv6ExtensionHopByHopHeader::Print(), ns3::Ipv6ExtensionDestinationHeader::Print(), ns3::Ipv6ExtensionFragmentHeader::Print(), ns3::Ipv6ExtensionRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionHopByHop::Process(), ns3::Ipv6ExtensionDestination::Process(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6ExtensionHopByHopHeader::Serialize(), ns3::Ipv6ExtensionDestinationHeader::Serialize(), ns3::Ipv6ExtensionFragmentHeader::Serialize(), ns3::Ipv6ExtensionRoutingHeader::Serialize(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

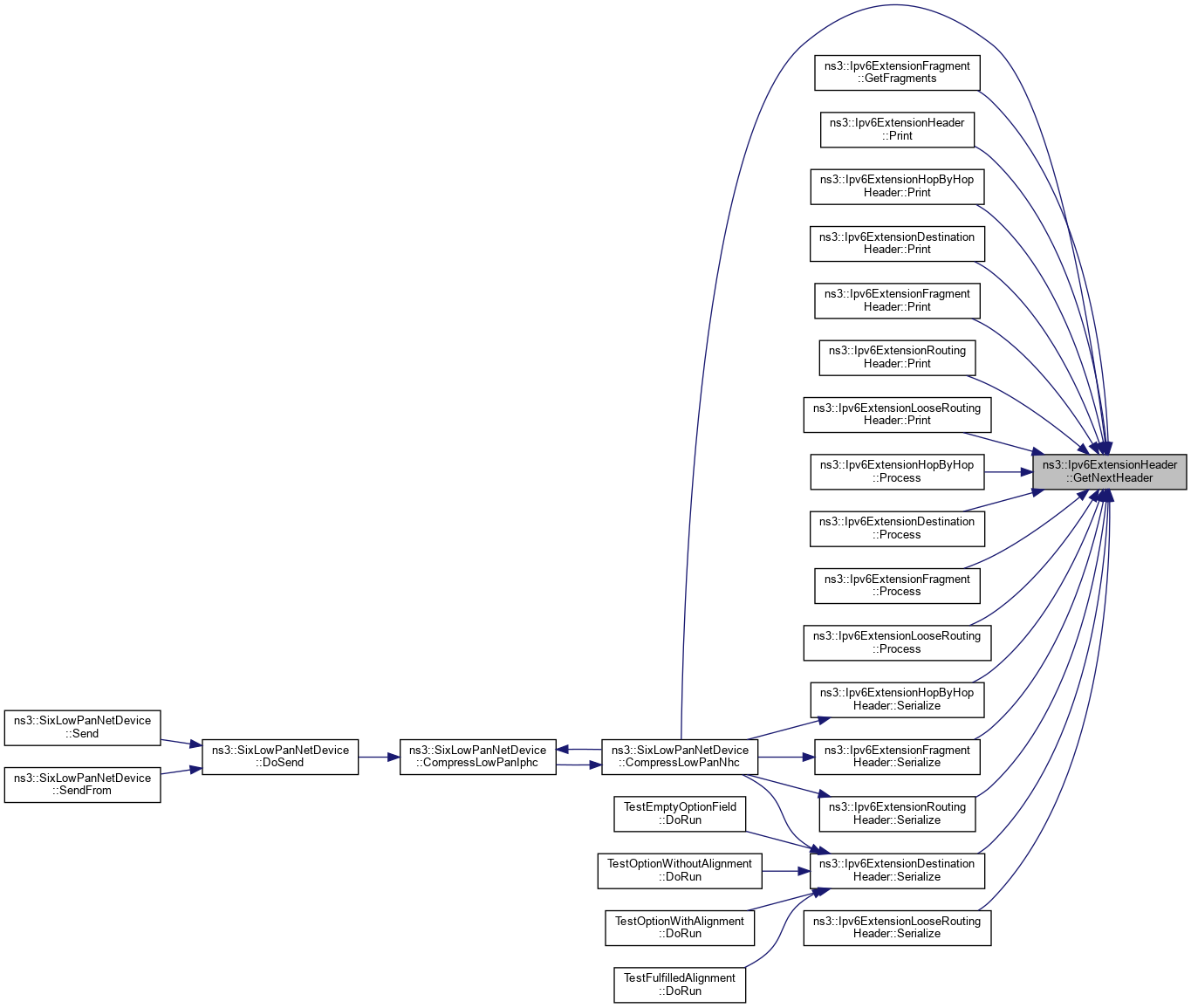

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv6ExtensionHeader::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
size

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 88 of file ipv6-extension-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv6ExtensionHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 33 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::Ipv6ExtensionHeader::Print ( std::ostream &  os) const
virtual

Print some information about the packet.

Parameters
osoutput stream

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 83 of file ipv6-extension-header.cc.

References GetLength(), and GetNextHeader().

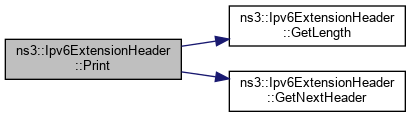

+ Here is the call graph for this function:

◆ Serialize()

void ns3::Ipv6ExtensionHeader::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startBuffer iterator

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 93 of file ipv6-extension-header.cc.

References ns3::Buffer::GetSize(), m_data, m_length, m_nextHeader, ns3::Buffer::PeekData(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

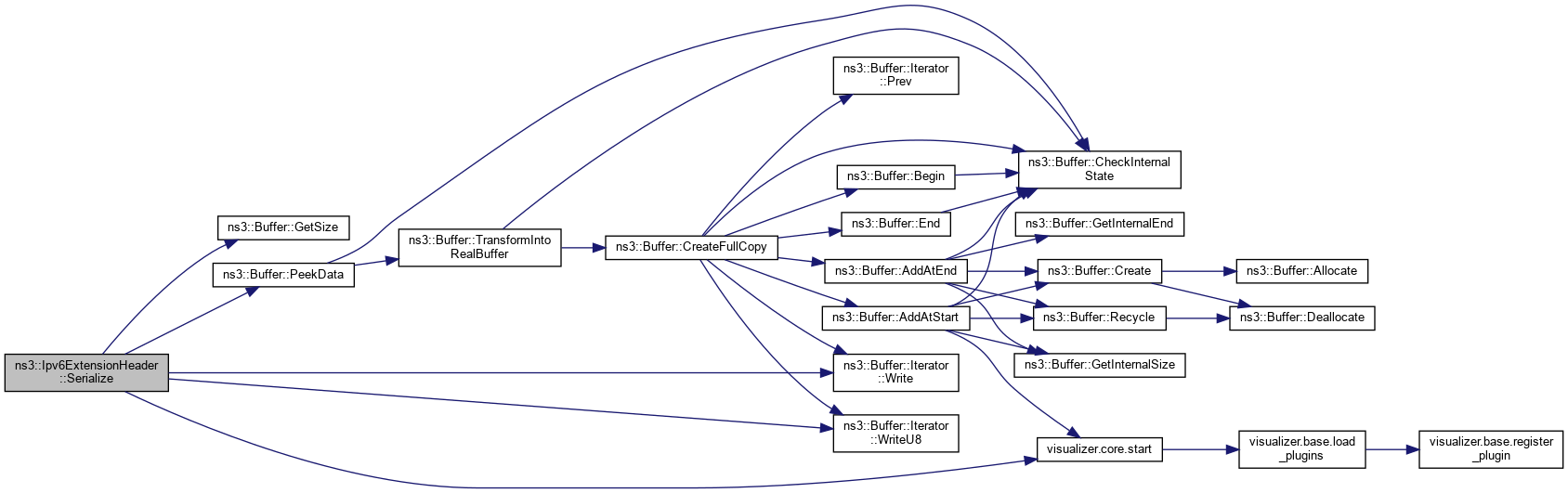

+ Here is the call graph for this function:

◆ SetLength()

void ns3::Ipv6ExtensionHeader::SetLength ( uint16_t  length)

brief Set the length of the extension.

Parameters
lengththe length of the extension in bytes

Definition at line 69 of file ipv6-extension-header.cc.

References m_length, and NS_ASSERT_MSG.

◆ SetNextHeader()

void ns3::Ipv6ExtensionHeader::SetNextHeader ( uint8_t  nextHeader)

Set the "Next header" field.

Parameters
nextHeaderthe next header number

Definition at line 59 of file ipv6-extension-header.cc.

References m_nextHeader.

Referenced by ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionFragmentHeader::Deserialize(), ns3::Ipv6ExtensionRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), and ns3::Ping6::Send().

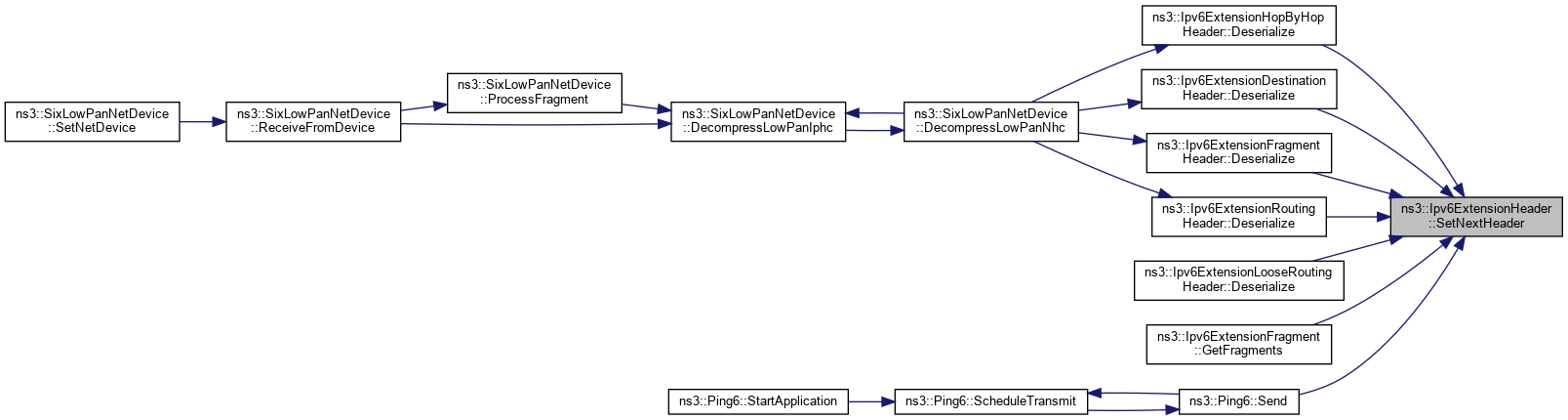

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_data

Buffer ns3::Ipv6ExtensionHeader::m_data
private

The data of the extension.

Definition at line 129 of file ipv6-extension-header.h.

Referenced by Deserialize(), and Serialize().

◆ m_length

uint8_t ns3::Ipv6ExtensionHeader::m_length
protected

The "length" field.

Definition at line 118 of file ipv6-extension-header.h.

Referenced by ns3::Ipv6ExtensionFragmentHeader::Ipv6ExtensionFragmentHeader(), Deserialize(), ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), GetLength(), Serialize(), ns3::Ipv6ExtensionRoutingHeader::Serialize(), and SetLength().

◆ m_nextHeader

uint8_t ns3::Ipv6ExtensionHeader::m_nextHeader
private

The "next header" field.

Definition at line 124 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().
