Header of IPv6 Option Pad1. More...
#include "ipv6-option-header.h"

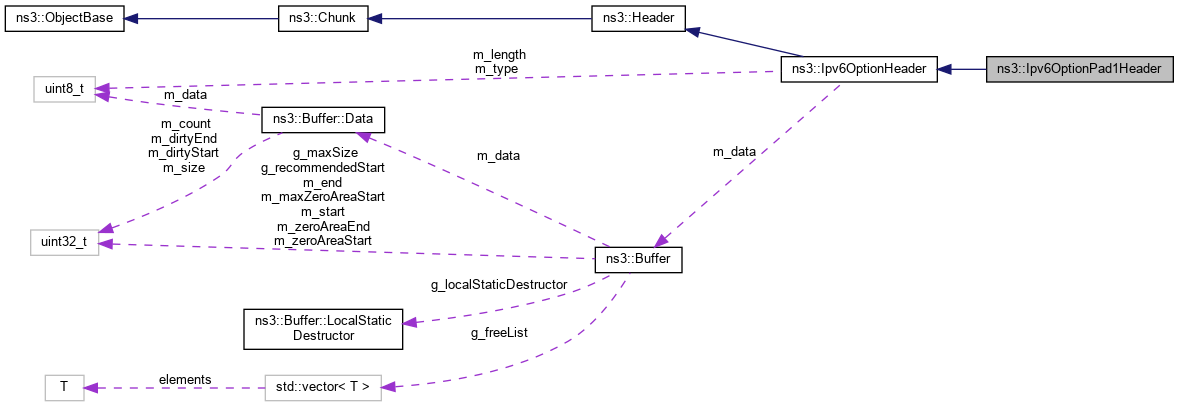

Inheritance diagram for ns3::Ipv6OptionPad1Header: Collaboration diagram for ns3::Ipv6OptionPad1Header:Public Member Functions | |
| Ipv6OptionPad1Header () | |
| Constructor. More... | |
| virtual | ~Ipv6OptionPad1Header () |
| Destructor. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start) |
| Deserialize the packet. More... | |
| virtual TypeId | GetInstanceTypeId () const |
| Get the instance type ID. More... | |
| virtual uint32_t | GetSerializedSize () const |
| Get the serialized size of the packet. More... | |
| virtual void | Print (std::ostream &os) const |
| Print some information about the packet. More... | |
| virtual void | Serialize (Buffer::Iterator start) const |
| Serialize the packet. More... | |
| Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| Ipv6OptionHeader () | |
| Constructor. More... | |
| virtual | ~Ipv6OptionHeader () |
| Destructor. More... | |
| virtual Alignment | GetAlignment () const |
| Get the Alignment requirement of this option header. More... | |
| uint8_t | GetLength () const |
| Get the option length. More... | |
| uint8_t | GetType () const |
| Get the type of the option. More... | |
| void | SetLength (uint8_t length) |
| Set the option length. More... | |
| void | SetType (uint8_t type) |
| Set the type of the option. More... | |
| Public Member Functions inherited from ns3::Header | |
| virtual | ~Header () |
| virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
| Deserialize the object from a buffer iterator. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::Chunk | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6OptionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Header of IPv6 Option Pad1.
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).
Definition at line 155 of file ipv6-option-header.h.
| ns3::Ipv6OptionPad1Header::Ipv6OptionPad1Header | ( | ) |
Constructor.
Definition at line 137 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::SetType().
Here is the call graph for this function:
|
virtual |
Destructor.
Definition at line 142 of file ipv6-option-header.cc.
|
virtual |
Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 163 of file ipv6-option-header.cc.
References GetSerializedSize(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6OptionHeader::SetType(), and visualizer.core::start().

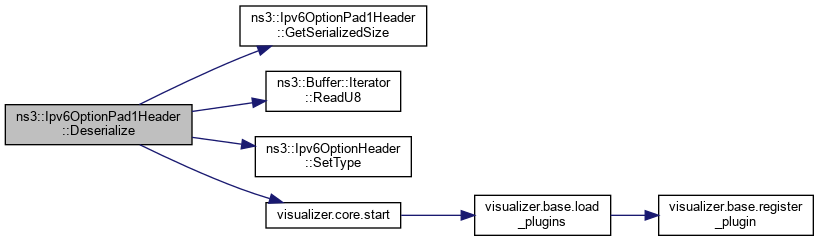

Here is the call graph for this function:
|
virtual |
Get the instance type ID.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 132 of file ipv6-option-header.cc.
References GetTypeId().
Here is the call graph for this function:
|
virtual |
Get the serialized size of the packet.
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 151 of file ipv6-option-header.cc.
Referenced by Deserialize(), and ns3::Ipv6OptionPad1::Process().
Here is the caller graph for this function:
|
static |
Get the type identificator.
Definition at line 122 of file ipv6-option-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
Print some information about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 146 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetType().
Here is the call graph for this function:
|
virtual |
Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6OptionHeader.
Definition at line 156 of file ipv6-option-header.cc.
References ns3::Ipv6OptionHeader::GetType(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().
Referenced by ns3::OptionField::Serialize().

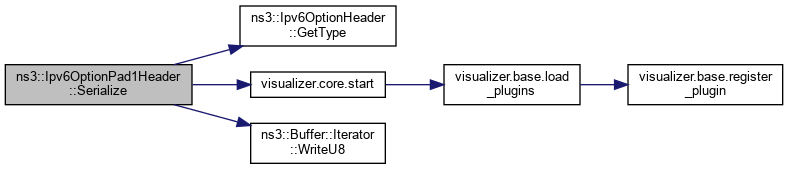

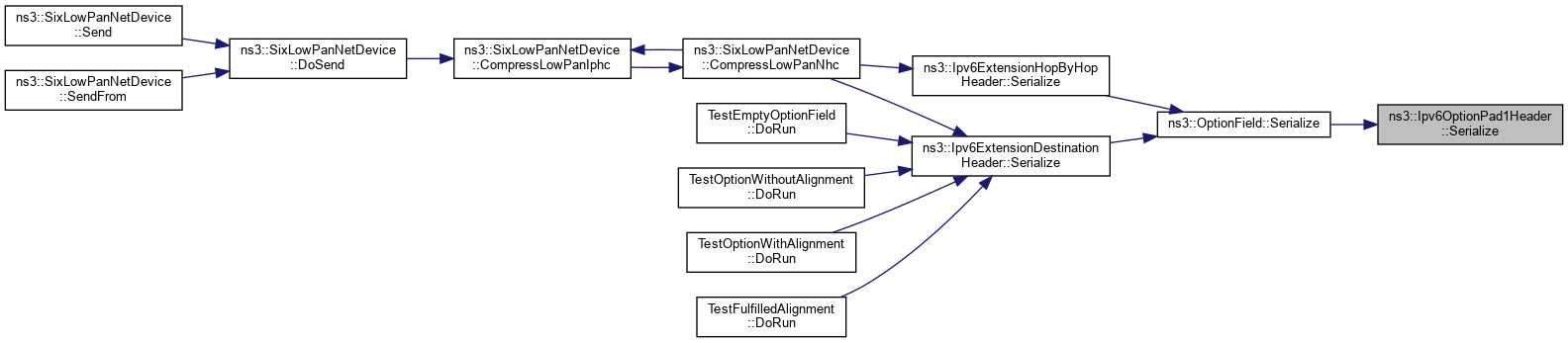

Here is the call graph for this function: Here is the caller graph for this function:
