IPv6 Option Padn. More...

#include "ipv6-option.h"

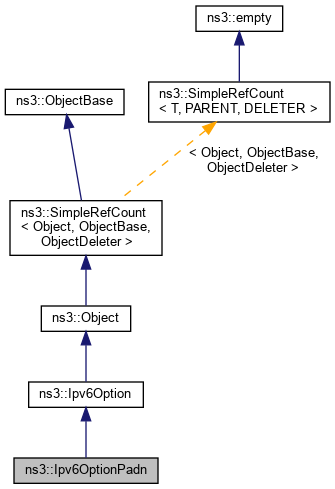

Inheritance diagram for ns3::Ipv6OptionPadn:

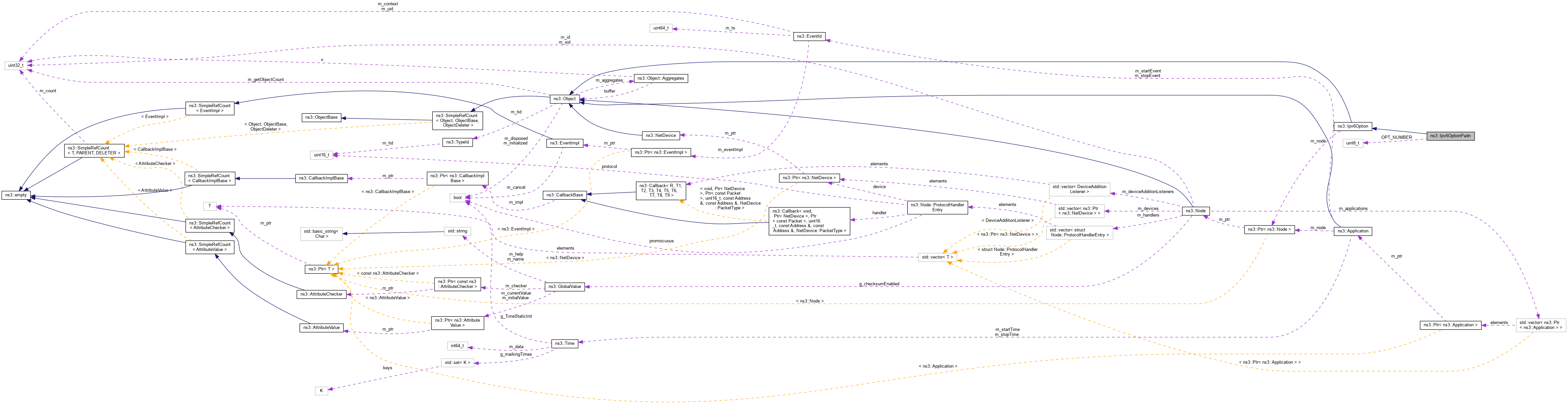

Collaboration diagram for ns3::Ipv6OptionPadn:

Public Member Functions
	Ipv6OptionPadn ()
	Constructor. More...

	~Ipv6OptionPadn ()
	Destructor. More...

virtual uint8_t	GetOptionNumber () const
	Get the option number. More...

virtual uint8_t	Process (Ptr< Packet > packet, uint8_t offset, Ipv6Header const &ipv6Header, bool &isDropped)
	Process method. More...

Public Member Functions inherited from ns3::Ipv6Option
virtual	~Ipv6Option ()
	Destructor. More...

void	SetNode (Ptr< Node > node)
	Set the node. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Ipv6Option
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Attributes
static const uint8_t	OPT_NUMBER = 60
	PadN option number. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

IPv6 Option Padn.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.

Attributes defined in parent class ns3::Ipv6Option

OptionNumber: The IPv6 option number.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 144 of file ipv6-option.h.

Constructor & Destructor Documentation

◆ Ipv6OptionPadn()

ns3::Ipv6OptionPadn::Ipv6OptionPadn ( )

Constructor.

Definition at line 116 of file ipv6-option.cc.

References NS_LOG_FUNCTION.

◆ ~Ipv6OptionPadn()

ns3::Ipv6OptionPadn::~Ipv6OptionPadn ( )

Destructor.

Definition at line 121 of file ipv6-option.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetOptionNumber()

uint8_t ns3::Ipv6OptionPadn::GetOptionNumber ( ) const

virtual

Get the option number.

Returns: option number

Implements ns3::Ipv6Option.

Definition at line 126 of file ipv6-option.cc.

References NS_LOG_FUNCTION, and OPT_NUMBER.

◆ GetTypeId()

TypeId ns3::Ipv6OptionPadn::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 106 of file ipv6-option.cc.

References ns3::TypeId::SetParent().

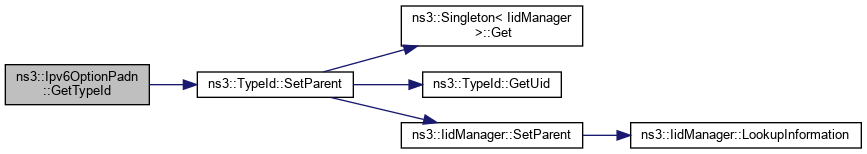

Here is the call graph for this function:

◆ Process()

uint8_t ns3::Ipv6OptionPadn::Process	(	Ptr< Packet >	packet,
		uint8_t	offset,
		Ipv6Header const &	ipv6Header,
		bool &	isDropped
	)

virtual

Process method.

Called from Ipv6L3Protocol::Receive.

Parameters

packet	the packet
offset	the offset of the extension to process
ipv6Header	the IPv6 header of packet received
isDropped	if the packet must be dropped

Returns: the processed size

Implements ns3::Ipv6Option.

Definition at line 133 of file ipv6-option.cc.

References ns3::Packet::Copy(), ns3::Ipv6OptionPadnHeader::GetSerializedSize(), NS_LOG_FUNCTION, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

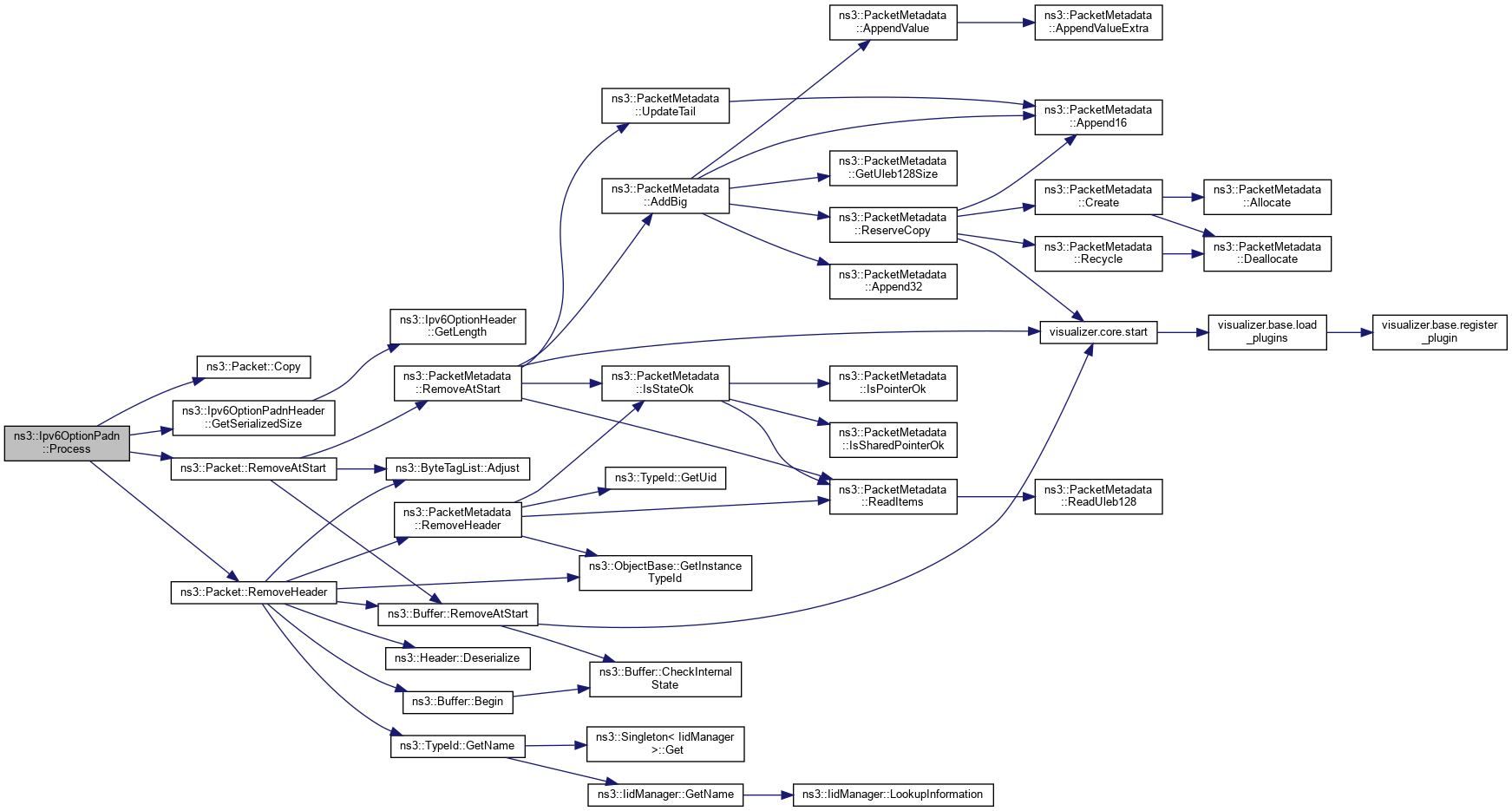

Here is the call graph for this function:

Member Data Documentation

◆ OPT_NUMBER

const uint8_t ns3::Ipv6OptionPadn::OPT_NUMBER = 60

static

PadN option number.

Definition at line 150 of file ipv6-option.h.

Referenced by GetOptionNumber().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-option.h
src/internet/model/ipv6-option.cc
