ns3::LteMacSapUser Class Reference

Service Access Point (SAP) offered by the MAC to the RLC See Femto Forum MAC Scheduler Interface Specification v 1.11, Figure 1. More...

#include "lte-mac-sap.h"

Inheritance diagram for ns3::LteMacSapUser:

Classes
struct	ReceivePduParameters
	Parameters for LteMacSapUser::ReceivePdu. More...
struct	TxOpportunityParameters
	Parameters for LteMacSapUser::NotifyTxOpportunity. More...

Public Member Functions
virtual	~LteMacSapUser ()
virtual void	NotifyHarqDeliveryFailure ()=0
	Called by the MAC to notify the RLC that an HARQ process related to this RLC instance has failed. More...
virtual void	NotifyTxOpportunity (TxOpportunityParameters params)=0
	Called by the MAC to notify the RLC that the scheduler granted a transmission opportunity to this RLC instance. More...
virtual void	ReceivePdu (ReceivePduParameters params)=0
	Called by the MAC to notify the RLC of the reception of a new PDU. More...

Detailed Description

Service Access Point (SAP) offered by the MAC to the RLC See Femto Forum MAC Scheduler Interface Specification v 1.11, Figure 1.

This is the MAC SAP User, i.e., the part of the SAP that contains the RLC methods called by the MAC

Definition at line 95 of file lte-mac-sap.h.

Constructor & Destructor Documentation

~LteMacSapUser()

ns3::LteMacSapUser::~LteMacSapUser ( )

virtual

Definition at line 32 of file lte-mac-sap.cc.

Member Function Documentation

NotifyHarqDeliveryFailure()

virtual void ns3::LteMacSapUser::NotifyHarqDeliveryFailure ( )

pure virtual

Called by the MAC to notify the RLC that an HARQ process related to this RLC instance has failed.

Todo:

eventual parameters to be defined

Implemented in ns3::SimpleUeCcmMacSapUser, ns3::LteRlcSpecificLteMacSapUser, and ns3::MemberLteCcmMacSapUser< C >.

NotifyTxOpportunity()

virtual void ns3::LteMacSapUser::NotifyTxOpportunity ( TxOpportunityParameters  params )

pure virtual

Called by the MAC to notify the RLC that the scheduler granted a transmission opportunity to this RLC instance.

Parameters

params

the TxOpportunityParameters

Implemented in ns3::SimpleUeCcmMacSapUser, ns3::MemberLteCcmMacSapUser< C >, and ns3::LteRlcSpecificLteMacSapUser.

Referenced by ns3::LteTestMac::DoReportBufferStatus(), and ns3::LteTestMac::SendTxOpportunity().

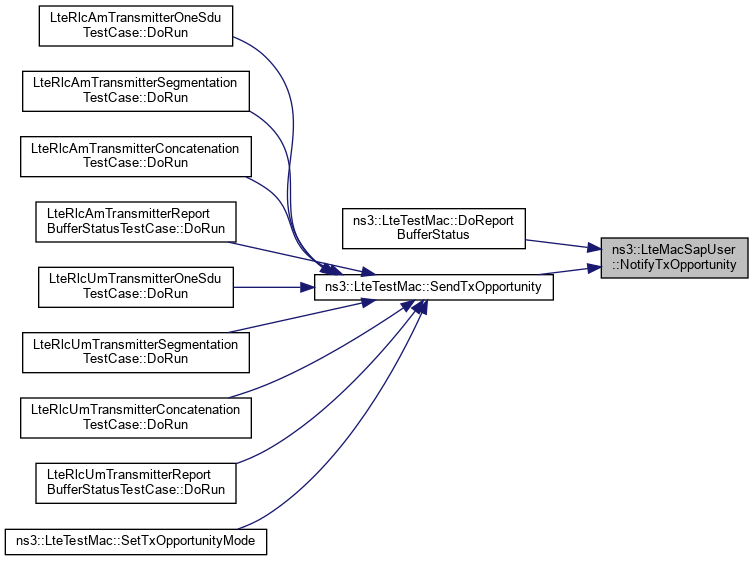

Here is the caller graph for this function:

ReceivePdu()

virtual void ns3::LteMacSapUser::ReceivePdu ( ReceivePduParameters  params )

pure virtual

Called by the MAC to notify the RLC of the reception of a new PDU.

Parameters

params

the ReceivePduParameters

Implemented in ns3::SimpleUeCcmMacSapUser, ns3::MemberLteCcmMacSapUser< C >, and ns3::LteRlcSpecificLteMacSapUser.

Referenced by ns3::LteTestMac::DoTransmitPdu(), and ns3::LteTestMac::Receive().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-mac-sap.h
• src/lte/model/lte-mac-sap.cc
