ns3::LteRlcSapUser Class Reference

Service Access Point (SAP) offered by the UM-RLC and AM-RLC entities to the PDCP entity See 3GPP 36.322 Radio Link Control (RLC) protocol specification. More...

#include "lte-rlc-sap.h"

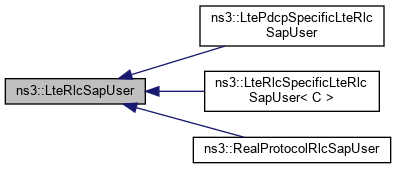

Inheritance diagram for ns3::LteRlcSapUser:

Public Member Functions
virtual	~LteRlcSapUser ()
virtual void	ReceivePdcpPdu (Ptr< Packet > p)=0
	Called by the RLC entity to notify the PDCP entity of the reception of a new PDCP PDU. More...

Detailed Description

Service Access Point (SAP) offered by the UM-RLC and AM-RLC entities to the PDCP entity See 3GPP 36.322 Radio Link Control (RLC) protocol specification.

This is the RLC SAP User (i.e. the part of the SAP that contains the PDCP methods called by the RLC)

Definition at line 67 of file lte-rlc-sap.h.

Constructor & Destructor Documentation

~LteRlcSapUser()

ns3::LteRlcSapUser::~LteRlcSapUser ( )

virtual

Definition at line 29 of file lte-rlc-sap.cc.

Member Function Documentation

ReceivePdcpPdu()

virtual void ns3::LteRlcSapUser::ReceivePdcpPdu ( Ptr< Packet >  p )

pure virtual

Called by the RLC entity to notify the PDCP entity of the reception of a new PDCP PDU.

Parameters

p	the PDCP PDU

Implemented in ns3::RealProtocolRlcSapUser, ns3::LteRlcSpecificLteRlcSapUser< C >, and ns3::LtePdcpSpecificLteRlcSapUser.

Referenced by ns3::LteRlcTm::DoReceivePdu(), ns3::LteRlcAm::ReassembleAndDeliver(), and ns3::LteRlcUm::ReassembleAndDeliver().

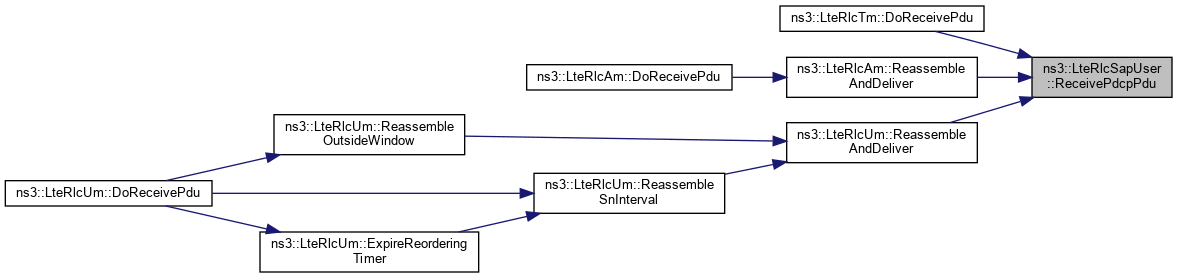

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-rlc-sap.h
• src/lte/model/lte-rlc-sap.cc
