store information on active signaling radio bearer instance More...

#include "lte-radio-bearer-info.h"

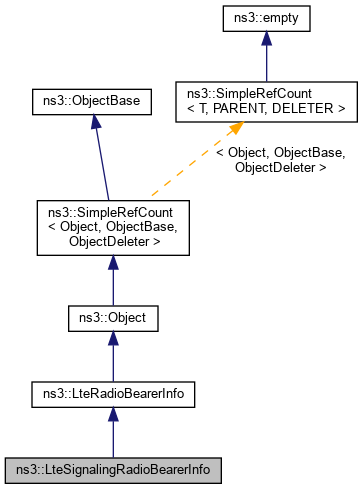

Inheritance diagram for ns3::LteSignalingRadioBearerInfo:

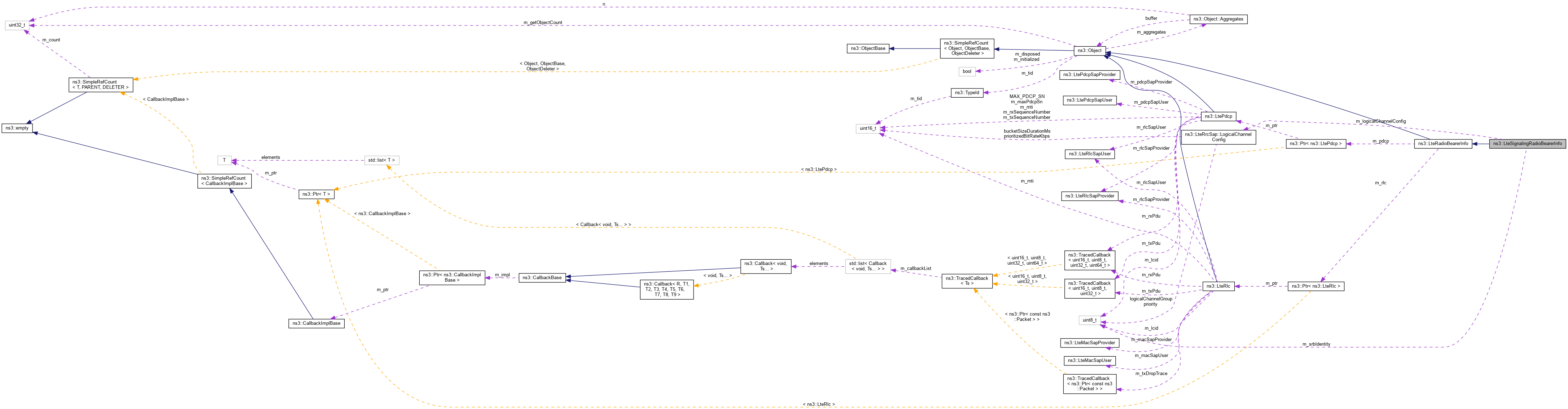

Collaboration diagram for ns3::LteSignalingRadioBearerInfo:

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::LteRadioBearerInfo
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
LteRrcSap::LogicalChannelConfig	m_logicalChannelConfig
	logical channel config More...

uint8_t	m_srbIdentity
	SRB indentity. More...

Public Attributes inherited from ns3::LteRadioBearerInfo
Ptr< LtePdcp >	m_pdcp
	PDCP. More...

Ptr< LteRlc >	m_rlc
	RLC. More...

Additional Inherited Members
Public Member Functions inherited from ns3::LteRadioBearerInfo
	LteRadioBearerInfo (void)

virtual	~LteRadioBearerInfo (void)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

store information on active signaling radio bearer instance

Config Paths

ns3::LteSignalingRadioBearerInfo is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1"

Attributes

SrbIdentity: The id of this Signaling Radio Bearer
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read
LteRlc: RLC instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteRlc>
- Initial value: 0
- Flags: construct write read
LtePdcp: PDCP instance of the radio bearer.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LtePdcp>
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 18446744073709551615 bytes (on a 64-bit architecture).

Definition at line 60 of file lte-radio-bearer-info.h.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::LteSignalingRadioBearerInfo::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 92 of file lte-radio-bearer-info.cc.

References ns3::TypeId::ATTR_GET, ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, m_srbIdentity, ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

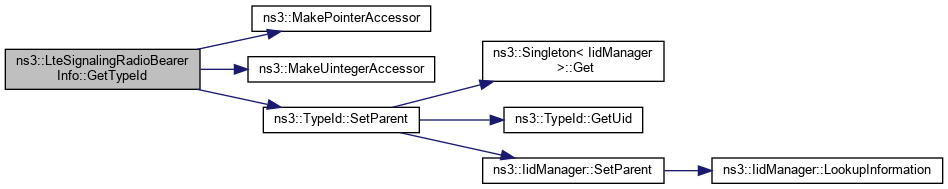

Here is the call graph for this function:

Member Data Documentation

◆ m_logicalChannelConfig

LteRrcSap::LogicalChannelConfig ns3::LteSignalingRadioBearerInfo::m_logicalChannelConfig

logical channel config

Definition at line 71 of file lte-radio-bearer-info.h.

◆ m_srbIdentity

uint8_t ns3::LteSignalingRadioBearerInfo::m_srbIdentity

SRB indentity.

Definition at line 70 of file lte-radio-bearer-info.h.

Referenced by GetTypeId().

The documentation for this class was generated from the following files:

src/lte/model/lte-radio-bearer-info.h
src/lte/model/lte-radio-bearer-info.cc
