ns3::LteUePhySapProvider Class Reference

Service Access Point (SAP) offered by the UE-PHY to the UE-MAC. More...

#include "lte-ue-phy-sap.h"

Inheritance diagram for ns3::LteUePhySapProvider:

Public Member Functions
virtual	~LteUePhySapProvider ()
virtual void	NotifyConnectionSuccessful ()=0
	Notify PHY about the successful RRC connection establishment. More...
virtual void	SendLteControlMessage (Ptr< LteControlMessage > msg)=0
	Send SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel. More...
virtual void	SendMacPdu (Ptr< Packet > p)=0
	Send the MAC PDU to the channel. More...
virtual void	SendRachPreamble (uint32_t prachId, uint32_t raRnti)=0
	Send a preamble on the PRACH. More...

Detailed Description

Service Access Point (SAP) offered by the UE-PHY to the UE-MAC.

This is the PHY SAP Provider, i.e., the part of the SAP that contains the PHY methods called by the MAC

Definition at line 38 of file lte-ue-phy-sap.h.

Constructor & Destructor Documentation

~LteUePhySapProvider()

ns3::LteUePhySapProvider::~LteUePhySapProvider ( )

virtual

Definition at line 28 of file lte-ue-phy-sap.cc.

Member Function Documentation

NotifyConnectionSuccessful()

virtual void ns3::LteUePhySapProvider::NotifyConnectionSuccessful ( )

pure virtual

Notify PHY about the successful RRC connection establishment.

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::DoNotifyConnectionSuccessful().

Here is the caller graph for this function:

SendLteControlMessage()

virtual void ns3::LteUePhySapProvider::SendLteControlMessage ( Ptr< LteControlMessage >  msg )

pure virtual

Send SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to send

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::SendReportBufferStatus().

Here is the caller graph for this function:

SendMacPdu()

virtual void ns3::LteUePhySapProvider::SendMacPdu ( Ptr< Packet >  p )

pure virtual

Send the MAC PDU to the channel.

Parameters

p	the MAC PDU to send

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::DoReceiveLteControlMessage(), and ns3::LteUeMac::DoTransmitPdu().

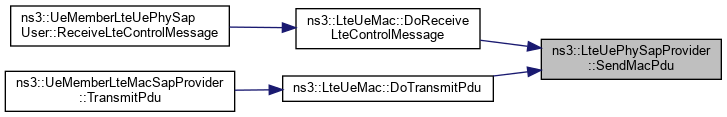

Here is the caller graph for this function:

SendRachPreamble()

virtual void ns3::LteUePhySapProvider::SendRachPreamble ( uint32_t  prachId, uint32_t  raRnti  )

pure virtual

Send a preamble on the PRACH.

Parameters

prachId	the ID of the preamble
raRnti	the RA RNTI

Implemented in ns3::UeMemberLteUePhySapProvider.

Referenced by ns3::LteUeMac::SendRaPreamble().

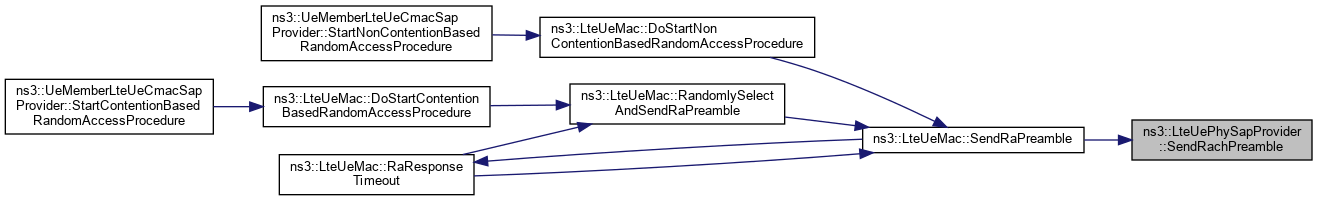

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-ue-phy-sap.h
• src/lte/model/lte-ue-phy-sap.cc
