Mac Management messages Section 6.3.2.3 MAC Management messages page 42, Table 14 page 43. More...

#include "mac-messages.h"

Inheritance diagram for ns3::ManagementMessageType:

Collaboration diagram for ns3::ManagementMessageType:

Public Types
enum	MessageType { MESSAGE_TYPE_UCD = 0 , MESSAGE_TYPE_DCD = 1 , MESSAGE_TYPE_DL_MAP = 2 , MESSAGE_TYPE_UL_MAP = 3 , MESSAGE_TYPE_RNG_REQ = 4 , MESSAGE_TYPE_RNG_RSP = 5 , MESSAGE_TYPE_REG_REQ = 6 , MESSAGE_TYPE_REG_RSP = 7 , MESSAGE_TYPE_DSA_REQ = 11 , MESSAGE_TYPE_DSA_RSP = 12 , MESSAGE_TYPE_DSA_ACK = 13 }
	Message type enumeration. More...

Public Member Functions
	ManagementMessageType (uint8_t type)
	Constructor. More...

	ManagementMessageType (void)

virtual	~ManagementMessageType (void)

uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

std::string	GetName (void) const

uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const
	Get type field. More...

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

void	SetType (uint8_t type)
	Set type field. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_type
	type More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Mac Management messages Section 6.3.2.3 MAC Management messages page 42, Table 14 page 43.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 43 of file mac-messages.h.

Member Enumeration Documentation

◆ MessageType

enum ns3::ManagementMessageType::MessageType

Message type enumeration.

Enumerator
MESSAGE_TYPE_UCD
MESSAGE_TYPE_DCD
MESSAGE_TYPE_DL_MAP
MESSAGE_TYPE_UL_MAP
MESSAGE_TYPE_RNG_REQ
MESSAGE_TYPE_RNG_RSP
MESSAGE_TYPE_REG_REQ
MESSAGE_TYPE_REG_RSP
MESSAGE_TYPE_DSA_REQ
MESSAGE_TYPE_DSA_RSP
MESSAGE_TYPE_DSA_ACK

Definition at line 47 of file mac-messages.h.

Constructor & Destructor Documentation

◆ ManagementMessageType() [1/2]

ns3::ManagementMessageType::ManagementMessageType ( void )

Definition at line 35 of file mac-messages.cc.

◆ ManagementMessageType() [2/2]

ns3::ManagementMessageType::ManagementMessageType ( uint8_t type )

Constructor.

Parameters

type	message type

Definition at line 40 of file mac-messages.cc.

◆ ~ManagementMessageType()

ns3::ManagementMessageType::~ManagementMessageType ( void )

virtual

Definition at line 45 of file mac-messages.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::ManagementMessageType::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 105 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_type, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::ManagementMessageType::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 80 of file mac-messages.cc.

References GetTypeId().

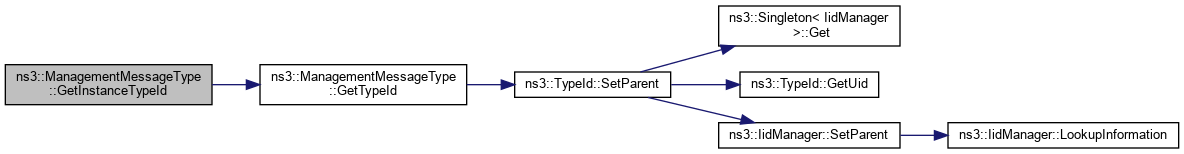

Here is the call graph for this function:

◆ GetName()

std::string ns3::ManagementMessageType::GetName ( void ) const

Returns: the name field

Definition at line 62 of file mac-messages.cc.

◆ GetSerializedSize()

uint32_t ns3::ManagementMessageType::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 92 of file mac-messages.cc.

◆ GetType()

uint8_t ns3::ManagementMessageType::GetType ( void ) const

Get type field.

Returns: the type value

Definition at line 56 of file mac-messages.cc.

References m_type.

Referenced by ns3::BaseStationNetDevice::DoReceive(), and ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ManagementMessageType::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 68 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::ManagementMessageType::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 86 of file mac-messages.cc.

References m_type.

◆ Serialize()

void ns3::ManagementMessageType::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 98 of file mac-messages.cc.

References m_type, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

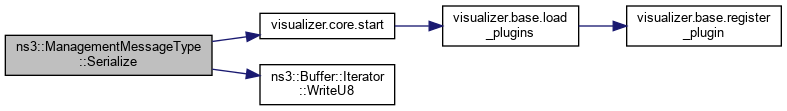

Here is the call graph for this function:

◆ SetType()

void ns3::ManagementMessageType::SetType ( uint8_t type )

Set type field.

Parameters

type the type

Definition at line 50 of file mac-messages.cc.

References m_type.

Member Data Documentation

◆ m_type

uint8_t ns3::ManagementMessageType::m_type

private

type

Definition at line 94 of file mac-messages.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

The documentation for this class was generated from the following files:

src/wimax/model/mac-messages.h
src/wimax/model/mac-messages.cc
