ns3::MemberCschedSapProvider< C > Class Template Reference

MemberCschedSapProvider class. More...

#include "ff-mac-csched-sap.h"

Inheritance diagram for ns3::MemberCschedSapProvider< C >:

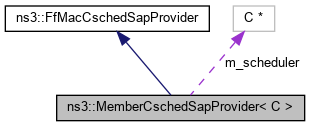

Collaboration diagram for ns3::MemberCschedSapProvider< C >:

Public Member Functions
	MemberCschedSapProvider (C *scheduler)
	Constructor. More...
virtual void	CschedCellConfigReq (const struct CschedCellConfigReqParameters &params)
	CSCHED_CELL_CONFIG_REQ. More...
virtual void	CschedLcConfigReq (const struct CschedLcConfigReqParameters &params)
	CSCHED_LC_CONFIG_REQ. More...
virtual void	CschedLcReleaseReq (const struct CschedLcReleaseReqParameters &params)
	CSCHED_LC_RELEASE_REQ. More...
virtual void	CschedUeConfigReq (const struct CschedUeConfigReqParameters &params)
	CSCHED_UE_CONFIG_REQ. More...
virtual void	CschedUeReleaseReq (const struct CschedUeReleaseReqParameters &params)
	CSCHED_UE_RELEASE_REQ. More...
Public Member Functions inherited from ns3::FfMacCschedSapProvider
virtual	~FfMacCschedSapProvider ()

Private Member Functions
	MemberCschedSapProvider ()

Private Attributes
C *	m_scheduler
	scheduler class More...

Detailed Description

template<class C>
class ns3::MemberCschedSapProvider< C >

MemberCschedSapProvider class.

Definition at line 445 of file ff-mac-csched-sap.h.

Constructor & Destructor Documentation

MemberCschedSapProvider() [1/2]

template<class C >

ns3::MemberCschedSapProvider< C >::MemberCschedSapProvider

(

C *

scheduler

)

Constructor.

Parameters

scheduler

the scheduler class

Definition at line 473 of file ff-mac-csched-sap.h.

MemberCschedSapProvider() [2/2]

template<class C >

ns3::MemberCschedSapProvider< C >::MemberCschedSapProvider

private

Definition at line 468 of file ff-mac-csched-sap.h.

Member Function Documentation

CschedCellConfigReq()

template<class C >

void ns3::MemberCschedSapProvider< C >::CschedCellConfigReq ( const struct CschedCellConfigReqParameters &  params )

virtual

CSCHED_CELL_CONFIG_REQ.

Parameters

params

CschedCellConfigReqParameters

Implements ns3::FfMacCschedSapProvider.

Definition at line 479 of file ff-mac-csched-sap.h.

CschedLcConfigReq()

template<class C >

void ns3::MemberCschedSapProvider< C >::CschedLcConfigReq ( const struct CschedLcConfigReqParameters &  params )

virtual

CSCHED_LC_CONFIG_REQ.

Parameters

params

CschedLcConfigReqParameters

Implements ns3::FfMacCschedSapProvider.

Definition at line 493 of file ff-mac-csched-sap.h.

CschedLcReleaseReq()

template<class C >

void ns3::MemberCschedSapProvider< C >::CschedLcReleaseReq ( const struct CschedLcReleaseReqParameters &  params )

virtual

CSCHED_LC_RELEASE_REQ.

Parameters

params

CschedLcReleaseReqParameters

Implements ns3::FfMacCschedSapProvider.

Definition at line 500 of file ff-mac-csched-sap.h.

CschedUeConfigReq()

template<class C >

void ns3::MemberCschedSapProvider< C >::CschedUeConfigReq ( const struct CschedUeConfigReqParameters &  params )

virtual

CSCHED_UE_CONFIG_REQ.

Parameters

params

CschedUeConfigReqParameters

Implements ns3::FfMacCschedSapProvider.

Definition at line 486 of file ff-mac-csched-sap.h.

CschedUeReleaseReq()

template<class C >

void ns3::MemberCschedSapProvider< C >::CschedUeReleaseReq ( const struct CschedUeReleaseReqParameters &  params )

virtual

CSCHED_UE_RELEASE_REQ.

Parameters

params

CschedUeReleaseReqParameters

Implements ns3::FfMacCschedSapProvider.

Definition at line 507 of file ff-mac-csched-sap.h.

Member Data Documentation

m_scheduler

template<class C >

C* ns3::MemberCschedSapProvider< C >::m_scheduler

private

scheduler class

Definition at line 464 of file ff-mac-csched-sap.h.

---

The documentation for this class was generated from the following file:

• src/lte/model/ff-mac-csched-sap.h
