Template for the implementation of the LteUeCphySapProvider as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-ue-cphy-sap.h"

Inheritance diagram for ns3::MemberLteUeCphySapProvider< C >:

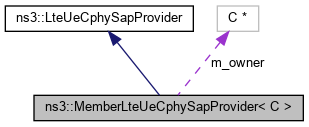

Collaboration diagram for ns3::MemberLteUeCphySapProvider< C >:

Public Member Functions
	MemberLteUeCphySapProvider (C *owner)
	Constructor. More...

virtual void	ConfigureReferenceSignalPower (int8_t referenceSignalPower)
	Configure referenceSignalPower. More...

virtual void	ConfigureUplink (uint32_t ulEarfcn, uint16_t ulBandwidth)
	Configure uplink (normally done after reception of SIB2) More...

virtual uint16_t	GetCellId ()
	Get PHY cell ID. More...

virtual uint32_t	GetDlEarfcn ()
	Get PHY DL EARFCN. More...

virtual void	Reset ()
	reset the PHY More...

virtual void	ResetPhyAfterRlf ()
	Reset the PHY after radio link failure function It resets the physical layer parameters of the UE after RLF. More...

virtual void	ResetRlfParams ()
	Reset radio link failure parameters. More...

virtual void	SetDlBandwidth (uint16_t dlBandwidth)

virtual void	SetImsi (uint64_t imsi)
	A method call by UE RRC to communicate the IMSI to the UE PHY. More...

virtual void	SetPa (double pa)
	Set P_A value for UE power control. More...

virtual void	SetRnti (uint16_t rnti)
	Set Rnti function. More...

virtual void	SetRsrpFilterCoefficient (uint8_t rsrpFilterCoefficient)
	Set RSRP filter coefficient. More...

virtual void	SetSrsConfigurationIndex (uint16_t srcCi)
	Set SRS configuration index. More...

virtual void	SetTransmissionMode (uint8_t txMode)
	Set transmission mode. More...

virtual void	StartCellSearch (uint32_t dlEarfcn)
	Tell the PHY entity to listen to PSS from surrounding cells and measure the RSRP. More...

virtual void	StartInSnycDetection ()
	Start in-sync detection function When T310 timer is started, it indicates that physical layer problems are detected at the UE and the recovery process is started by checking if the radio frames are in-sync for N311 consecutive times. More...

virtual void	SynchronizeWithEnb (uint16_t cellId)
	Tell the PHY entity to synchronize with a given eNodeB over the currently active EARFCN for communication purposes. More...

virtual void	SynchronizeWithEnb (uint16_t cellId, uint32_t dlEarfcn)
	Tell the PHY entity to align to the given EARFCN and synchronize with a given eNodeB for communication purposes. More...

Public Member Functions inherited from ns3::LteUeCphySapProvider
virtual	~LteUeCphySapProvider ()
	destructor More...

Private Member Functions
	MemberLteUeCphySapProvider ()

Private Attributes
C *	m_owner
	the owner class More...

Detailed Description

template<class C>
class ns3::MemberLteUeCphySapProvider< C >

Template for the implementation of the LteUeCphySapProvider as a member of an owner class of type C to which all methods are forwarded.

Definition at line 316 of file lte-ue-cphy-sap.h.

Constructor & Destructor Documentation

◆ MemberLteUeCphySapProvider() [1/2]

template<class C >

ns3::MemberLteUeCphySapProvider< C >::MemberLteUeCphySapProvider ( C * owner )

Constructor.

Parameters

owner the owner class

Definition at line 352 of file lte-ue-cphy-sap.h.

◆ MemberLteUeCphySapProvider() [2/2]

template<class C >

ns3::MemberLteUeCphySapProvider< C >::MemberLteUeCphySapProvider

private

Definition at line 358 of file lte-ue-cphy-sap.h.

Member Function Documentation

◆ ConfigureReferenceSignalPower()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::ConfigureReferenceSignalPower ( int8_t referenceSignalPower )

virtual

Configure referenceSignalPower.

Parameters

referenceSignalPower received from eNB in SIB2

Implements ns3::LteUeCphySapProvider.

Definition at line 420 of file lte-ue-cphy-sap.h.

◆ ConfigureUplink()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::ConfigureUplink	(	uint32_t	ulEarfcn,
		uint16_t	ulBandwidth
	)

virtual

Configure uplink (normally done after reception of SIB2)

Parameters

ulEarfcn	the uplink carrier frequency (EARFCN)
ulBandwidth	the UL bandwidth in number of PRBs

Implements ns3::LteUeCphySapProvider.

Definition at line 413 of file lte-ue-cphy-sap.h.

◆ GetCellId()

template<class C >

uint16_t ns3::MemberLteUeCphySapProvider< C >::GetCellId ( )

virtual

Get PHY cell ID.

Returns: cell ID this PHY is synchronized to

Implements ns3::LteUeCphySapProvider.

Definition at line 392 of file lte-ue-cphy-sap.h.

◆ GetDlEarfcn()

template<class C >

uint32_t ns3::MemberLteUeCphySapProvider< C >::GetDlEarfcn ( )

virtual

Get PHY DL EARFCN.

Returns: DL EARFCN this PHY is synchronized to

Implements ns3::LteUeCphySapProvider.

Definition at line 399 of file lte-ue-cphy-sap.h.

◆ Reset()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::Reset ( )

virtual

reset the PHY

Implements ns3::LteUeCphySapProvider.

Definition at line 364 of file lte-ue-cphy-sap.h.

◆ ResetPhyAfterRlf()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::ResetPhyAfterRlf ( )

virtual

Reset the PHY after radio link failure function It resets the physical layer parameters of the UE after RLF.

Implements ns3::LteUeCphySapProvider.

Definition at line 462 of file lte-ue-cphy-sap.h.

◆ ResetRlfParams()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::ResetRlfParams ( )

virtual

Reset radio link failure parameters.

Upon receiving N311 in-sync indications from the UE PHY the UE RRC instructs the UE PHY to reset the RLF parameters so, it can start RLF detection again.

Implements ns3::LteUeCphySapProvider.

Definition at line 468 of file lte-ue-cphy-sap.h.

◆ SetDlBandwidth()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetDlBandwidth ( uint16_t dlBandwidth )

virtual

Parameters

dlBandwidth the DL bandwidth in number of PRBs

Implements ns3::LteUeCphySapProvider.

Definition at line 406 of file lte-ue-cphy-sap.h.

◆ SetImsi()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetImsi ( uint64_t imsi )

virtual

A method call by UE RRC to communicate the IMSI to the UE PHY.

Parameters

imsi	the IMSI of the UE

Implements ns3::LteUeCphySapProvider.

Definition at line 480 of file lte-ue-cphy-sap.h.

◆ SetPa()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetPa ( double pa )

virtual

Set P_A value for UE power control.

Parameters

pa	the P_A value

Implements ns3::LteUeCphySapProvider.

Definition at line 448 of file lte-ue-cphy-sap.h.

◆ SetRnti()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetRnti ( uint16_t rnti )

virtual

Set Rnti function.

Parameters

rnti	the cell-specific UE identifier

Implements ns3::LteUeCphySapProvider.

Definition at line 427 of file lte-ue-cphy-sap.h.

◆ SetRsrpFilterCoefficient()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetRsrpFilterCoefficient ( uint8_t rsrpFilterCoefficient )

virtual

Set RSRP filter coefficient.

Determines the strength of smoothing effect induced by layer 3 filtering of RSRP used for uplink power control in all attached UE. If equals to 0, no layer 3 filtering is applicable.

Parameters

rsrpFilterCoefficient value.

Implements ns3::LteUeCphySapProvider.

Definition at line 455 of file lte-ue-cphy-sap.h.

◆ SetSrsConfigurationIndex()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetSrsConfigurationIndex ( uint16_t srcCi )

virtual

Set SRS configuration index.

Parameters

srcCi the SRS configuration index

Implements ns3::LteUeCphySapProvider.

Definition at line 441 of file lte-ue-cphy-sap.h.

◆ SetTransmissionMode()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SetTransmissionMode ( uint8_t txMode )

virtual

Set transmission mode.

Parameters

txMode the transmissionMode of the user

Implements ns3::LteUeCphySapProvider.

Definition at line 434 of file lte-ue-cphy-sap.h.

◆ StartCellSearch()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::StartCellSearch ( uint32_t dlEarfcn )

virtual

Tell the PHY entity to listen to PSS from surrounding cells and measure the RSRP.

Parameters

dlEarfcn the downlink carrier frequency (EARFCN) to listen to

This function will instruct this PHY instance to listen to the DL channel over the bandwidth of 6 RB at the frequency associated with the given EARFCN.

After this, it will start receiving Primary Synchronization Signal (PSS) and periodically returning measurement reports to RRC via LteUeCphySapUser::ReportUeMeasurements function.

Implements ns3::LteUeCphySapProvider.

Definition at line 371 of file lte-ue-cphy-sap.h.

◆ StartInSnycDetection()

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::StartInSnycDetection ( )

virtual

Start in-sync detection function When T310 timer is started, it indicates that physical layer problems are detected at the UE and the recovery process is started by checking if the radio frames are in-sync for N311 consecutive times.

Implements ns3::LteUeCphySapProvider.

Definition at line 474 of file lte-ue-cphy-sap.h.

◆ SynchronizeWithEnb() [1/2]

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SynchronizeWithEnb ( uint16_t cellId )

virtual

Tell the PHY entity to synchronize with a given eNodeB over the currently active EARFCN for communication purposes.

Parameters

cellId the ID of the eNodeB to synchronize with

By synchronizing, the PHY will start receiving various information transmitted by the eNodeB. For instance, when receiving system information, the message will be relayed to RRC via LteUeCphySapUser::RecvMasterInformationBlock and LteUeCphySapUser::RecvSystemInformationBlockType1 functions.

Initially, the PHY will be configured to listen to 6 RBs of BCH. LteUeCphySapProvider::SetDlBandwidth can be called afterwards to increase the bandwidth.

Implements ns3::LteUeCphySapProvider.

Definition at line 378 of file lte-ue-cphy-sap.h.

◆ SynchronizeWithEnb() [2/2]

template<class C >

void ns3::MemberLteUeCphySapProvider< C >::SynchronizeWithEnb	(	uint16_t	cellId,
		uint32_t	dlEarfcn
	)

virtual

Tell the PHY entity to align to the given EARFCN and synchronize with a given eNodeB for communication purposes.

Parameters

cellId	the ID of the eNodeB to synchronize with
dlEarfcn	the downlink carrier frequency (EARFCN)

By synchronizing, the PHY will start receiving various information transmitted by the eNodeB. For instance, when receiving system information, the message will be relayed to RRC via LteUeCphySapUser::RecvMasterInformationBlock and LteUeCphySapUser::RecvSystemInformationBlockType1 functions.

Initially, the PHY will be configured to listen to 6 RBs of BCH. LteUeCphySapProvider::SetDlBandwidth can be called afterwards to increase the bandwidth.

Implements ns3::LteUeCphySapProvider.

Definition at line 385 of file lte-ue-cphy-sap.h.

Member Data Documentation

◆ m_owner

template<class C >

C* ns3::MemberLteUeCphySapProvider< C >::m_owner

private

the owner class

Definition at line 348 of file lte-ue-cphy-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-ue-cphy-sap.h
