Template for the implementation of the LteUeRrcSapUser as a member of an owner class of type C to which all methods are forwarded. More...

#include "lte-rrc-sap.h"

Inheritance diagram for ns3::MemberLteUeRrcSapUser< C >:

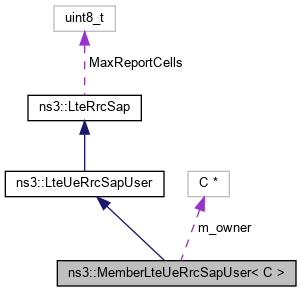

Collaboration diagram for ns3::MemberLteUeRrcSapUser< C >:

Public Member Functions
	MemberLteUeRrcSapUser (C *owner)
	Constructor. More...

virtual void	SendIdealUeContextRemoveRequest (uint16_t rnti)
	Send UE context remove request function. More...

virtual void	SendMeasurementReport (MeasurementReport msg)
	Send a MeasurementReport message to the serving eNodeB during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...

virtual void	SendRrcConnectionReconfigurationCompleted (RrcConnectionReconfigurationCompleted msg)
	Send an RRCConnectionReconfigurationComplete message to the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void	SendRrcConnectionReestablishmentComplete (RrcConnectionReestablishmentComplete msg)
	Send an RRCConnectionReestablishmentComplete message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	SendRrcConnectionReestablishmentRequest (RrcConnectionReestablishmentRequest msg)
	Send an RRCConnectionReestablishmentRequest message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void	SendRrcConnectionRequest (RrcConnectionRequest msg)
	Send an _RRCConnectionRequest message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	SendRrcConnectionSetupCompleted (RrcConnectionSetupCompleted msg)
	Send an RRCConnectionSetupComplete message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void	Setup (SetupParameters params)
	Setup function. More...

Public Member Functions inherited from ns3::LteRrcSap
virtual	~LteRrcSap ()

Private Member Functions
	MemberLteUeRrcSapUser ()

Private Attributes
C *	m_owner
	the owner class More...

Additional Inherited Members
Public Types inherited from ns3::LteRrcSap
enum	ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
	ReestablishmentCause enumeration. More...

Static Public Member Functions inherited from ns3::LteRrcSap
static double	ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
	Convert PDSCH config dedicated function. More...

Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t	MaxReportCells = 8
	Constraint values. More...

Detailed Description

template<class C>
class ns3::MemberLteUeRrcSapUser< C >

Template for the implementation of the LteUeRrcSapUser as a member of an owner class of type C to which all methods are forwarded.

Definition at line 1305 of file lte-rrc-sap.h.

Constructor & Destructor Documentation

◆ MemberLteUeRrcSapUser() [1/2]

template<class C >

ns3::MemberLteUeRrcSapUser< C >::MemberLteUeRrcSapUser ( C * owner )

Constructor.

Parameters

owner the owner class

Definition at line 1331 of file lte-rrc-sap.h.

◆ MemberLteUeRrcSapUser() [2/2]

template<class C >

ns3::MemberLteUeRrcSapUser< C >::MemberLteUeRrcSapUser

private

Definition at line 1337 of file lte-rrc-sap.h.

Member Function Documentation

◆ SendIdealUeContextRemoveRequest()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendIdealUeContextRemoveRequest ( uint16_t rnti )

virtual

Send UE context remove request function.

Request eNodeB to remove UE context once radio link failure or random access failure is detected. It is needed since no RLF detection mechanism at eNodeB is implemented.

Parameters

rnti	the C-RNTI of the UE

Implements ns3::LteUeRrcSapUser.

Definition at line 1392 of file lte-rrc-sap.h.

◆ SendMeasurementReport()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendMeasurementReport ( MeasurementReport msg )

virtual

Send a MeasurementReport message to the serving eNodeB during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapUser.

Definition at line 1385 of file lte-rrc-sap.h.

◆ SendRrcConnectionReconfigurationCompleted()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendRrcConnectionReconfigurationCompleted ( RrcConnectionReconfigurationCompleted msg )

virtual

Send an RRCConnectionReconfigurationComplete message to the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapUser.

Definition at line 1364 of file lte-rrc-sap.h.

◆ SendRrcConnectionReestablishmentComplete()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendRrcConnectionReestablishmentComplete ( RrcConnectionReestablishmentComplete msg )

virtual

Send an RRCConnectionReestablishmentComplete message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapUser.

Definition at line 1378 of file lte-rrc-sap.h.

◆ SendRrcConnectionReestablishmentRequest()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendRrcConnectionReestablishmentRequest ( RrcConnectionReestablishmentRequest msg )

virtual

Send an RRCConnectionReestablishmentRequest message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapUser.

Definition at line 1371 of file lte-rrc-sap.h.

◆ SendRrcConnectionRequest()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendRrcConnectionRequest ( RrcConnectionRequest msg )

virtual

Send an _RRCConnectionRequest message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapUser.

Definition at line 1350 of file lte-rrc-sap.h.

◆ SendRrcConnectionSetupCompleted()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::SendRrcConnectionSetupCompleted ( RrcConnectionSetupCompleted msg )

virtual

Send an RRCConnectionSetupComplete message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters

msg	the message

Implements ns3::LteUeRrcSapUser.

Definition at line 1357 of file lte-rrc-sap.h.

◆ Setup()

template<class C >

void ns3::MemberLteUeRrcSapUser< C >::Setup ( SetupParameters params )

virtual

Setup function.

Parameters

params the setup parameters

Implements ns3::LteUeRrcSapUser.

Definition at line 1343 of file lte-rrc-sap.h.

Member Data Documentation

◆ m_owner

template<class C >

C* ns3::MemberLteUeRrcSapUser< C >::m_owner

private

the owner class

Definition at line 1327 of file lte-rrc-sap.h.

The documentation for this class was generated from the following file:

src/lte/model/lte-rrc-sap.h
