Abstract model for broadcasting the Master Information Block (MIB) within the control channel (BCCH). More...

#include "lte-control-messages.h"

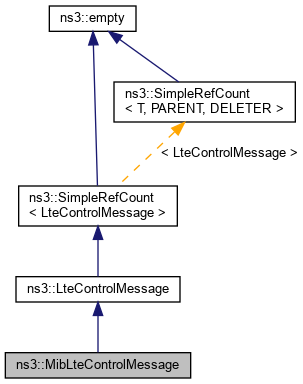

Inheritance diagram for ns3::MibLteControlMessage:

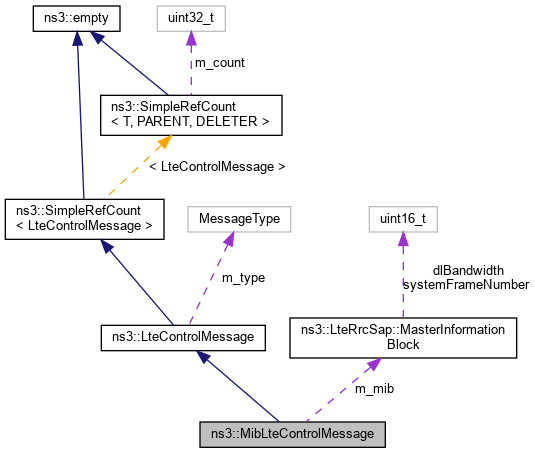

Collaboration diagram for ns3::MibLteControlMessage:

Public Member Functions
	MibLteControlMessage (void)
	Create a new instance of MIB control message. More...

LteRrcSap::MasterInformationBlock	GetMib () const
	Retrieve the MIB content from this control message. More...

void	SetMib (LteRrcSap::MasterInformationBlock mib)
	Replace the MIB content of this control message. More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
LteRrcSap::MasterInformationBlock	m_mib
	MIB. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI , UL_DCI , DL_CQI , UL_CQI , BSR , DL_HARQ , RACH_PREAMBLE , RAR , MIB , SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Detailed Description

Abstract model for broadcasting the Master Information Block (MIB) within the control channel (BCCH).

MIB is transmitted by eNodeB RRC and received by UE RRC at every radio frame, i.e., every 10 milliseconds.

See also: LteEnbRrc::ConfigureCell, LteEnbPhy::StartFrame, LteUeRrc::DoRecvMasterInformationBlock

Definition at line 341 of file lte-control-messages.h.

Constructor & Destructor Documentation

◆ MibLteControlMessage()

ns3::MibLteControlMessage::MibLteControlMessage ( void )

Create a new instance of MIB control message.

Definition at line 241 of file lte-control-messages.cc.

References ns3::LteControlMessage::MIB, and ns3::LteControlMessage::SetMessageType().

Here is the call graph for this function:

Member Function Documentation

◆ GetMib()

LteRrcSap::MasterInformationBlock ns3::MibLteControlMessage::GetMib ( ) const

Retrieve the MIB content from this control message.

Returns: the current MIB content that this control message holds

Definition at line 254 of file lte-control-messages.cc.

References m_mib.

◆ SetMib()

void ns3::MibLteControlMessage::SetMib ( LteRrcSap::MasterInformationBlock mib )

Replace the MIB content of this control message.

Parameters

mib	the desired MIB content

Definition at line 248 of file lte-control-messages.cc.

References m_mib.

Member Data Documentation

◆ m_mib

LteRrcSap::MasterInformationBlock ns3::MibLteControlMessage::m_mib

private

MIB.

Definition at line 362 of file lte-control-messages.h.

Referenced by GetMib(), and SetMib().

The documentation for this class was generated from the following files:

src/lte/model/lte-control-messages.h
src/lte/model/lte-control-messages.cc
