This class implements the OFDM DCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems". More...

#include "dl-mac-messages.h"

Inheritance diagram for ns3::OfdmDcdChannelEncodings:

Collaboration diagram for ns3::OfdmDcdChannelEncodings:

Public Member Functions
	OfdmDcdChannelEncodings (void)

	~OfdmDcdChannelEncodings (void)

Mac48Address	GetBaseStationId (void) const
	Get base station ID field. More...

uint8_t	GetChannelNr (void) const
	Get channel number field. More...

uint8_t	GetFrameDurationCode (void) const
	Get frame duration code field. More...

uint32_t	GetFrameNumber (void) const
	Get frame number field. More...

uint8_t	GetRtg (void) const
	Get RTG field. More...

uint16_t	GetSize (void) const
	Get size field. More...

uint8_t	GetTtg (void) const
	Get TTG field. More...

void	SetBaseStationId (Mac48Address baseStationId)
	Set base station ID field. More...

void	SetChannelNr (uint8_t channelNr)
	Set channel number field. More...

void	SetFrameDurationCode (uint8_t frameDurationCode)
	Set frame duration code field. More...

void	SetFrameNumber (uint32_t frameNumber)
	Set frame number field. More...

void	SetRtg (uint8_t rtg)
	Set RTG field. More...

void	SetTtg (uint8_t ttg)
	Set TTG field. More...

Public Member Functions inherited from ns3::DcdChannelEncodings
	DcdChannelEncodings (void)

virtual	~DcdChannelEncodings (void)

uint16_t	GetBsEirp (void) const
	Get BS EIRP field. More...

uint16_t	GetEirxPIrMax (void) const
	Get EIRX IR MAX field. More...

uint32_t	GetFrequency (void) const
	Get frequency function. More...

uint16_t	GetSize (void) const
	Get size field. More...

Buffer::Iterator	Read (Buffer::Iterator start)
	Read item. More...

void	SetBsEirp (uint16_t bs_eirp)
	Set BS EIRP field. More...

void	SetEirxPIrMax (uint16_t rss_ir_max)
	Set EIRX IR MAX field. More...

void	SetFrequency (uint32_t frequency)
	Set frequency field. More...

Buffer::Iterator	Write (Buffer::Iterator start) const
	Write item. More...

Private Member Functions
virtual Buffer::Iterator	DoRead (Buffer::Iterator start)
	Read item. More...

virtual Buffer::Iterator	DoWrite (Buffer::Iterator start) const
	Write item. More...

Private Attributes
Mac48Address	m_baseStationId
	base station ID More...

uint8_t	m_channelNr
	channel number More...

uint8_t	m_frameDurationCode
	frame duration code More...

uint32_t	m_frameNumber
	frame number More...

uint8_t	m_rtg
	RTG. More...

uint8_t	m_ttg
	TTG. More...

Detailed Description

This class implements the OFDM DCD channel encodings as described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems".

Definition at line 132 of file dl-mac-messages.h.

Constructor & Destructor Documentation

◆ OfdmDcdChannelEncodings()

ns3::OfdmDcdChannelEncodings::OfdmDcdChannelEncodings ( void )

Definition at line 105 of file dl-mac-messages.cc.

◆ ~OfdmDcdChannelEncodings()

ns3::OfdmDcdChannelEncodings::~OfdmDcdChannelEncodings ( void )

Definition at line 115 of file dl-mac-messages.cc.

Member Function Documentation

◆ DoRead()

Buffer::Iterator ns3::OfdmDcdChannelEncodings::DoRead ( Buffer::Iterator start )

privatevirtual

Read item.

Parameters

start the iterator

Returns: the updated iterator

Implements ns3::DcdChannelEncodings.

Definition at line 211 of file dl-mac-messages.cc.

References m_baseStationId, m_channelNr, m_frameDurationCode, m_frameNumber, m_rtg, m_ttg, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

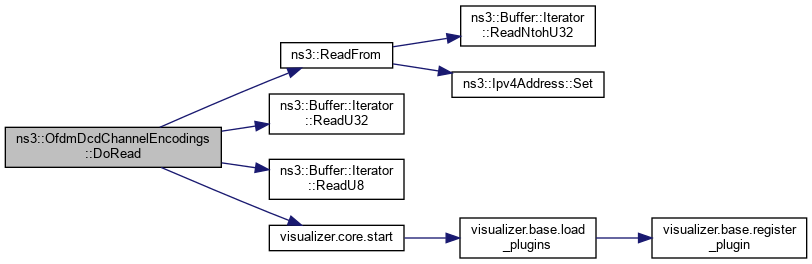

Here is the call graph for this function:

◆ DoWrite()

Buffer::Iterator ns3::OfdmDcdChannelEncodings::DoWrite ( Buffer::Iterator start ) const

privatevirtual

Write item.

Parameters

start the iterator

Returns: the updated iterator

Implements ns3::DcdChannelEncodings.

Definition at line 198 of file dl-mac-messages.cc.

References m_baseStationId, m_channelNr, m_frameDurationCode, m_frameNumber, m_rtg, m_ttg, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

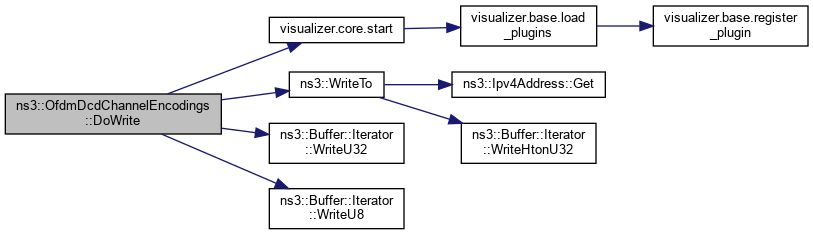

Here is the call graph for this function:

◆ GetBaseStationId()

Mac48Address ns3::OfdmDcdChannelEncodings::GetBaseStationId ( void ) const

Get base station ID field.

Returns: the base station MAC address

Definition at line 174 of file dl-mac-messages.cc.

References m_baseStationId.

◆ GetChannelNr()

uint8_t ns3::OfdmDcdChannelEncodings::GetChannelNr ( void ) const

Get channel number field.

Returns: the channel number

Definition at line 156 of file dl-mac-messages.cc.

References m_channelNr.

◆ GetFrameDurationCode()

uint8_t ns3::OfdmDcdChannelEncodings::GetFrameDurationCode ( void ) const

Get frame duration code field.

Returns: the frame duration code

Definition at line 180 of file dl-mac-messages.cc.

References m_frameDurationCode.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

◆ GetFrameNumber()

uint32_t ns3::OfdmDcdChannelEncodings::GetFrameNumber ( void ) const

Get frame number field.

Returns: the frame number

Definition at line 186 of file dl-mac-messages.cc.

References m_frameNumber.

◆ GetRtg()

uint8_t ns3::OfdmDcdChannelEncodings::GetRtg ( void ) const

Get RTG field.

Returns: the RTG

Definition at line 168 of file dl-mac-messages.cc.

References m_rtg.

◆ GetSize()

uint16_t ns3::OfdmDcdChannelEncodings::GetSize ( void ) const

Get size field.

Returns: the size

Definition at line 192 of file dl-mac-messages.cc.

References ns3::DcdChannelEncodings::GetSize().

Referenced by ns3::Dcd::GetSerializedSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTtg()

uint8_t ns3::OfdmDcdChannelEncodings::GetTtg ( void ) const

Get TTG field.

Returns: the TTG

Definition at line 162 of file dl-mac-messages.cc.

References m_ttg.

◆ SetBaseStationId()

void ns3::OfdmDcdChannelEncodings::SetBaseStationId ( Mac48Address baseStationId )

Set base station ID field.

Parameters

baseStationId the base station ID

Definition at line 138 of file dl-mac-messages.cc.

References m_baseStationId.

Referenced by ns3::BaseStationNetDevice::CreateDcd().

Here is the caller graph for this function:

◆ SetChannelNr()

void ns3::OfdmDcdChannelEncodings::SetChannelNr ( uint8_t channelNr )

Set channel number field.

Parameters

channelNr the channel number

Definition at line 120 of file dl-mac-messages.cc.

References m_channelNr.

Referenced by ns3::BaseStationNetDevice::CreateDcd().

Here is the caller graph for this function:

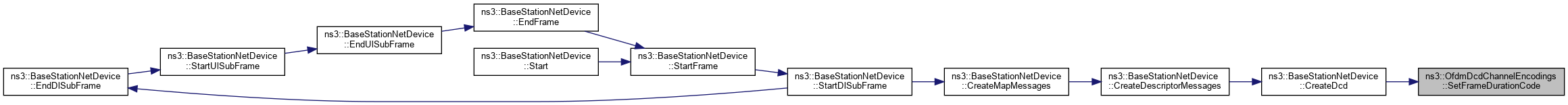

◆ SetFrameDurationCode()

void ns3::OfdmDcdChannelEncodings::SetFrameDurationCode ( uint8_t frameDurationCode )

Set frame duration code field.

Parameters

frameDurationCode the frame duration code

Definition at line 144 of file dl-mac-messages.cc.

References m_frameDurationCode.

Referenced by ns3::BaseStationNetDevice::CreateDcd().

Here is the caller graph for this function:

◆ SetFrameNumber()

void ns3::OfdmDcdChannelEncodings::SetFrameNumber ( uint32_t frameNumber )

Set frame number field.

Parameters

frameNumber the frame number

Definition at line 150 of file dl-mac-messages.cc.

References m_frameNumber.

Referenced by ns3::BaseStationNetDevice::CreateDcd().

Here is the caller graph for this function:

◆ SetRtg()

void ns3::OfdmDcdChannelEncodings::SetRtg ( uint8_t rtg )

Set RTG field.

Parameters

rtg the RTG

Definition at line 132 of file dl-mac-messages.cc.

References m_rtg.

Referenced by ns3::BaseStationNetDevice::CreateDcd().

Here is the caller graph for this function:

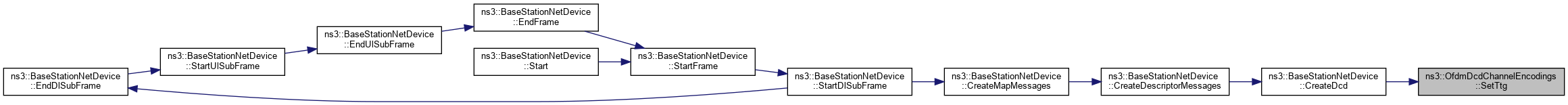

◆ SetTtg()

void ns3::OfdmDcdChannelEncodings::SetTtg ( uint8_t ttg )

Set TTG field.

Parameters

ttg the TTG

Definition at line 126 of file dl-mac-messages.cc.

References m_ttg.

Referenced by ns3::BaseStationNetDevice::CreateDcd().

Here is the caller graph for this function:

Member Data Documentation

◆ m_baseStationId

Mac48Address ns3::OfdmDcdChannelEncodings::m_baseStationId

private

base station ID

Definition at line 225 of file dl-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetBaseStationId(), and SetBaseStationId().

◆ m_channelNr

uint8_t ns3::OfdmDcdChannelEncodings::m_channelNr

private

channel number

Definition at line 221 of file dl-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetChannelNr(), and SetChannelNr().

◆ m_frameDurationCode

uint8_t ns3::OfdmDcdChannelEncodings::m_frameDurationCode

private

frame duration code

Definition at line 226 of file dl-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetFrameDurationCode(), and SetFrameDurationCode().

◆ m_frameNumber

uint32_t ns3::OfdmDcdChannelEncodings::m_frameNumber

private

frame number

Definition at line 227 of file dl-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetFrameNumber(), and SetFrameNumber().

◆ m_rtg

uint8_t ns3::OfdmDcdChannelEncodings::m_rtg

private

RTG.

Definition at line 223 of file dl-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetRtg(), and SetRtg().

◆ m_ttg

uint8_t ns3::OfdmDcdChannelEncodings::m_ttg

private

TTG.

Definition at line 222 of file dl-mac-messages.h.

Referenced by DoRead(), DoWrite(), GetTtg(), and SetTtg().

The documentation for this class was generated from the following files:

src/wimax/model/dl-mac-messages.h
src/wimax/model/dl-mac-messages.cc
