ns3::OfdmDownlinkFramePrefix Class Reference

OfdmDownlinkFramePrefix. More...

#include "ofdm-downlink-frame-prefix.h"

+ Inheritance diagram for ns3::OfdmDownlinkFramePrefix:

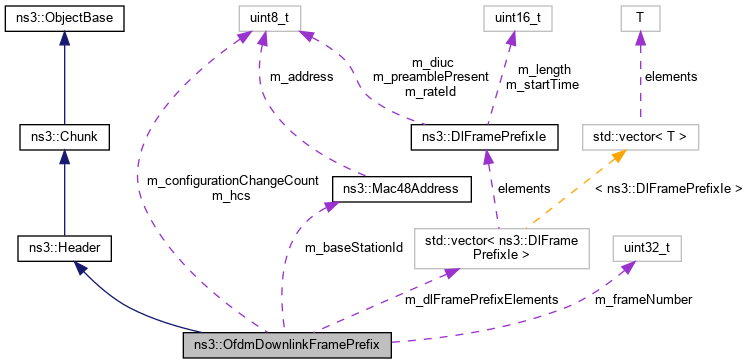

+ Collaboration diagram for ns3::OfdmDownlinkFramePrefix:

Public Member Functions

 OfdmDownlinkFramePrefix ()

 ~OfdmDownlinkFramePrefix ()

void AddDlFramePrefixElement (DlFramePrefixIe dlFramePrefixElement)
 Add DL frame prefix element field. More...

uint32_t Deserialize (Buffer::Iterator start)

Mac48Address GetBaseStationId (void) const
 Get base station ID field. More...

uint8_t GetConfigurationChangeCount (void) const
 Get configuration change count field. More...

std::vector< DlFramePrefixIeGetDlFramePrefixElements (void) const
 Get DL frame prefix elements. More...

uint32_t GetFrameNumber (void) const
 Get frame number field. More...

uint8_t GetHcs (void) const
 Get HCS field. More...

std::string GetName (void) const
 Get name field. More...

uint32_t GetSerializedSize (void) const

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetBaseStationId (Mac48Address baseStationId)
 Set base station ID field. More...

void SetConfigurationChangeCount (uint8_t configurationChangeCount)
 Set configuration change count field. More...

void SetFrameNumber (uint32_t frameNumber)
 Set frame number field. More...

void SetHcs (uint8_t hcs)
 Set HCS field. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

virtual TypeId GetInstanceTypeId (void) const =0
 Get the most derived TypeId for this Object. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Mac48Address m_baseStationId
 base station ID More...

uint8_t m_configurationChangeCount
 shall actually be only 4 LSB of the same field in DCD More...

std::vector< DlFramePrefixIem_dlFramePrefixElements
 vector of dl frame prefix elements More...

uint32_t m_frameNumber
 shall actually be only 4 LSB of the same field in OFDM DCD Channel Encodings More...

uint8_t m_hcs
 Header Check Sequence. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Constructor & Destructor Documentation

◆ OfdmDownlinkFramePrefix()

ns3::OfdmDownlinkFramePrefix::OfdmDownlinkFramePrefix ( )

Definition at line 130 of file ofdm-downlink-frame-prefix.cc.

◆ ~OfdmDownlinkFramePrefix()

ns3::OfdmDownlinkFramePrefix::~OfdmDownlinkFramePrefix ( )

Definition at line 138 of file ofdm-downlink-frame-prefix.cc.

Member Function Documentation

◆ AddDlFramePrefixElement()

void ns3::OfdmDownlinkFramePrefix::AddDlFramePrefixElement ( DlFramePrefixIe  dlFramePrefixElement)

Add DL frame prefix element field.

Parameters
dlFramePrefixElementthe DL frane prefix element

Definition at line 174 of file ofdm-downlink-frame-prefix.cc.

References m_dlFramePrefixElements.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::OfdmDownlinkFramePrefix::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 266 of file ofdm-downlink-frame-prefix.cc.

References AddDlFramePrefixElement(), ns3::DlFramePrefixIe::GetDiuc(), GetSerializedSize(), m_baseStationId, m_configurationChangeCount, m_frameNumber, m_hcs, ns3::DlFramePrefixIe::Read(), ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

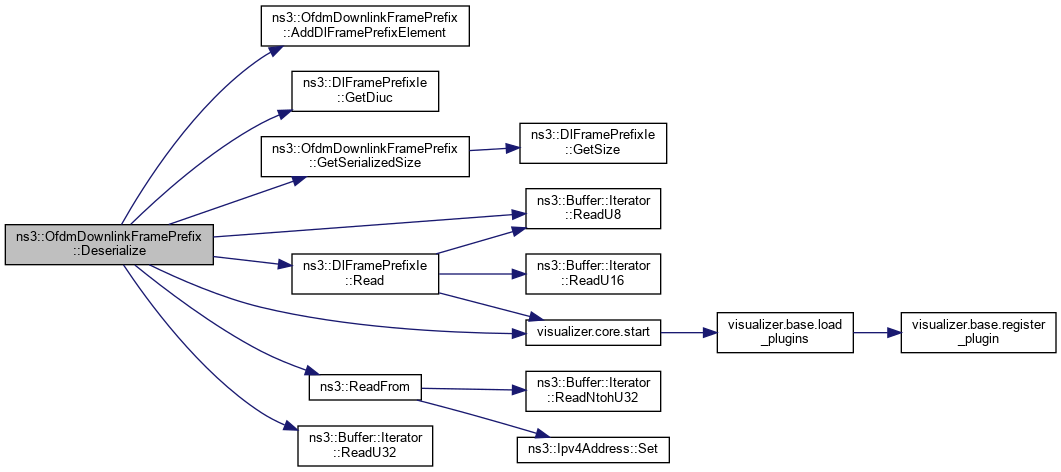

+ Here is the call graph for this function:

◆ GetBaseStationId()

Mac48Address ns3::OfdmDownlinkFramePrefix::GetBaseStationId ( void  ) const

Get base station ID field.

Returns
the base station ID

Definition at line 187 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId.

◆ GetConfigurationChangeCount()

uint8_t ns3::OfdmDownlinkFramePrefix::GetConfigurationChangeCount ( void  ) const

Get configuration change count field.

Returns
the configuration change count

Definition at line 199 of file ofdm-downlink-frame-prefix.cc.

References m_configurationChangeCount.

◆ GetDlFramePrefixElements()

std::vector< DlFramePrefixIe > ns3::OfdmDownlinkFramePrefix::GetDlFramePrefixElements ( void  ) const

Get DL frame prefix elements.

Returns
the DL frame prefix elements

Definition at line 205 of file ofdm-downlink-frame-prefix.cc.

References m_dlFramePrefixElements.

◆ GetFrameNumber()

uint32_t ns3::OfdmDownlinkFramePrefix::GetFrameNumber ( void  ) const

Get frame number field.

Returns
the frame number

Definition at line 193 of file ofdm-downlink-frame-prefix.cc.

References m_frameNumber.

◆ GetHcs()

uint8_t ns3::OfdmDownlinkFramePrefix::GetHcs ( void  ) const

Get HCS field.

Returns
the HCS

Definition at line 211 of file ofdm-downlink-frame-prefix.cc.

References m_hcs.

◆ GetName()

std::string ns3::OfdmDownlinkFramePrefix::GetName ( void  ) const

Get name field.

Returns
the name

Definition at line 217 of file ofdm-downlink-frame-prefix.cc.

◆ GetSerializedSize()

uint32_t ns3::OfdmDownlinkFramePrefix::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 233 of file ofdm-downlink-frame-prefix.cc.

References ns3::DlFramePrefixIe::GetSize(), and m_dlFramePrefixElements.

Referenced by Deserialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::OfdmDownlinkFramePrefix::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 144 of file ofdm-downlink-frame-prefix.cc.

References ns3::TypeId::SetParent().

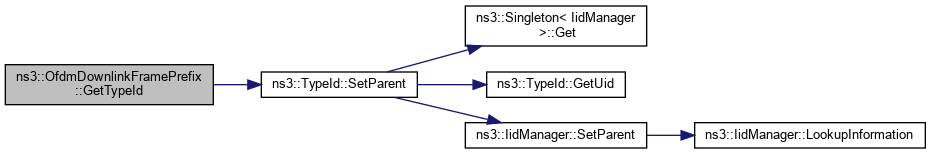

+ Here is the call graph for this function:

◆ Print()

void ns3::OfdmDownlinkFramePrefix::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 223 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId, m_configurationChangeCount, m_dlFramePrefixElements, m_frameNumber, and m_hcs.

◆ Serialize()

void ns3::OfdmDownlinkFramePrefix::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 248 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId, m_configurationChangeCount, m_dlFramePrefixElements, m_frameNumber, m_hcs, visualizer.core::start(), ns3::DlFramePrefixIe::Write(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU32(), and ns3::Buffer::Iterator::WriteU8().

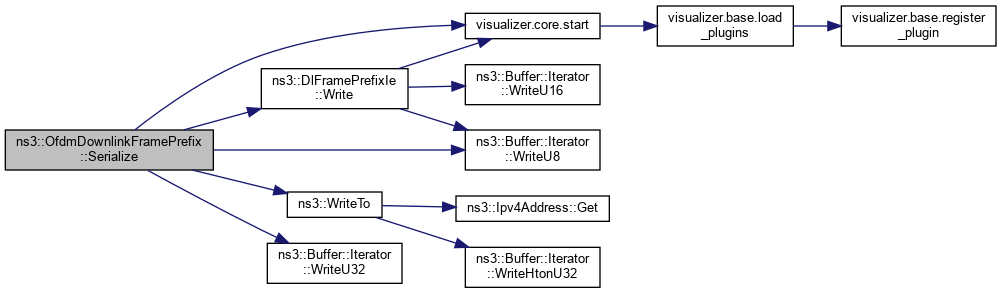

+ Here is the call graph for this function:

◆ SetBaseStationId()

void ns3::OfdmDownlinkFramePrefix::SetBaseStationId ( Mac48Address  baseStationId)

Set base station ID field.

Parameters
baseStationIdthe base station ID

Definition at line 155 of file ofdm-downlink-frame-prefix.cc.

References m_baseStationId.

◆ SetConfigurationChangeCount()

void ns3::OfdmDownlinkFramePrefix::SetConfigurationChangeCount ( uint8_t  configurationChangeCount)

Set configuration change count field.

Parameters
configurationChangeCountthe configuration change count

Definition at line 167 of file ofdm-downlink-frame-prefix.cc.

References m_configurationChangeCount.

◆ SetFrameNumber()

void ns3::OfdmDownlinkFramePrefix::SetFrameNumber ( uint32_t  frameNumber)

Set frame number field.

Parameters
frameNumberthe frame number

Definition at line 161 of file ofdm-downlink-frame-prefix.cc.

References m_frameNumber.

◆ SetHcs()

void ns3::OfdmDownlinkFramePrefix::SetHcs ( uint8_t  hcs)

Set HCS field.

Parameters
hcsthe HCS

Definition at line 181 of file ofdm-downlink-frame-prefix.cc.

References m_hcs.

Member Data Documentation

◆ m_baseStationId

Mac48Address ns3::OfdmDownlinkFramePrefix::m_baseStationId
private

base station ID

Definition at line 211 of file ofdm-downlink-frame-prefix.h.

Referenced by Deserialize(), GetBaseStationId(), Print(), Serialize(), and SetBaseStationId().

◆ m_configurationChangeCount

uint8_t ns3::OfdmDownlinkFramePrefix::m_configurationChangeCount
private

shall actually be only 4 LSB of the same field in DCD

Definition at line 213 of file ofdm-downlink-frame-prefix.h.

Referenced by Deserialize(), GetConfigurationChangeCount(), Print(), Serialize(), and SetConfigurationChangeCount().

◆ m_dlFramePrefixElements

std::vector<DlFramePrefixIe> ns3::OfdmDownlinkFramePrefix::m_dlFramePrefixElements
private

vector of dl frame prefix elements

Definition at line 214 of file ofdm-downlink-frame-prefix.h.

Referenced by AddDlFramePrefixElement(), GetDlFramePrefixElements(), GetSerializedSize(), Print(), and Serialize().

◆ m_frameNumber

uint32_t ns3::OfdmDownlinkFramePrefix::m_frameNumber
private

shall actually be only 4 LSB of the same field in OFDM DCD Channel Encodings

Definition at line 212 of file ofdm-downlink-frame-prefix.h.

Referenced by Deserialize(), GetFrameNumber(), Print(), Serialize(), and SetFrameNumber().

◆ m_hcs

uint8_t ns3::OfdmDownlinkFramePrefix::m_hcs
private

Header Check Sequence.

Definition at line 215 of file ofdm-downlink-frame-prefix.h.

Referenced by Deserialize(), GetHcs(), Print(), Serialize(), and SetHcs().


The documentation for this class was generated from the following files:
