Handle packet metadata about packet headers and trailers. More...

#include "packet-metadata.h"

Collaboration diagram for ns3::PacketMetadata:

Classes
struct	Data
	Data structure. More...

class	DataFreeList
	Class to hold all the metadata. More...

struct	ExtraItem
	ExtraItem structure. More...

struct	Item
	structure describing a packet metadata item More...

class	ItemIterator
	Iterator class for metadata items. More...

struct	SmallItem
	SmallItem structure. More...

Public Member Functions
	PacketMetadata (PacketMetadata const &o)
	Copy constructor. More...

	PacketMetadata (uint64_t uid, uint32_t size)
	Constructor. More...

	~PacketMetadata ()

void	AddAtEnd (PacketMetadata const &o)
	Add a metadata at the metadata start. More...

void	AddHeader (Header const &header, uint32_t size)
	Add an header. More...

void	AddPaddingAtEnd (uint32_t end)
	Add some padding at the end. More...

void	AddTrailer (Trailer const &trailer, uint32_t size)
	Add a trailer. More...

ItemIterator	BeginItem (Buffer buffer) const
	Initialize the item iterator to the buffer begin. More...

PacketMetadata	CreateFragment (uint32_t start, uint32_t end) const
	Creates a fragment. More...

uint32_t	Deserialize (const uint8_t *buffer, uint32_t size)
	Deserialization from raw uint8_t*. More...

uint32_t	GetSerializedSize (void) const
	Get the metadata serialized size. More...

uint64_t	GetUid (void) const
	Get the packet Uid. More...

PacketMetadata &	operator= (PacketMetadata const &o)
	Basic assignment. More...

void	RemoveAtEnd (uint32_t end)
	Remove a chunk of metadata at the metadata end. More...

void	RemoveAtStart (uint32_t start)
	Remove a chunk of metadata at the metadata start. More...

void	RemoveHeader (Header const &header, uint32_t size)
	Remove an header. More...

void	RemoveTrailer (Trailer const &trailer, uint32_t size)
	Remove a trailer. More...

uint32_t	Serialize (uint8_t *buffer, uint32_t maxSize) const
	Serialization to raw uint8_t*. More...

Static Public Member Functions
static void	Enable (void)
	Enable the packet metadata. More...

static void	EnableChecking (void)
	Enable the packet metadata checking. More...

Private Member Functions
	PacketMetadata ()

friend	DataFreeList::~DataFreeList ()

uint16_t	AddBig (uint32_t head, uint32_t tail, const PacketMetadata::SmallItem item, const PacketMetadata::ExtraItem extraItem)
	Add a "Big" Item (a SmallItem plus an ExtraItem) More...

uint16_t	AddSmall (const PacketMetadata::SmallItem *item)
	Add a SmallItem. More...

void	Append16 (uint16_t value, uint8_t *buffer)
	Append a 16-bit value to the buffer. More...

void	Append32 (uint32_t value, uint8_t *buffer)
	Append a 32-bit value to the buffer. More...

void	AppendValue (uint32_t value, uint8_t *buffer)
	Append a value to the buffer. More...

void	AppendValueExtra (uint32_t value, uint8_t *buffer)
	Append a value to the buffer - extra. More...

void	DoAddHeader (uint32_t uid, uint32_t size)
	Add an header. More...

uint32_t	GetTotalSize (void) const
	Get the total size used by the metadata. More...

uint32_t	GetUleb128Size (uint32_t value) const
	Get the ULEB128 (Unsigned Little Endian Base 128) size. More...

bool	IsPointerOk (uint16_t pointer) const
	Check if the position is valid. More...

bool	IsSharedPointerOk (uint16_t pointer) const
	Check if the position is valid. More...

bool	IsStateOk (void) const
	Check if the metadata state is ok. More...

uint32_t	ReadItems (uint16_t current, struct PacketMetadata::SmallItem item, struct PacketMetadata::ExtraItem extraItem) const
	Read items. More...

uint32_t	ReadUleb128 (const uint8_t **pBuffer) const
	Read a ULEB128 (Unsigned Little Endian Base 128) coded number. More...

void	ReplaceTail (PacketMetadata::SmallItem item, PacketMetadata::ExtraItem extraItem, uint32_t available)
	Replace the tail. More...

void	Reserve (uint32_t n)
	Reserve space. More...

void	ReserveCopy (uint32_t n)
	Reserve space and make a metadata copy. More...

void	UpdateHead (uint16_t written)
	Update the head. More...

void	UpdateTail (uint16_t written)
	Update the tail. More...

Static Private Member Functions
static uint8_t *	AddToRaw (const uint8_t data, uint32_t dataSize, uint8_t start, uint8_t *current, uint32_t maxSize)
	Helper for the raw serialization. More...

static uint8_t *	AddToRawU16 (const uint16_t &data, uint8_t start, uint8_t current, uint32_t maxSize)
	Helper for the raw serialization. More...

static uint8_t *	AddToRawU32 (const uint32_t &data, uint8_t start, uint8_t current, uint32_t maxSize)
	Helper for the raw serialization. More...

static uint8_t *	AddToRawU64 (const uint64_t &data, uint8_t start, uint8_t current, uint32_t maxSize)
	Helper for the raw serialization. More...

static uint8_t *	AddToRawU8 (const uint8_t &data, uint8_t start, uint8_t current, uint32_t maxSize)
	Helper for the raw serialization. More...

static struct PacketMetadata::Data *	Allocate (uint32_t n)
	Allocate a buffer data storage. More...

static struct PacketMetadata::Data *	Create (uint32_t size)
	Create a buffer data storage. More...

static void	Deallocate (struct PacketMetadata::Data *data)
	Deallocate the buffer memory. More...

static uint8_t *	ReadFromRawU16 (uint16_t &data, const uint8_t start, const uint8_t current, uint32_t maxSize)
	Helper for the raw deserialization. More...

static uint8_t *	ReadFromRawU32 (uint32_t &data, const uint8_t start, const uint8_t current, uint32_t maxSize)
	Helper for the raw deserialization. More...

static uint8_t *	ReadFromRawU64 (uint64_t &data, const uint8_t start, const uint8_t current, uint32_t maxSize)
	Helper for the raw deserialization. More...

static uint8_t *	ReadFromRawU8 (uint8_t &data, const uint8_t start, const uint8_t current, uint32_t maxSize)
	Helper for the raw deserialization. More...

static void	Recycle (struct PacketMetadata::Data *data)
	Recycle the buffer memory. More...

Private Attributes
struct Data *	m_data
	Metadata storage. More...

uint16_t	m_head
	list head More...

uint64_t	m_packetUid
	packet Uid More...

uint16_t	m_tail
	list tail More...

uint16_t	m_used
	used portion More...

Static Private Attributes
static uint16_t	m_chunkUid = 0
	Chunk Uid. More...

static bool	m_enable = false
	Enable the packet metadata. More...

static bool	m_enableChecking = false
	Enable the packet metadata checking. More...

static DataFreeList	m_freeList
	the metadata data storage More...

static uint32_t	m_maxSize = 0
	maximum metadata size More...

static bool	m_metadataSkipped = false
	Set to true when adding metadata to a packet is skipped because m_enable is false; used to detect enabling of metadata in the middle of a simulation, which isn't allowed. More...

Friends
class	ItemIterator
	Friend class. More...

Detailed Description

Handle packet metadata about packet headers and trailers.

This class is used by the Packet class to record every operation performed on the packet's buffer. This class also provides an implementation of the Packet::Print methods which uses the metadata to analyse the content of the packet's buffer.

To achieve this, this class maintains a linked list of so-called "items", each of which represents a header or a trailer, or payload, or a fragment of any of these. Each item contains a "next" and a "prev" field which point to the next and previous entries in the linked list. The PacketMetadata class maintains a pair of pointers to the head and the tail of the linked list.

Each entry in the list also maintains:

its native size (the size it had when it was first added to the packet)
its type: identifies what kind of header, what kind of trailer, if it is payload or not
the uid of the packet to which it was first added
the start and end of the area represented by a fragment if it is one.

This linked list is flattened in a byte buffer stored in struct PacketMetadata::Data. Each entry of the linked list is identified by an offset which identifies the first byte of the entry from the start of the data buffer. The size of this data buffer is 2^16-1 bytes maximum which somewhat limits the number of entries which can be stored in this linked list but it is quite unlikely to hit this limit in practice.

Each item of the linked list is a variable-sized byte buffer made of a number of fields. Some of these fields are stored as fixed-size 32 bit integers, others as fixed-size 16 bit integers, and some others as variable-size 32-bit integers. The variable-size 32 bit integers are stored using the uleb128 encoding.

Definition at line 78 of file packet-metadata.h.

Constructor & Destructor Documentation

◆ PacketMetadata() [1/3]

ns3::PacketMetadata::PacketMetadata	(	uint64_t	uid,
		uint32_t	size
	)

inline

Constructor.

Parameters

uid	packet uid
size	size of the header

Definition at line 694 of file packet-metadata.h.

References DoAddHeader(), ns3::PacketMetadata::Data::m_data, and m_data.

Here is the call graph for this function:

◆ PacketMetadata() [2/3]

ns3::PacketMetadata::PacketMetadata ( PacketMetadata const & o )

inline

Copy constructor.

Parameters

o	the object to copy

Definition at line 707 of file packet-metadata.h.

References ns3::PacketMetadata::Data::m_count, m_data, max, and NS_ASSERT.

◆ ~PacketMetadata()

ns3::PacketMetadata::~PacketMetadata ( )

inline

Definition at line 740 of file packet-metadata.h.

References ns3::PacketMetadata::Data::m_count, m_data, NS_ASSERT, and Recycle().

Here is the call graph for this function:

◆ DataFreeList::~DataFreeList()

ns3::PacketMetadata::DataFreeList::~DataFreeList ( )

private

◆ PacketMetadata() [3/3]

ns3::PacketMetadata::PacketMetadata ( )

private

Member Function Documentation

◆ AddAtEnd()

void ns3::PacketMetadata::AddAtEnd ( PacketMetadata const & o )

Add a metadata at the metadata start.

Parameters

o	the metadata to add

Definition at line 801 of file packet-metadata.cc.

References AddBig(), ns3::PacketMetadata::SmallItem::chunkUid, IsStateOk(), m_enable, m_head, m_metadataSkipped, m_tail, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, ReadItems(), ReplaceTail(), ns3::PacketMetadata::SmallItem::size, ns3::PacketMetadata::SmallItem::typeUid, and UpdateTail().

Referenced by ns3::Packet::AddAtEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddBig()

uint16_t ns3::PacketMetadata::AddBig	(	uint32_t	head,
		uint32_t	tail,
		const PacketMetadata::SmallItem *	item,
		const PacketMetadata::ExtraItem *	extraItem
	)

private

Add a "Big" Item (a SmallItem plus an ExtraItem)

Parameters

head	the head
tail	the tail
item	the SmallItem to add
extraItem	the ExtraItem to add

Returns: added size

Definition at line 403 of file packet-metadata.cc.

Referenced by AddAtEnd(), Deserialize(), RemoveAtEnd(), RemoveAtStart(), and ReplaceTail().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddHeader()

void ns3::PacketMetadata::AddHeader	(	Header const &	header,
		uint32_t	size
	)

Add an header.

Parameters

header	header to add
size	header serialized size

Definition at line 654 of file packet-metadata.cc.

References DoAddHeader(), ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetUid(), IsStateOk(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::AddHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddPaddingAtEnd()

void ns3::PacketMetadata::AddPaddingAtEnd ( uint32_t end )

Add some padding at the end.

Parameters

end	size of padding

Definition at line 879 of file packet-metadata.cc.

References m_enable, m_metadataSkipped, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::AddPaddingAtEnd().

Here is the caller graph for this function:

◆ AddSmall()

uint16_t ns3::PacketMetadata::AddSmall ( const PacketMetadata::SmallItem * item )

inlineprivate

Add a SmallItem.

Parameters

item	the SmallItem to add

Returns: added size

Definition at line 374 of file packet-metadata.cc.

References Append16(), AppendValue(), ns3::PacketMetadata::SmallItem::chunkUid, GetUleb128Size(), ns3::PacketMetadata::Data::m_count, ns3::PacketMetadata::Data::m_data, m_data, ns3::PacketMetadata::Data::m_dirtyEnd, m_head, ns3::PacketMetadata::Data::m_size, m_used, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, ns3::PacketMetadata::SmallItem::prev, ReserveCopy(), ns3::PacketMetadata::SmallItem::size, and ns3::PacketMetadata::SmallItem::typeUid.

Referenced by AddTrailer(), and DoAddHeader().

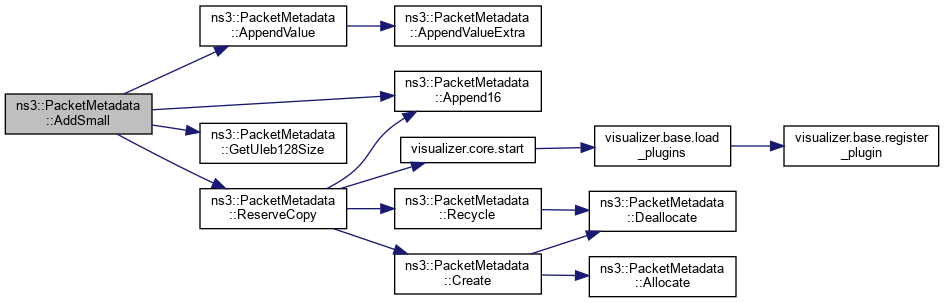

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToRaw()

uint8_t * ns3::PacketMetadata::AddToRaw	(	const uint8_t *	data,
		uint32_t	dataSize,
		uint8_t *	start,
		uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw serialization.

Parameters

data	the buffer to write to
dataSize	the data size to write to
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1404 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToRawU16()

uint8_t * ns3::PacketMetadata::AddToRawU16	(	const uint16_t &	data,
		uint8_t *	start,
		uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw serialization.

Parameters

data	the buffer to write to
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1356 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToRawU32()

uint8_t * ns3::PacketMetadata::AddToRawU32	(	const uint32_t &	data,
		uint8_t *	start,
		uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw serialization.

Parameters

data	the buffer to write to
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1372 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToRawU64()

uint8_t * ns3::PacketMetadata::AddToRawU64	(	const uint64_t &	data,
		uint8_t *	start,
		uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw serialization.

Parameters

data	the buffer to write to
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1388 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddToRawU8()

uint8_t * ns3::PacketMetadata::AddToRawU8	(	const uint8_t &	data,
		uint8_t *	start,
		uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw serialization.

Parameters

data	the buffer to write to
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1340 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddTrailer()

void ns3::PacketMetadata::AddTrailer	(	Trailer const &	trailer,
		uint32_t	size
	)

Add a trailer.

Parameters

trailer	trailer to add
size	trailer serialized size

Definition at line 731 of file packet-metadata.cc.

References AddSmall(), ns3::PacketMetadata::SmallItem::chunkUid, ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetUid(), IsStateOk(), m_chunkUid, m_enable, m_metadataSkipped, m_tail, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, ns3::PacketMetadata::SmallItem::prev, ns3::PacketMetadata::SmallItem::size, ns3::PacketMetadata::SmallItem::typeUid, and UpdateTail().

Referenced by ns3::Packet::AddTrailer().

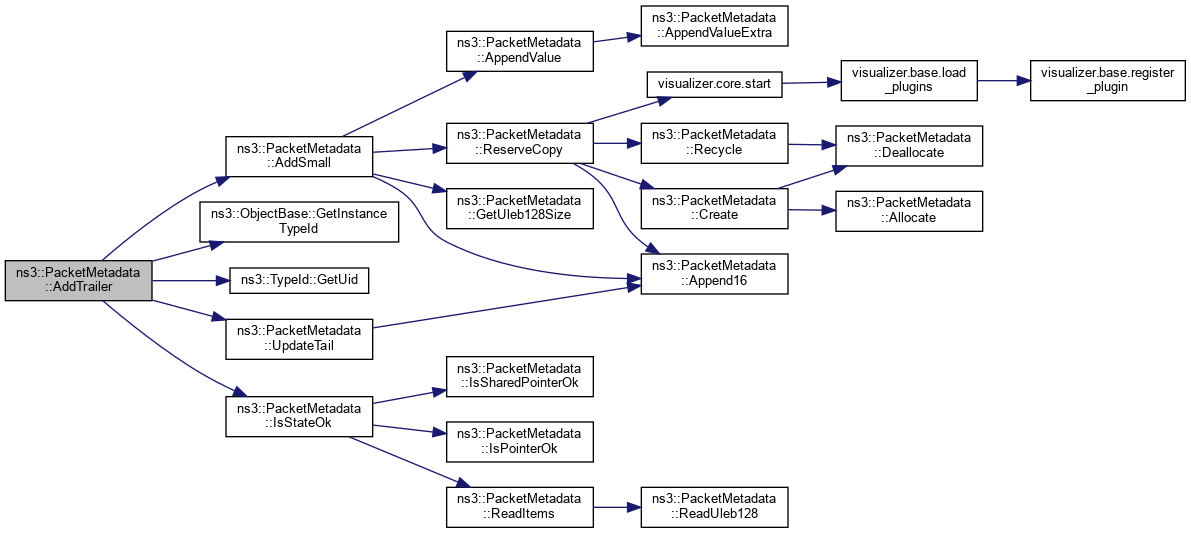

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Allocate()

struct PacketMetadata::Data * ns3::PacketMetadata::Allocate ( uint32_t n )

staticprivate

Allocate a buffer data storage.

Parameters

n	the storage size to create

Returns: a pointer to the allocated buffer storage

Definition at line 618 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and PACKET_METADATA_DATA_M_DATA_SIZE.

Referenced by Create().

Here is the caller graph for this function:

◆ Append16()

void ns3::PacketMetadata::Append16	(	uint16_t	value,
		uint8_t *	buffer
	)

inlineprivate

Append a 16-bit value to the buffer.

Parameters

value	the value to add
buffer	the buffer to write to

Definition at line 237 of file packet-metadata.cc.

References NS_LOG_FUNCTION.

Referenced by AddBig(), AddSmall(), ReplaceTail(), ReserveCopy(), UpdateHead(), and UpdateTail().

Here is the caller graph for this function:

◆ Append32()

void ns3::PacketMetadata::Append32	(	uint32_t	value,
		uint8_t *	buffer
	)

inlineprivate

Append a 32-bit value to the buffer.

Parameters

value	the value to add
buffer	the buffer to write to

Definition at line 245 of file packet-metadata.cc.

References NS_LOG_FUNCTION.

Referenced by AddBig(), and ReplaceTail().

Here is the caller graph for this function:

◆ AppendValue()

void ns3::PacketMetadata::AppendValue	(	uint32_t	value,
		uint8_t *	buffer
	)

inlineprivate

Append a value to the buffer.

Parameters

value	the value to add
buffer	the buffer to write to

Definition at line 301 of file packet-metadata.cc.

References AppendValueExtra(), and NS_LOG_FUNCTION.

Referenced by AddBig(), AddSmall(), and ReplaceTail().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AppendValueExtra()

void ns3::PacketMetadata::AppendValueExtra	(	uint32_t	value,
		uint8_t *	buffer
	)

private

Append a value to the buffer - extra.

This function is called by AppendValue

Parameters

value	the value to add
buffer	the buffer to write to

Definition at line 255 of file packet-metadata.cc.

References NS_LOG_FUNCTION.

Referenced by AppendValue().

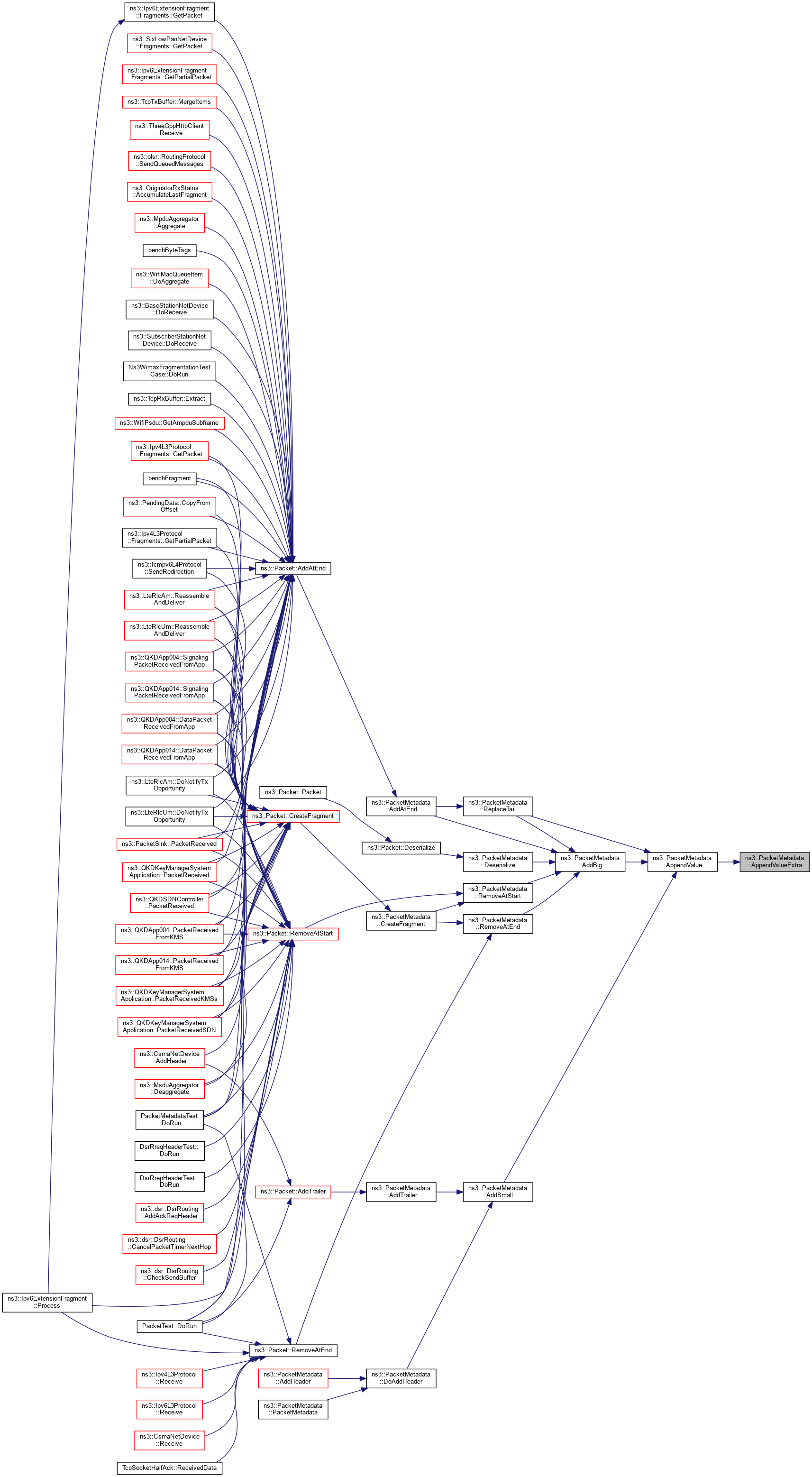

Here is the caller graph for this function:

◆ BeginItem()

PacketMetadata::ItemIterator ns3::PacketMetadata::BeginItem ( Buffer buffer ) const

Initialize the item iterator to the buffer begin.

Parameters

buffer buffer to initialize.

Returns: the buffer iterator.

Definition at line 1046 of file packet-metadata.cc.

References ItemIterator, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::BeginItem(), and ns3::Packet::Print().

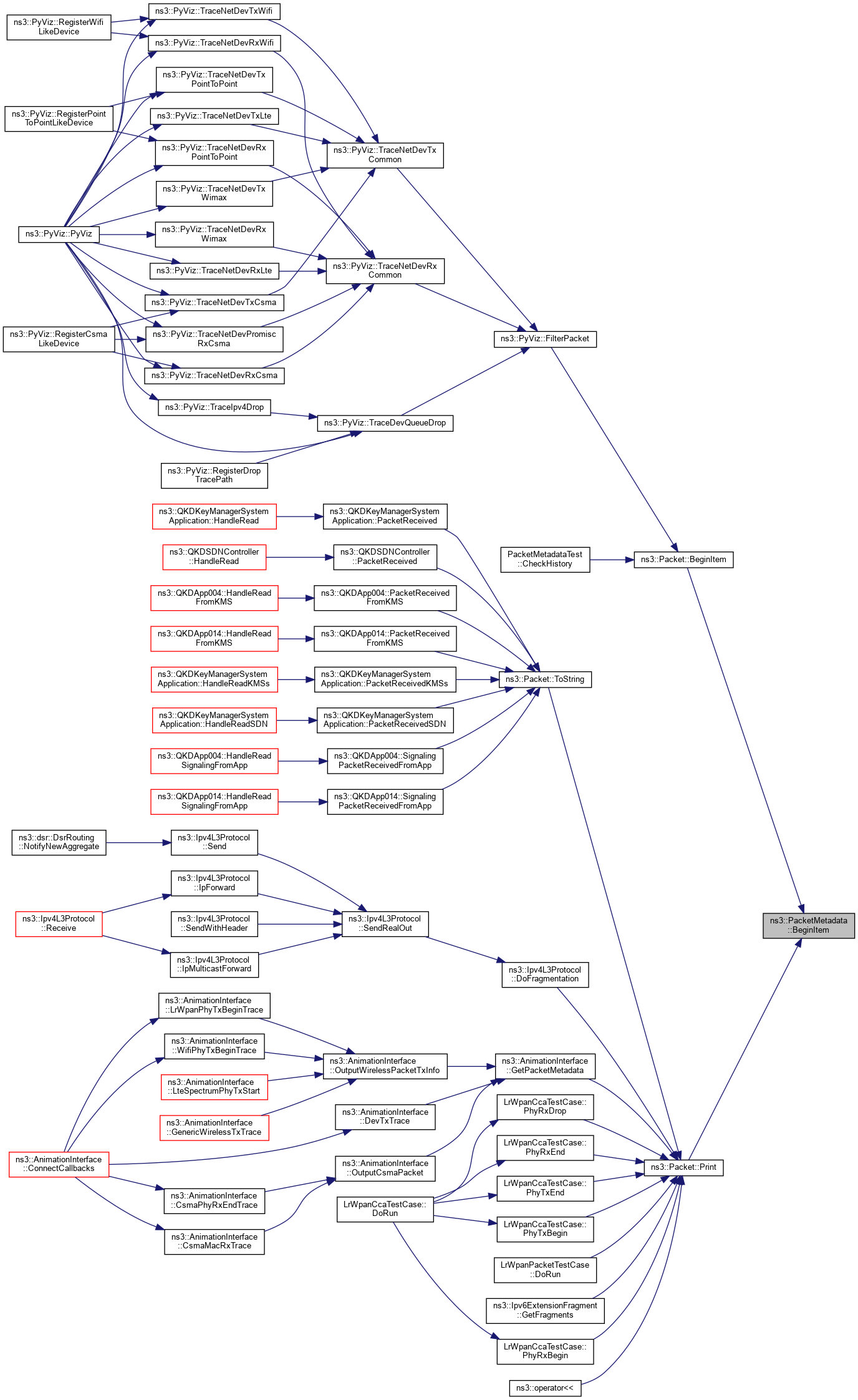

Here is the caller graph for this function:

◆ Create()

struct PacketMetadata::Data * ns3::PacketMetadata::Create ( uint32_t size )

staticprivate

Create a buffer data storage.

Parameters

size	the storage size to create

Returns: a pointer to the created buffer storage

Definition at line 570 of file packet-metadata.cc.

References Allocate(), data, Deallocate(), m_freeList, m_maxSize, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ReserveCopy().

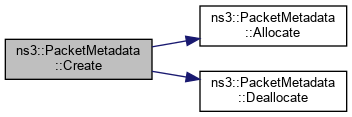

Here is the call graph for this function:

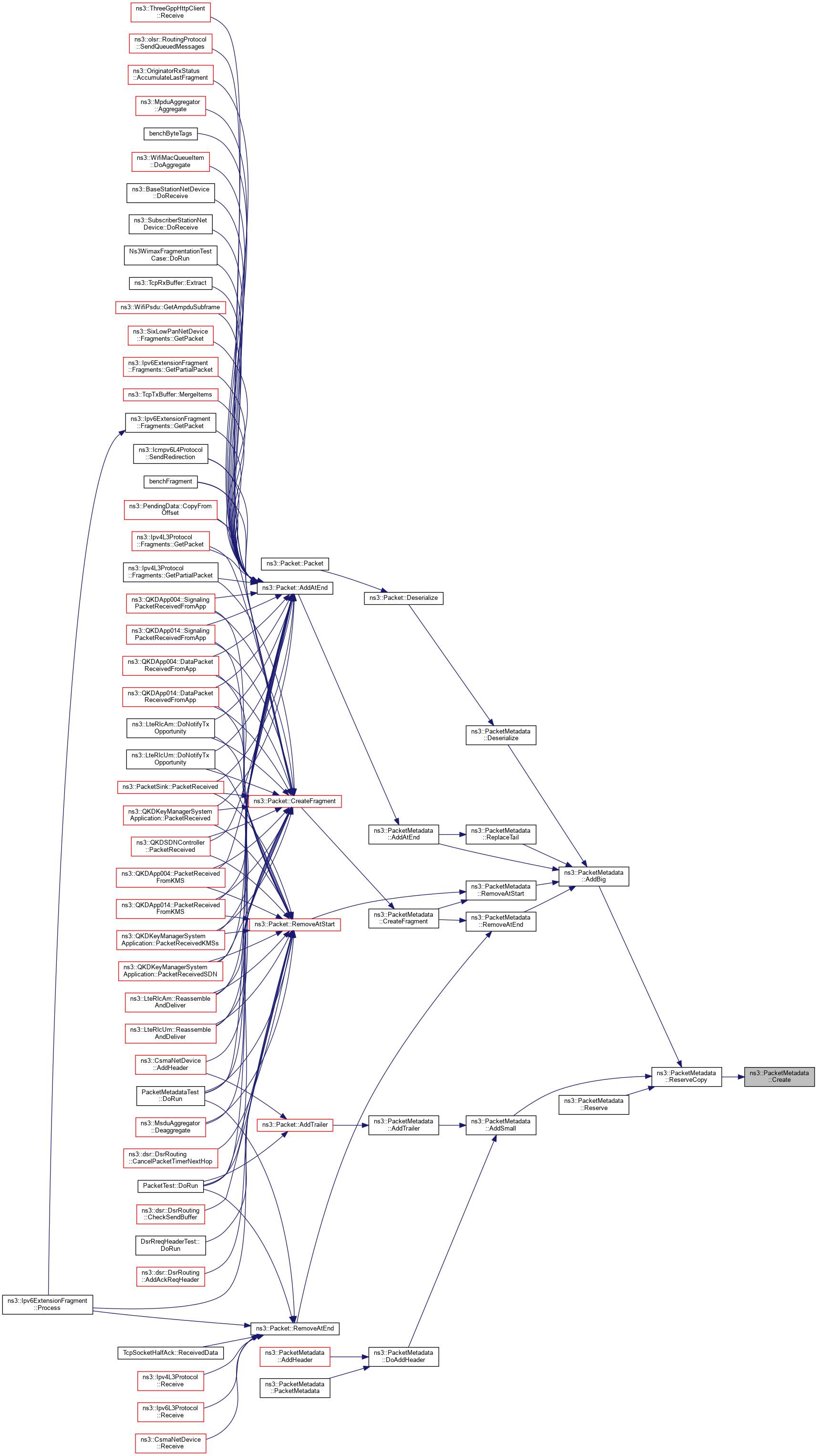

Here is the caller graph for this function:

◆ CreateFragment()

PacketMetadata ns3::PacketMetadata::CreateFragment	(	uint32_t	start,
		uint32_t	end
	)		const

Creates a fragment.

Parameters

start	the amount of stuff to remove from the start
end	the amount of stuff to remove from the end

Returns: the fragment's metadata

Calling this method is equivalent to calling RemoveAtStart (start) and then, RemoveAtEnd (end).

Definition at line 644 of file packet-metadata.cc.

References NS_LOG_FUNCTION, RemoveAtEnd(), RemoveAtStart(), and visualizer.core::start().

Referenced by ns3::Packet::CreateFragment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Deallocate()

void ns3::PacketMetadata::Deallocate ( struct PacketMetadata::Data * data )

staticprivate

Deallocate the buffer memory.

Parameters

data	the buffer data storage

Definition at line 635 of file packet-metadata.cc.

References data, and NS_LOG_FUNCTION.

Referenced by ns3::PacketMetadata::DataFreeList::~DataFreeList(), Create(), and Recycle().

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::PacketMetadata::Deserialize	(	const uint8_t *	buffer,
		uint32_t	size
	)

Deserialization from raw uint8_t*.

Parameters

buffer	the buffer to deserialize from
size	the size

Returns: 1 on success, 0 on failure

Definition at line 1279 of file packet-metadata.cc.

References AddBig(), ns3::PacketMetadata::SmallItem::chunkUid, ns3::PacketMetadata::ExtraItem::fragmentEnd, ns3::PacketMetadata::ExtraItem::fragmentStart, ns3::TypeId::GetUid(), ns3::TypeId::LookupByName(), m_packetUid, m_tail, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PacketMetadata::ExtraItem::packetUid, ReadFromRawU16(), ReadFromRawU32(), ReadFromRawU64(), ReadFromRawU8(), ns3::PacketMetadata::SmallItem::size, visualizer.core::start(), ns3::PacketMetadata::SmallItem::typeUid, and UpdateTail().

Referenced by ns3::Packet::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoAddHeader()

void ns3::PacketMetadata::DoAddHeader	(	uint32_t	uid,
		uint32_t	size
	)

private

Add an header.

Parameters

uid	header's uid to add
size	header serialized size

Definition at line 663 of file packet-metadata.cc.

References AddSmall(), ns3::PacketMetadata::SmallItem::chunkUid, m_chunkUid, m_enable, m_head, m_metadataSkipped, ns3::PacketMetadata::SmallItem::next, NS_LOG_FUNCTION, ns3::PacketMetadata::SmallItem::prev, ns3::PacketMetadata::SmallItem::size, ns3::PacketMetadata::SmallItem::typeUid, and UpdateHead().

Referenced by PacketMetadata(), and AddHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Enable()

void ns3::PacketMetadata::Enable ( void )

static

Enable the packet metadata.

Definition at line 52 of file packet-metadata.cc.

References m_enable, m_metadataSkipped, NS_ASSERT_MSG, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::VisualSimulatorImpl::VisualSimulatorImpl(), EpcTftClassifierTestCase::DoRun(), EnableChecking(), and ns3::Packet::EnablePrinting().

Here is the caller graph for this function:

◆ EnableChecking()

void ns3::PacketMetadata::EnableChecking ( void )

static

Enable the packet metadata checking.

Definition at line 66 of file packet-metadata.cc.

References Enable(), m_enableChecking, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Packet::EnableChecking().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::PacketMetadata::GetSerializedSize ( void ) const

Get the metadata serialized size.

Returns: the seralized size

Definition at line 1133 of file packet-metadata.cc.

References ns3::TypeId::GetName(), m_enable, m_head, m_tail, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, ReadItems(), ns3::TypeId::SetUid(), and ns3::PacketMetadata::SmallItem::typeUid.

Referenced by ns3::Packet::GetSerializedSize(), and ns3::Packet::Serialize().

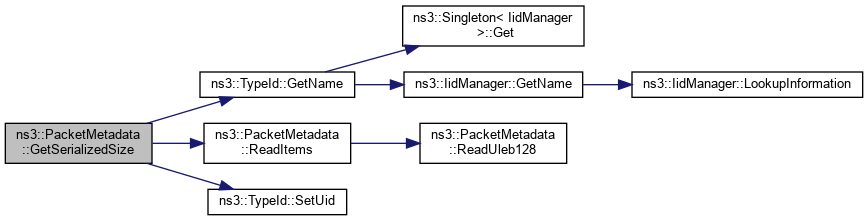

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTotalSize()

uint32_t ns3::PacketMetadata::GetTotalSize ( void ) const

private

Get the total size used by the metadata.

Returns: the metadata used size

Definition at line 1017 of file packet-metadata.cc.

References m_head, m_tail, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, and ReadItems().

Here is the call graph for this function:

◆ GetUid()

uint64_t ns3::PacketMetadata::GetUid ( void ) const

Get the packet Uid.

Returns: the packet Uid

Definition at line 1040 of file packet-metadata.cc.

References m_packetUid, and NS_LOG_FUNCTION.

Referenced by ns3::Packet::GetUid().

Here is the caller graph for this function:

◆ GetUleb128Size()

uint32_t ns3::PacketMetadata::GetUleb128Size ( uint32_t value ) const

inlineprivate

Get the ULEB128 (Unsigned Little Endian Base 128) size.

Parameters

value the value

Returns: the value's ULEB128 size

Definition at line 165 of file packet-metadata.cc.

References NS_LOG_FUNCTION.

Referenced by AddBig(), AddSmall(), and ReplaceTail().

Here is the caller graph for this function:

◆ IsPointerOk()

bool ns3::PacketMetadata::IsPointerOk ( uint16_t pointer ) const

private

Check if the position is valid.

Parameters

pointer the position to check

Returns: true if the position is valid

Definition at line 125 of file packet-metadata.cc.

References m_used, and NS_LOG_FUNCTION.

Referenced by IsStateOk().

Here is the caller graph for this function:

◆ IsSharedPointerOk()

bool ns3::PacketMetadata::IsSharedPointerOk ( uint16_t pointer ) const

private

Check if the position is valid.

Parameters

pointer the position to check

Returns: true if the position is valid

Definition at line 118 of file packet-metadata.cc.

References m_data, ns3::PacketMetadata::Data::m_size, and NS_LOG_FUNCTION.

Referenced by IsStateOk().

Here is the caller graph for this function:

◆ IsStateOk()

bool ns3::PacketMetadata::IsStateOk ( void ) const

private

Check if the metadata state is ok.

Returns: true if the internal state is ok

Definition at line 133 of file packet-metadata.cc.

References IsPointerOk(), IsSharedPointerOk(), m_data, m_head, ns3::PacketMetadata::Data::m_size, m_tail, m_used, ns3::PacketMetadata::SmallItem::next, NS_LOG_FUNCTION, ns3::PacketMetadata::SmallItem::prev, and ReadItems().

Referenced by AddAtEnd(), AddHeader(), AddTrailer(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), and RemoveTrailer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

PacketMetadata & ns3::PacketMetadata::operator= ( PacketMetadata const & o )

inline

Basic assignment.

Parameters

o	the object to copy

Returns: a copied object

Definition at line 719 of file packet-metadata.h.

References ns3::PacketMetadata::Data::m_count, m_data, m_head, m_packetUid, m_tail, m_used, NS_ASSERT, and Recycle().

Here is the call graph for this function:

◆ ReadFromRawU16()

uint8_t * ns3::PacketMetadata::ReadFromRawU16	(	uint16_t &	data,
		const uint8_t *	start,
		const uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw deserialization.

Parameters

data	the buffer to read from
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1437 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadFromRawU32()

uint8_t * ns3::PacketMetadata::ReadFromRawU32	(	uint32_t &	data,
		const uint8_t *	start,
		const uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw deserialization.

Parameters

data	the buffer to read from
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1453 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadFromRawU64()

uint8_t * ns3::PacketMetadata::ReadFromRawU64	(	uint64_t &	data,
		const uint8_t *	start,
		const uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw deserialization.

Parameters

data	the buffer to read from
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1469 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadFromRawU8()

uint8_t * ns3::PacketMetadata::ReadFromRawU8	(	uint8_t &	data,
		const uint8_t *	start,
		const uint8_t *	current,
		uint32_t	maxSize
	)

staticprivate

Helper for the raw deserialization.

Parameters

data	the buffer to read from
start	start index
current	current index
maxSize	maximum size

Returns: updated current index

Definition at line 1421 of file packet-metadata.cc.

References data, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadItems()

uint32_t ns3::PacketMetadata::ReadItems	(	uint16_t	current,
		struct PacketMetadata::SmallItem *	item,
		struct PacketMetadata::ExtraItem *	extraItem
	)		const

private

Read items.

Parameters

current	the offset we should start reading the data from
item	pointer to where we should store the data to return to the caller
extraItem	pointer to where we should store the data to return to the caller

Returns: the number of bytes read.

Definition at line 528 of file packet-metadata.cc.

References ns3::PacketMetadata::SmallItem::chunkUid, ns3::PacketMetadata::ExtraItem::fragmentEnd, ns3::PacketMetadata::ExtraItem::fragmentStart, ns3::PacketMetadata::Data::m_data, m_data, m_packetUid, ns3::PacketMetadata::Data::m_size, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, ns3::PacketMetadata::ExtraItem::packetUid, ns3::PacketMetadata::SmallItem::prev, ReadUleb128(), ns3::PacketMetadata::SmallItem::size, and ns3::PacketMetadata::SmallItem::typeUid.

Referenced by AddAtEnd(), GetSerializedSize(), GetTotalSize(), IsStateOk(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), RemoveTrailer(), ReplaceTail(), and Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReadUleb128()

uint32_t ns3::PacketMetadata::ReadUleb128 ( const uint8_t ** pBuffer ) const

private

Read a ULEB128 (Unsigned Little Endian Base 128) coded number.

Parameters

pBuffer the buffer to read from

Returns: the value

Definition at line 187 of file packet-metadata.cc.

References NS_ASSERT, NS_LOG_FUNCTION, and test-ns3::result.

Referenced by ReadItems().

Here is the caller graph for this function:

◆ Recycle()

void ns3::PacketMetadata::Recycle ( struct PacketMetadata::Data * data )

staticprivate

Recycle the buffer memory.

Parameters

data	the buffer data storage

Definition at line 596 of file packet-metadata.cc.

References data, Deallocate(), m_enable, m_freeList, m_maxSize, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ~PacketMetadata(), operator=(), and ReserveCopy().

Here is the call graph for this function:

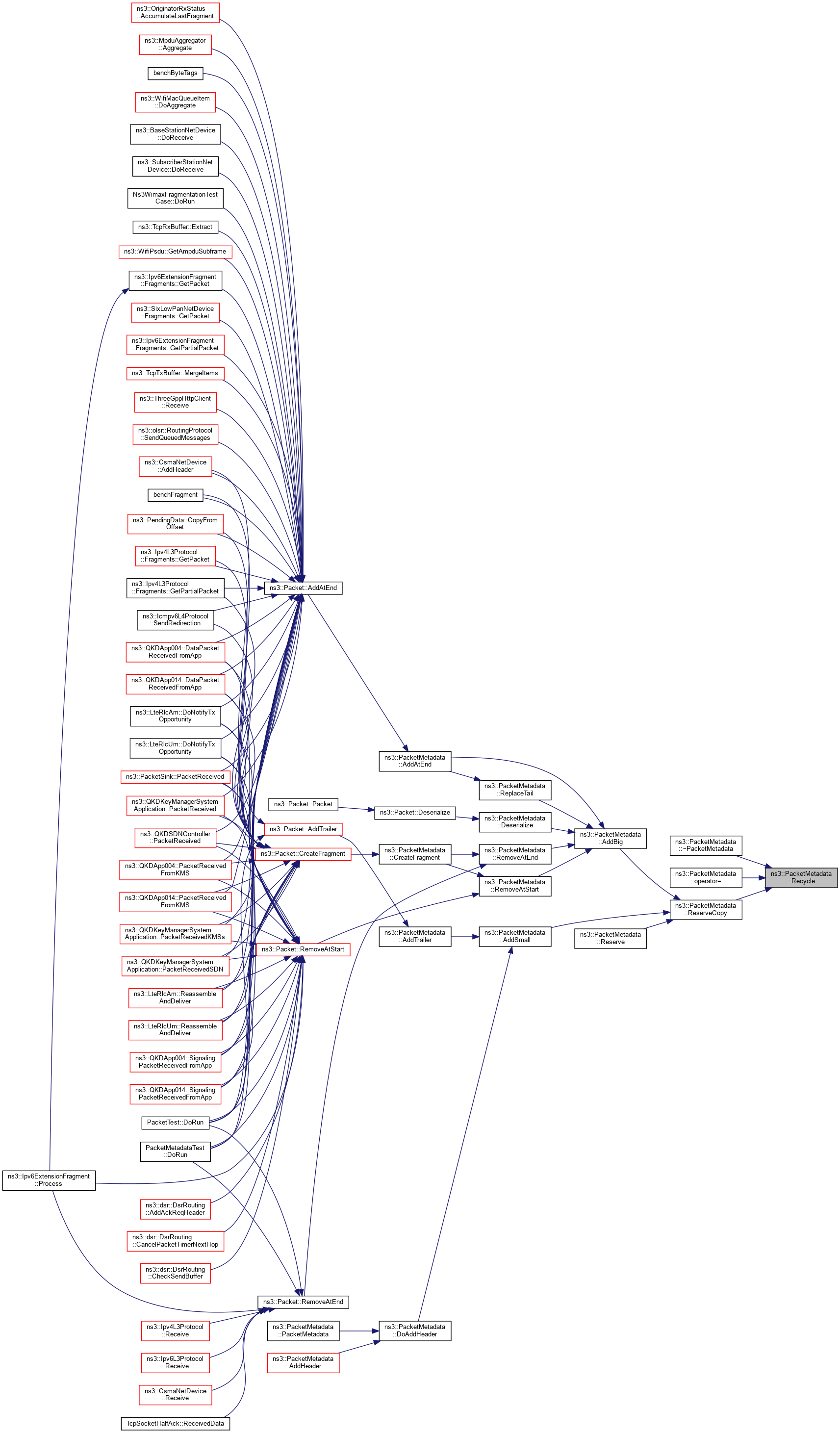

Here is the caller graph for this function:

◆ RemoveAtEnd()

void ns3::PacketMetadata::RemoveAtEnd ( uint32_t end )

Remove a chunk of metadata at the metadata end.

Parameters

end	the size of metadata to remove

Definition at line 952 of file packet-metadata.cc.

References AddBig(), IsStateOk(), m_data, m_enable, m_head, m_metadataSkipped, m_packetUid, m_tail, NS_ASSERT, NS_LOG_FUNCTION, ns3::PacketMetadata::SmallItem::prev, ReadItems(), ns3::PacketMetadata::SmallItem::size, and UpdateHead().

Referenced by CreateFragment(), and ns3::Packet::RemoveAtEnd().

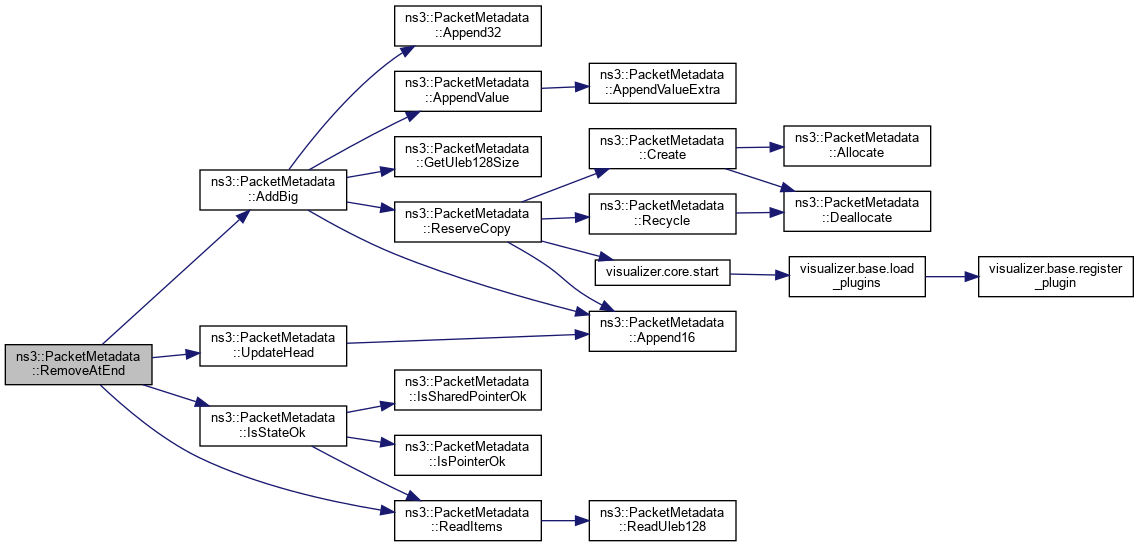

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveAtStart()

void ns3::PacketMetadata::RemoveAtStart ( uint32_t start )

Remove a chunk of metadata at the metadata start.

Parameters

start the size of metadata to remove

Definition at line 889 of file packet-metadata.cc.

References AddBig(), IsStateOk(), m_data, m_enable, m_head, m_metadataSkipped, m_packetUid, m_tail, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, ReadItems(), ns3::PacketMetadata::SmallItem::size, visualizer.core::start(), and UpdateTail().

Referenced by CreateFragment(), and ns3::Packet::RemoveAtStart().

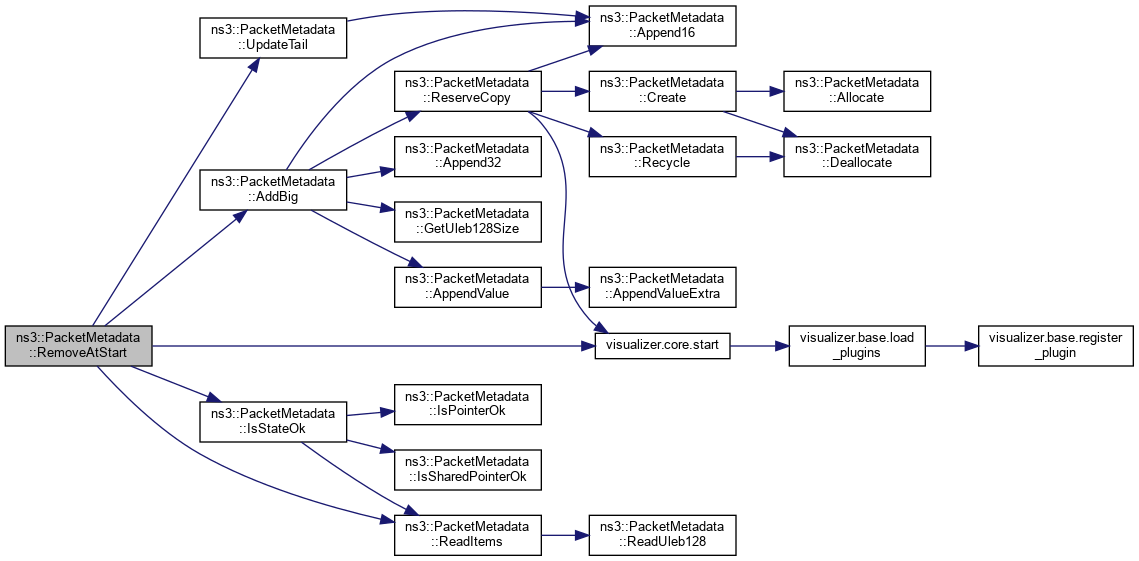

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveHeader()

void ns3::PacketMetadata::RemoveHeader	(	Header const &	header,
		uint32_t	size
	)

Remove an header.

Parameters

header	header to remove
size	header serialized size

Definition at line 683 of file packet-metadata.cc.

References ns3::PacketMetadata::ExtraItem::fragmentEnd, ns3::PacketMetadata::ExtraItem::fragmentStart, ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetUid(), IsStateOk(), m_enable, m_enableChecking, m_head, m_metadataSkipped, m_tail, m_used, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ReadItems(), ns3::PacketMetadata::SmallItem::size, and ns3::PacketMetadata::SmallItem::typeUid.

Referenced by ns3::Packet::RemoveHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RemoveTrailer()

void ns3::PacketMetadata::RemoveTrailer	(	Trailer const &	trailer,
		uint32_t	size
	)

Remove a trailer.

Parameters

trailer	trailer to remove
size	trailer serialized size

Definition at line 753 of file packet-metadata.cc.

References ns3::PacketMetadata::ExtraItem::fragmentEnd, ns3::PacketMetadata::ExtraItem::fragmentStart, ns3::ObjectBase::GetInstanceTypeId(), ns3::TypeId::GetUid(), IsStateOk(), m_enable, m_enableChecking, m_head, m_metadataSkipped, m_tail, m_used, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::PacketMetadata::SmallItem::prev, ReadItems(), ns3::PacketMetadata::SmallItem::size, and ns3::PacketMetadata::SmallItem::typeUid.

Referenced by ns3::Packet::RemoveTrailer().

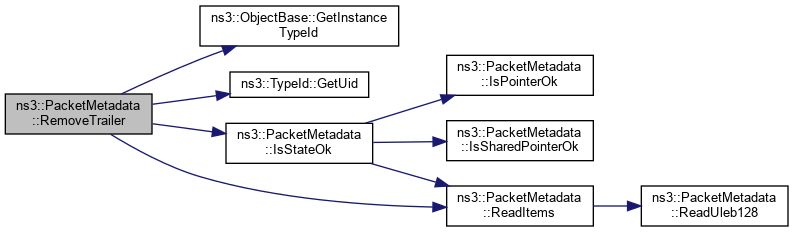

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReplaceTail()

void ns3::PacketMetadata::ReplaceTail	(	PacketMetadata::SmallItem *	item,
		PacketMetadata::ExtraItem *	extraItem,
		uint32_t	available
	)

private

Replace the tail.

Parameters

item	the item data to write
extraItem	the extra item data to write
available	the number of bytes which can be written without having to rewrite the buffer entirely.

Definition at line 450 of file packet-metadata.cc.

Referenced by AddAtEnd().

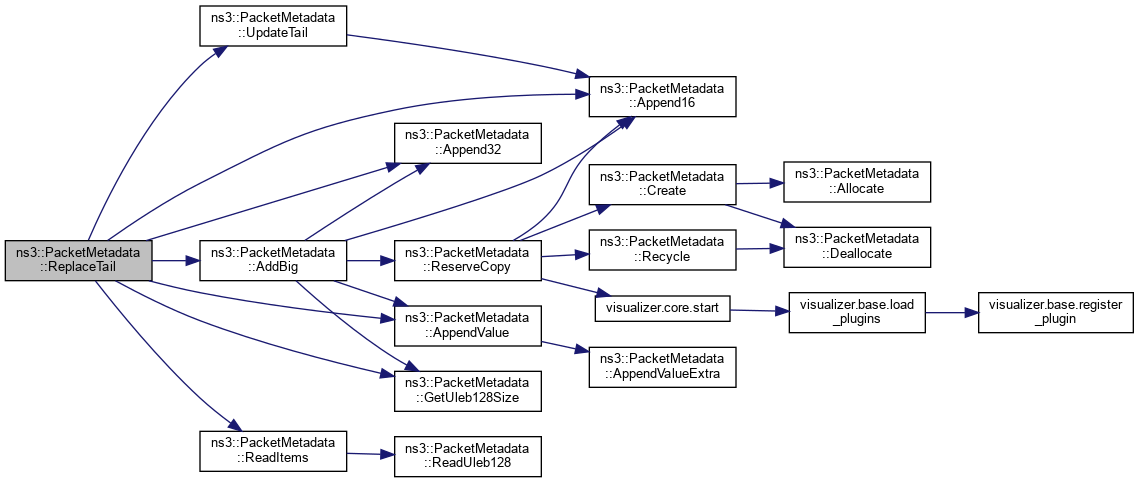

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reserve()

void ns3::PacketMetadata::Reserve ( uint32_t n )

inlineprivate

Reserve space.

Parameters

n	space to reserve

Definition at line 99 of file packet-metadata.cc.

References ns3::PacketMetadata::Data::m_count, m_data, ns3::PacketMetadata::Data::m_dirtyEnd, m_head, ns3::PacketMetadata::Data::m_size, m_used, NS_ASSERT, NS_LOG_FUNCTION, and ReserveCopy().

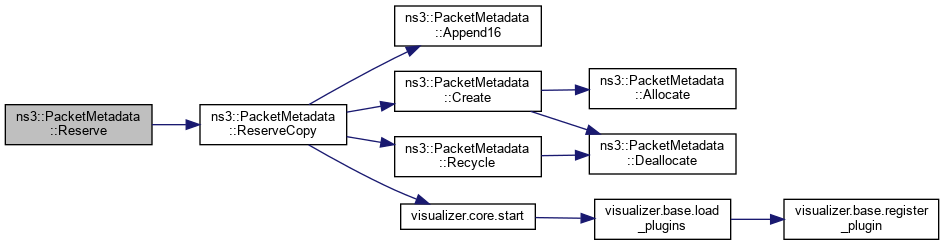

Here is the call graph for this function:

◆ ReserveCopy()

void ns3::PacketMetadata::ReserveCopy ( uint32_t n )

private

Reserve space and make a metadata copy.

Parameters

n	space to reserve

Definition at line 74 of file packet-metadata.cc.

References Append16(), Create(), ns3::PacketMetadata::Data::m_count, ns3::PacketMetadata::Data::m_data, m_data, ns3::PacketMetadata::Data::m_dirtyEnd, m_head, m_tail, m_used, NS_ASSERT, NS_LOG_FUNCTION, Recycle(), and visualizer.core::start().

Referenced by AddBig(), AddSmall(), and Reserve().

Here is the call graph for this function:

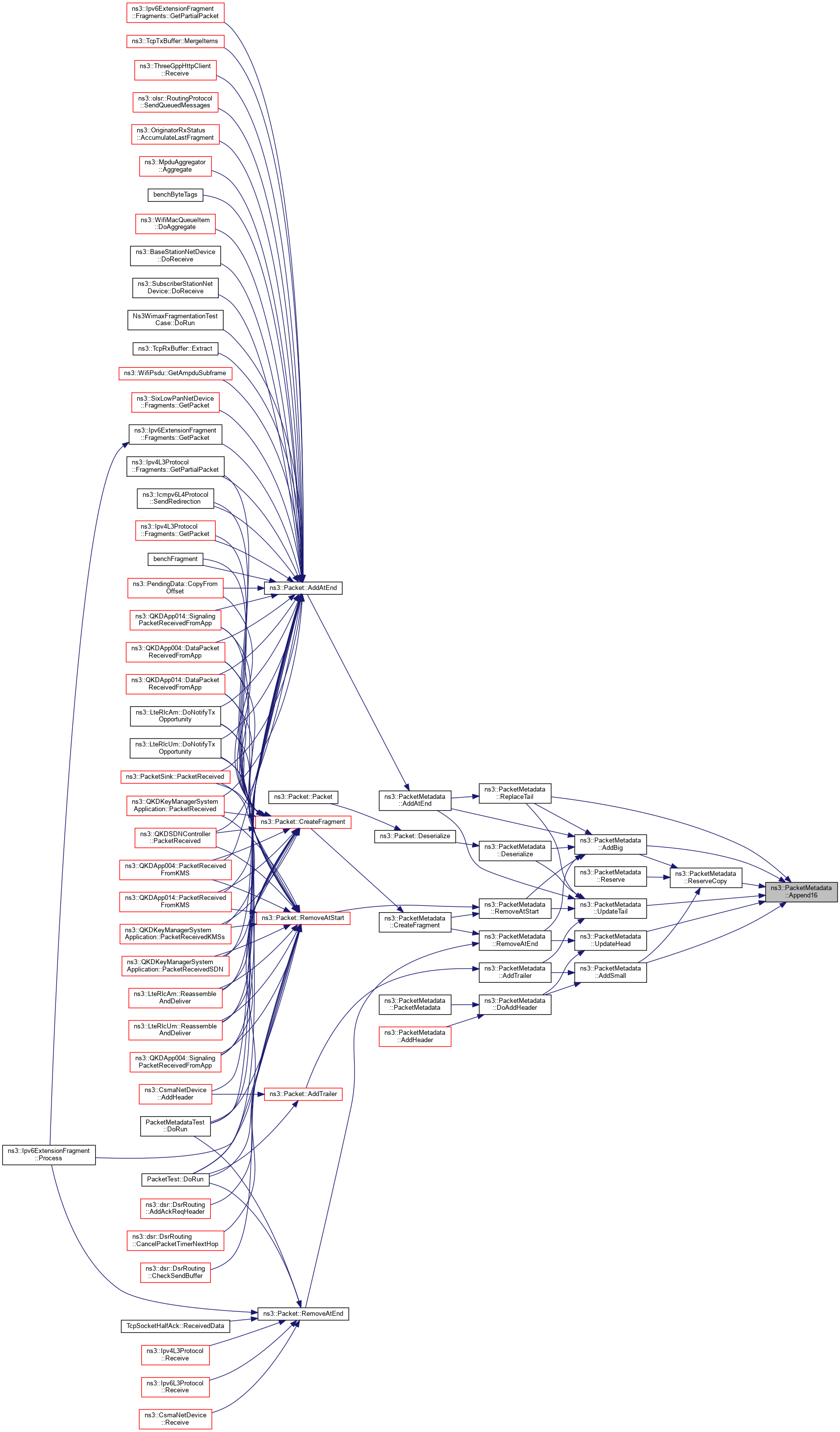

Here is the caller graph for this function:

◆ Serialize()

uint32_t ns3::PacketMetadata::Serialize	(	uint8_t *	buffer,
		uint32_t	maxSize
	)		const

Serialization to raw uint8_t*.

Parameters

buffer	the buffer to serialize to
maxSize	the maximum serialization size

Returns: 1 on success, 0 on failure

Definition at line 1178 of file packet-metadata.cc.

References AddToRaw(), AddToRawU16(), AddToRawU32(), AddToRawU64(), AddToRawU8(), ns3::PacketMetadata::SmallItem::chunkUid, ns3::PacketMetadata::ExtraItem::fragmentEnd, ns3::PacketMetadata::ExtraItem::fragmentStart, ns3::TypeId::GetName(), m_head, m_packetUid, m_tail, ns3::PacketMetadata::SmallItem::next, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::PacketMetadata::ExtraItem::packetUid, ReadItems(), ns3::TypeId::SetUid(), ns3::PacketMetadata::SmallItem::size, visualizer.core::start(), and ns3::PacketMetadata::SmallItem::typeUid.

Referenced by ns3::Packet::Serialize().

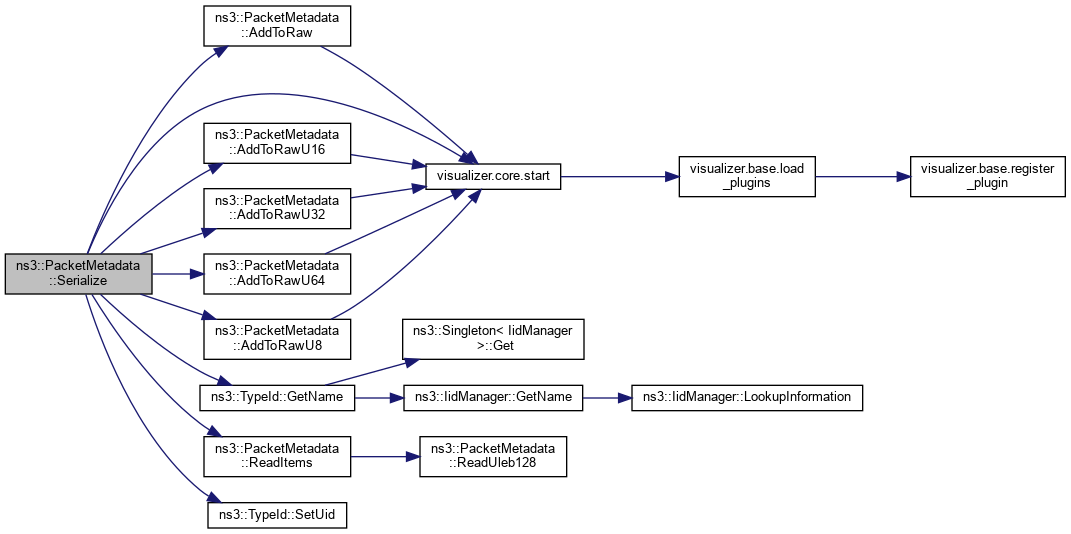

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateHead()

void ns3::PacketMetadata::UpdateHead ( uint16_t written )

inlineprivate

Update the head.

Parameters

written the used bytes

Definition at line 348 of file packet-metadata.cc.

References Append16(), ns3::PacketMetadata::Data::m_data, m_data, ns3::PacketMetadata::Data::m_dirtyEnd, m_head, m_tail, m_used, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by DoAddHeader(), and RemoveAtEnd().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateTail()

void ns3::PacketMetadata::UpdateTail ( uint16_t written )

inlineprivate

Update the tail.

Parameters

written the used bytes

Definition at line 321 of file packet-metadata.cc.

References Append16(), ns3::PacketMetadata::Data::m_data, m_data, ns3::PacketMetadata::Data::m_dirtyEnd, m_head, m_tail, m_used, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by AddAtEnd(), AddTrailer(), Deserialize(), RemoveAtStart(), and ReplaceTail().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ ItemIterator

friend class ItemIterator

friend

Friend class.

Definition at line 508 of file packet-metadata.h.

Referenced by BeginItem().

Member Data Documentation

◆ m_chunkUid

uint16_t ns3::PacketMetadata::m_chunkUid = 0

staticprivate

Chunk Uid.

Definition at line 676 of file packet-metadata.h.

Referenced by AddTrailer(), and DoAddHeader().

◆ m_data

struct Data* ns3::PacketMetadata::m_data

private

Metadata storage.

Definition at line 678 of file packet-metadata.h.

Referenced by PacketMetadata(), ~PacketMetadata(), AddBig(), AddSmall(), IsSharedPointerOk(), IsStateOk(), operator=(), ReadItems(), RemoveAtEnd(), RemoveAtStart(), ReplaceTail(), Reserve(), ReserveCopy(), UpdateHead(), and UpdateTail().

◆ m_enable

bool ns3::PacketMetadata::m_enable = false

staticprivate

Enable the packet metadata.

Definition at line 665 of file packet-metadata.h.

Referenced by ns3::PacketMetadata::DataFreeList::~DataFreeList(), AddAtEnd(), AddPaddingAtEnd(), AddTrailer(), DoAddHeader(), Enable(), GetSerializedSize(), Recycle(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), and RemoveTrailer().

◆ m_enableChecking

bool ns3::PacketMetadata::m_enableChecking = false

staticprivate

Enable the packet metadata checking.

Definition at line 666 of file packet-metadata.h.

Referenced by EnableChecking(), RemoveHeader(), and RemoveTrailer().

◆ m_freeList

PacketMetadata::DataFreeList ns3::PacketMetadata::m_freeList

staticprivate

the metadata data storage

Definition at line 664 of file packet-metadata.h.

Referenced by Create(), and Recycle().

◆ m_head

uint16_t ns3::PacketMetadata::m_head

private

list head

Definition at line 684 of file packet-metadata.h.

Referenced by AddAtEnd(), AddBig(), AddSmall(), DoAddHeader(), GetSerializedSize(), GetTotalSize(), IsStateOk(), operator=(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), RemoveTrailer(), ReplaceTail(), Reserve(), ReserveCopy(), Serialize(), UpdateHead(), and UpdateTail().

◆ m_maxSize

uint32_t ns3::PacketMetadata::m_maxSize = 0

staticprivate

maximum metadata size

Definition at line 675 of file packet-metadata.h.

Referenced by Create(), and Recycle().

◆ m_metadataSkipped

bool ns3::PacketMetadata::m_metadataSkipped = false

staticprivate

Set to true when adding metadata to a packet is skipped because m_enable is false; used to detect enabling of metadata in the middle of a simulation, which isn't allowed.

Definition at line 673 of file packet-metadata.h.

Referenced by AddAtEnd(), AddPaddingAtEnd(), AddTrailer(), DoAddHeader(), Enable(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), and RemoveTrailer().

◆ m_packetUid

uint64_t ns3::PacketMetadata::m_packetUid

private

packet Uid

Definition at line 687 of file packet-metadata.h.

Referenced by Deserialize(), GetUid(), operator=(), ReadItems(), RemoveAtEnd(), RemoveAtStart(), ReplaceTail(), and Serialize().

◆ m_tail

uint16_t ns3::PacketMetadata::m_tail

private

list tail

Definition at line 685 of file packet-metadata.h.

Referenced by AddAtEnd(), AddTrailer(), Deserialize(), GetSerializedSize(), GetTotalSize(), IsStateOk(), operator=(), RemoveAtEnd(), RemoveAtStart(), RemoveHeader(), RemoveTrailer(), ReplaceTail(), ReserveCopy(), Serialize(), UpdateHead(), and UpdateTail().

◆ m_used

uint16_t ns3::PacketMetadata::m_used

private

used portion

Definition at line 686 of file packet-metadata.h.

Referenced by AddBig(), AddSmall(), IsPointerOk(), IsStateOk(), operator=(), RemoveHeader(), RemoveTrailer(), ReplaceTail(), Reserve(), ReserveCopy(), UpdateHead(), and UpdateTail().

The documentation for this class was generated from the following files:

src/network/model/packet-metadata.h
src/network/model/packet-metadata.cc

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ PacketMetadata() [1/3]

◆ PacketMetadata() [2/3]

◆ ~PacketMetadata()

◆ DataFreeList::~DataFreeList()

◆ PacketMetadata() [3/3]

Member Function Documentation

◆ AddAtEnd()

◆ AddBig()

◆ AddHeader()

◆ AddPaddingAtEnd()

◆ AddSmall()

◆ AddToRaw()

◆ AddToRawU16()

◆ AddToRawU32()

◆ AddToRawU64()

◆ AddToRawU8()

◆ AddTrailer()

◆ Allocate()

◆ Append16()

◆ Append32()

◆ AppendValue()

◆ AppendValueExtra()

◆ BeginItem()

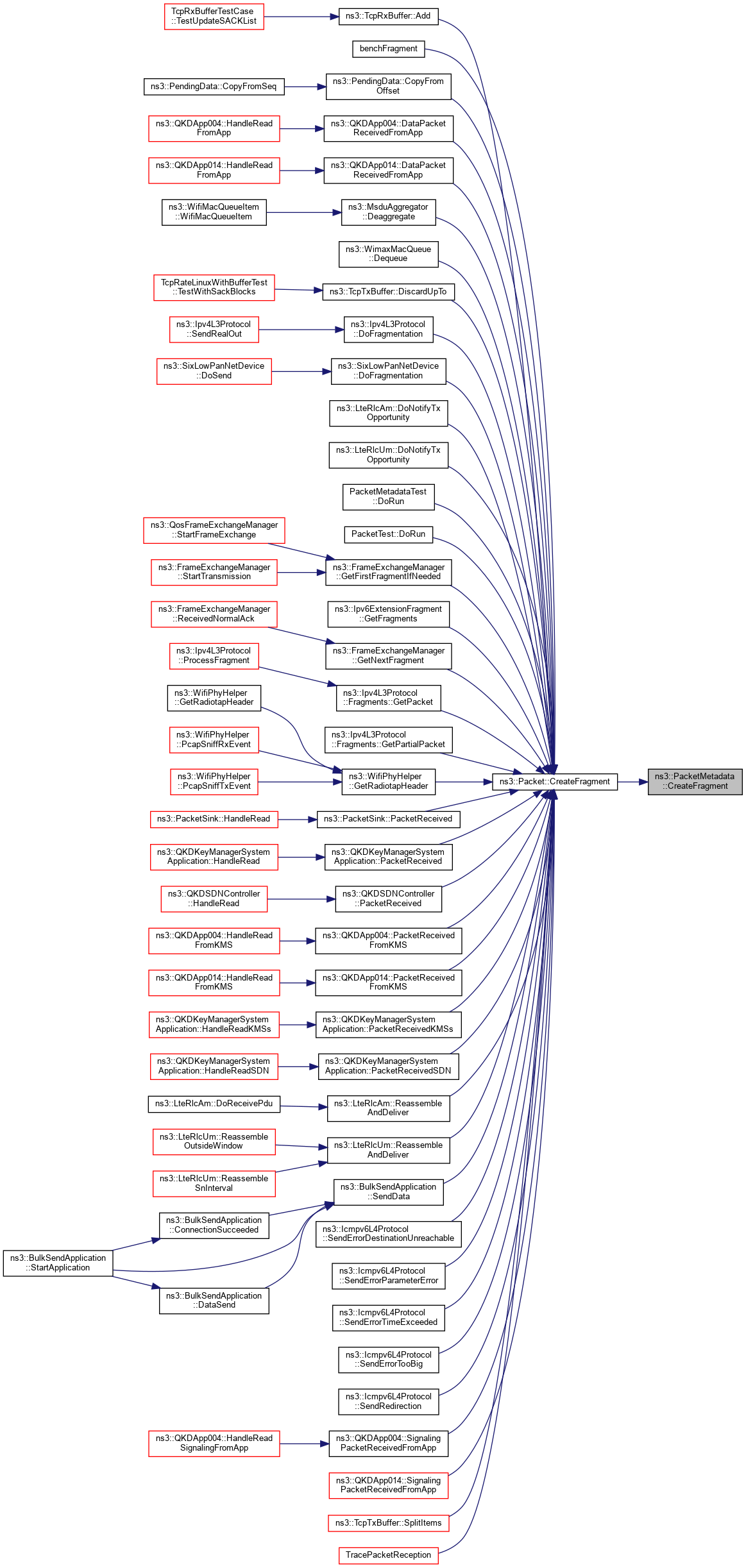

◆ Create()

◆ CreateFragment()

◆ Deallocate()

◆ Deserialize()

◆ DoAddHeader()

◆ Enable()

◆ EnableChecking()

◆ GetSerializedSize()

◆ GetTotalSize()

◆ GetUid()

◆ GetUleb128Size()

◆ IsPointerOk()

◆ IsSharedPointerOk()

◆ IsStateOk()

◆ operator=()

◆ ReadFromRawU16()

◆ ReadFromRawU32()

◆ ReadFromRawU64()

◆ ReadFromRawU8()

◆ ReadItems()

◆ ReadUleb128()

◆ Recycle()

◆ RemoveAtEnd()

◆ RemoveAtStart()

◆ RemoveHeader()

◆ RemoveTrailer()

◆ ReplaceTail()

◆ Reserve()

◆ ReserveCopy()

◆ Serialize()

◆ UpdateHead()

◆ UpdateTail()

Friends And Related Function Documentation

◆ ItemIterator

Member Data Documentation

◆ m_chunkUid

◆ m_data

◆ m_enable

◆ m_enableChecking

◆ m_freeList

◆ m_head

◆ m_maxSize

◆ m_metadataSkipped

◆ m_packetUid

◆ m_tail

◆ m_used
