#include "packetbb.h"

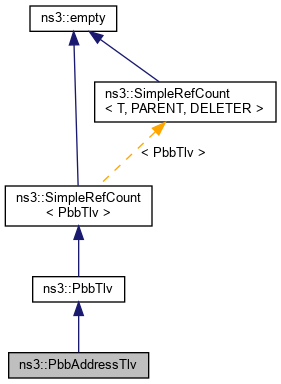

Inheritance diagram for ns3::PbbAddressTlv:

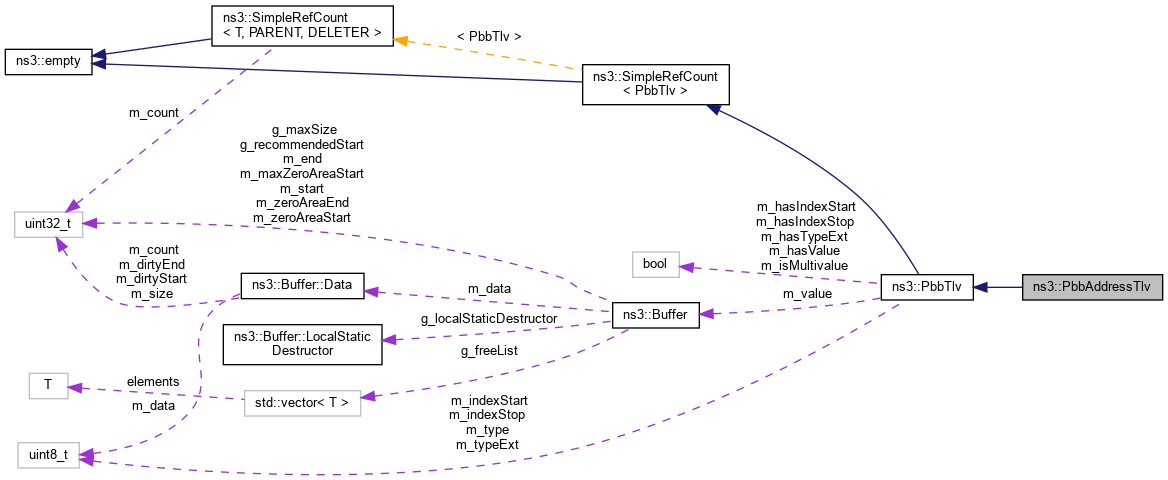

Collaboration diagram for ns3::PbbAddressTlv:

Public Member Functions
uint8_t	GetIndexStart (void) const

uint8_t	GetIndexStop (void) const

bool	HasIndexStart (void) const
	Tests whether or not this address TLV has a start index. More...

bool	HasIndexStop (void) const
	Tests whether or not this address TLV has a stop index. More...

bool	IsMultivalue (void) const
	Tests whether or not this address TLV is "multivalue". More...

void	SetIndexStart (uint8_t index)
	Sets the index of the first address in the associated address block that this address TLV applies to. More...

void	SetIndexStop (uint8_t index)
	Sets the index of the last address in the associated address block that this address TLV applies to. More...

void	SetMultivalue (bool isMultivalue)
	Sets whether or not this address TLV is "multivalue". More...

Public Member Functions inherited from ns3::PbbTlv
	PbbTlv (void)

virtual	~PbbTlv (void)

void	Deserialize (Buffer::Iterator &start)
	Deserializes a TLV from the specified buffer. More...

uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const

uint8_t	GetTypeExt (void) const

Buffer	GetValue (void) const

bool	HasTypeExt (void) const
	Tests whether or not this TLV has a type extension. More...

bool	HasValue (void) const
	Tests whether or not this TLV has a value. More...

bool	operator!= (const PbbTlv &other) const
	Inequality operator for PbbTlv. More...

bool	operator== (const PbbTlv &other) const
	Equality operator for PbbTlv. More...

void	Print (std::ostream &os) const
	Pretty-prints the contents of this TLV. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this TLV, with specified indentation. More...

void	Serialize (Buffer::Iterator &start) const
	Serializes this TLV into the specified buffer. More...

void	SetType (uint8_t type)
	Sets the type of this TLV. More...

void	SetTypeExt (uint8_t type)
	Sets the type extension of this TLV. More...

void	SetValue (Buffer start)
	Sets the value of this message to the specified buffer. More...

void	SetValue (const uint8_t *buffer, uint32_t size)
	Sets the value of this message to a buffer with the specified data. More...

Public Member Functions inherited from ns3::SimpleRefCount< PbbTlv >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::PbbTlv
uint8_t	GetIndexStart (void) const
	Get the starting point index. More...

uint8_t	GetIndexStop (void) const
	Get the stop point index. More...

bool	HasIndexStart (void) const
	Checks if there is a starting index. More...

bool	HasIndexStop (void) const
	Checks if there is a stop index. More...

bool	IsMultivalue (void) const
	Check the multivalue parameter. More...

void	SetIndexStart (uint8_t index)
	Set an index as starting point. More...

void	SetIndexStop (uint8_t index)
	Set an index as stop point. More...

void	SetMultivalue (bool isMultivalue)
	Set the multivalue parameter. More...

Detailed Description

An Address TLV.

Definition at line 1855 of file packetbb.h.

Member Function Documentation

◆ GetIndexStart()

uint8_t ns3::PbbAddressTlv::GetIndexStart ( void ) const

Returns: the first (inclusive) index of the address in the corresponding address block that this TLV applies to.

Calling this while HasIndexStart is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 3039 of file packetbb.cc.

References ns3::PbbTlv::GetIndexStart(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetIndexStop()

uint8_t ns3::PbbAddressTlv::GetIndexStop ( void ) const

Returns: the last (inclusive) index of the address in the corresponding PbbAddressBlock that this TLV applies to.

Calling this while HasIndexStop is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 3060 of file packetbb.cc.

References ns3::PbbTlv::GetIndexStop(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ HasIndexStart()

bool ns3::PbbAddressTlv::HasIndexStart ( void ) const

Tests whether or not this address TLV has a start index.

Returns: true if this address TLV has a start index, false otherwise.

This should be called before calling GetIndexStart to make sure there actually is one.

Definition at line 3046 of file packetbb.cc.

References ns3::PbbTlv::HasIndexStart(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ HasIndexStop()

bool ns3::PbbAddressTlv::HasIndexStop ( void ) const

Tests whether or not this address TLV has a stop index.

Returns: true if this address TLV has a stop index, false otherwise.

This should be called before calling GetIndexStop to make sure there actually is one.

Definition at line 3067 of file packetbb.cc.

References ns3::PbbTlv::HasIndexStop(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsMultivalue()

bool ns3::PbbAddressTlv::IsMultivalue ( void ) const

Tests whether or not this address TLV is "multivalue".

Returns: whether this address TLV is multivalue or not.

Definition at line 3081 of file packetbb.cc.

References ns3::PbbTlv::IsMultivalue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetIndexStart()

void ns3::PbbAddressTlv::SetIndexStart ( uint8_t index )

Sets the index of the first address in the associated address block that this address TLV applies to.

Parameters

index the index of the first address.

Definition at line 3032 of file packetbb.cc.

References NS_LOG_FUNCTION, and ns3::PbbTlv::SetIndexStart().

Here is the call graph for this function:

◆ SetIndexStop()

void ns3::PbbAddressTlv::SetIndexStop ( uint8_t index )

Sets the index of the last address in the associated address block that this address TLV applies to.

Parameters

index the index of the last address.

Definition at line 3053 of file packetbb.cc.

References NS_LOG_FUNCTION, and ns3::PbbTlv::SetIndexStop().

Here is the call graph for this function:

◆ SetMultivalue()

void ns3::PbbAddressTlv::SetMultivalue ( bool isMultivalue )

Sets whether or not this address TLV is "multivalue".

Parameters

isMultivalue whether or not this address TLV should be multivalue.

If true, this means the value associated with this TLV should be divided evenly into (GetIndexStop() - GetIndexStart() + 1) values. Otherwise, the value is one single value that applies to each address in the range.

Definition at line 3074 of file packetbb.cc.

References NS_LOG_FUNCTION, and ns3::PbbTlv::SetMultivalue().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc
