A message within a PbbPacket packet. More...

#include "packetbb.h"

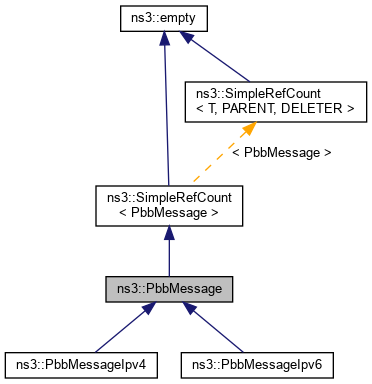

Inheritance diagram for ns3::PbbMessage:

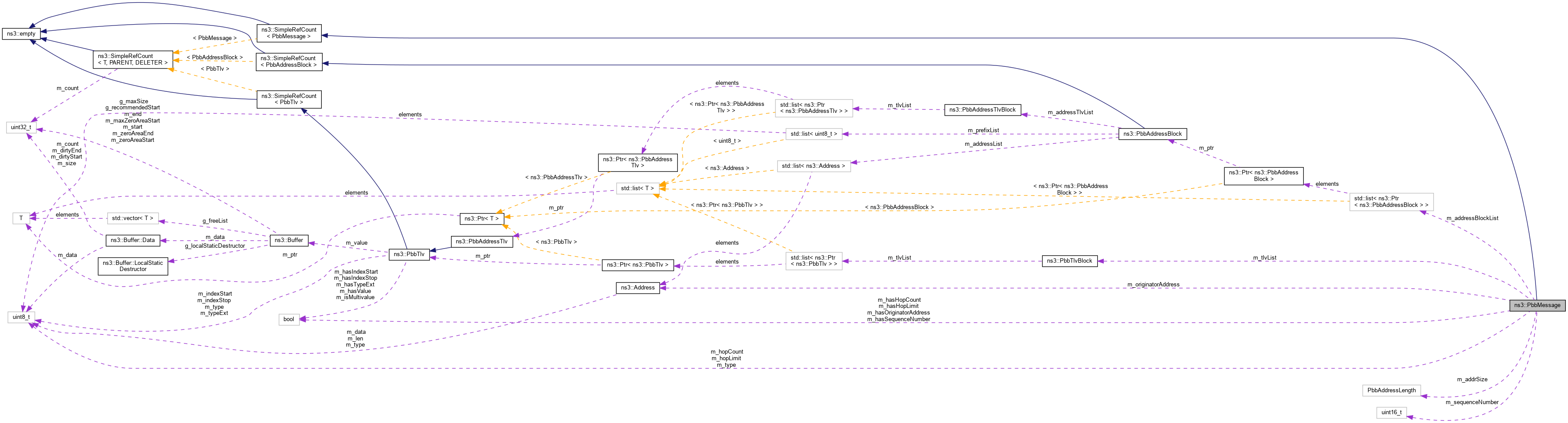

Collaboration diagram for ns3::PbbMessage:

Public Types
typedef std::list< Ptr< PbbAddressBlock > >::iterator	AddressBlockIterator
	PbbAddressBlock iterator. More...

typedef std::list< Ptr< PbbAddressBlock > >::const_iterator	ConstAddressBlockIterator
	PbbAddressBlock const iterator. More...

typedef std::list< Ptr< PbbTlv > >::const_iterator	ConstTlvIterator
	PbbTlv const iterator. More...

typedef std::list< Ptr< PbbTlv > >::iterator	TlvIterator
	PbbTlv iterator. More...

Public Member Functions
	PbbMessage ()

virtual	~PbbMessage ()

Ptr< PbbAddressBlock >	AddressBlockBack (void)

const Ptr< PbbAddressBlock >	AddressBlockBack (void) const

AddressBlockIterator	AddressBlockBegin ()

ConstAddressBlockIterator	AddressBlockBegin () const

void	AddressBlockClear (void)
	Removes all address blocks from this message. More...

bool	AddressBlockEmpty (void) const

AddressBlockIterator	AddressBlockEnd ()

ConstAddressBlockIterator	AddressBlockEnd () const

AddressBlockIterator	AddressBlockErase (AddressBlockIterator first, AddressBlockIterator last)
	Removes all address blocks from [first, last) (includes first, not includes last). More...

AddressBlockIterator	AddressBlockErase (AddressBlockIterator position)
	Removes the address block at the specified position. More...

Ptr< PbbAddressBlock >	AddressBlockFront (void)

const Ptr< PbbAddressBlock >	AddressBlockFront (void) const

void	AddressBlockPopBack (void)
	Removes an address block from the back of this message. More...

void	AddressBlockPopFront (void)
	Removes an address block from the front of this message. More...

void	AddressBlockPushBack (Ptr< PbbAddressBlock > block)
	Appends an address block to the front of this message. More...

void	AddressBlockPushFront (Ptr< PbbAddressBlock > block)
	Prepends an address block to the front of this message. More...

int	AddressBlockSize (void) const

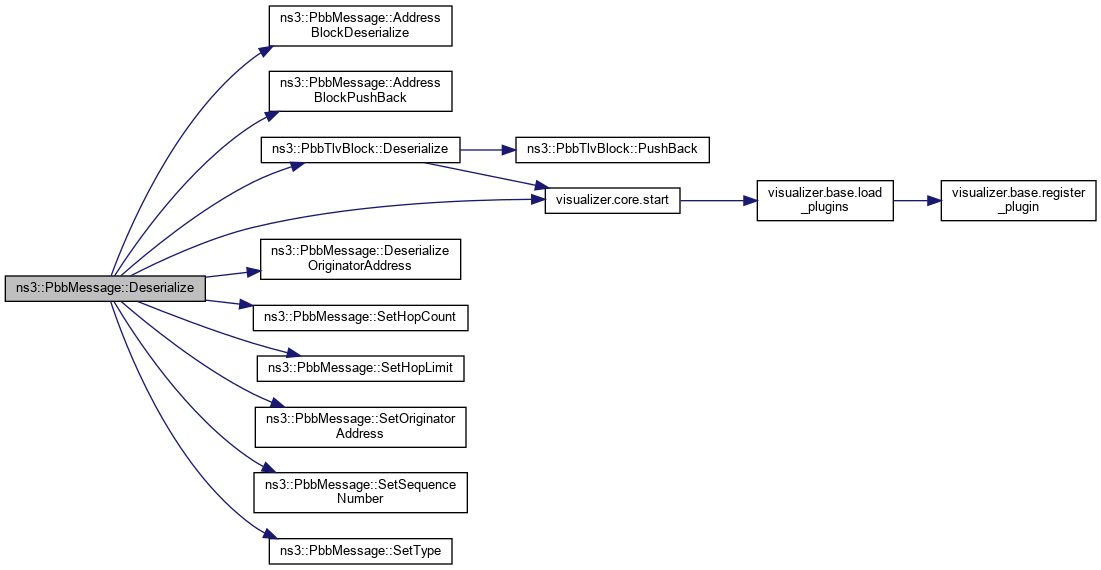

void	Deserialize (Buffer::Iterator &start)
	Deserializes a message from the specified buffer. More...

uint8_t	GetHopCount (void) const

uint8_t	GetHopLimit (void) const

Address	GetOriginatorAddress (void) const

uint16_t	GetSequenceNumber (void) const

uint32_t	GetSerializedSize (void) const

uint8_t	GetType (void) const

bool	HasHopCount (void) const
	Tests whether or not this message has a hop count. More...

bool	HasHopLimit (void) const
	Tests whether or not this message has a hop limit. More...

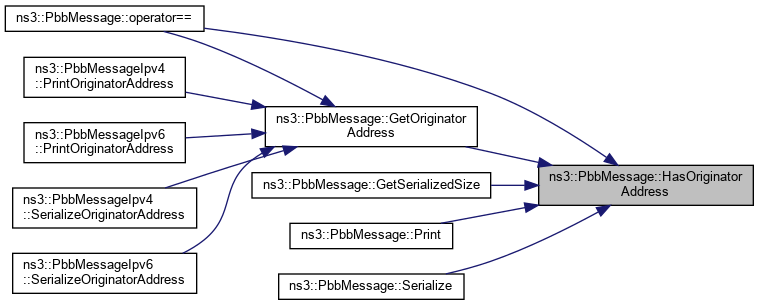

bool	HasOriginatorAddress (void) const
	Tests whether or not this message has an originator address. More...

bool	HasSequenceNumber (void) const
	Tests whether or not this message has a sequence number. More...

bool	operator!= (const PbbMessage &other) const
	Inequality operator for PbbMessage. More...

bool	operator== (const PbbMessage &other) const
	Equality operator for PbbMessage. More...

void	Print (std::ostream &os) const
	Pretty-prints the contents of this message. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this message, with specified indentation. More...

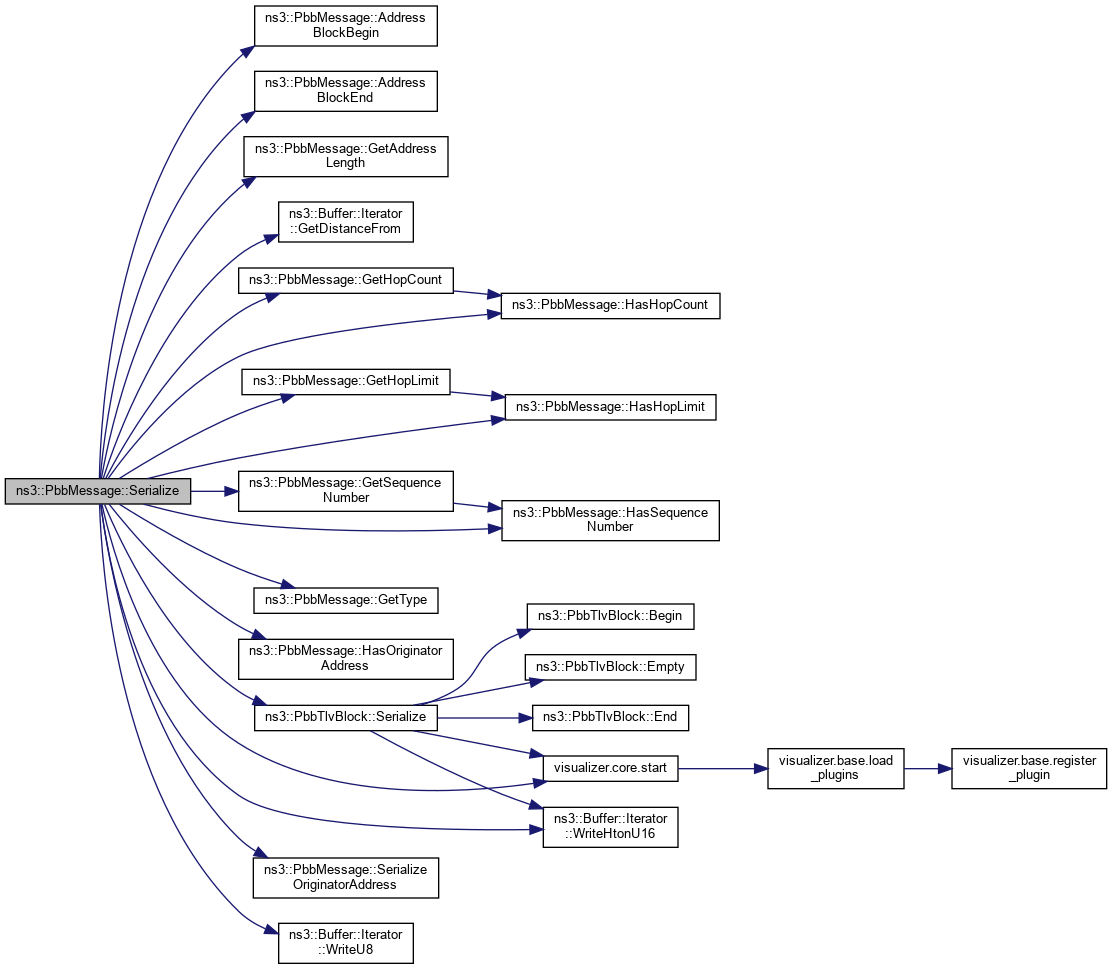

void	Serialize (Buffer::Iterator &start) const
	Serializes this message into the specified buffer. More...

void	SetHopCount (uint8_t hopcount)
	Sets the current number of hops this message has traveled. More...

void	SetHopLimit (uint8_t hoplimit)
	Sets the maximum number of hops this message should travel. More...

void	SetOriginatorAddress (Address address)
	Sets the address for the node that created this packet. More...

void	SetSequenceNumber (uint16_t seqnum)
	Sets the sequence number of this message. More...

void	SetType (uint8_t type)
	Sets the type for this message. More...

Ptr< PbbTlv >	TlvBack (void)

const Ptr< PbbTlv >	TlvBack (void) const

TlvIterator	TlvBegin ()

ConstTlvIterator	TlvBegin () const

void	TlvClear (void)
	Removes all message TLVs from this block. More...

bool	TlvEmpty (void) const

TlvIterator	TlvEnd ()

ConstTlvIterator	TlvEnd () const

TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all message TLVs from [first, last) (includes first, not includes last). More...

TlvIterator	TlvErase (TlvIterator position)
	Removes the message TLV at the specified position. More...

Ptr< PbbTlv >	TlvFront (void)

const Ptr< PbbTlv >	TlvFront (void) const

void	TlvPopBack (void)
	Removes a message TLV from the back of this message. More...

void	TlvPopFront (void)
	Removes a message TLV from the front of this message. More...

void	TlvPushBack (Ptr< PbbTlv > tlv)
	Appends a message TLV to the back of this message. More...

void	TlvPushFront (Ptr< PbbTlv > tlv)
	Prepends a message TLV to the front of this message. More...

int	TlvSize (void) const

Public Member Functions inherited from ns3::SimpleRefCount< PbbMessage >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Static Public Member Functions
static Ptr< PbbMessage >	DeserializeMessage (Buffer::Iterator &start)
	Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message. More...

Protected Member Functions
virtual Ptr< PbbAddressBlock >	AddressBlockDeserialize (Buffer::Iterator &start) const =0
	Deserialize an address block. More...

virtual Address	DeserializeOriginatorAddress (Buffer::Iterator &start) const =0
	Deserialize the originator address. More...

virtual PbbAddressLength	GetAddressLength (void) const =0
	Returns address length (IPV4 3 or IPV6 15) More...

virtual void	PrintOriginatorAddress (std::ostream &os) const =0
	Print the originator address. More...

virtual void	SerializeOriginatorAddress (Buffer::Iterator &start) const =0
	Serialize the originator address. More...

Private Attributes
std::list< Ptr< PbbAddressBlock > >	m_addressBlockList
	PbbAddressBlock container. More...

PbbAddressLength	m_addrSize
	the address size More...

bool	m_hasHopCount
	Hop count present. More...

bool	m_hasHopLimit
	Hop limit present. More...

bool	m_hasOriginatorAddress
	Originator address present. More...

bool	m_hasSequenceNumber
	Sequence number present. More...

uint8_t	m_hopCount
	Hop count. More...

uint8_t	m_hopLimit
	Hop limit. More...

Address	m_originatorAddress
	originator address More...

uint16_t	m_sequenceNumber
	Sequence number. More...

PbbTlvBlock	m_tlvList
	PbbTlvBlock. More...

uint8_t	m_type
	the type for this message More...

Detailed Description

A message within a PbbPacket packet.

There may be any number of messages in one packet packet. This is a pure virtual base class, when creating a message, you should instantiate either PbbMessageIpv4 or PbbMessageIpv6.

Definition at line 695 of file packetbb.h.

Member Typedef Documentation

◆ AddressBlockIterator

typedef std::list< Ptr<PbbAddressBlock> >::iterator ns3::PbbMessage::AddressBlockIterator

PbbAddressBlock iterator.

Definition at line 703 of file packetbb.h.

◆ ConstAddressBlockIterator

typedef std::list< Ptr<PbbAddressBlock> >::const_iterator ns3::PbbMessage::ConstAddressBlockIterator

PbbAddressBlock const iterator.

Definition at line 705 of file packetbb.h.

◆ ConstTlvIterator

typedef std::list< Ptr<PbbTlv> >::const_iterator ns3::PbbMessage::ConstTlvIterator

PbbTlv const iterator.

Definition at line 701 of file packetbb.h.

◆ TlvIterator

typedef std::list< Ptr<PbbTlv> >::iterator ns3::PbbMessage::TlvIterator

PbbTlv iterator.

Definition at line 699 of file packetbb.h.

Constructor & Destructor Documentation

◆ PbbMessage()

ns3::PbbMessage::PbbMessage ( )

Definition at line 1025 of file packetbb.cc.

References ns3::IPV4, m_addrSize, m_hasHopCount, m_hasHopLimit, m_hasOriginatorAddress, m_hasSequenceNumber, and NS_LOG_FUNCTION.

◆ ~PbbMessage()

ns3::PbbMessage::~PbbMessage ( )

virtual

Definition at line 1036 of file packetbb.cc.

References AddressBlockClear(), and NS_LOG_FUNCTION.

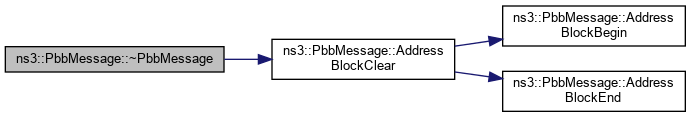

Here is the call graph for this function:

Member Function Documentation

◆ AddressBlockBack() [1/2]

Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockBack ( void )

Returns: a smart pointer to the last address block in this message.

Definition at line 1335 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockBack() [2/2]

const Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockBack ( void ) const

Returns: a const smart pointer to the last address block in this message.

Definition at line 1342 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockBegin() [1/2]

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockBegin ( void )

Returns: an iterator to the first address block in this message.

Definition at line 1279 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by AddressBlockClear(), GetSerializedSize(), operator==(), Print(), and Serialize().

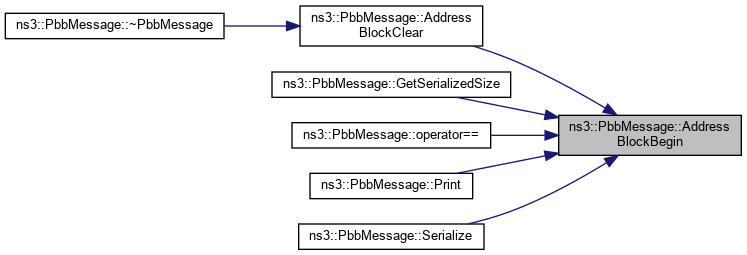

Here is the caller graph for this function:

◆ AddressBlockBegin() [2/2]

PbbMessage::ConstAddressBlockIterator ns3::PbbMessage::AddressBlockBegin ( void ) const

Returns: a const iterator to the first address block in this message.

Definition at line 1286 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockClear()

void ns3::PbbMessage::AddressBlockClear ( void )

Removes all address blocks from this message.

Definition at line 1392 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by ~PbbMessage().

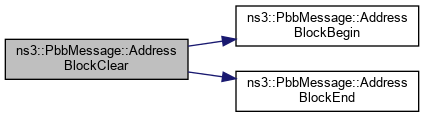

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AddressBlockDeserialize()

virtual Ptr<PbbAddressBlock> ns3::PbbMessage::AddressBlockDeserialize ( Buffer::Iterator & start ) const

protectedpure virtual

Deserialize an address block.

Parameters

start the buffer iterator start

Returns: the deserialized address block

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ AddressBlockEmpty()

bool ns3::PbbMessage::AddressBlockEmpty ( void ) const

Returns: true if there are no address blocks in this message, false otherwise.

Definition at line 1314 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockEnd() [1/2]

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockEnd ( void )

Returns: an iterator to the past-the-end address block element in this message.

Definition at line 1293 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by AddressBlockClear(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

◆ AddressBlockEnd() [2/2]

PbbMessage::ConstAddressBlockIterator ns3::PbbMessage::AddressBlockEnd ( void ) const

Returns: a const iterator to the past-the-end address block element in this message.

Definition at line 1300 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockErase() [1/2]

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockErase	(	PbbMessage::AddressBlockIterator	first,
		PbbMessage::AddressBlockIterator	last
	)

Removes all address blocks from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first address block to erase (inclusive).
last	an Iterator pointing to the element past the last address block to erase.

Returns: an iterator pointing to the next address block in the message.

Definition at line 1384 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockErase() [2/2]

PbbMessage::AddressBlockIterator ns3::PbbMessage::AddressBlockErase ( PbbMessage::AddressBlockIterator position )

Removes the address block at the specified position.

Parameters

position an Iterator pointing to the address block to erase.

Returns: an iterator pointing to the next address block in the message.

Definition at line 1377 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockFront() [1/2]

Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockFront ( void )

Returns: a smart pointer to the first address block in this message.

Definition at line 1321 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockFront() [2/2]

const Ptr< PbbAddressBlock > ns3::PbbMessage::AddressBlockFront ( void ) const

Returns: a const smart pointer to the first address block in this message.

Definition at line 1328 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockPopBack()

void ns3::PbbMessage::AddressBlockPopBack ( void )

Removes an address block from the back of this message.

Definition at line 1370 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockPopFront()

void ns3::PbbMessage::AddressBlockPopFront ( void )

Removes an address block from the front of this message.

Definition at line 1356 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockPushBack()

void ns3::PbbMessage::AddressBlockPushBack ( Ptr< PbbAddressBlock > block )

Appends an address block to the front of this message.

Parameters

block a smart pointer to the address block to append.

Definition at line 1363 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ AddressBlockPushFront()

void ns3::PbbMessage::AddressBlockPushFront ( Ptr< PbbAddressBlock > block )

Prepends an address block to the front of this message.

Parameters

block a smart pointer to the address block to prepend.

Definition at line 1349 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

◆ AddressBlockSize()

int ns3::PbbMessage::AddressBlockSize ( void ) const

Returns: the number of address blocks in this message.

Definition at line 1307 of file packetbb.cc.

References m_addressBlockList, and NS_LOG_FUNCTION.

Referenced by operator==().

Here is the caller graph for this function:

◆ Deserialize()

void ns3::PbbMessage::Deserialize ( Buffer::Iterator & start )

Deserializes a message from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 1534 of file packetbb.cc.

References AddressBlockDeserialize(), AddressBlockPushBack(), ns3::PbbTlvBlock::Deserialize(), DeserializeOriginatorAddress(), m_tlvList, MHAS_HOP_COUNT, MHAS_HOP_LIMIT, MHAS_ORIG, MHAS_SEQ_NUM, NS_LOG_FUNCTION, SetHopCount(), SetHopLimit(), SetOriginatorAddress(), SetSequenceNumber(), SetType(), and visualizer.core::start().

Here is the call graph for this function:

◆ DeserializeMessage()

Ptr< PbbMessage > ns3::PbbMessage::DeserializeMessage ( Buffer::Iterator & start )

static

Deserializes a message, returning the correct object depending on whether it is an IPv4 message or an IPv6 message.

Parameters

start a reference to the point in a buffer to begin deserializing.

Returns: A pointer to the deserialized message, or 0 on error.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 1501 of file packetbb.cc.

References ns3::IPV4, ns3::IPV6, NS_LOG_FUNCTION, and visualizer.core::start().

Referenced by ns3::PbbPacket::Deserialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeserializeOriginatorAddress()

virtual Address ns3::PbbMessage::DeserializeOriginatorAddress ( Buffer::Iterator & start ) const

protectedpure virtual

Deserialize the originator address.

Parameters

start the buffer iterator start

Returns: the deserialized address

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetAddressLength()

PbbAddressLength ns3::PbbMessage::GetAddressLength ( void ) const

protectedpure virtual

Returns address length (IPV4 3 or IPV6 15)

Returns message size in bytes - 1 IPv4 = 4 - 1 = 3, IPv6 = 16 - 1 = 15

Returns: Address length (IPV4 3 or IPV6 15)

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Definition at line 1057 of file packetbb.cc.

References m_addrSize, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), operator==(), Print(), and Serialize().

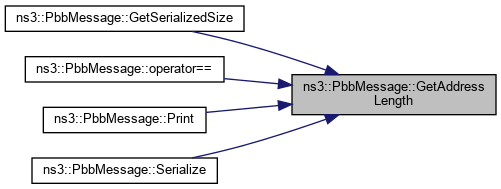

Here is the caller graph for this function:

◆ GetHopCount()

uint8_t ns3::PbbMessage::GetHopCount ( void ) const

Returns: the current number of hops this message has traveled.

Calling this while HasHopCount is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1118 of file packetbb.cc.

References HasHopCount(), m_hopCount, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

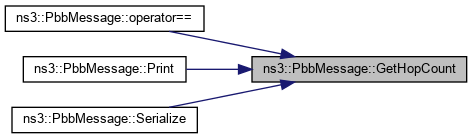

Here is the caller graph for this function:

◆ GetHopLimit()

uint8_t ns3::PbbMessage::GetHopLimit ( void ) const

Returns: the maximum number of hops this message should travel.

Calling this while HasHopLimit is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1095 of file packetbb.cc.

References HasHopLimit(), m_hopLimit, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

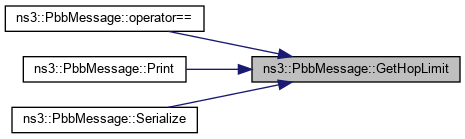

Here is the caller graph for this function:

◆ GetOriginatorAddress()

Address ns3::PbbMessage::GetOriginatorAddress ( void ) const

Returns: the address of the node that created this packet.

Calling this while HasOriginatorAddress is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1072 of file packetbb.cc.

References HasOriginatorAddress(), m_originatorAddress, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), ns3::PbbMessageIpv4::PrintOriginatorAddress(), ns3::PbbMessageIpv6::PrintOriginatorAddress(), ns3::PbbMessageIpv4::SerializeOriginatorAddress(), and ns3::PbbMessageIpv6::SerializeOriginatorAddress().

Here is the call graph for this function:

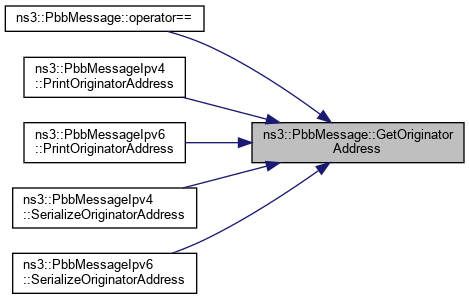

Here is the caller graph for this function:

◆ GetSequenceNumber()

uint16_t ns3::PbbMessage::GetSequenceNumber ( void ) const

Returns: the sequence number of this message.

Calling this while HasSequenceNumber is False is undefined. Make sure you check it first. This will be checked by an assert in debug builds.

Definition at line 1141 of file packetbb.cc.

References HasSequenceNumber(), m_sequenceNumber, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

Here is the call graph for this function:

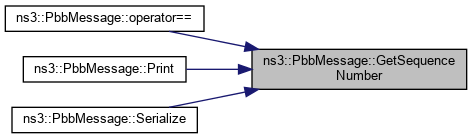

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::PbbMessage::GetSerializedSize ( void ) const

Returns: The size (in bytes) needed to serialize this message.

Definition at line 1405 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), GetAddressLength(), ns3::PbbTlvBlock::GetSerializedSize(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), m_tlvList, and NS_LOG_FUNCTION.

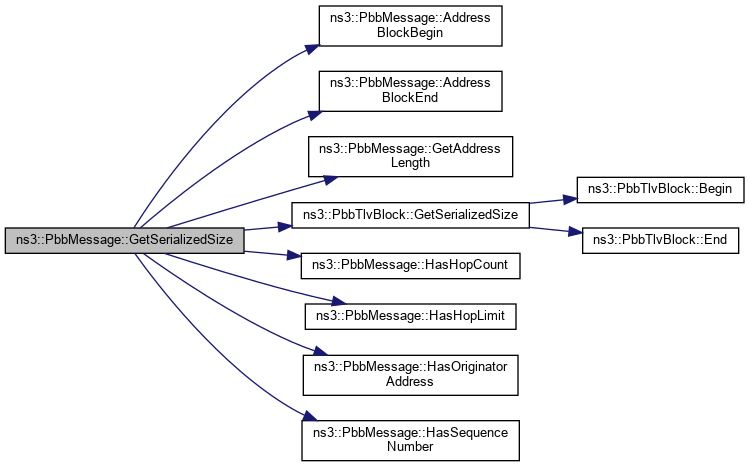

Here is the call graph for this function:

◆ GetType()

uint8_t ns3::PbbMessage::GetType ( void ) const

Returns: the type assigned to this packet

Definition at line 1050 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

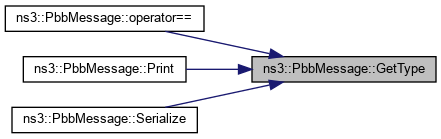

Here is the caller graph for this function:

◆ HasHopCount()

bool ns3::PbbMessage::HasHopCount ( void ) const

Tests whether or not this message has a hop count.

Returns: true if this message has a hop limit, false otherwise.

Definition at line 1126 of file packetbb.cc.

References m_hasHopCount, and NS_LOG_FUNCTION.

Referenced by GetHopCount(), GetSerializedSize(), operator==(), Print(), and Serialize().

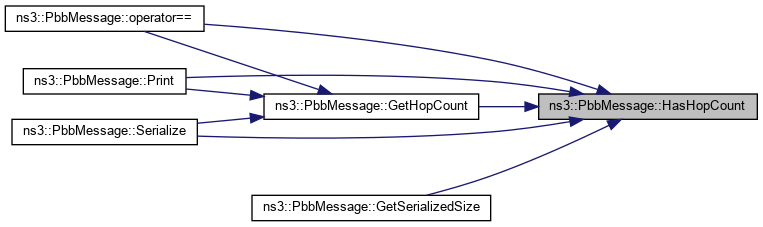

Here is the caller graph for this function:

◆ HasHopLimit()

bool ns3::PbbMessage::HasHopLimit ( void ) const

Tests whether or not this message has a hop limit.

Returns: true if this message has a hop limit, false otherwise.

If this is set, messages should not hop further than this limit.

Definition at line 1103 of file packetbb.cc.

References m_hasHopLimit, and NS_LOG_FUNCTION.

Referenced by GetHopLimit(), GetSerializedSize(), operator==(), Print(), and Serialize().

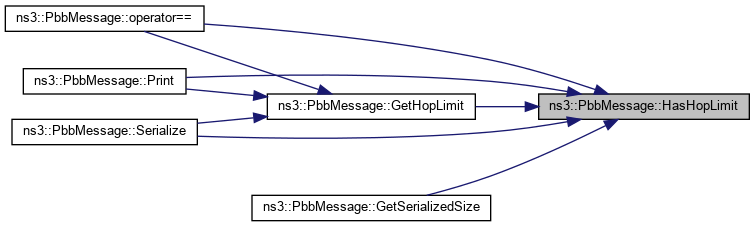

Here is the caller graph for this function:

◆ HasOriginatorAddress()

bool ns3::PbbMessage::HasOriginatorAddress ( void ) const

Tests whether or not this message has an originator address.

Returns: true if this message has an originator address, false otherwise.

Definition at line 1080 of file packetbb.cc.

References m_hasOriginatorAddress, and NS_LOG_FUNCTION.

Referenced by GetOriginatorAddress(), GetSerializedSize(), operator==(), Print(), and Serialize().

Here is the caller graph for this function:

◆ HasSequenceNumber()

bool ns3::PbbMessage::HasSequenceNumber ( void ) const

Tests whether or not this message has a sequence number.

Returns: true if this message has a sequence number, false otherwise.

Definition at line 1149 of file packetbb.cc.

References m_hasSequenceNumber, and NS_LOG_FUNCTION.

Referenced by GetSequenceNumber(), GetSerializedSize(), operator==(), Print(), and Serialize().

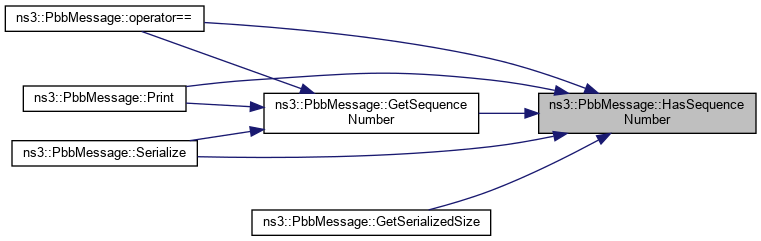

Here is the caller graph for this function:

◆ operator!=()

bool ns3::PbbMessage::operator!= ( const PbbMessage & other ) const

Inequality operator for PbbMessage.

Parameters

other PbbMessage to compare to this one

Returns: true if PbbMessages are not equal

Definition at line 1719 of file packetbb.cc.

◆ operator==()

bool ns3::PbbMessage::operator== ( const PbbMessage & other ) const

Equality operator for PbbMessage.

Parameters

other PbbMessage to compare to this one

Returns: true if PbbMessages are equal

Definition at line 1631 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), AddressBlockSize(), GetAddressLength(), GetHopCount(), GetHopLimit(), GetOriginatorAddress(), GetSequenceNumber(), GetType(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), and m_tlvList.

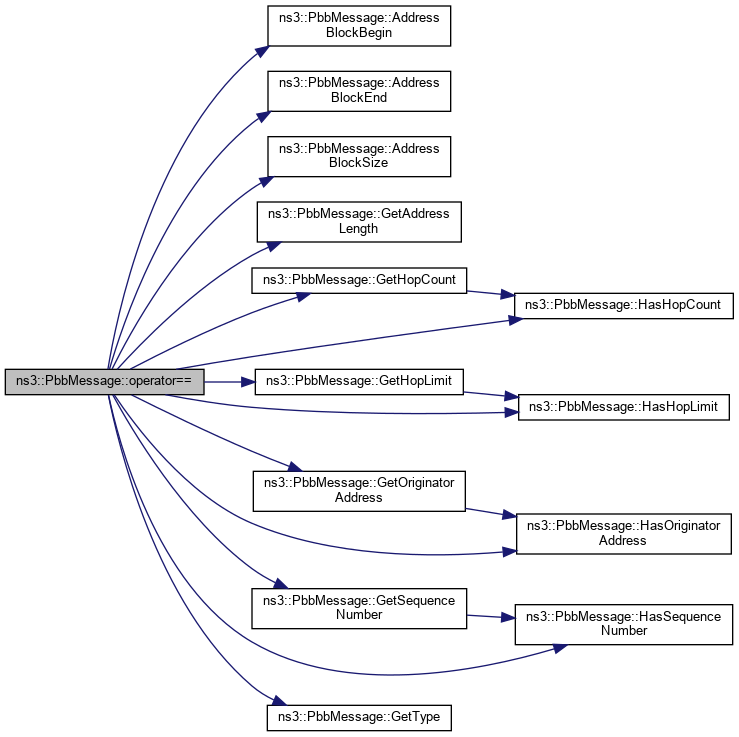

Here is the call graph for this function:

◆ Print() [1/2]

void ns3::PbbMessage::Print ( std::ostream & os ) const

Pretty-prints the contents of this message.

Parameters

os	a stream object to print to.

Definition at line 1576 of file packetbb.cc.

References NS_LOG_FUNCTION.

◆ Print() [2/2]

void ns3::PbbMessage::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this message, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 1583 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), GetAddressLength(), GetHopCount(), GetHopLimit(), GetSequenceNumber(), GetType(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), m_tlvList, NS_LOG_FUNCTION, ns3::PbbTlvBlock::Print(), and PrintOriginatorAddress().

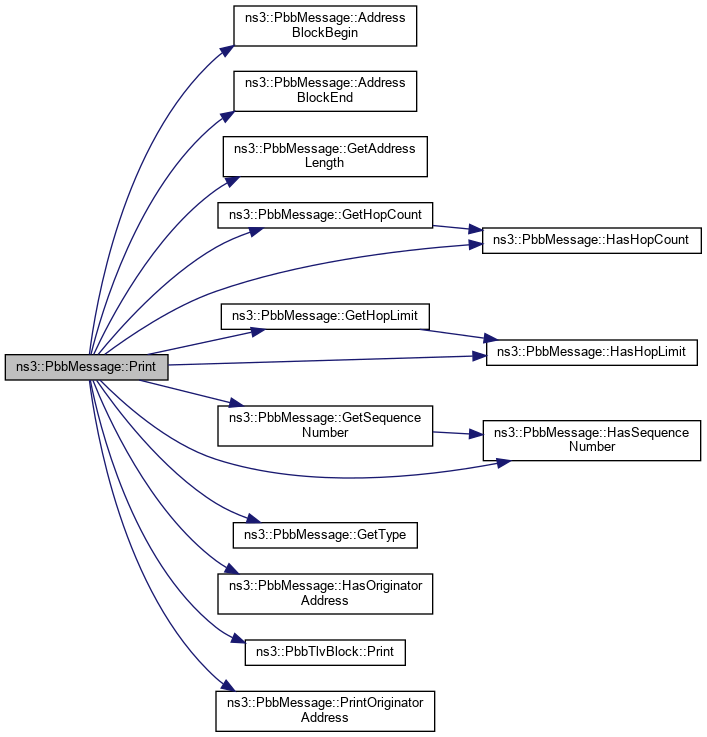

Here is the call graph for this function:

◆ PrintOriginatorAddress()

virtual void ns3::PbbMessage::PrintOriginatorAddress ( std::ostream & os ) const

protectedpure virtual

Print the originator address.

Parameters

os	the output stream

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Print().

Here is the caller graph for this function:

◆ Serialize()

void ns3::PbbMessage::Serialize ( Buffer::Iterator & start ) const

Serializes this message into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 1444 of file packetbb.cc.

References AddressBlockBegin(), AddressBlockEnd(), GetAddressLength(), ns3::Buffer::Iterator::GetDistanceFrom(), GetHopCount(), GetHopLimit(), GetSequenceNumber(), GetType(), HasHopCount(), HasHopLimit(), HasOriginatorAddress(), HasSequenceNumber(), m_tlvList, MHAS_HOP_COUNT, MHAS_HOP_LIMIT, MHAS_ORIG, MHAS_SEQ_NUM, NS_LOG_FUNCTION, ns3::PbbTlvBlock::Serialize(), SerializeOriginatorAddress(), visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SerializeOriginatorAddress()

virtual void ns3::PbbMessage::SerializeOriginatorAddress ( Buffer::Iterator & start ) const

protectedpure virtual

Serialize the originator address.

Parameters

start the buffer iterator start

Implemented in ns3::PbbMessageIpv6, and ns3::PbbMessageIpv4.

Referenced by Serialize().

Here is the caller graph for this function:

◆ SetHopCount()

void ns3::PbbMessage::SetHopCount ( uint8_t hopcount )

Sets the current number of hops this message has traveled.

Parameters

hopcount the current number of hops

Definition at line 1110 of file packetbb.cc.

References m_hasHopCount, m_hopCount, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetHopLimit()

void ns3::PbbMessage::SetHopLimit ( uint8_t hoplimit )

Sets the maximum number of hops this message should travel.

Parameters

hoplimit the limit to set

Definition at line 1087 of file packetbb.cc.

References m_hasHopLimit, m_hopLimit, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetOriginatorAddress()

void ns3::PbbMessage::SetOriginatorAddress ( Address address )

Sets the address for the node that created this packet.

Parameters

address the originator address.

Definition at line 1064 of file packetbb.cc.

References first::address, m_hasOriginatorAddress, m_originatorAddress, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetSequenceNumber()

void ns3::PbbMessage::SetSequenceNumber ( uint16_t seqnum )

Sets the sequence number of this message.

Parameters

seqnum the sequence number to set.

Definition at line 1133 of file packetbb.cc.

References m_hasSequenceNumber, m_sequenceNumber, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetType()

void ns3::PbbMessage::SetType ( uint8_t type )

Sets the type for this message.

Parameters

type	the type to set.

Definition at line 1043 of file packetbb.cc.

References m_type, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ TlvBack() [1/2]

Ptr< PbbTlv > ns3::PbbMessage::TlvBack ( void )

Returns: a smart pointer to the last message TLV in this message.

Definition at line 1214 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvBack() [2/2]

const Ptr< PbbTlv > ns3::PbbMessage::TlvBack ( void ) const

Returns: a const smart pointer to the last message TLV in this message.

Definition at line 1221 of file packetbb.cc.

References ns3::PbbTlvBlock::Back(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvBegin() [1/2]

PbbMessage::TlvIterator ns3::PbbMessage::TlvBegin ( void )

Returns: an iterator to the first message TLV in this message.

Definition at line 1158 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvBegin() [2/2]

PbbMessage::ConstTlvIterator ns3::PbbMessage::TlvBegin ( void ) const

Returns: a const iterator to the first message TLV in this message.

Definition at line 1165 of file packetbb.cc.

References ns3::PbbTlvBlock::Begin(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvClear()

void ns3::PbbMessage::TlvClear ( void )

Removes all message TLVs from this block.

Definition at line 1270 of file packetbb.cc.

References ns3::PbbTlvBlock::Clear(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvEmpty()

bool ns3::PbbMessage::TlvEmpty ( void ) const

Returns: true if there are no message TLVs in this message, false otherwise.

Definition at line 1193 of file packetbb.cc.

References ns3::PbbTlvBlock::Empty(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvEnd() [1/2]

PbbMessage::TlvIterator ns3::PbbMessage::TlvEnd ( void )

Returns: an iterator to the past-the-end message TLV element in this message.

Definition at line 1172 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvEnd() [2/2]

PbbMessage::ConstTlvIterator ns3::PbbMessage::TlvEnd ( void ) const

Returns: a const iterator to the past-the-end message TLV element in this message.

Definition at line 1179 of file packetbb.cc.

References ns3::PbbTlvBlock::End(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvErase() [1/2]

PbbMessage::TlvIterator ns3::PbbMessage::TlvErase	(	PbbMessage::TlvIterator	first,
		PbbMessage::TlvIterator	last
	)

Removes all message TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first message TLV to erase (inclusive).
last	an Iterator pointing to the element past the last message TLV to erase.

Returns: an iterator pointing to the next message TLV in the message.

Definition at line 1263 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvErase() [2/2]

PbbMessage::TlvIterator ns3::PbbMessage::TlvErase ( PbbMessage::TlvIterator position )

Removes the message TLV at the specified position.

Parameters

position an Iterator pointing to the message TLV to erase.

Returns: an iterator pointing to the next TLV in the block.

Definition at line 1256 of file packetbb.cc.

References ns3::PbbTlvBlock::Erase(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvFront() [1/2]

Ptr< PbbTlv > ns3::PbbMessage::TlvFront ( void )

Returns: a smart pointer to the first message TLV in this message.

Definition at line 1200 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvFront() [2/2]

const Ptr< PbbTlv > ns3::PbbMessage::TlvFront ( void ) const

Returns: a const smart pointer to the first message TLV in this message.

Definition at line 1207 of file packetbb.cc.

References ns3::PbbTlvBlock::Front(), m_tlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ TlvPopBack()

void ns3::PbbMessage::TlvPopBack ( void )

Removes a message TLV from the back of this message.

Definition at line 1249 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopBack().

Here is the call graph for this function:

◆ TlvPopFront()

void ns3::PbbMessage::TlvPopFront ( void )

Removes a message TLV from the front of this message.

Definition at line 1235 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PopFront().

Here is the call graph for this function:

◆ TlvPushBack()

void ns3::PbbMessage::TlvPushBack ( Ptr< PbbTlv > tlv )

Appends a message TLV to the back of this message.

Parameters

tlv	a smart pointer to the message TLV to append.

Definition at line 1242 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushBack().

Here is the call graph for this function:

◆ TlvPushFront()

void ns3::PbbMessage::TlvPushFront ( Ptr< PbbTlv > tlv )

Prepends a message TLV to the front of this message.

Parameters

tlv	a smart pointer to the message TLV to prepend.

Definition at line 1228 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::PushFront().

Here is the call graph for this function:

◆ TlvSize()

int ns3::PbbMessage::TlvSize ( void ) const

Returns: the number of message TLVs in this message.

Definition at line 1186 of file packetbb.cc.

References m_tlvList, NS_LOG_FUNCTION, and ns3::PbbTlvBlock::Size().

Here is the call graph for this function:

Member Data Documentation

◆ m_addressBlockList

std::list< Ptr<PbbAddressBlock> > ns3::PbbMessage::m_addressBlockList

private

PbbAddressBlock container.

Definition at line 1104 of file packetbb.h.

Referenced by AddressBlockBack(), AddressBlockBegin(), AddressBlockClear(), AddressBlockEmpty(), AddressBlockEnd(), AddressBlockErase(), AddressBlockFront(), AddressBlockPopBack(), AddressBlockPopFront(), AddressBlockPushBack(), AddressBlockPushFront(), and AddressBlockSize().

◆ m_addrSize

PbbAddressLength ns3::PbbMessage::m_addrSize

private

the address size

Definition at line 1107 of file packetbb.h.

Referenced by PbbMessage(), and GetAddressLength().

◆ m_hasHopCount

bool ns3::PbbMessage::m_hasHopCount

private

Hop count present.

Definition at line 1115 of file packetbb.h.

Referenced by PbbMessage(), HasHopCount(), and SetHopCount().

◆ m_hasHopLimit

bool ns3::PbbMessage::m_hasHopLimit

private

Hop limit present.

Definition at line 1112 of file packetbb.h.

Referenced by PbbMessage(), HasHopLimit(), and SetHopLimit().

◆ m_hasOriginatorAddress

bool ns3::PbbMessage::m_hasOriginatorAddress

private

Originator address present.

Definition at line 1109 of file packetbb.h.

Referenced by PbbMessage(), HasOriginatorAddress(), and SetOriginatorAddress().

◆ m_hasSequenceNumber

bool ns3::PbbMessage::m_hasSequenceNumber

private

Sequence number present.

Definition at line 1118 of file packetbb.h.

Referenced by PbbMessage(), HasSequenceNumber(), and SetSequenceNumber().

◆ m_hopCount

uint8_t ns3::PbbMessage::m_hopCount

private

Hop count.

Definition at line 1116 of file packetbb.h.

Referenced by GetHopCount(), and SetHopCount().

◆ m_hopLimit

uint8_t ns3::PbbMessage::m_hopLimit

private

Hop limit.

Definition at line 1113 of file packetbb.h.

Referenced by GetHopLimit(), and SetHopLimit().

◆ m_originatorAddress

Address ns3::PbbMessage::m_originatorAddress

private

originator address

Definition at line 1110 of file packetbb.h.

Referenced by GetOriginatorAddress(), and SetOriginatorAddress().

◆ m_sequenceNumber

uint16_t ns3::PbbMessage::m_sequenceNumber

private

Sequence number.

Definition at line 1119 of file packetbb.h.

Referenced by GetSequenceNumber(), and SetSequenceNumber().

◆ m_tlvList

PbbTlvBlock ns3::PbbMessage::m_tlvList

private

PbbTlvBlock.

Definition at line 1103 of file packetbb.h.

Referenced by Deserialize(), GetSerializedSize(), operator==(), Print(), Serialize(), TlvBack(), TlvBegin(), TlvClear(), TlvEmpty(), TlvEnd(), TlvErase(), TlvFront(), TlvPopBack(), TlvPopFront(), TlvPushBack(), TlvPushFront(), and TlvSize().

◆ m_type

uint8_t ns3::PbbMessage::m_type

private

the type for this message

Definition at line 1106 of file packetbb.h.

Referenced by GetType(), and SetType().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ AddressBlockIterator

◆ ConstAddressBlockIterator

◆ ConstTlvIterator

◆ TlvIterator

Constructor & Destructor Documentation

◆ PbbMessage()

◆ ~PbbMessage()

Member Function Documentation

◆ AddressBlockBack() [1/2]

◆ AddressBlockBack() [2/2]

◆ AddressBlockBegin() [1/2]

◆ AddressBlockBegin() [2/2]

◆ AddressBlockClear()

◆ AddressBlockDeserialize()

◆ AddressBlockEmpty()

◆ AddressBlockEnd() [1/2]

◆ AddressBlockEnd() [2/2]

◆ AddressBlockErase() [1/2]

◆ AddressBlockErase() [2/2]

◆ AddressBlockFront() [1/2]

◆ AddressBlockFront() [2/2]

◆ AddressBlockPopBack()

◆ AddressBlockPopFront()

◆ AddressBlockPushBack()

◆ AddressBlockPushFront()

◆ AddressBlockSize()

◆ Deserialize()

◆ DeserializeMessage()

◆ DeserializeOriginatorAddress()

◆ GetAddressLength()

◆ GetHopCount()

◆ GetHopLimit()

◆ GetOriginatorAddress()

◆ GetSequenceNumber()

◆ GetSerializedSize()

◆ GetType()

◆ HasHopCount()

◆ HasHopLimit()

◆ HasOriginatorAddress()

◆ HasSequenceNumber()

◆ operator!=()

◆ operator==()

◆ Print() [1/2]

◆ Print() [2/2]

◆ PrintOriginatorAddress()

◆ Serialize()

◆ SerializeOriginatorAddress()

◆ SetHopCount()

◆ SetHopLimit()

◆ SetOriginatorAddress()

◆ SetSequenceNumber()

◆ SetType()

◆ TlvBack() [1/2]

◆ TlvBack() [2/2]

◆ TlvBegin() [1/2]

◆ TlvBegin() [2/2]

◆ TlvClear()

◆ TlvEmpty()

◆ TlvEnd() [1/2]

◆ TlvEnd() [2/2]

◆ TlvErase() [1/2]

◆ TlvErase() [2/2]

◆ TlvFront() [1/2]

◆ TlvFront() [2/2]

◆ TlvPopBack()

◆ TlvPopFront()

◆ TlvPushBack()

◆ TlvPushFront()

◆ TlvSize()

Member Data Documentation

◆ m_addressBlockList

◆ m_addrSize

◆ m_hasHopCount
