spectrum-aware propagation loss model that is compatible with PhasedArrayModel type of ns-3 antenna More...

#include "phased-array-spectrum-propagation-loss-model.h"

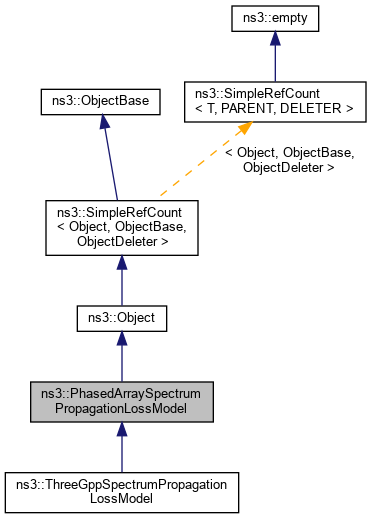

Inheritance diagram for ns3::PhasedArraySpectrumPropagationLossModel:

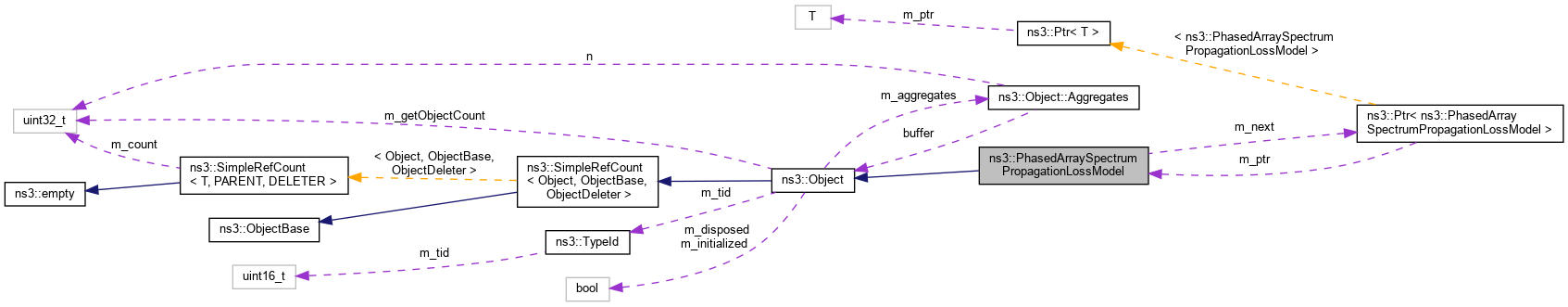

Collaboration diagram for ns3::PhasedArraySpectrumPropagationLossModel:

Public Member Functions
	PhasedArraySpectrumPropagationLossModel ()

virtual	~PhasedArraySpectrumPropagationLossModel ()

Ptr< SpectrumValue >	CalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b, Ptr< const PhasedArrayModel > aPhasedArrayModel, Ptr< const PhasedArrayModel > bPhasedArrayModel) const
	This method is to be called to calculate. More...

void	SetNext (Ptr< PhasedArraySpectrumPropagationLossModel > next)
	Used to chain various instances of PhasedArraySpectrumPropagationLossModel. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
virtual Ptr< SpectrumValue >	DoCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b, Ptr< const PhasedArrayModel > aPhasedArrayModel, Ptr< const PhasedArrayModel > bPhasedArrayModel) const =0

Private Attributes
Ptr< PhasedArraySpectrumPropagationLossModel >	m_next
	PhasedArraySpectrumPropagationLossModel chained to this one. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

spectrum-aware propagation loss model that is compatible with PhasedArrayModel type of ns-3 antenna

Introspection did not find any typical Config paths.

Interface for propagation loss models to be adopted when transmissions are modeled with a power spectral density by means of the SpectrumValue class, and when PhasedArrayModel type of atenna is being used for TX and RX.

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 44 of file phased-array-spectrum-propagation-loss-model.h.

Constructor & Destructor Documentation

◆ PhasedArraySpectrumPropagationLossModel()

ns3::PhasedArraySpectrumPropagationLossModel::PhasedArraySpectrumPropagationLossModel ( )

Definition at line 31 of file phased-array-spectrum-propagation-loss-model.cc.

◆ ~PhasedArraySpectrumPropagationLossModel()

ns3::PhasedArraySpectrumPropagationLossModel::~PhasedArraySpectrumPropagationLossModel ( )

virtual

Definition at line 36 of file phased-array-spectrum-propagation-loss-model.cc.

Member Function Documentation

◆ CalcRxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::PhasedArraySpectrumPropagationLossModel::CalcRxPowerSpectralDensity	(	Ptr< const SpectrumValue >	txPsd,
		Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b,
		Ptr< const PhasedArrayModel >	aPhasedArrayModel,
		Ptr< const PhasedArrayModel >	bPhasedArrayModel
	)		const

This method is to be called to calculate.

Parameters

txPsd	the SpectrumValue representing the power spectral density of the transmission. Watt units are to be used for radio communications, and Pascal units for acoustic communications (e.g., underwater).
a	sender mobility
b	receiver mobility
aPhasedArrayModel	the instance of the phased antenna array of the sender
bPhasedArrayModel	the instance of the phased antenna array of the receiver

Returns: set of values Vs frequency representing the received power in the same units used for the txPower parameter.

Definition at line 63 of file phased-array-spectrum-propagation-loss-model.cc.

References DoCalcRxPowerSpectralDensity(), and m_next.

Referenced by ComputeSnr().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoCalcRxPowerSpectralDensity()

virtual Ptr<SpectrumValue> ns3::PhasedArraySpectrumPropagationLossModel::DoCalcRxPowerSpectralDensity	(	Ptr< const SpectrumValue >	txPsd,
		Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b,
		Ptr< const PhasedArrayModel >	aPhasedArrayModel,
		Ptr< const PhasedArrayModel >	bPhasedArrayModel
	)		const

privatepure virtual

Parameters

txPsd	set of values Vs frequency representing the transmission power. See SpectrumChannel for details.
a	sender mobility
b	receiver mobility
aPhasedArrayModel	the instance of the phased antenna array of the sender
bPhasedArrayModel	the instance of the phased antenna array of the receiver

Returns: set of values Vs frequency representing the received power in the same units used for the txPower parameter.

Implemented in ns3::ThreeGppSpectrumPropagationLossModel.

Referenced by CalcRxPowerSpectralDensity().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::PhasedArraySpectrumPropagationLossModel::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::ThreeGppSpectrumPropagationLossModel.

Definition at line 41 of file phased-array-spectrum-propagation-loss-model.cc.

References m_next.
