Listener for PHY events. More...

Inheritance diagram for ns3::PhyListener:

Collaboration diagram for ns3::PhyListener:

Public Member Functions
	PhyListener (ns3::ChannelAccessManager *cam)
	Create a PhyListener for the given ChannelAccessManager. More...

virtual	~PhyListener ()

void	NotifyMaybeCcaBusyStart (Time duration)

void	NotifyOff (void)
	Notify listeners that we went to switch off. More...

void	NotifyOn (void)
	Notify listeners that we went to switch on. More...

void	NotifyRxEndError (void)
	We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received. More...

void	NotifyRxEndOk (void)
	We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received. More...

void	NotifyRxStart (Time duration)

void	NotifySleep (void)
	Notify listeners that we went to sleep. More...

void	NotifySwitchingStart (Time duration)

void	NotifyTxStart (Time duration, double txPowerDbm)

void	NotifyWakeup (void)
	Notify listeners that we woke up. More...

Public Member Functions inherited from ns3::WifiPhyListener
virtual	~WifiPhyListener ()

Private Attributes
ns3::ChannelAccessManager *	m_cam
	ChannelAccessManager to forward events to. More...

Detailed Description

Listener for PHY events.

Forwards to ChannelAccessManager

Definition at line 36 of file channel-access-manager.cc.

Constructor & Destructor Documentation

◆ PhyListener()

ns3::PhyListener::PhyListener ( ns3::ChannelAccessManager * cam )

inline

Create a PhyListener for the given ChannelAccessManager.

Parameters

cam	the ChannelAccessManager

Definition at line 44 of file channel-access-manager.cc.

◆ ~PhyListener()

virtual ns3::PhyListener::~PhyListener ( )

inlinevirtual

Definition at line 48 of file channel-access-manager.cc.

Member Function Documentation

◆ NotifyMaybeCcaBusyStart()

void ns3::PhyListener::NotifyMaybeCcaBusyStart ( Time duration )

inlinevirtual

Parameters

duration the expected busy duration.

This method does not really report a real state change as opposed to the other methods in this class. It merely reports that, unless the medium is reported busy through NotifyTxStart or NotifyRxStart/End, it will be busy as defined by the currently selected CCA mode.

Typical client code which wants to have a clear picture of the CCA state will need to keep track of the time at which the last NotifyCcaBusyStart method is called and what duration it reported.

Implements ns3::WifiPhyListener.

Definition at line 67 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyMaybeCcaBusyStartNow().

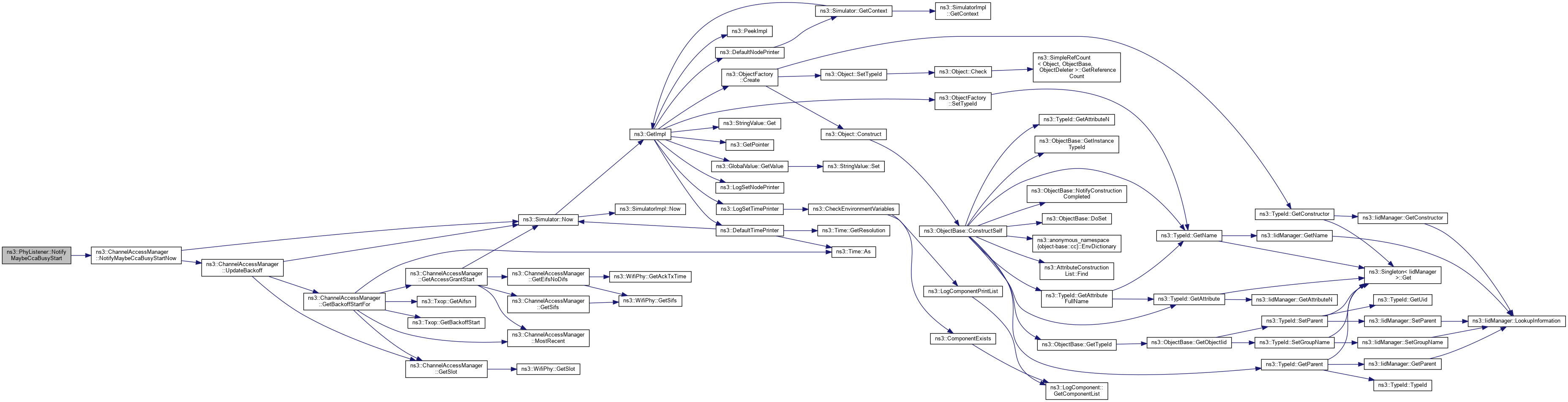

Here is the call graph for this function:

◆ NotifyOff()

void ns3::PhyListener::NotifyOff ( void )

inlinevirtual

Notify listeners that we went to switch off.

Implements ns3::WifiPhyListener.

Definition at line 79 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyOffNow().

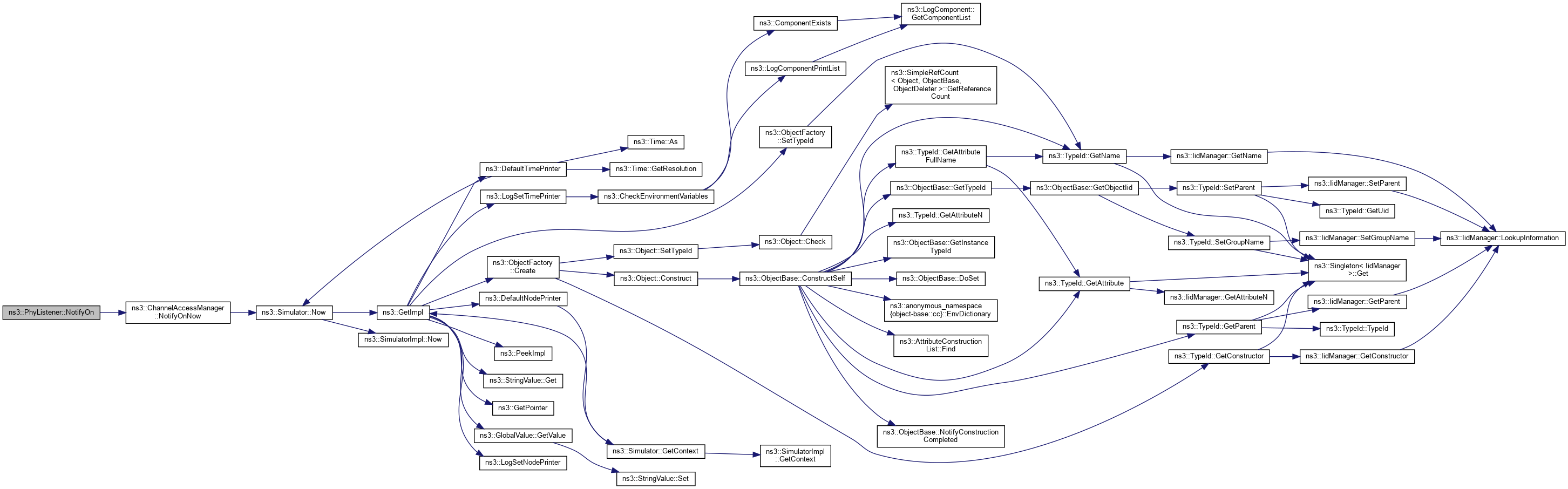

Here is the call graph for this function:

◆ NotifyOn()

void ns3::PhyListener::NotifyOn ( void )

inlinevirtual

Notify listeners that we went to switch on.

Implements ns3::WifiPhyListener.

Definition at line 87 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyOnNow().

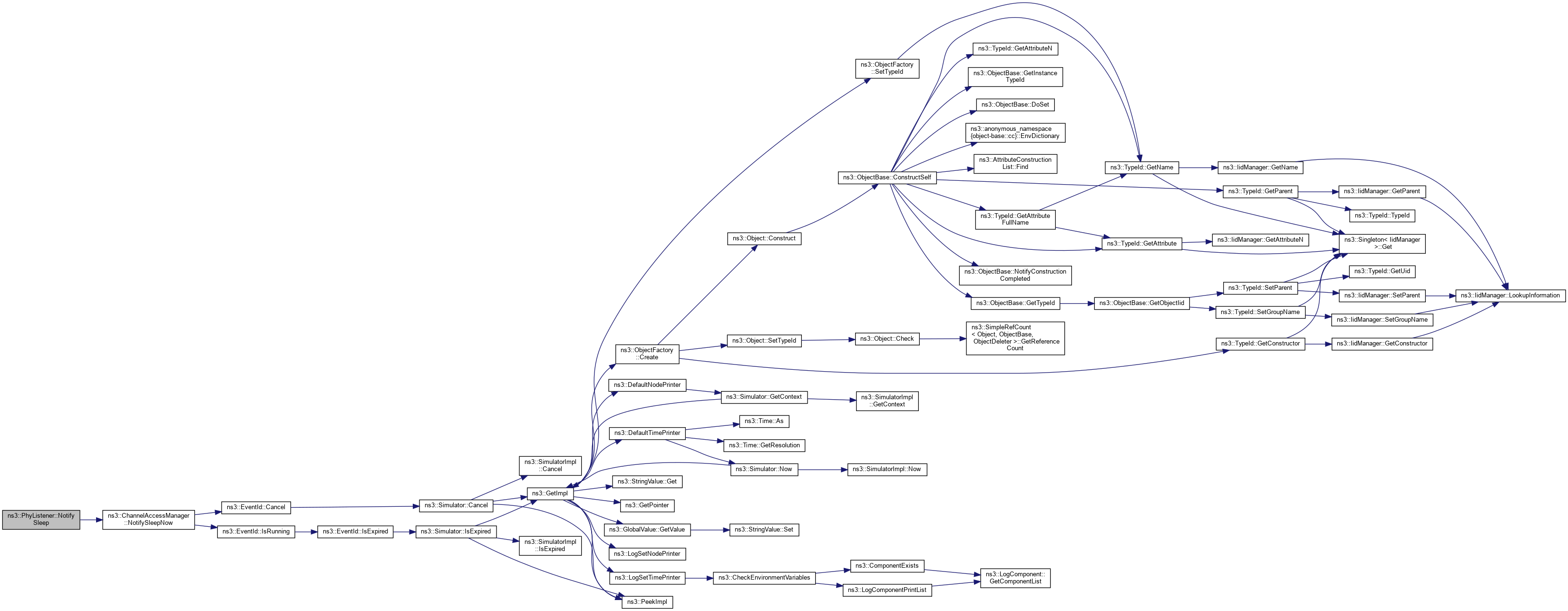

Here is the call graph for this function:

◆ NotifyRxEndError()

void ns3::PhyListener::NotifyRxEndError ( void )

inlinevirtual

We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has not been successfully received.

Implements ns3::WifiPhyListener.

Definition at line 59 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyRxEndErrorNow().

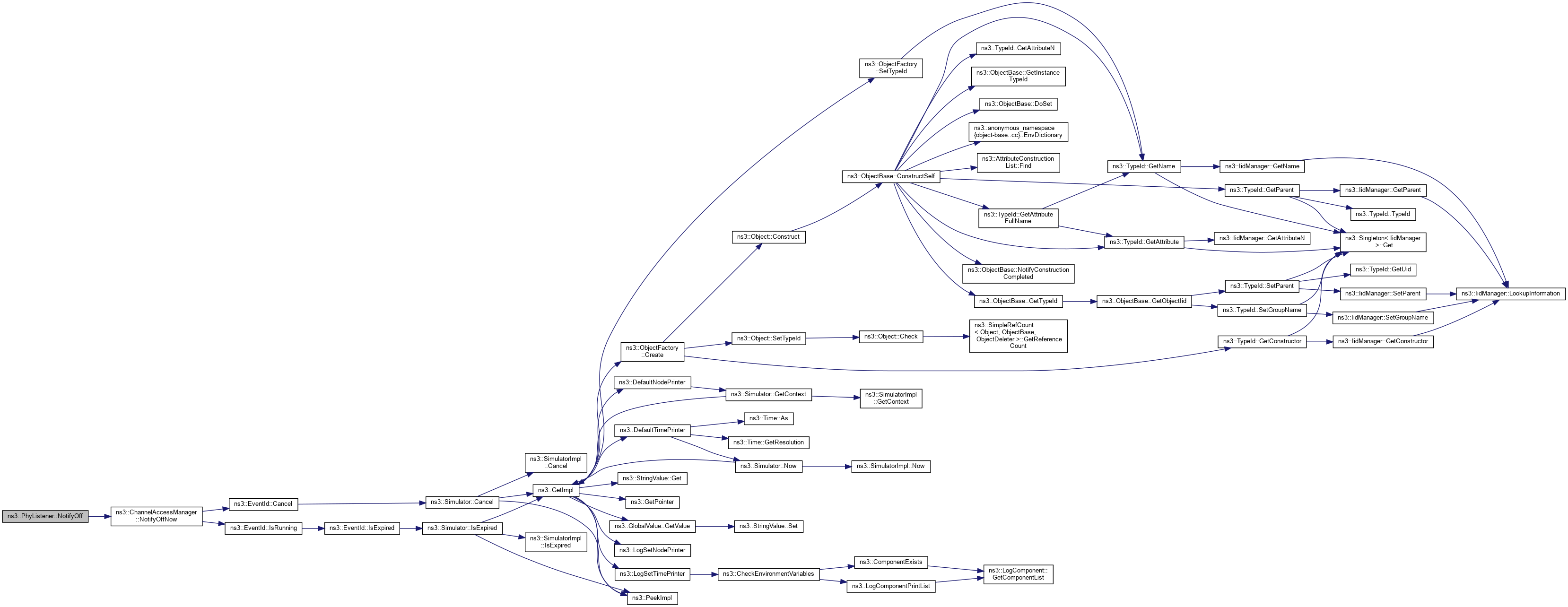

Here is the call graph for this function:

◆ NotifyRxEndOk()

void ns3::PhyListener::NotifyRxEndOk ( void )

inlinevirtual

We have received the last bit of a packet for which NotifyRxStart was invoked first and, the packet has been successfully received.

Implements ns3::WifiPhyListener.

Definition at line 55 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyRxEndOkNow().

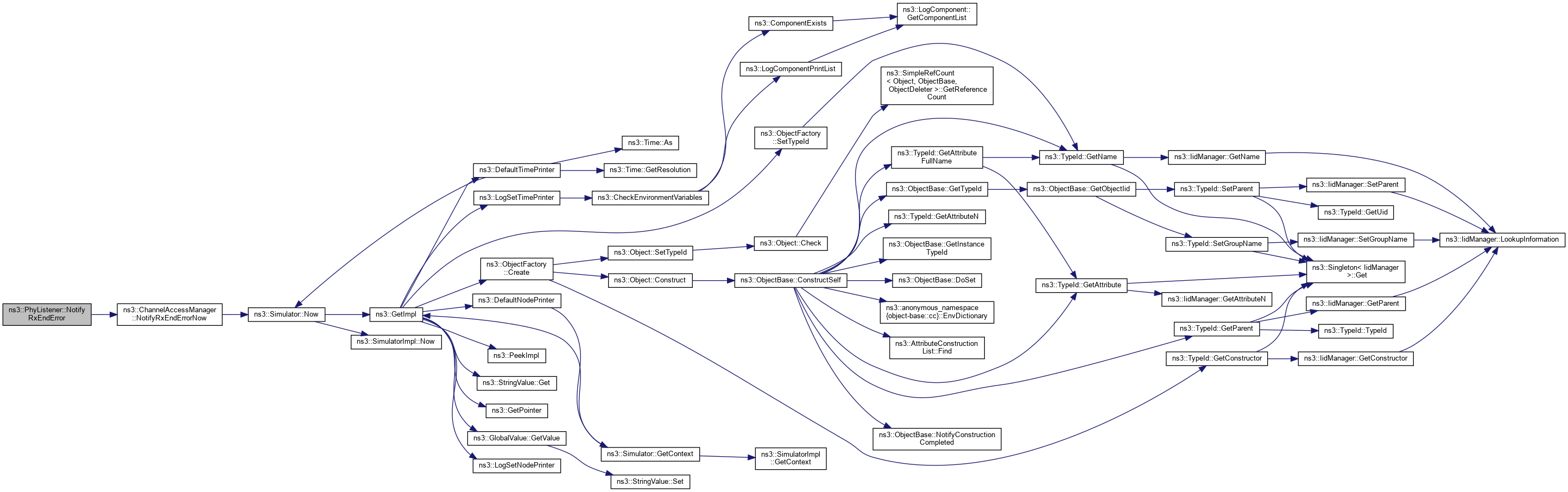

Here is the call graph for this function:

◆ NotifyRxStart()

void ns3::PhyListener::NotifyRxStart ( Time duration )

inlinevirtual

Parameters

duration the expected duration of the packet reception.

We have received the first bit of a packet. We decided that we could synchronize on this packet. It does not mean we will be able to successfully receive completely the whole packet. It means that we will report a BUSY status until one of the following happens:

NotifyRxEndOk
NotifyRxEndError
NotifyTxStart

Implements ns3::WifiPhyListener.

Definition at line 51 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyRxStartNow().

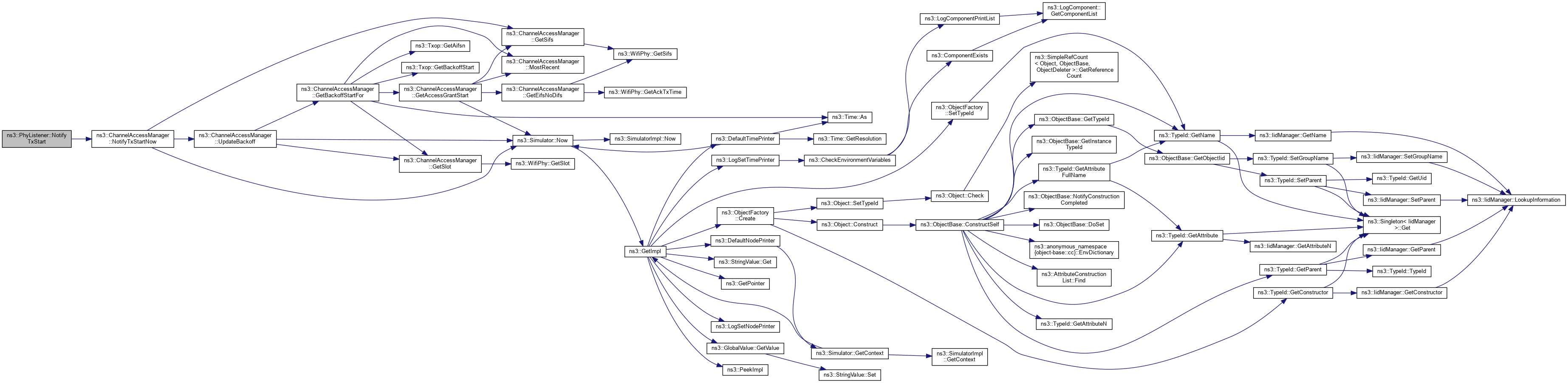

Here is the call graph for this function:

◆ NotifySleep()

void ns3::PhyListener::NotifySleep ( void )

inlinevirtual

Notify listeners that we went to sleep.

Implements ns3::WifiPhyListener.

Definition at line 75 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifySleepNow().

Here is the call graph for this function:

◆ NotifySwitchingStart()

void ns3::PhyListener::NotifySwitchingStart ( Time duration )

inlinevirtual

Parameters

duration the expected channel switching duration.

We do not send any event to notify the end of channel switching. Listeners should assume that the channel implicitly reverts to the idle or busy states.

Implements ns3::WifiPhyListener.

Definition at line 71 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifySwitchingStartNow().

Here is the call graph for this function:

◆ NotifyTxStart()

void ns3::PhyListener::NotifyTxStart	(	Time	duration,
		double	txPowerDbm
	)

inlinevirtual

Parameters

duration	the expected transmission duration.
txPowerDbm	the nominal TX power in dBm

We are about to send the first bit of the packet. We do not send any event to notify the end of transmission. Listeners should assume that the channel implicitly reverts to the idle state unless they have received a CCA busy report.

Implements ns3::WifiPhyListener.

Definition at line 63 of file channel-access-manager.cc.

References m_cam, and ns3::ChannelAccessManager::NotifyTxStartNow().

Here is the call graph for this function:
