Takes care of storing the information generated at PHY layer. More...

#include "phy-stats-calculator.h"

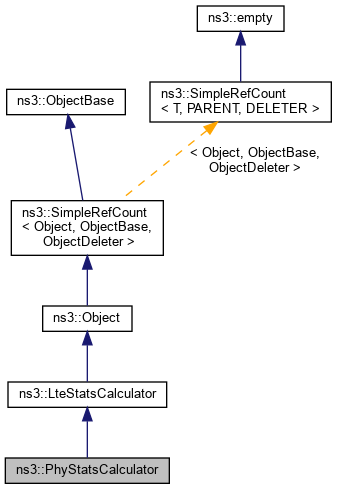

Inheritance diagram for ns3::PhyStatsCalculator:

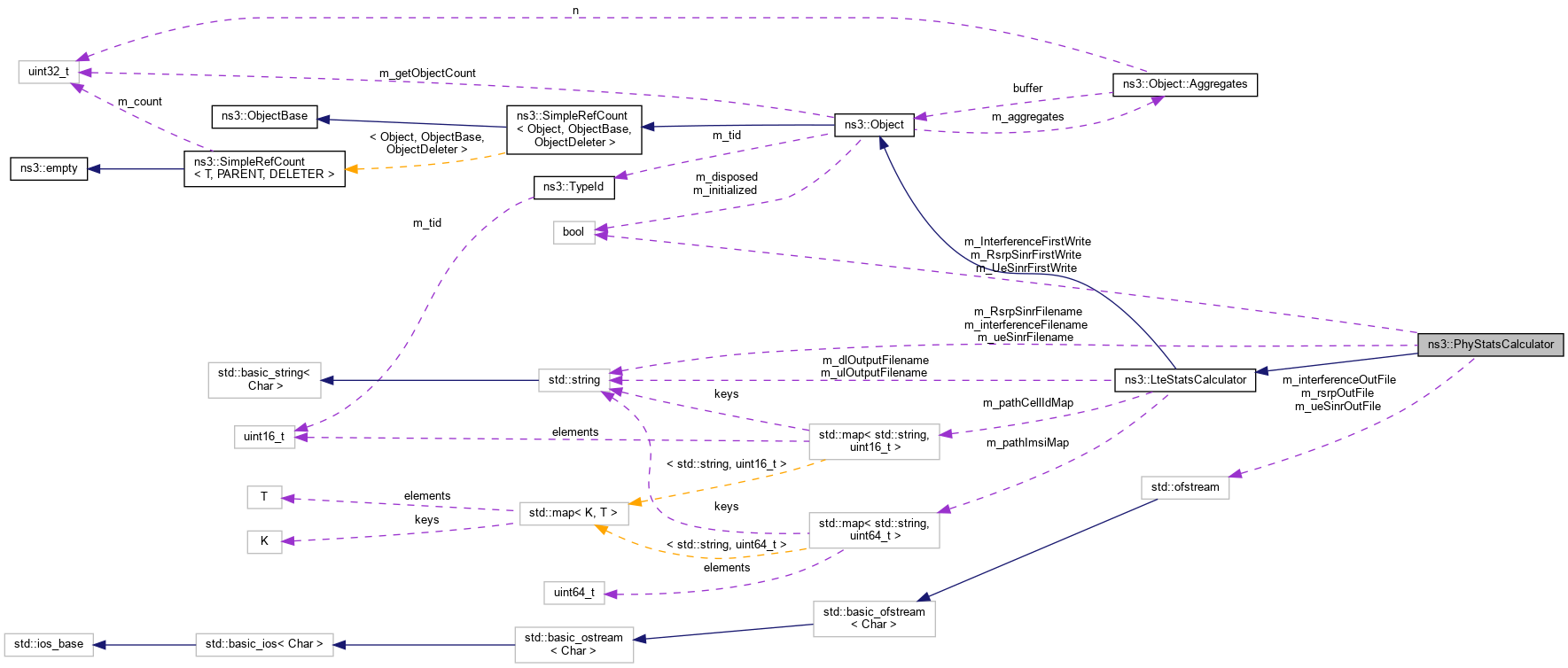

Collaboration diagram for ns3::PhyStatsCalculator:

Public Member Functions
	PhyStatsCalculator ()
	Constructor. More...

virtual	~PhyStatsCalculator ()
	Destructor. More...

std::string	GetCurrentCellRsrpSinrFilename (void)
	Get the name of the file where the RSRP/SINR statistics will be stored. More...

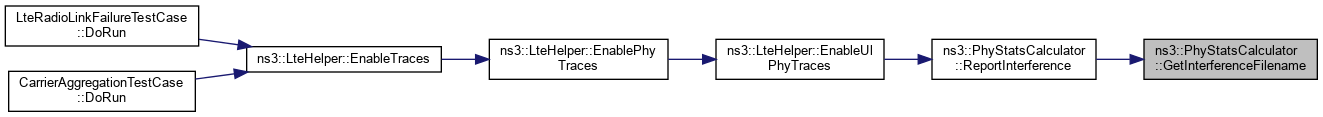

std::string	GetInterferenceFilename (void)
	Get the name of the file where the interference statistics will be stored. More...

std::string	GetUeSinrFilename (void)
	Get the name of the file where the UE SINR statistics will be stored. More...

void	ReportCurrentCellRsrpSinr (uint16_t cellId, uint64_t imsi, uint16_t rnti, double rsrp, double sinr, uint8_t componentCarrierId)

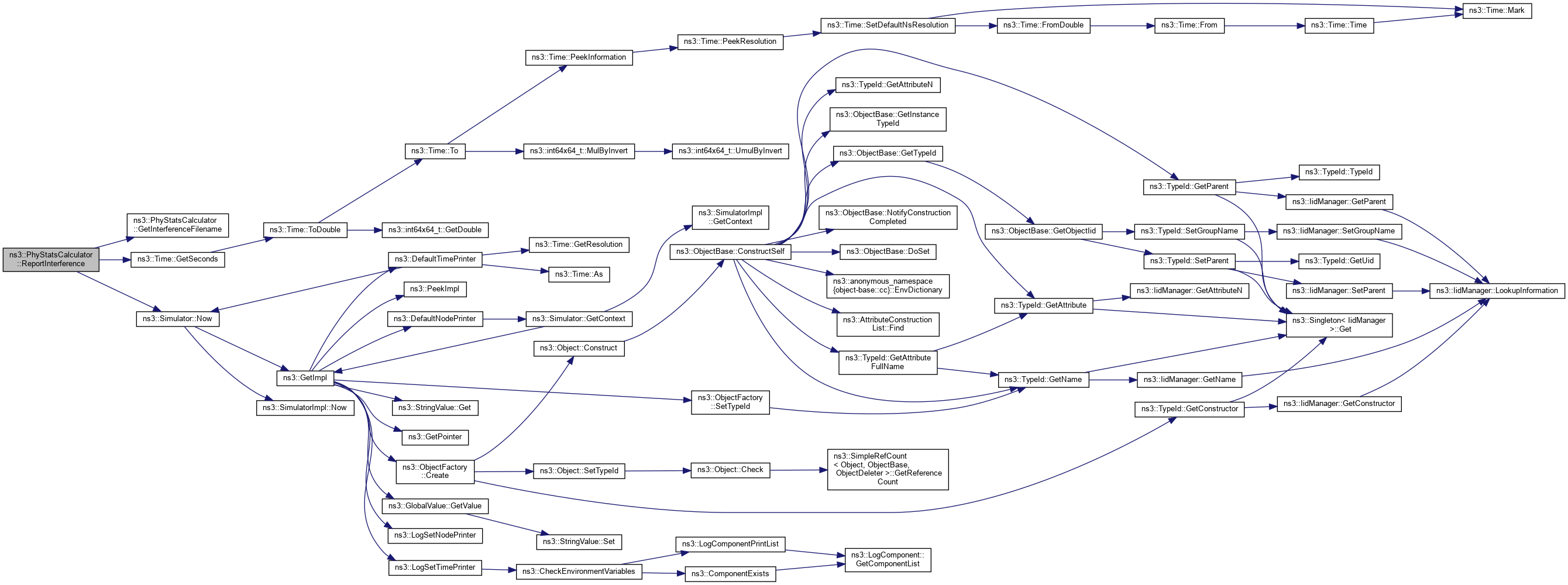

	Notifies the stats calculator that an RSRP and SINR report has occurred. More...

void	ReportInterference (uint16_t cellId, Ptr< SpectrumValue > interference)
	Notifies the stats calculator that an interference report has occurred. More...

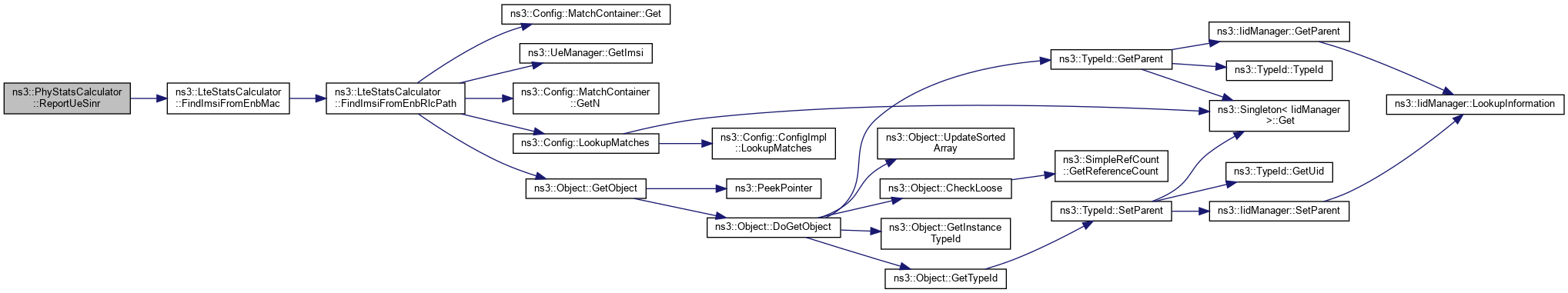

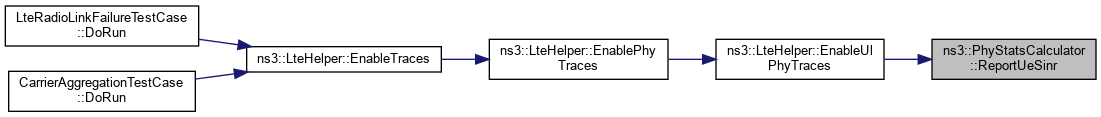

void	ReportUeSinr (uint16_t cellId, uint64_t imsi, uint16_t rnti, double sinrLinear, uint8_t componentCarrierId)
	Notifies the stats calculator that an UE SINR report has occurred. More...

void	SetCurrentCellRsrpSinrFilename (std::string filename)
	Set the name of the file where the RSRP/SINR statistics will be stored. More...

void	SetInterferenceFilename (std::string filename)
	Set the name of the file where the interference statistics will be stored. More...

void	SetUeSinrFilename (std::string filename)
	Set the name of the file where the UE SINR statistics will be stored. More...

Public Member Functions inherited from ns3::LteStatsCalculator
	LteStatsCalculator ()
	Constructor. More...

virtual	~LteStatsCalculator ()
	Destructor. More...

bool	ExistsCellIdPath (std::string path)
	Checks if there is an already stored cell id for the given path. More...

bool	ExistsImsiPath (std::string path)
	Checks if there is an already stored IMSI for the given path. More...

uint16_t	GetCellIdPath (std::string path)
	Retrieves the cell id information for the given path. More...

std::string	GetDlOutputFilename (void)
	Get the name of the file where the downlink statistics will be stored. More...

uint64_t	GetImsiPath (std::string path)
	Retrieves the imsi information for the given path. More...

std::string	GetUlOutputFilename (void)
	Get the name of the file where the uplink statistics will be stored. More...

void	SetCellIdPath (std::string path, uint16_t cellId)
	Stores the (path, cellId) pairs in a map. More...

void	SetDlOutputFilename (std::string outputFilename)
	Set the name of the file where the downlink statistics will be stored. More...

void	SetImsiPath (std::string path, uint64_t imsi)
	Stores the (path, imsi) pairs in a map. More...

void	SetUlOutputFilename (std::string outputFilename)
	Set the name of the file where the uplink statistics will be stored. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

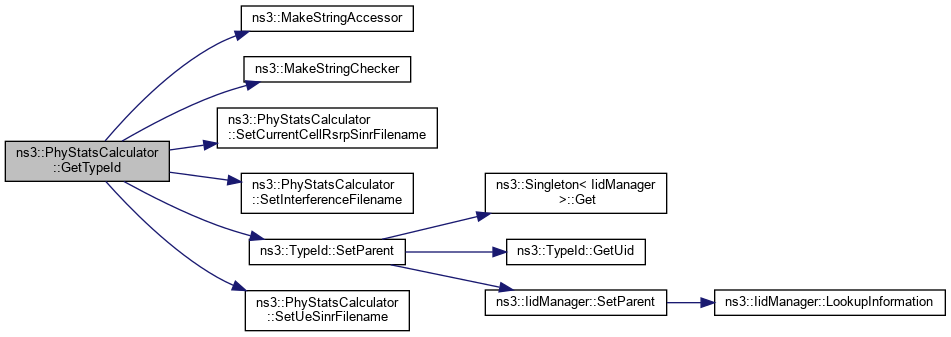

static TypeId	GetTypeId (void)
	Register this type. More...

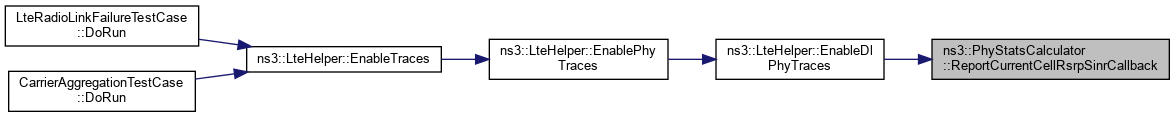

static void	ReportCurrentCellRsrpSinrCallback (Ptr< PhyStatsCalculator > phyStats, std::string path, uint16_t cellId, uint16_t rnti, double rsrp, double sinr, uint8_t componentCarrierId)
	trace sink More...

static void	ReportInterference (Ptr< PhyStatsCalculator > phyStats, std::string path, uint16_t cellId, Ptr< SpectrumValue > interference)
	trace sink More...

static void	ReportUeSinr (Ptr< PhyStatsCalculator > phyStats, std::string path, uint16_t cellId, uint16_t rnti, double sinrLinear, uint8_t componentCarrierId)
	trace sink More...

Static Public Member Functions inherited from ns3::LteStatsCalculator
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::string	m_interferenceFilename
	Name of the file where the interference statistics will be saved. More...

bool	m_InterferenceFirstWrite
	When writing interference statistics first time to file, columns description is added. More...

std::ofstream	m_interferenceOutFile
	Interference statistics output trace file. More...

std::ofstream	m_rsrpOutFile
	RSRP statistics output trace file. More...

std::string	m_RsrpSinrFilename
	Name of the file where the RSRP/SINR statistics will be saved. More...

bool	m_RsrpSinrFirstWrite
	When writing RSRP SINR statistics first time to file, columns description is added. More...

std::string	m_ueSinrFilename
	Name of the file where the UE SINR statistics will be saved. More...

bool	m_UeSinrFirstWrite
	When writing UE SINR statistics first time to file, columns description is added. More...

std::ofstream	m_ueSinrOutFile
	UE SINR statistics output trace file. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Static Protected Member Functions inherited from ns3::LteStatsCalculator
static uint16_t	FindCellIdFromEnbMac (std::string path, uint16_t rnti)
	Retrieves CellId from Enb MAC path in the attribute system. More...

static uint16_t	FindCellIdFromEnbRlcPath (std::string path)
	Retrieves CellId from Enb RLC path in the attribute system. More...

static uint64_t	FindImsiForEnb (std::string path, uint16_t rnti)
	Retrieves IMSI from path for Enb in the attribute system. More...

static uint64_t	FindImsiForUe (std::string path, uint16_t rnti)
	Retrieves IMSI from path for Ue in the attribute system. More...

static uint64_t	FindImsiFromEnbMac (std::string path, uint16_t rnti)
	Retrieves IMSI from Enb MAC path in the attribute system. More...

static uint64_t	FindImsiFromEnbRlcPath (std::string path)
	Retrieves IMSI from Enb RLC path in the attribute system. More...

static uint64_t	FindImsiFromLteNetDevice (std::string path)
	Retrieves IMSI from LteNetDevice path in the attribute system. More...

static uint64_t	FindImsiFromUePhy (std::string path)
	Retrieves IMSI from Ue PHY path in the attribute system. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Takes care of storing the information generated at PHY layer.

Introspection did not find any typical Config paths.

Metrics saved are:

RSRP and average SINR for DL
- Timestamp (in seconds)
- IMSI
- C-RNTI
- RSRP
- SINR
- componentCarrierId
UE SINR
- Timestamp (in seconds)
- Cell ID of the reported Enb
- IMSI
- C-RNTI
- measured and reported SINR value in linear
- componentCarrierId
Interference for UL
- Cell ID of the reported Enb
- IMSI of the scheduled UE
- C-RNTI scheduled
- Measured interference for each RB

Attributes

DlRsrpSinrFilename: Name of the file where the RSRP/SINR statistics will be saved.
- Set with class: StringValue
- Underlying type:
- Initial value: DlRsrpSinrStats.txt
- Flags: construct write
UlSinrFilename: Name of the file where the UE SINR statistics will be saved.
- Set with class: StringValue
- Underlying type:
- Initial value: UlSinrStats.txt
- Flags: construct write
UlInterferenceFilename: Name of the file where the interference statistics will be saved.
- Set with class: StringValue
- Underlying type:
- Initial value: UlInterferenceStats.txt
- Flags: construct write

No TraceSources are defined for this type.
Size of this type is 1832 bytes (on a 64-bit architecture).

Definition at line 57 of file phy-stats-calculator.h.

Constructor & Destructor Documentation

◆ PhyStatsCalculator()

ns3::PhyStatsCalculator::PhyStatsCalculator ( )

Constructor.

Definition at line 33 of file phy-stats-calculator.cc.

References NS_LOG_FUNCTION.

◆ ~PhyStatsCalculator()

ns3::PhyStatsCalculator::~PhyStatsCalculator ( )

virtual

Destructor.

Definition at line 42 of file phy-stats-calculator.cc.

References m_interferenceOutFile, m_rsrpOutFile, m_ueSinrOutFile, and NS_LOG_FUNCTION.

Member Function Documentation

◆ GetCurrentCellRsrpSinrFilename()

std::string ns3::PhyStatsCalculator::GetCurrentCellRsrpSinrFilename ( void )

Get the name of the file where the RSRP/SINR statistics will be stored.

Returns: the name of the file where the RSRP/SINR statistics will be stored

Definition at line 94 of file phy-stats-calculator.cc.

References m_RsrpSinrFilename.

Referenced by ReportCurrentCellRsrpSinr().

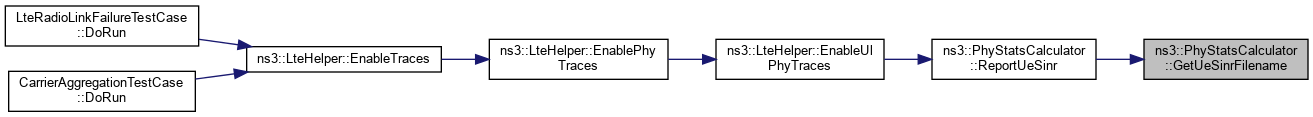

Here is the caller graph for this function:

◆ GetInterferenceFilename()

std::string ns3::PhyStatsCalculator::GetInterferenceFilename ( void )

Get the name of the file where the interference statistics will be stored.

Returns: the name of the file where the interference statistics will be stored

Definition at line 118 of file phy-stats-calculator.cc.

References m_interferenceFilename.

Referenced by ReportInterference().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::PhyStatsCalculator::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 62 of file phy-stats-calculator.cc.

References ns3::MakeStringAccessor(), ns3::MakeStringChecker(), SetCurrentCellRsrpSinrFilename(), SetInterferenceFilename(), ns3::TypeId::SetParent(), and SetUeSinrFilename().

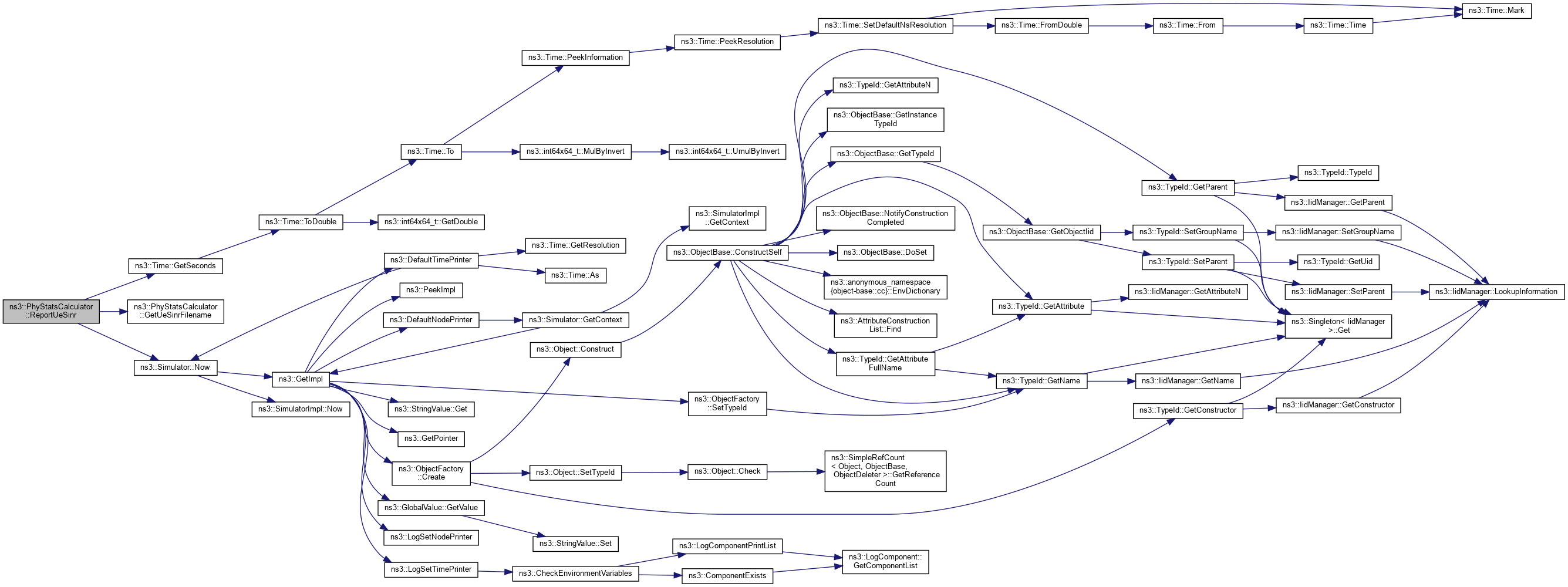

Here is the call graph for this function:

◆ GetUeSinrFilename()

std::string ns3::PhyStatsCalculator::GetUeSinrFilename ( void )

Get the name of the file where the UE SINR statistics will be stored.

Returns: the name of the file where the UE SINR statistics will be stored

Definition at line 106 of file phy-stats-calculator.cc.

References m_ueSinrFilename.

Referenced by ReportUeSinr().

Here is the caller graph for this function:

◆ ReportCurrentCellRsrpSinr()

void ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinr	(	uint16_t	cellId,
		uint64_t	imsi,
		uint16_t	rnti,
		double	rsrp,
		double	sinr,
		uint8_t	componentCarrierId
	)

Notifies the stats calculator that an RSRP and SINR report has occurred.

Parameters

cellId	CellId for which stats are generated
imsi	IMSI of the scheduled UE
rnti	C-RNTI scheduled
rsrp	Reference Signal Received Power
sinr	SINR averaged among RBs
componentCarrierId

Definition at line 126 of file phy-stats-calculator.cc.

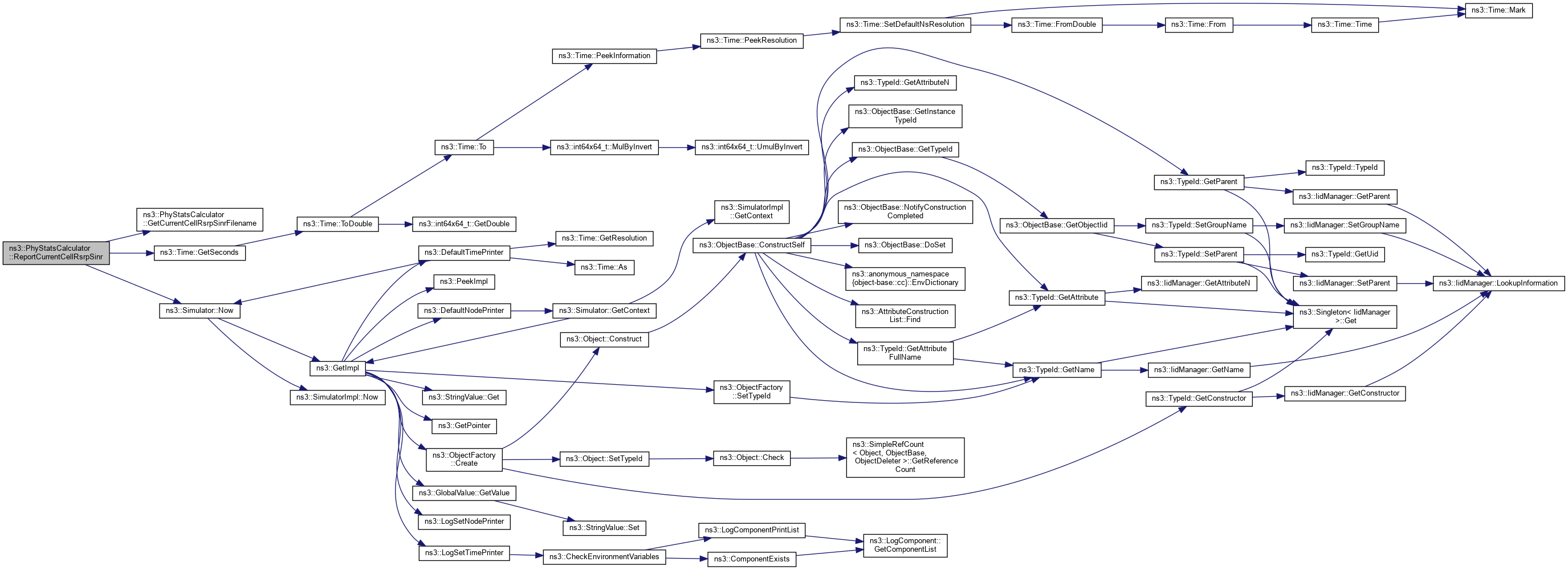

References GetCurrentCellRsrpSinrFilename(), ns3::Time::GetSeconds(), m_rsrpOutFile, m_RsrpSinrFirstWrite, ns3::Simulator::Now(), NS_LOG_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

Here is the call graph for this function:

◆ ReportCurrentCellRsrpSinrCallback()

void ns3::PhyStatsCalculator::ReportCurrentCellRsrpSinrCallback	(	Ptr< PhyStatsCalculator >	phyStats,
		std::string	path,
		uint16_t	cellId,
		uint16_t	rnti,
		double	rsrp,
		double	sinr,
		uint8_t	componentCarrierId
	)

static

trace sink

Parameters

phyStats
path
cellId
rnti
rsrp
sinr
componentCarrierId

Definition at line 206 of file phy-stats-calculator.cc.

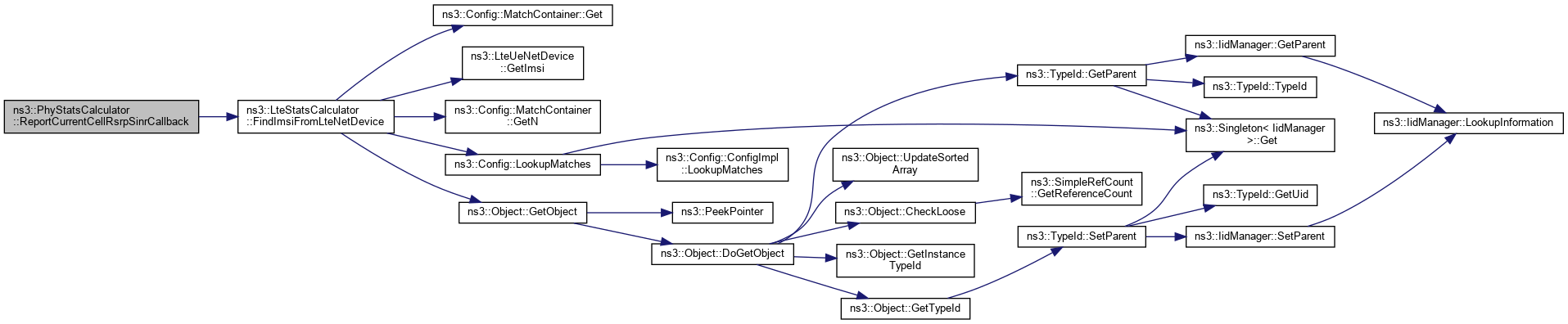

References ns3::LteStatsCalculator::FindImsiFromLteNetDevice(), and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::EnableDlPhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportInterference() [1/2]

void ns3::PhyStatsCalculator::ReportInterference	(	Ptr< PhyStatsCalculator >	phyStats,
		std::string	path,
		uint16_t	cellId,
		Ptr< SpectrumValue >	interference
	)

static

trace sink

Parameters

phyStats
path
cellId
interference

Definition at line 251 of file phy-stats-calculator.cc.

References NS_LOG_FUNCTION.

◆ ReportInterference() [2/2]

void ns3::PhyStatsCalculator::ReportInterference	(	uint16_t	cellId,
		Ptr< SpectrumValue >	interference
	)

Notifies the stats calculator that an interference report has occurred.

Parameters

cellId	Cell ID of the reported Enb
interference	Measured interference for each RB

Definition at line 181 of file phy-stats-calculator.cc.

References GetInterferenceFilename(), ns3::Time::GetSeconds(), m_InterferenceFirstWrite, m_interferenceOutFile, ns3::Simulator::Now(), NS_LOG_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::LteHelper::EnableUlPhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReportUeSinr() [1/2]

void ns3::PhyStatsCalculator::ReportUeSinr	(	Ptr< PhyStatsCalculator >	phyStats,
		std::string	path,
		uint16_t	cellId,
		uint16_t	rnti,
		double	sinrLinear,
		uint8_t	componentCarrierId
	)

static

trace sink

Parameters

phyStats
path
cellId
rnti
sinrLinear
componentCarrierId

Definition at line 227 of file phy-stats-calculator.cc.

References ns3::LteStatsCalculator::FindImsiFromEnbMac(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ReportUeSinr() [2/2]

void ns3::PhyStatsCalculator::ReportUeSinr	(	uint16_t	cellId,
		uint64_t	imsi,
		uint16_t	rnti,
		double	sinrLinear,
		uint8_t	componentCarrierId
	)

Notifies the stats calculator that an UE SINR report has occurred.

Parameters

cellId	Cell ID of the reported Enb
imsi	IMSI of the scheduled UE
rnti	C-RNTI scheduled
sinrLinear	measured and reported SINR value in linear
componentCarrierId

Definition at line 155 of file phy-stats-calculator.cc.

References ns3::Time::GetSeconds(), GetUeSinrFilename(), m_UeSinrFirstWrite, m_ueSinrOutFile, ns3::Simulator::Now(), NS_LOG_ERROR, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by ns3::LteHelper::EnableUlPhyTraces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetCurrentCellRsrpSinrFilename()

void ns3::PhyStatsCalculator::SetCurrentCellRsrpSinrFilename ( std::string filename )

Set the name of the file where the RSRP/SINR statistics will be stored.

Parameters

filename string with the name of the file

Definition at line 88 of file phy-stats-calculator.cc.

References m_RsrpSinrFilename.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetInterferenceFilename()

void ns3::PhyStatsCalculator::SetInterferenceFilename ( std::string filename )

Set the name of the file where the interference statistics will be stored.

Parameters

filename string with the name of the file

Definition at line 112 of file phy-stats-calculator.cc.

References m_interferenceFilename.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetUeSinrFilename()

void ns3::PhyStatsCalculator::SetUeSinrFilename ( std::string filename )

Set the name of the file where the UE SINR statistics will be stored.

Parameters

filename string with the name of the file

Definition at line 100 of file phy-stats-calculator.cc.

References m_ueSinrFilename.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

◆ m_interferenceFilename

std::string ns3::PhyStatsCalculator::m_interferenceFilename

private

Name of the file where the interference statistics will be saved.

Definition at line 222 of file phy-stats-calculator.h.

Referenced by GetInterferenceFilename(), and SetInterferenceFilename().

◆ m_InterferenceFirstWrite

bool ns3::PhyStatsCalculator::m_InterferenceFirstWrite

private

When writing interference statistics first time to file, columns description is added.

Then next lines are appended to file. This value is true if output files have not been opened yet

Definition at line 207 of file phy-stats-calculator.h.

Referenced by ReportInterference().

◆ m_interferenceOutFile

std::ofstream ns3::PhyStatsCalculator::m_interferenceOutFile

private

Interference statistics output trace file.

Definition at line 237 of file phy-stats-calculator.h.

Referenced by ~PhyStatsCalculator(), and ReportInterference().

◆ m_rsrpOutFile

std::ofstream ns3::PhyStatsCalculator::m_rsrpOutFile

private

RSRP statistics output trace file.

Definition at line 227 of file phy-stats-calculator.h.

Referenced by ~PhyStatsCalculator(), and ReportCurrentCellRsrpSinr().

◆ m_RsrpSinrFilename

std::string ns3::PhyStatsCalculator::m_RsrpSinrFilename

private

Name of the file where the RSRP/SINR statistics will be saved.

Definition at line 212 of file phy-stats-calculator.h.

Referenced by GetCurrentCellRsrpSinrFilename(), and SetCurrentCellRsrpSinrFilename().

◆ m_RsrpSinrFirstWrite

bool ns3::PhyStatsCalculator::m_RsrpSinrFirstWrite

private

When writing RSRP SINR statistics first time to file, columns description is added.

Then next lines are appended to file. This value is true if output files have not been opened yet

Definition at line 191 of file phy-stats-calculator.h.

Referenced by ReportCurrentCellRsrpSinr().

◆ m_ueSinrFilename

std::string ns3::PhyStatsCalculator::m_ueSinrFilename

private

Name of the file where the UE SINR statistics will be saved.

Definition at line 217 of file phy-stats-calculator.h.

Referenced by GetUeSinrFilename(), and SetUeSinrFilename().

◆ m_UeSinrFirstWrite

bool ns3::PhyStatsCalculator::m_UeSinrFirstWrite

private

When writing UE SINR statistics first time to file, columns description is added.

Then next lines are appended to file. This value is true if output files have not been opened yet

Definition at line 199 of file phy-stats-calculator.h.

Referenced by ReportUeSinr().

◆ m_ueSinrOutFile

std::ofstream ns3::PhyStatsCalculator::m_ueSinrOutFile

private

UE SINR statistics output trace file.

Definition at line 232 of file phy-stats-calculator.h.

Referenced by ~PhyStatsCalculator(), and ReportUeSinr().

The documentation for this class was generated from the following files:

src/lte/helper/phy-stats-calculator.h
src/lte/helper/phy-stats-calculator.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Constructor & Destructor Documentation

◆ PhyStatsCalculator()

◆ ~PhyStatsCalculator()

Member Function Documentation

◆ GetCurrentCellRsrpSinrFilename()

◆ GetInterferenceFilename()

◆ GetTypeId()

◆ GetUeSinrFilename()

◆ ReportCurrentCellRsrpSinr()

◆ ReportCurrentCellRsrpSinrCallback()

◆ ReportInterference() [1/2]

◆ ReportInterference() [2/2]

◆ ReportUeSinr() [1/2]

◆ ReportUeSinr() [2/2]

◆ SetCurrentCellRsrpSinrFilename()

◆ SetInterferenceFilename()

◆ SetUeSinrFilename()

Member Data Documentation

◆ m_interferenceFilename

◆ m_InterferenceFirstWrite

◆ m_interferenceOutFile

◆ m_rsrpOutFile

◆ m_RsrpSinrFilename

◆ m_RsrpSinrFirstWrite

◆ m_ueSinrFilename

◆ m_UeSinrFirstWrite

◆ m_ueSinrOutFile
