ns3::PointToPointChannel::Link Class Reference

Wire model for the PointToPointChannel. More...

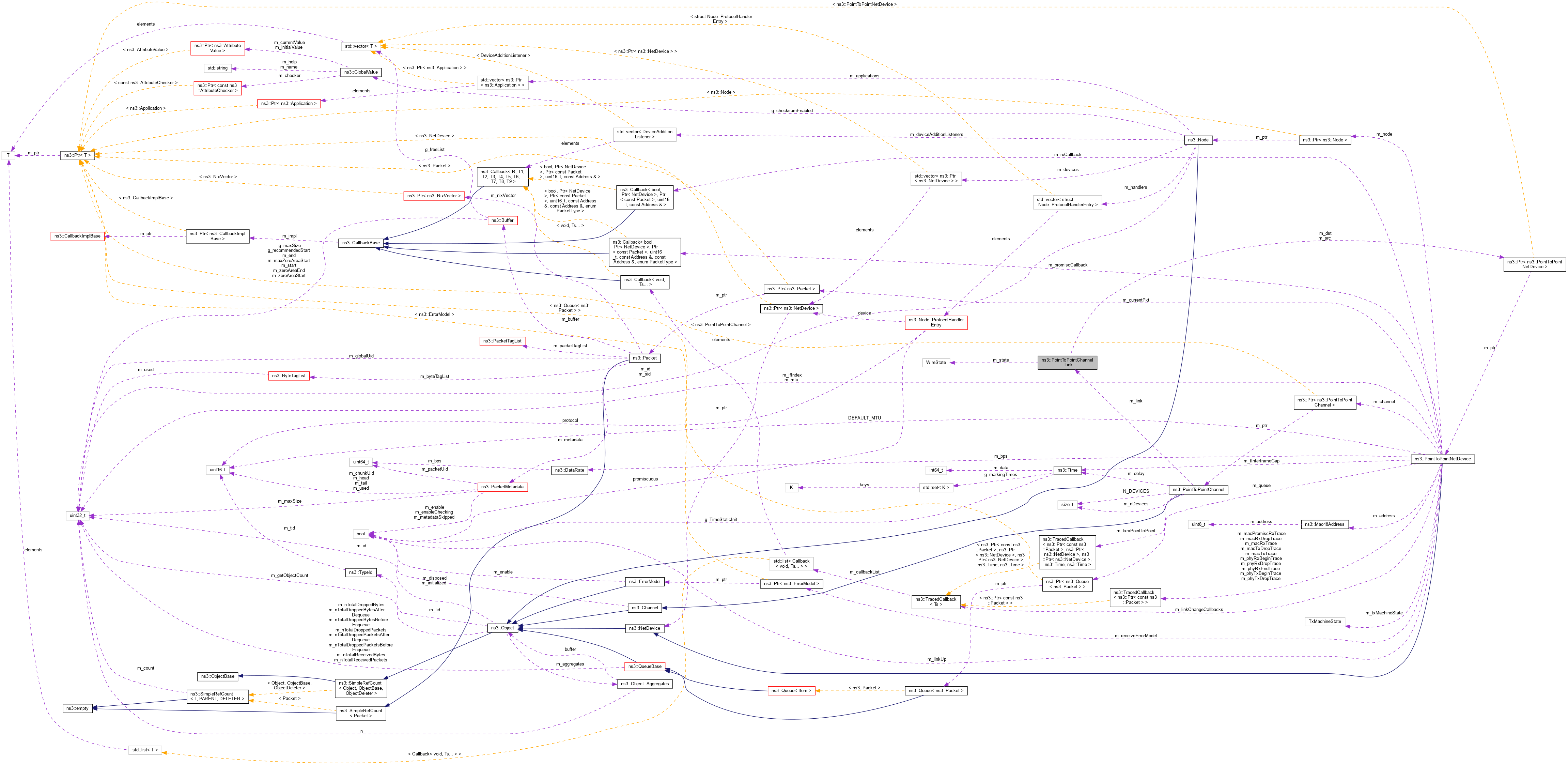

Collaboration diagram for ns3::PointToPointChannel::Link:

Public Member Functions
	Link ()
	Create the link, it will be in INITIALIZING state. More...

Public Attributes
Ptr< PointToPointNetDevice >	m_dst
	Second NetDevice. More...
Ptr< PointToPointNetDevice >	m_src
	First NetDevice. More...
WireState	m_state
	State of the link. More...

Detailed Description

Wire model for the PointToPointChannel.

Definition at line 191 of file point-to-point-channel.h.

Constructor & Destructor Documentation

Link()

ns3::PointToPointChannel::Link::Link ( )

inline

Create the link, it will be in INITIALIZING state.

Definition at line 197 of file point-to-point-channel.h.

Member Data Documentation

m_dst

Ptr<PointToPointNetDevice> ns3::PointToPointChannel::Link::m_dst

Second NetDevice.

Definition at line 201 of file point-to-point-channel.h.

Referenced by ns3::PointToPointChannel::Attach(), ns3::PointToPointChannel::GetDestination(), and ns3::PointToPointChannel::TransmitStart().

m_src

Ptr<PointToPointNetDevice> ns3::PointToPointChannel::Link::m_src

First NetDevice.

Definition at line 200 of file point-to-point-channel.h.

Referenced by ns3::PointToPointChannel::Attach(), ns3::PointToPointChannel::GetPointToPointDevice(), ns3::PointToPointChannel::GetSource(), and ns3::PointToPointChannel::TransmitStart().

m_state

WireState ns3::PointToPointChannel::Link::m_state

State of the link.

Definition at line 199 of file point-to-point-channel.h.

Referenced by ns3::PointToPointChannel::Attach().

---

The documentation for this class was generated from the following file:

• src/point-to-point/model/point-to-point-channel.h
