ns3::QKDControlContainer Class Reference

holds a vector of std::pair of Ptr<QKDControl> and interface index. More...

#include "qkd-control-container.h"

Collaboration diagram for ns3::QKDControlContainer:

Public Types
typedef std::vector< std::pair< Ptr< QKDControl >, uint32_t > >::const_iterator	Iterator
	Container Const Iterator for pairs of QKDControl smart pointer / Interface Index. More...

Public Member Functions
	QKDControlContainer ()
	Constructor. More...
void	Add (const QKDControlContainer &other)
	Concatenate the entries in the other container with ours. More...
void	Add (Ptr< QKDControl >, uint32_t ipInterfacePair)
	Manually add an entry to the container consisting of a previously composed entry std::pair. More...
void	Add (std::pair< Ptr< QKDControl >, uint32_t > ipInterfacePair)
	Manually add an entry to the container consisting of a previously composed entry std::pair. More...
Iterator	Begin (void) const
	Get an iterator which refers to the first pair in the container. More...
Iterator	End (void) const
	Get an iterator which indicates past-the-last Node in the container. More...
std::pair< Ptr< QKDControl >, uint32_t >	Get (uint32_t i) const
	Get the std::pair of an Ptr<QKDControl> and interface stored at the location specified by the index. More...
uint32_t	GetN (void) const
	Get the number of nodes in the container. More...

Private Types
typedef std::vector< std::pair< Ptr< QKDControl >, uint32_t > >	InterfaceVector
	Container for pairs of QKDControl smart pointer / Interface Index. More...

Private Attributes
InterfaceVector	m_list
	List of QKD Encryptors and interfaces index. More...

Detailed Description

holds a vector of std::pair of Ptr<QKDControl> and interface index.

Typically ns-3 QKDControls are installed on nodes using an QKD helper.

See also

QKDControl

Definition at line 40 of file qkd-control-container.h.

Member Typedef Documentation

InterfaceVector

typedef std::vector<std::pair<Ptr<QKDControl>,uint32_t> > ns3::QKDControlContainer::InterfaceVector

private

Container for pairs of QKDControl smart pointer / Interface Index.

Definition at line 136 of file qkd-control-container.h.

Iterator

typedef std::vector<std::pair<Ptr<QKDControl>, uint32_t> >::const_iterator ns3::QKDControlContainer::Iterator

Container Const Iterator for pairs of QKDControl smart pointer / Interface Index.

Definition at line 46 of file qkd-control-container.h.

Constructor & Destructor Documentation

QKDControlContainer()

ns3::QKDControlContainer::QKDControlContainer

(

)

Constructor.

Definition at line 27 of file qkd-control-container.cc.

Member Function Documentation

Add() [1/3]

void ns3::QKDControlContainer::Add

(

const QKDControlContainer &

other

)

Concatenate the entries in the other container with ours.

Parameters

other

The other container.

Definition at line 32 of file qkd-control-container.cc.

References m_list.

Referenced by Add(), and ns3::QKDLinkHelper::InstallQKDControl().

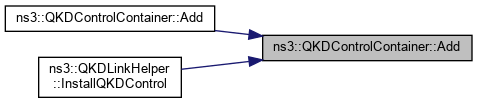

Here is the caller graph for this function:

Add() [2/3]

void ns3::QKDControlContainer::Add	(	Ptr< QKDControl >	qkde,
		uint32_t	ipInterfacePair
	)

Manually add an entry to the container consisting of a previously composed entry std::pair.

Parameters

The	QKD control object.
ipInterfacePair	The pair of a pointer to Ipv4 object and interface index of the Ipv4Interface to add to the container.

Definition at line 59 of file qkd-control-container.cc.

References m_list.

Add() [3/3]

void ns3::QKDControlContainer::Add

(

std::pair< Ptr< QKDControl >, uint32_t >

ipInterfacePair

)

Manually add an entry to the container consisting of a previously composed entry std::pair.

Parameters

The	pair of QKD control objects.
ipInterfacePair	The pair of a pointer to Ipv4 object and interface index of the Ipv4Interface to add to the container.

Definition at line 63 of file qkd-control-container.cc.

References Add().

Here is the call graph for this function:

Begin()

QKDControlContainer::Iterator ns3::QKDControlContainer::Begin

(

void

)

const

Get an iterator which refers to the first pair in the container.

Pairs can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the pairs

QKDControlContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    std::pair<Ptr<QKDControl>, uint32_t> pair = *i;
    method (pair.first, pair.second);  // use the pair
  }

Returns

An iterator which refers to the first pair in the container.

Definition at line 41 of file qkd-control-container.cc.

References m_list.

End()

QKDControlContainer::Iterator ns3::QKDControlContainer::End

(

void

)

const

Get an iterator which indicates past-the-last Node in the container.

Nodes can be retrieved from the container in two ways. First, directly by an index into the container, and second, using an iterator. This method is used in the iterator method and is typically used in a for-loop to run through the Nodes

NodeContainer::Iterator i;
for (i = container.Begin (); i != container.End (); ++i)
  {
    std::pair<Ptr<QKDControl>, uint32_t> pair = *i;
    method (pair.first, pair.second);  // use the pair
  }

Returns

An iterator which indicates an ending condition for a loop.

Definition at line 47 of file qkd-control-container.cc.

References m_list.

Get()

std::pair< Ptr< QKDControl >, uint32_t > ns3::QKDControlContainer::Get

(

uint32_t

i

)

const

Get the std::pair of an Ptr<QKDControl> and interface stored at the location specified by the index.

Parameters

i	The index of the container entry to retrieve.

Returns

The pair of QKD controls and the interface index.

Definition at line 69 of file qkd-control-container.cc.

References m_list.

GetN()

uint32_t ns3::QKDControlContainer::GetN

(

void

)

const

Get the number of nodes in the container.

Returns

The number of nodes.

Definition at line 53 of file qkd-control-container.cc.

References m_list.

Member Data Documentation

m_list

InterfaceVector ns3::QKDControlContainer::m_list

private

List of QKD Encryptors and interfaces index.

Definition at line 137 of file qkd-control-container.h.

Referenced by Add(), Begin(), End(), Get(), and GetN().

---

The documentation for this class was generated from the following files:

• src/qkd/helper/qkd-control-container.h
• src/qkd/helper/qkd-control-container.cc
