ns3::QosBlockedDestinations Class Reference

Keep track of destination address - TID pairs that are waiting for a BlockAck response. More...

#include "qos-blocked-destinations.h"

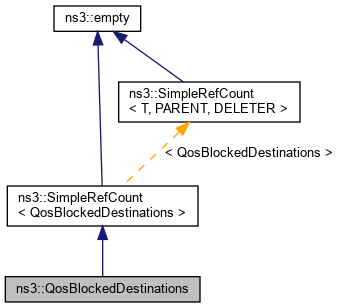

Inheritance diagram for ns3::QosBlockedDestinations:

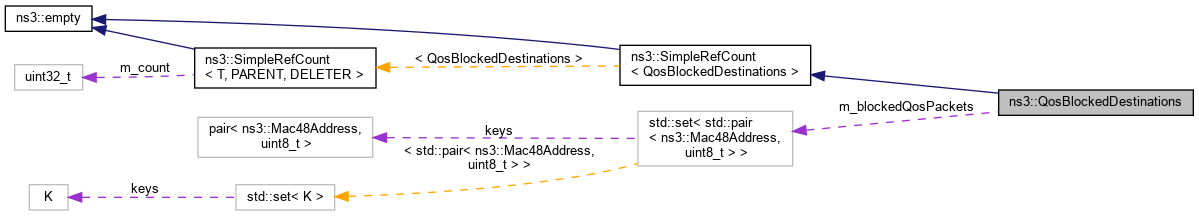

Collaboration diagram for ns3::QosBlockedDestinations:

Public Member Functions
	QosBlockedDestinations ()
	~QosBlockedDestinations ()
void	Block (Mac48Address dest, uint8_t tid)
	Block the given destination address and TID from sending (e.g. More...
bool	IsBlocked (Mac48Address dest, uint8_t tid) const
	Check if the given destination address and TID are blocked from sending (e.g. More...
void	Unblock (Mac48Address dest, uint8_t tid)
	Un-block the given destination address and TID (e.g. More...
Public Member Functions inherited from ns3::SimpleRefCount< QosBlockedDestinations >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::set< std::pair< Mac48Address, uint8_t > >	m_blockedQosPackets
	blocked QoS packets More...

Detailed Description

Keep track of destination address - TID pairs that are waiting for a BlockAck response.

Definition at line 36 of file qos-blocked-destinations.h.

Constructor & Destructor Documentation

QosBlockedDestinations()

ns3::QosBlockedDestinations::QosBlockedDestinations

(

)

Definition at line 27 of file qos-blocked-destinations.cc.

~QosBlockedDestinations()

ns3::QosBlockedDestinations::~QosBlockedDestinations

(

)

Definition at line 31 of file qos-blocked-destinations.cc.

Member Function Documentation

Block()

void ns3::QosBlockedDestinations::Block	(	Mac48Address	dest,
		uint8_t	tid
	)

Block the given destination address and TID from sending (e.g.

pending BlockAck response).

Parameters

dest	the destination MAC address
tid	the TID

Definition at line 42 of file qos-blocked-destinations.cc.

References m_blockedQosPackets.

Referenced by ns3::QosTxop::QosTxop().

Here is the caller graph for this function:

IsBlocked()

bool ns3::QosBlockedDestinations::IsBlocked	(	Mac48Address	dest,
		uint8_t	tid
	)		const

Check if the given destination address and TID are blocked from sending (e.g.

pending BlockAck response).

Parameters

dest	the destination MAC address
tid	the TID

Returns

true if the given destination address and TID are blocked from sending, false otherwise

Definition at line 36 of file qos-blocked-destinations.cc.

References m_blockedQosPackets.

Unblock()

void ns3::QosBlockedDestinations::Unblock	(	Mac48Address	dest,
		uint8_t	tid
	)

Un-block the given destination address and TID (e.g.

BlockAck response received).

Parameters

dest	the destination MAC address
tid	the TID

Definition at line 48 of file qos-blocked-destinations.cc.

References m_blockedQosPackets.

Referenced by ns3::QosTxop::QosTxop().

Here is the caller graph for this function:

Member Data Documentation

m_blockedQosPackets

std::set<std::pair<Mac48Address, uint8_t> > ns3::QosBlockedDestinations::m_blockedQosPackets

private

blocked QoS packets

Definition at line 72 of file qos-blocked-destinations.h.

Referenced by Block(), IsBlocked(), and Unblock().

---

The documentation for this class was generated from the following files:

• src/wifi/model/qos-blocked-destinations.h
• src/wifi/model/qos-blocked-destinations.cc
