Router prefix for radvd application. More...

#include "radvd-prefix.h"

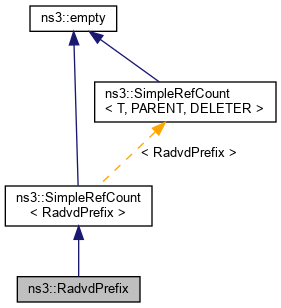

Inheritance diagram for ns3::RadvdPrefix:

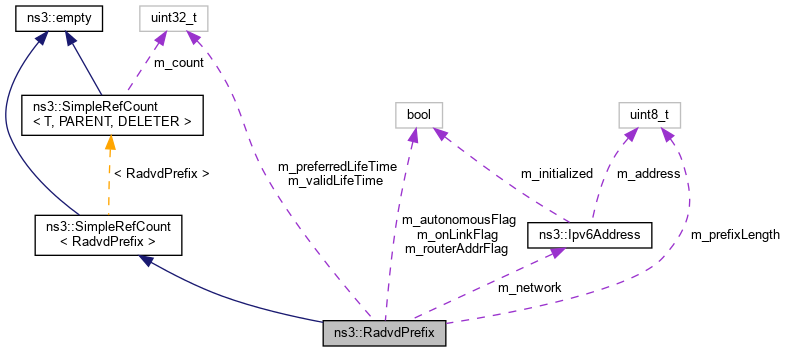

Collaboration diagram for ns3::RadvdPrefix:

Public Member Functions
	RadvdPrefix (Ipv6Address network, uint8_t prefixLength, uint32_t preferredLifeTime=604800, uint32_t validLifeTime=2592000, bool onLinkFlag=true, bool autonomousFlag=true, bool routerAddrFlag=false)
	Constructor. More...

	~RadvdPrefix ()
	Destructor. More...

Ipv6Address	GetNetwork () const
	Get network prefix. More...

uint32_t	GetPreferredLifeTime () const
	Get preferred lifetime. More...

uint8_t	GetPrefixLength () const
	Get prefix length. More...

uint32_t	GetValidLifeTime () const
	Get valid lifetime. More...

bool	IsAutonomousFlag () const
	Is autonomous flag ? More...

bool	IsOnLinkFlag () const
	Is on-link flag ? More...

bool	IsRouterAddrFlag () const
	Is router address flag ? More...

void	SetAutonomousFlag (bool autonomousFlag)
	Set autonomous flag. More...

void	SetNetwork (Ipv6Address network)
	Set network prefix. More...

void	SetOnLinkFlag (bool onLinkFlag)
	Set on-link flag. More...

void	SetPreferredLifeTime (uint32_t preferredLifeTime)
	Set preferred lifetime. More...

void	SetPrefixLength (uint8_t prefixLength)
	Set prefix length. More...

void	SetRouterAddrFlag (bool routerAddrFlag)
	Set router address flag. More...

void	SetValidLifeTime (uint32_t validLifeTime)
	Set valid lifetime. More...

Public Member Functions inherited from ns3::SimpleRefCount< RadvdPrefix >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
bool	m_autonomousFlag
	Autonomous flag, it is used for autonomous address configuration (RFC 2462). More...

Ipv6Address	m_network
	Network prefix. More...

bool	m_onLinkFlag
	On link flag, indicates that this prefix can be used for on-link determination. More...

uint32_t	m_preferredLifeTime
	Preferred time. More...

uint8_t	m_prefixLength
	Prefix length. More...

bool	m_routerAddrFlag
	Router address flag, indicates that router address is sent instead of network prefix as is required by Mobile IPv6. More...

uint32_t	m_validLifeTime
	Valid time. More...

Detailed Description

Router prefix for radvd application.

Definition at line 36 of file radvd-prefix.h.

Constructor & Destructor Documentation

◆ RadvdPrefix()

ns3::RadvdPrefix::RadvdPrefix	(	Ipv6Address	network,
		uint8_t	prefixLength,
		uint32_t	preferredLifeTime = `604800`,
		uint32_t	validLifeTime = `2592000`,
		bool	onLinkFlag = `true`,
		bool	autonomousFlag = `true`,
		bool	routerAddrFlag = `false`
	)

Constructor.

Parameters

network	network prefix advertised
prefixLength	prefix length ( 0 < x <= 128)
preferredLifeTime	preferred life time in seconds (default 7 days)
validLifeTime	valid life time in seconds (default 30 days)
onLinkFlag	on link flag
autonomousFlag	autonomous link flag
routerAddrFlag	router address flag (for Mobile IPv6)

Definition at line 29 of file radvd-prefix.cc.

References NS_LOG_FUNCTION.

◆ ~RadvdPrefix()

ns3::RadvdPrefix::~RadvdPrefix ( )

Destructor.

Definition at line 41 of file radvd-prefix.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetNetwork()

Ipv6Address ns3::RadvdPrefix::GetNetwork ( ) const

Get network prefix.

Returns: network prefix

Definition at line 46 of file radvd-prefix.cc.

References m_network, and NS_LOG_FUNCTION.

◆ GetPreferredLifeTime()

uint32_t ns3::RadvdPrefix::GetPreferredLifeTime ( ) const

Get preferred lifetime.

Returns: lifetime

Definition at line 82 of file radvd-prefix.cc.

References m_preferredLifeTime, and NS_LOG_FUNCTION.

◆ GetPrefixLength()

uint8_t ns3::RadvdPrefix::GetPrefixLength ( ) const

Get prefix length.

Returns: prefix length

Definition at line 58 of file radvd-prefix.cc.

References m_prefixLength, and NS_LOG_FUNCTION.

◆ GetValidLifeTime()

uint32_t ns3::RadvdPrefix::GetValidLifeTime ( void ) const

Get valid lifetime.

Returns: lifetime

Definition at line 70 of file radvd-prefix.cc.

References m_validLifeTime, and NS_LOG_FUNCTION.

◆ IsAutonomousFlag()

bool ns3::RadvdPrefix::IsAutonomousFlag ( ) const

Is autonomous flag ?

Returns: true if autonomous is activated, false otherwise

Definition at line 106 of file radvd-prefix.cc.

References m_autonomousFlag, and NS_LOG_FUNCTION.

◆ IsOnLinkFlag()

bool ns3::RadvdPrefix::IsOnLinkFlag ( ) const

Is on-link flag ?

Returns: true if on-link is activated, false otherwise

Definition at line 94 of file radvd-prefix.cc.

References m_onLinkFlag, and NS_LOG_FUNCTION.

◆ IsRouterAddrFlag()

bool ns3::RadvdPrefix::IsRouterAddrFlag ( ) const

Is router address flag ?

Returns: true if router address is activated, false otherwise

Definition at line 118 of file radvd-prefix.cc.

References m_routerAddrFlag, and NS_LOG_FUNCTION.

◆ SetAutonomousFlag()

void ns3::RadvdPrefix::SetAutonomousFlag ( bool autonomousFlag )

Set autonomous flag.

Parameters

autonomousFlag value

Definition at line 112 of file radvd-prefix.cc.

References m_autonomousFlag, and NS_LOG_FUNCTION.

◆ SetNetwork()

void ns3::RadvdPrefix::SetNetwork ( Ipv6Address network )

Set network prefix.

Parameters

network network prefix

Definition at line 52 of file radvd-prefix.cc.

References m_network, and NS_LOG_FUNCTION.

◆ SetOnLinkFlag()

void ns3::RadvdPrefix::SetOnLinkFlag ( bool onLinkFlag )

Set on-link flag.

Parameters

onLinkFlag value

Definition at line 100 of file radvd-prefix.cc.

References m_onLinkFlag, and NS_LOG_FUNCTION.

Referenced by RadvdTestCase::DoRun().

Here is the caller graph for this function:

◆ SetPreferredLifeTime()

void ns3::RadvdPrefix::SetPreferredLifeTime ( uint32_t preferredLifeTime )

Set preferred lifetime.

Parameters

preferredLifeTime lifetime

Definition at line 88 of file radvd-prefix.cc.

References m_preferredLifeTime, and NS_LOG_FUNCTION.

◆ SetPrefixLength()

void ns3::RadvdPrefix::SetPrefixLength ( uint8_t prefixLength )

Set prefix length.

Parameters

prefixLength prefix length

Definition at line 64 of file radvd-prefix.cc.

References m_prefixLength, and NS_LOG_FUNCTION.

◆ SetRouterAddrFlag()

void ns3::RadvdPrefix::SetRouterAddrFlag ( bool routerAddrFlag )

Set router address flag.

Parameters

routerAddrFlag value

Definition at line 124 of file radvd-prefix.cc.

References m_routerAddrFlag, and NS_LOG_FUNCTION.

◆ SetValidLifeTime()

void ns3::RadvdPrefix::SetValidLifeTime ( uint32_t validLifeTime )

Set valid lifetime.

Parameters

validLifeTime lifetime

Definition at line 76 of file radvd-prefix.cc.

References m_validLifeTime, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_autonomousFlag

bool ns3::RadvdPrefix::m_autonomousFlag

private

Autonomous flag, it is used for autonomous address configuration (RFC 2462).

Definition at line 169 of file radvd-prefix.h.

Referenced by IsAutonomousFlag(), and SetAutonomousFlag().

◆ m_network

Ipv6Address ns3::RadvdPrefix::m_network

private

Network prefix.

Definition at line 144 of file radvd-prefix.h.

Referenced by GetNetwork(), and SetNetwork().

◆ m_onLinkFlag

bool ns3::RadvdPrefix::m_onLinkFlag

private

On link flag, indicates that this prefix can be used for on-link determination.

Definition at line 164 of file radvd-prefix.h.

Referenced by IsOnLinkFlag(), and SetOnLinkFlag().

◆ m_preferredLifeTime

uint32_t ns3::RadvdPrefix::m_preferredLifeTime

private

Preferred time.

Definition at line 154 of file radvd-prefix.h.

Referenced by GetPreferredLifeTime(), and SetPreferredLifeTime().

◆ m_prefixLength

uint8_t ns3::RadvdPrefix::m_prefixLength

private

Prefix length.

Definition at line 149 of file radvd-prefix.h.

Referenced by GetPrefixLength(), and SetPrefixLength().

◆ m_routerAddrFlag

bool ns3::RadvdPrefix::m_routerAddrFlag

private

Router address flag, indicates that router address is sent instead of network prefix as is required by Mobile IPv6.

Definition at line 175 of file radvd-prefix.h.

Referenced by IsRouterAddrFlag(), and SetRouterAddrFlag().

◆ m_validLifeTime

uint32_t ns3::RadvdPrefix::m_validLifeTime

private

Valid time.

Definition at line 159 of file radvd-prefix.h.

Referenced by GetValidLifeTime(), and SetValidLifeTime().

The documentation for this class was generated from the following files:

src/internet-apps/model/radvd-prefix.h
src/internet-apps/model/radvd-prefix.cc
