ns3::RarLteControlMessage Class Reference

abstract model for the MAC Random Access Response message More...

#include "lte-control-messages.h"

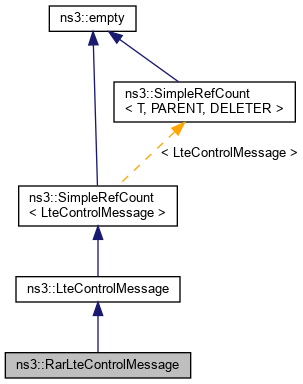

Inheritance diagram for ns3::RarLteControlMessage:

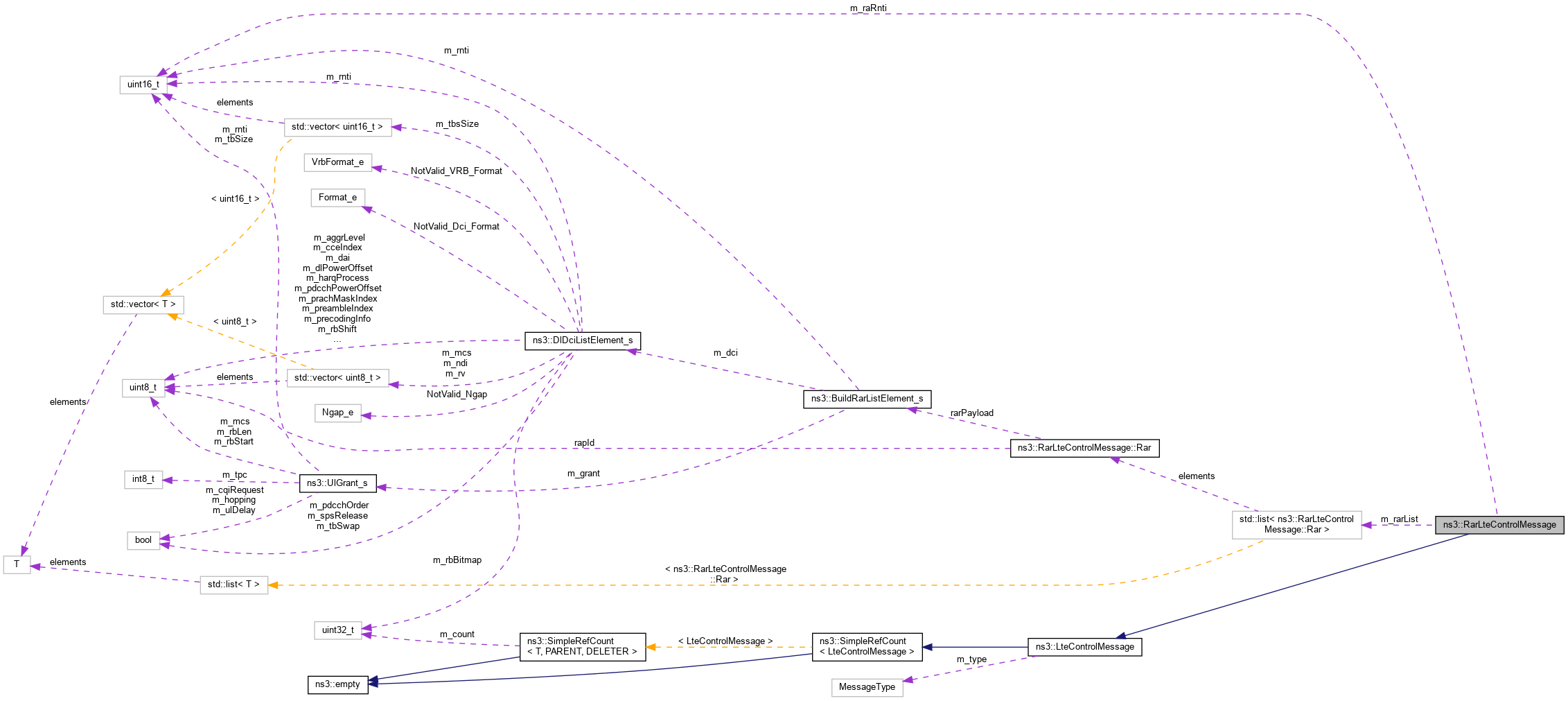

Collaboration diagram for ns3::RarLteControlMessage:

Classes
struct	Rar
	a MAC RAR and the corresponding RAPID subheader More...

Public Member Functions
	RarLteControlMessage (void)
void	AddRar (Rar rar)
	add a RAR to the MAC PDU, see 3GPP TS 36.321 6.2.3 More...
uint16_t	GetRaRnti () const
std::list< Rar >::const_iterator	RarListBegin () const
std::list< Rar >::const_iterator	RarListEnd () const
void	SetRaRnti (uint16_t raRnti)
Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)
virtual	~LteControlMessage (void)
MessageType	GetMessageType (void)
	Get the type of the message. More...
void	SetMessageType (MessageType type)
	Set the type of the message. More...
Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::list< Rar >	m_rarList
	RAR list. More...
uint16_t	m_raRnti
	RA RNTI. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType {   DL_DCI , UL_DCI , DL_CQI , UL_CQI ,   BSR , DL_HARQ , RACH_PREAMBLE , RAR ,   MIB , SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Detailed Description

abstract model for the MAC Random Access Response message

Definition at line 275 of file lte-control-messages.h.

Constructor & Destructor Documentation

RarLteControlMessage()

ns3::RarLteControlMessage::RarLteControlMessage

(

void

)

Definition at line 199 of file lte-control-messages.cc.

References ns3::LteControlMessage::RAR, and ns3::LteControlMessage::SetMessageType().

Here is the call graph for this function:

Member Function Documentation

AddRar()

void ns3::RarLteControlMessage::AddRar

(

Rar

rar

)

add a RAR to the MAC PDU, see 3GPP TS 36.321 6.2.3

Parameters

rar

the rar

Definition at line 219 of file lte-control-messages.cc.

References m_rarList.

GetRaRnti()

uint16_t ns3::RarLteControlMessage::GetRaRnti

(

)

const

Returns

the RA-RNTI, see 3GPP TS 36.321 5.1.4

Definition at line 212 of file lte-control-messages.cc.

References m_raRnti.

RarListBegin()

std::list< RarLteControlMessage::Rar >::const_iterator ns3::RarLteControlMessage::RarListBegin

(

)

const

Returns

a const iterator to the beginning of the RAR list

Definition at line 225 of file lte-control-messages.cc.

References m_rarList.

RarListEnd()

std::list< RarLteControlMessage::Rar >::const_iterator ns3::RarLteControlMessage::RarListEnd

(

)

const

Returns

a const iterator to the end of the RAR list

Definition at line 231 of file lte-control-messages.cc.

References m_rarList.

SetRaRnti()

void ns3::RarLteControlMessage::SetRaRnti

(

uint16_t

raRnti

)

Parameters

raRnti

the RA-RNTI, see 3GPP TS 36.321 5.1.4

Definition at line 206 of file lte-control-messages.cc.

References m_raRnti.

Member Data Documentation

m_rarList

std::list<Rar> ns3::RarLteControlMessage::m_rarList

private

RAR list.

Definition at line 322 of file lte-control-messages.h.

Referenced by AddRar(), RarListBegin(), and RarListEnd().

m_raRnti

uint16_t ns3::RarLteControlMessage::m_raRnti

private

RA RNTI.

Definition at line 323 of file lte-control-messages.h.

Referenced by GetRaRnti(), and SetRaRnti().

---

The documentation for this class was generated from the following files:

• src/lte/model/lte-control-messages.h
• src/lte/model/lte-control-messages.cc
