Helper class that adds RIPng routing to nodes. More...

#include "ripng-helper.h"

Inheritance diagram for ns3::RipNgHelper:

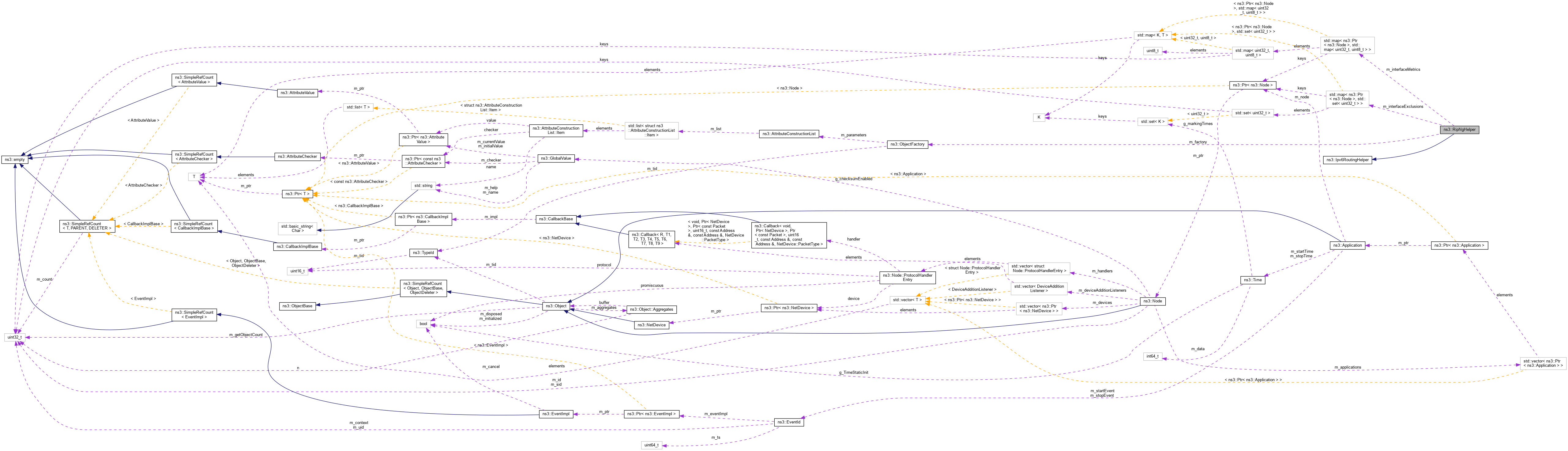

Collaboration diagram for ns3::RipNgHelper:

Public Member Functions
	RipNgHelper ()

	RipNgHelper (const RipNgHelper &o)
	Construct an RipNgHelper from another previously initialized instance (Copy Constructor). More...

virtual	~RipNgHelper ()

int64_t	AssignStreams (NodeContainer c, int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

RipNgHelper *	Copy (void) const

virtual Ptr< Ipv6RoutingProtocol >	Create (Ptr< Node > node) const

void	ExcludeInterface (Ptr< Node > node, uint32_t interface)
	Exclude an interface from RIPng protocol. More...

void	Set (std::string name, const AttributeValue &value)

void	SetDefaultRouter (Ptr< Node > node, Ipv6Address nextHop, uint32_t interface)
	Install a default route in the node. More...

void	SetInterfaceMetric (Ptr< Node > node, uint32_t interface, uint8_t metric)
	Set a metric for an interface. More...

Public Member Functions inherited from ns3::Ipv6RoutingHelper
virtual	~Ipv6RoutingHelper ()
	Destroy an Ipv6 Ipv6RoutingHelper. More...

Private Member Functions
RipNgHelper &	operator= (const RipNgHelper &o)
	Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own. More...

Private Attributes
ObjectFactory	m_factory
	Object Factory. More...

std::map< Ptr< Node >, std::set< uint32_t > >	m_interfaceExclusions
	Interface Exclusion set. More...

std::map< Ptr< Node >, std::map< uint32_t, uint8_t > >	m_interfaceMetrics
	Interface Metric set. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv6RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv6RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv6RoutingProtocol protocol. More...

static void	PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at a particular time. More...

static void	PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at regular intervals specified by user. More...

static void	PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at a particular time. More...

static void	PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at regular intervals specified by user. More...

static void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at a particular time. More...

static void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at regular intervals specified by user. More...

static void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at a particular time. More...

static void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at regular intervals specified by user. More...

Detailed Description

Helper class that adds RIPng routing to nodes.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 40 of file ripng-helper.h.

Constructor & Destructor Documentation

◆ RipNgHelper() [1/2]

ns3::RipNgHelper::RipNgHelper ( )

Definition at line 29 of file ripng-helper.cc.

References m_factory, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

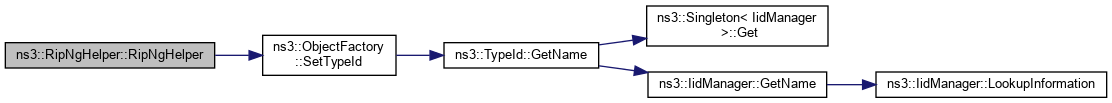

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RipNgHelper() [2/2]

ns3::RipNgHelper::RipNgHelper ( const RipNgHelper & o )

Construct an RipNgHelper from another previously initialized instance (Copy Constructor).

Parameters

o	The object to copy from.

Definition at line 34 of file ripng-helper.cc.

References m_interfaceExclusions, and m_interfaceMetrics.

◆ ~RipNgHelper()

ns3::RipNgHelper::~RipNgHelper ( )

virtual

Definition at line 41 of file ripng-helper.cc.

References m_interfaceExclusions, and m_interfaceMetrics.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::RipNgHelper::AssignStreams	(	NodeContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the SixLowPanNetDevice should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 88 of file ripng-helper.cc.

References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), list, and NS_ASSERT_MSG.

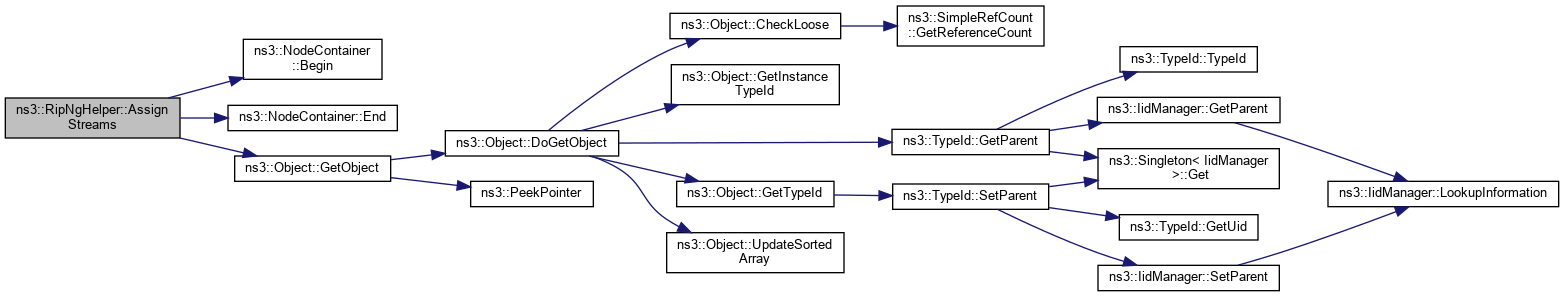

Here is the call graph for this function:

◆ Copy()

RipNgHelper * ns3::RipNgHelper::Copy ( void ) const

virtual

Returns: pointer to clone of this RipNgHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv6RoutingHelper.

Definition at line 48 of file ripng-helper.cc.

References RipNgHelper().

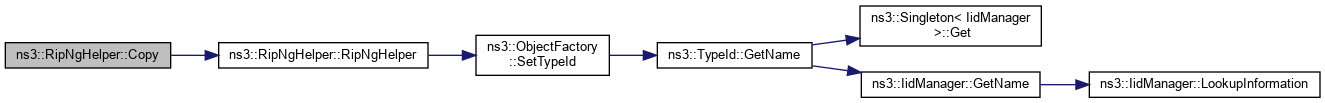

Here is the call graph for this function:

◆ Create()

Ptr< Ipv6RoutingProtocol > ns3::RipNgHelper::Create ( Ptr< Node > node ) const

virtual

Parameters

node	the node on which the routing protocol will run

Returns: a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv6RoutingHelper.

Definition at line 54 of file ripng-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), m_factory, m_interfaceExclusions, and m_interfaceMetrics.

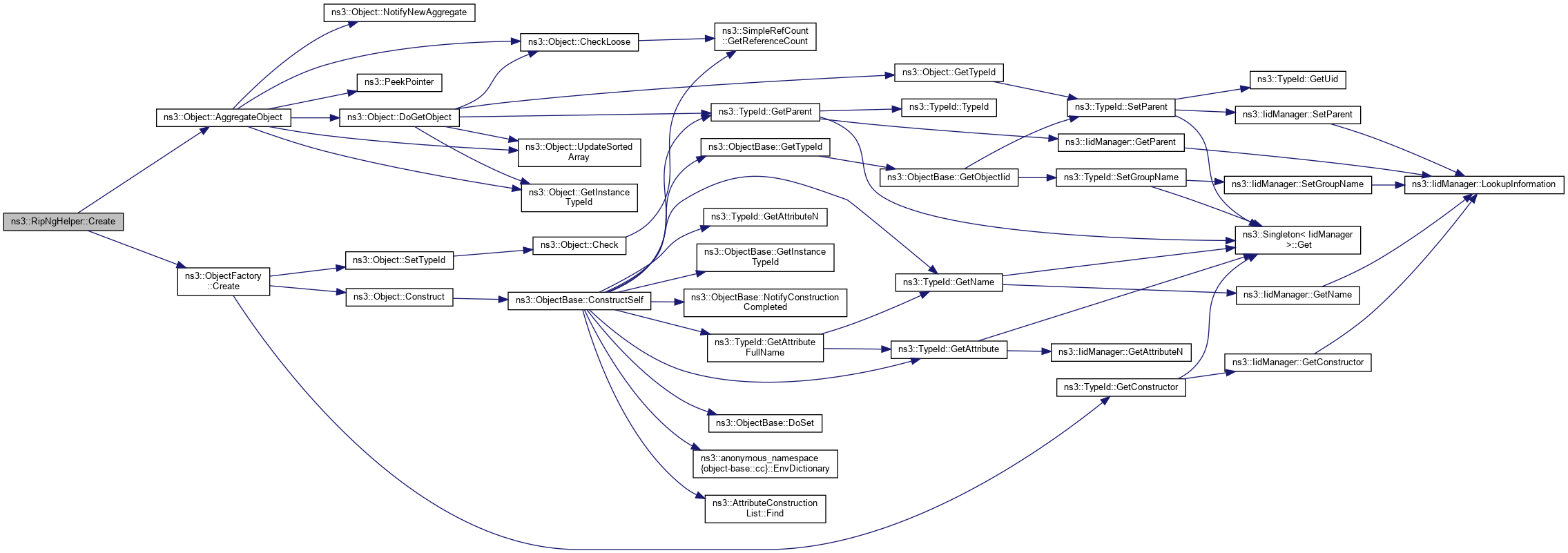

Here is the call graph for this function:

◆ ExcludeInterface()

void ns3::RipNgHelper::ExcludeInterface	(	Ptr< Node >	node,
		uint32_t	interface
	)

Exclude an interface from RIPng protocol.

You have to call this function before installing RIPng in the nodes.

Note: the exclusion means that RIPng will not be propagated on that interface. The network prefix on that interface will be still considered in RIPng.

Parameters

node	the node
interface	the network interface to be excluded

Definition at line 159 of file ripng-helper.cc.

References first::interfaces, and m_interfaceExclusions.

◆ operator=()

RipNgHelper& ns3::RipNgHelper::operator= ( const RipNgHelper & o )

private

Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Parameters

o	The object to copy from.

Returns: pointer to clone of this RipNgHelper

◆ Set()

void ns3::RipNgHelper::Set	(	std::string	name,
		const AttributeValue &	value
	)

Parameters

name	the name of the attribute to set
value	the value of the attribute to set.

This method controls the attributes of ns3::RipNg

Definition at line 81 of file ripng-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by Ipv6RipngSplitHorizonStrategyTest::DoRun().

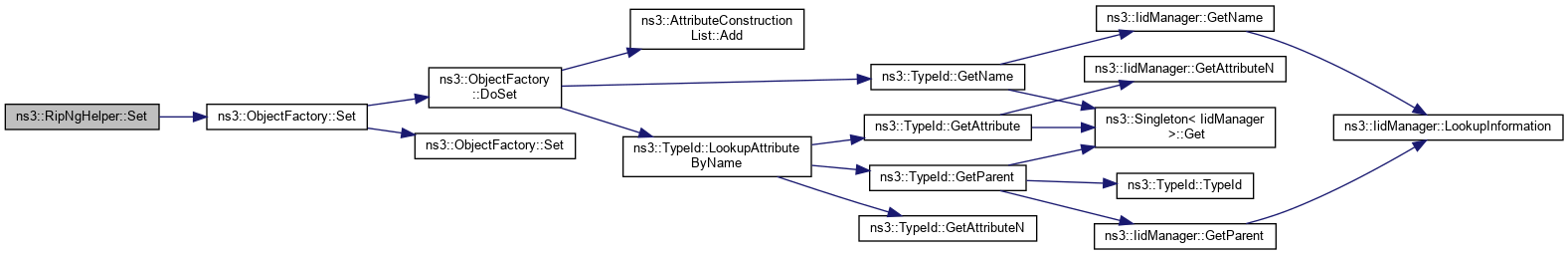

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDefaultRouter()

void ns3::RipNgHelper::SetDefaultRouter	(	Ptr< Node >	node,
		Ipv6Address	nextHop,
		uint32_t	interface
	)

Install a default route in the node.

The traffic will be routed to the nextHop, located on the specified interface, unless a more specific route is found.

Parameters

node	the node
nextHop	the next hop
interface	the network interface

Definition at line 127 of file ripng-helper.cc.

References ns3::Object::GetObject(), list, and NS_ASSERT_MSG.

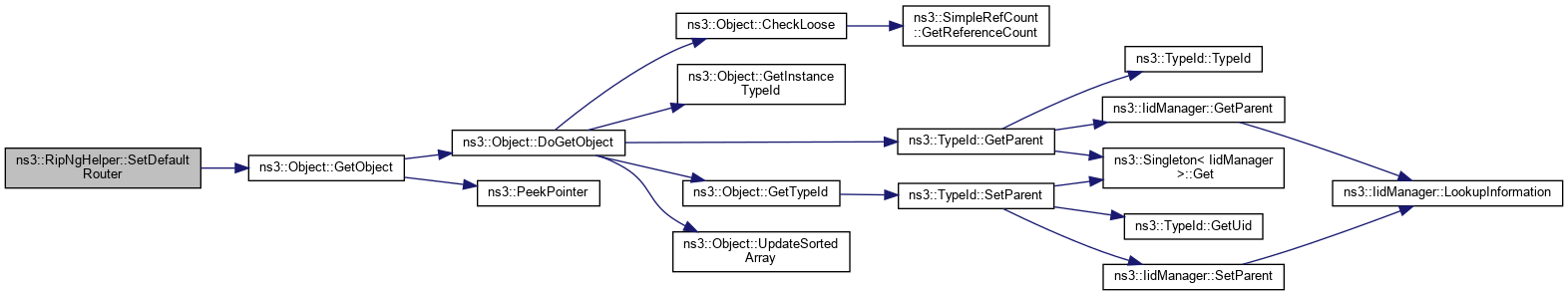

Here is the call graph for this function:

◆ SetInterfaceMetric()

void ns3::RipNgHelper::SetInterfaceMetric	(	Ptr< Node >	node,
		uint32_t	interface,
		uint8_t	metric
	)

Set a metric for an interface.

You have to call this function before installing RIPng in the nodes.

Note: RIPng will apply the metric on route message reception. As a consequence, interface metric should be set on the receiver.

Parameters

node	the node
interface	the network interface
metric	the interface metric

Definition at line 176 of file ripng-helper.cc.

References m_interfaceMetrics.

Referenced by Ipv6RipngCountToInfinityTest::DoRun().

Here is the caller graph for this function:

Member Data Documentation

◆ m_factory

ObjectFactory ns3::RipNgHelper::m_factory

private

Object Factory.

Definition at line 144 of file ripng-helper.h.

Referenced by RipNgHelper(), Create(), and Set().

◆ m_interfaceExclusions

std::map< Ptr<Node>, std::set<uint32_t> > ns3::RipNgHelper::m_interfaceExclusions

private

Interface Exclusion set.

Definition at line 146 of file ripng-helper.h.

Referenced by RipNgHelper(), ~RipNgHelper(), Create(), and ExcludeInterface().

◆ m_interfaceMetrics

std::map< Ptr<Node>, std::map<uint32_t, uint8_t> > ns3::RipNgHelper::m_interfaceMetrics

private

Interface Metric set.

Definition at line 147 of file ripng-helper.h.

Referenced by RipNgHelper(), ~RipNgHelper(), Create(), and SetInterfaceMetric().

The documentation for this class was generated from the following files:

src/internet/helper/ripng-helper.h
src/internet/helper/ripng-helper.cc
