RipNg Routing Table Entry. More...

#include "ripng.h"

Inheritance diagram for ns3::RipNgRoutingTableEntry:

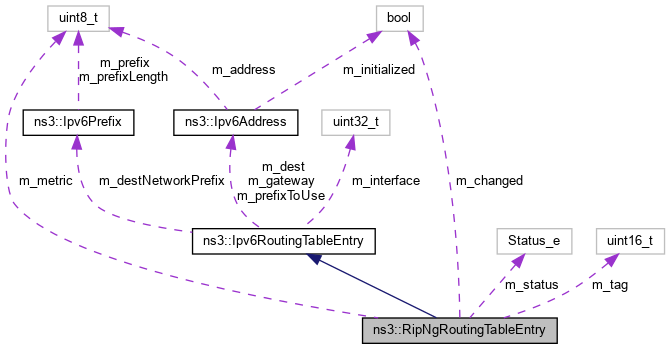

Collaboration diagram for ns3::RipNgRoutingTableEntry:

Public Types
enum	Status_e { RIPNG_VALID , RIPNG_INVALID }
	Route status. More...

Public Member Functions
	RipNgRoutingTableEntry (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse)
	Constructor. More...

	RipNgRoutingTableEntry (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface)
	Constructor. More...

	RipNgRoutingTableEntry (void)

virtual	~RipNgRoutingTableEntry ()

uint8_t	GetRouteMetric (void) const
	Get the route metric. More...

Status_e	GetRouteStatus (void) const
	Get the route status. More...

uint16_t	GetRouteTag (void) const
	Get the route tag. More...

bool	IsRouteChanged (void) const
	Get the route changed status. More...

void	SetRouteChanged (bool changed)
	Set the route as changed. More...

void	SetRouteMetric (uint8_t routeMetric)
	Set the route metric. More...

void	SetRouteStatus (Status_e status)
	Set the route status. More...

void	SetRouteTag (uint16_t routeTag)
	Set the route tag. More...

Public Member Functions inherited from ns3::Ipv6RoutingTableEntry
	Ipv6RoutingTableEntry ()
	Constructor. More...

	Ipv6RoutingTableEntry (Ipv6RoutingTableEntry const &route)
	Copy constructor. More...

	Ipv6RoutingTableEntry (Ipv6RoutingTableEntry const *route)
	Copy constructor. More...

virtual	~Ipv6RoutingTableEntry ()
	Destructor. More...

Ipv6Address	GetDest () const
	Get the destination. More...

Ipv6Address	GetDestNetwork () const
	Get the destination network. More...

Ipv6Prefix	GetDestNetworkPrefix () const
	Get the destination prefix. More...

Ipv6Address	GetGateway () const
	Get the gateway. More...

uint32_t	GetInterface () const
	Get the interface index. More...

Ipv6Address	GetPrefixToUse () const
	Get the prefix to use (for multihomed link). More...

bool	IsDefault () const
	Is it the default route ? More...

bool	IsGateway () const
	Is it the gateway ? More...

bool	IsHost () const
	Is the route entry correspond to a host ? More...

bool	IsNetwork () const
	Is the route entry correspond to a network ? More...

void	SetPrefixToUse (Ipv6Address prefix)
	Set the prefix to use. More...

Private Attributes
bool	m_changed
	route has been updated More...

uint8_t	m_metric
	route metric More...

Status_e	m_status
	route status More...

uint16_t	m_tag
	route tag More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv6RoutingTableEntry
static Ipv6RoutingTableEntry	CreateDefaultRoute (Ipv6Address nextHop, uint32_t interface)
	Create a default route. More...

static Ipv6RoutingTableEntry	CreateHostRouteTo (Ipv6Address dest, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse=Ipv6Address())
	Create a route to a host. More...

static Ipv6RoutingTableEntry	CreateHostRouteTo (Ipv6Address dest, uint32_t interface)
	Create a route to a host. More...

static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface)
	Create a route to a network. More...

static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, Ipv6Address nextHop, uint32_t interface, Ipv6Address prefixToUse)
	Create a route to a network. More...

static Ipv6RoutingTableEntry	CreateNetworkRouteTo (Ipv6Address network, Ipv6Prefix networkPrefix, uint32_t interface)
	Create a route to a network. More...

Detailed Description

RipNg Routing Table Entry.

Definition at line 63 of file ripng.h.

Member Enumeration Documentation

◆ Status_e

enum ns3::RipNgRoutingTableEntry::Status_e

Route status.

Enumerator
RIPNG_VALID
RIPNG_INVALID

Definition at line 70 of file ripng.h.

Constructor & Destructor Documentation

◆ RipNgRoutingTableEntry() [1/3]

ns3::RipNgRoutingTableEntry::RipNgRoutingTableEntry ( void )

Definition at line 1285 of file ripng.cc.

◆ RipNgRoutingTableEntry() [2/3]

ns3::RipNgRoutingTableEntry::RipNgRoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		Ipv6Address	nextHop,
		uint32_t	interface,
		Ipv6Address	prefixToUse
	)

Constructor.

Parameters

network	network address
networkPrefix	network prefix
nextHop	next hop address to route the packet
interface	interface index
prefixToUse	prefix that should be used for source address for this destination

Definition at line 1290 of file ripng.cc.

◆ RipNgRoutingTableEntry() [3/3]

ns3::RipNgRoutingTableEntry::RipNgRoutingTableEntry	(	Ipv6Address	network,
		Ipv6Prefix	networkPrefix,
		uint32_t	interface
	)

Constructor.

Parameters

network	network address
networkPrefix	network prefix
interface	interface index

Definition at line 1296 of file ripng.cc.

◆ ~RipNgRoutingTableEntry()

ns3::RipNgRoutingTableEntry::~RipNgRoutingTableEntry ( )

virtual

Definition at line 1302 of file ripng.cc.

Member Function Documentation

◆ GetRouteMetric()

uint8_t ns3::RipNgRoutingTableEntry::GetRouteMetric ( void ) const

Get the route metric.

Returns: the route metric

Definition at line 1330 of file ripng.cc.

References m_metric.

Referenced by ns3::operator<<(), and ns3::RipNg::PrintRoutingTable().

Here is the caller graph for this function:

◆ GetRouteStatus()

RipNgRoutingTableEntry::Status_e ns3::RipNgRoutingTableEntry::GetRouteStatus ( void ) const

Get the route status.

Returns: the route status

Definition at line 1344 of file ripng.cc.

References m_status.

Referenced by ns3::RipNg::Lookup(), and ns3::RipNg::PrintRoutingTable().

Here is the caller graph for this function:

◆ GetRouteTag()

uint16_t ns3::RipNgRoutingTableEntry::GetRouteTag ( void ) const

Get the route tag.

Returns: the route tag

Definition at line 1316 of file ripng.cc.

References m_tag.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ IsRouteChanged()

bool ns3::RipNgRoutingTableEntry::IsRouteChanged ( void ) const

Get the route changed status.

Returns: true if route is changed

Definition at line 1354 of file ripng.cc.

References m_changed.

◆ SetRouteChanged()

void ns3::RipNgRoutingTableEntry::SetRouteChanged ( bool changed )

Set the route as changed.

The changed routes are scheduled for a Triggered Update. After a Triggered Update, all the changed flags are cleared from the routing table.

Parameters

changed true if route is changed

Definition at line 1349 of file ripng.cc.

References m_changed.

Referenced by ns3::RipNg::AddNetworkRouteTo(), ns3::RipNg::HandleResponses(), and ns3::RipNg::InvalidateRoute().

Here is the caller graph for this function:

◆ SetRouteMetric()

void ns3::RipNgRoutingTableEntry::SetRouteMetric ( uint8_t routeMetric )

Set the route metric.

Parameters

routeMetric the route metric

Definition at line 1321 of file ripng.cc.

References m_changed, and m_metric.

Referenced by ns3::RipNg::AddNetworkRouteTo(), ns3::RipNg::HandleResponses(), and ns3::RipNg::InvalidateRoute().

Here is the caller graph for this function:

◆ SetRouteStatus()

void ns3::RipNgRoutingTableEntry::SetRouteStatus ( Status_e status )

Set the route status.

Parameters

status the route status

Definition at line 1335 of file ripng.cc.

References m_changed, and m_status.

Referenced by ns3::RipNg::AddNetworkRouteTo(), ns3::RipNg::HandleResponses(), and ns3::RipNg::InvalidateRoute().

Here is the caller graph for this function:

◆ SetRouteTag()

void ns3::RipNgRoutingTableEntry::SetRouteTag ( uint16_t routeTag )

Set the route tag.

Parameters

routeTag the route tag

Definition at line 1307 of file ripng.cc.

References m_changed, and m_tag.

Referenced by ns3::RipNg::HandleResponses().

Here is the caller graph for this function:

Member Data Documentation

◆ m_changed

bool ns3::RipNgRoutingTableEntry::m_changed

private

route has been updated

Definition at line 155 of file ripng.h.

Referenced by IsRouteChanged(), SetRouteChanged(), SetRouteMetric(), SetRouteStatus(), and SetRouteTag().

◆ m_metric

uint8_t ns3::RipNgRoutingTableEntry::m_metric

private

route metric

Definition at line 153 of file ripng.h.

Referenced by GetRouteMetric(), and SetRouteMetric().

◆ m_status

Status_e ns3::RipNgRoutingTableEntry::m_status

private

route status

Definition at line 154 of file ripng.h.

Referenced by GetRouteStatus(), and SetRouteStatus().

◆ m_tag

uint16_t ns3::RipNgRoutingTableEntry::m_tag

private

route tag

Definition at line 152 of file ripng.h.

Referenced by GetRouteTag(), and SetRouteTag().

The documentation for this class was generated from the following files:

src/internet/model/ripng.h
src/internet/model/ripng.cc
