ns3::RttHistory Class Reference

Helper class to store RTT measurements. More...

#include "tcp-socket-base.h"

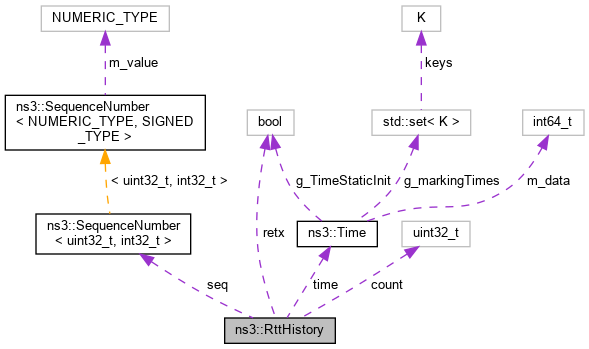

Collaboration diagram for ns3::RttHistory:

Public Member Functions
	RttHistory (const RttHistory &h)
	Copy constructor. More...
	RttHistory (SequenceNumber32 s, uint32_t c, Time t)
	Constructor - builds an RttHistory with the given parameters. More...

Public Attributes
uint32_t	count
	Number of bytes sent. More...
bool	retx
	True if this has been retransmitted. More...
SequenceNumber32	seq
	First sequence number in packet sent. More...
Time	time
	Time this one was sent. More...

Detailed Description

Helper class to store RTT measurements.

Definition at line 59 of file tcp-socket-base.h.

Constructor & Destructor Documentation

RttHistory() [1/2]

ns3::RttHistory::RttHistory	(	SequenceNumber32	s,
		uint32_t	c,
		Time	t
	)

Constructor - builds an RttHistory with the given parameters.

Parameters

s	First sequence number in packet sent
c	Number of bytes sent
t	Time this one was sent

Definition at line 4558 of file tcp-socket-base.cc.

RttHistory() [2/2]

ns3::RttHistory::RttHistory

(

const RttHistory &

h

)

Copy constructor.

Parameters

h	the object to copy

Definition at line 4566 of file tcp-socket-base.cc.

Member Data Documentation

count

uint32_t ns3::RttHistory::count

Number of bytes sent.

Definition at line 76 of file tcp-socket-base.h.

Referenced by ns3::TcpSocketBase::EstimateRtt().

retx

bool ns3::RttHistory::retx

True if this has been retransmitted.

Definition at line 78 of file tcp-socket-base.h.

Referenced by ns3::TcpSocketBase::EstimateRtt().

seq

SequenceNumber32 ns3::RttHistory::seq

First sequence number in packet sent.

Definition at line 75 of file tcp-socket-base.h.

Referenced by ns3::TcpSocketBase::EstimateRtt().

time

Time ns3::RttHistory::time

Time this one was sent.

Definition at line 77 of file tcp-socket-base.h.

Referenced by ns3::TcpSocketBase::EstimateRtt().

---

The documentation for this class was generated from the following files:

• src/internet/model/tcp-socket-base.h
• src/internet/model/tcp-socket-base.cc
