ns3::RvBatteryModelHelper Class Reference

Creates a RvBatteryModel object. More...

#include "rv-battery-model-helper.h"

Inheritance diagram for ns3::RvBatteryModelHelper:

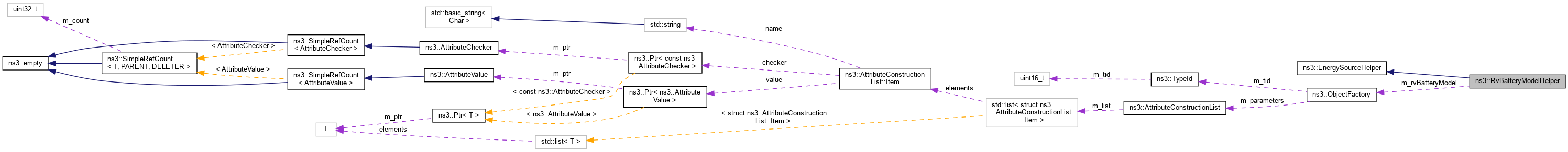

Collaboration diagram for ns3::RvBatteryModelHelper:

Public Member Functions
	RvBatteryModelHelper ()
	~RvBatteryModelHelper ()
void	Set (std::string name, const AttributeValue &v)
Public Member Functions inherited from ns3::EnergySourceHelper
virtual	~EnergySourceHelper ()
EnergySourceContainer	Install (NodeContainer c) const
EnergySourceContainer	Install (Ptr< Node > node) const
EnergySourceContainer	Install (std::string nodeName) const
EnergySourceContainer	InstallAll (void) const
	This function installs an EnergySource on all nodes in simulation. More...

Private Member Functions
virtual Ptr< EnergySource >	DoInstall (Ptr< Node > node) const

Private Attributes
ObjectFactory	m_rvBatteryModel
	RV Battery factory. More...

Detailed Description

Creates a RvBatteryModel object.

Definition at line 34 of file rv-battery-model-helper.h.

Constructor & Destructor Documentation

RvBatteryModelHelper()

ns3::RvBatteryModelHelper::RvBatteryModelHelper

(

)

Definition at line 26 of file rv-battery-model-helper.cc.

References m_rvBatteryModel, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

~RvBatteryModelHelper()

ns3::RvBatteryModelHelper::~RvBatteryModelHelper

(

)

Definition at line 31 of file rv-battery-model-helper.cc.

Member Function Documentation

DoInstall()

Ptr< EnergySource > ns3::RvBatteryModelHelper::DoInstall ( Ptr< Node >  node ) const

privatevirtual

Parameters

node	Pointer to node where the energy source is to be installed.

Returns

Pointer to the created EnergySource.

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Implements ns3::EnergySourceHelper.

Definition at line 42 of file rv-battery-model-helper.cc.

References ns3::ObjectFactory::Create(), m_rvBatteryModel, and NS_ASSERT.

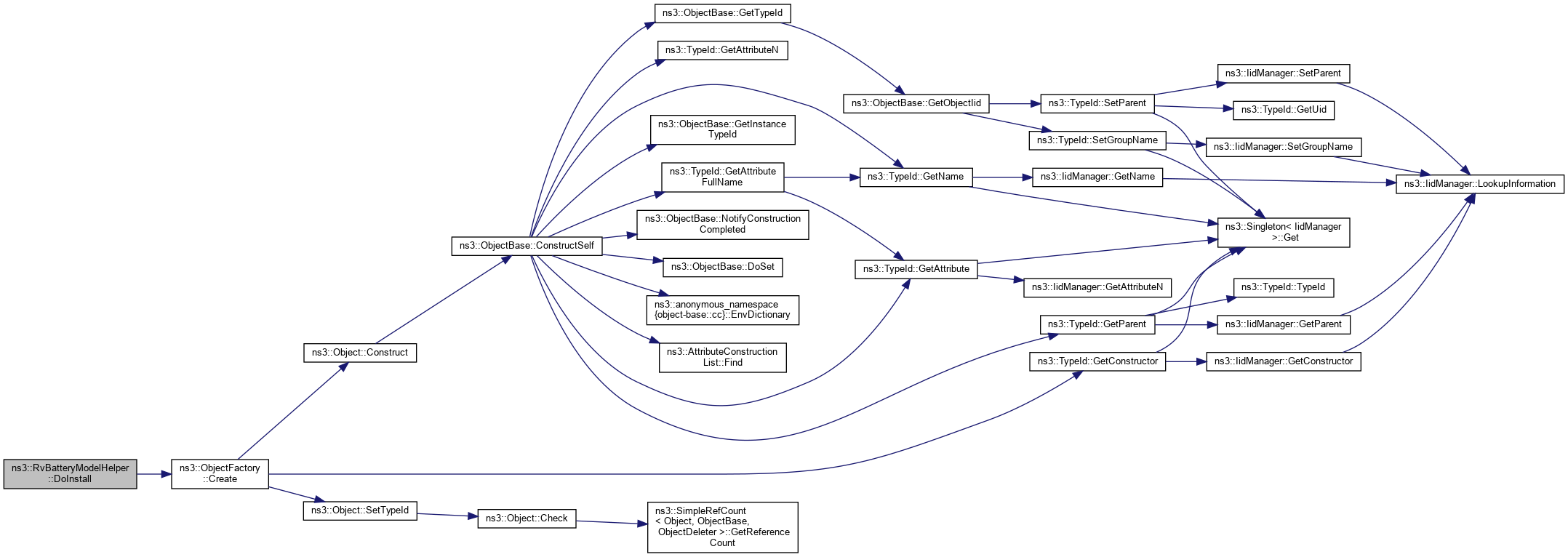

Here is the call graph for this function:

Set()

void ns3::RvBatteryModelHelper::Set ( std::string  name, const AttributeValue &  v  )

virtual

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Sets one of the attributes of underlying EnergySource.

Implements ns3::EnergySourceHelper.

Definition at line 36 of file rv-battery-model-helper.cc.

References m_rvBatteryModel, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), and BatteryLifetimeTest::VariableLoadTest().

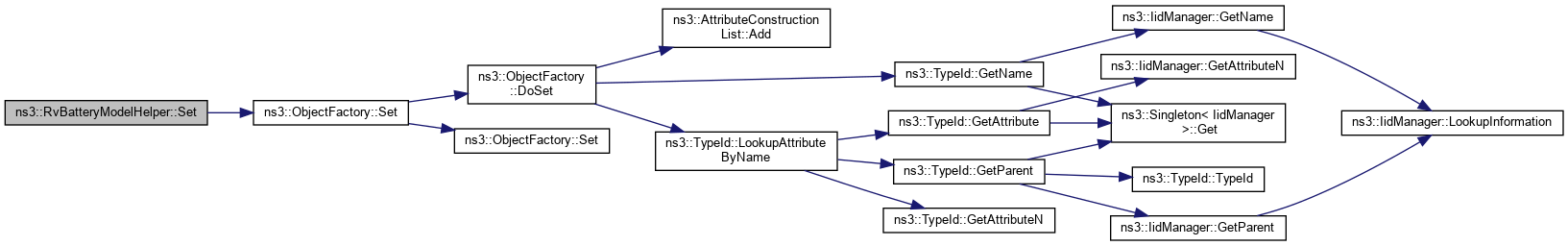

Here is the call graph for this function:

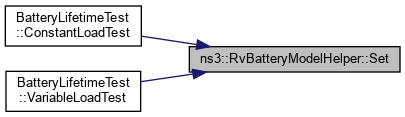

Here is the caller graph for this function:

Member Data Documentation

m_rvBatteryModel

ObjectFactory ns3::RvBatteryModelHelper::m_rvBatteryModel

private

RV Battery factory.

Definition at line 46 of file rv-battery-model-helper.h.

Referenced by RvBatteryModelHelper(), DoInstall(), and Set().

---

The documentation for this class was generated from the following files:

• src/energy/helper/rv-battery-model-helper.h
• src/energy/helper/rv-battery-model-helper.cc
