#include "lte-rlc-sequence-number.h"

Collaboration diagram for ns3::SequenceNumber10:

Public Member Functions
	SequenceNumber10 ()

	SequenceNumber10 (SequenceNumber10 const &value)
	Constructor. More...

	SequenceNumber10 (uint16_t value)
	Constructor. More...

uint16_t	GetValue () const
	Extracts the numeric value of the sequence number. More...

bool	operator!= (const SequenceNumber10 &other) const
	inequality operator More...

SequenceNumber10	operator+ (uint16_t delta) const
	addition operator More...

SequenceNumber10	operator++ (int)
	postfix ++ operator More...

uint16_t	operator- (const SequenceNumber10 &other) const
	subtraction operator More...

SequenceNumber10	operator- (uint16_t delta) const
	subtraction operator More...

bool	operator< (const SequenceNumber10 &other) const
	less than operator More...

bool	operator<= (const SequenceNumber10 &other) const
	less than or equal operator More...

SequenceNumber10 &	operator= (uint16_t value)
	Assignment operator. More...

bool	operator== (const SequenceNumber10 &other) const
	equality operator More...

bool	operator> (const SequenceNumber10 &other) const
	greater than operator More...

bool	operator>= (const SequenceNumber10 &other) const
	greater than or equal operator More...

void	SetModulusBase (SequenceNumber10 modulusBase)
	Set modulus base. More...

void	SetModulusBase (uint16_t modulusBase)
	Set modulus base. More...

Private Attributes
uint16_t	m_modulusBase
	the modulus base More...

uint16_t	m_value
	the value More...

Friends
std::ostream &	operator<< (std::ostream &os, const SequenceNumber10 &val)
	Ostream output function. More...

Detailed Description

SequenceNumber10 class.

Definition at line 36 of file lte-rlc-sequence-number.h.

Constructor & Destructor Documentation

◆ SequenceNumber10() [1/3]

ns3::SequenceNumber10::SequenceNumber10 ( )

inline

Definition at line 39 of file lte-rlc-sequence-number.h.

◆ SequenceNumber10() [2/3]

ns3::SequenceNumber10::SequenceNumber10 ( uint16_t value )

inlineexplicit

Constructor.

Parameters

value the value

Definition at line 49 of file lte-rlc-sequence-number.h.

◆ SequenceNumber10() [3/3]

ns3::SequenceNumber10::SequenceNumber10 ( SequenceNumber10 const & value )

inline

Constructor.

Parameters

value the value

Definition at line 59 of file lte-rlc-sequence-number.h.

Member Function Documentation

◆ GetValue()

uint16_t ns3::SequenceNumber10::GetValue ( void ) const

inline

Extracts the numeric value of the sequence number.

Returns: the sequence number value

Definition at line 81 of file lte-rlc-sequence-number.h.

References m_value.

Referenced by ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoReceivePdu(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::DoReportBufferStatus(), ns3::LteRlcAm::ExpirePollRetransmitTimer(), ns3::LteRlcAm::ExpireReorderingTimer(), ns3::LteRlcUm::ExpireReorderingTimer(), ns3::LteRlcAmHeader::IsNackPresent(), ns3::LteRlcUm::ReassembleSnInterval(), ns3::LteRlcAmHeader::Serialize(), and ns3::LteRlcHeader::Serialize().

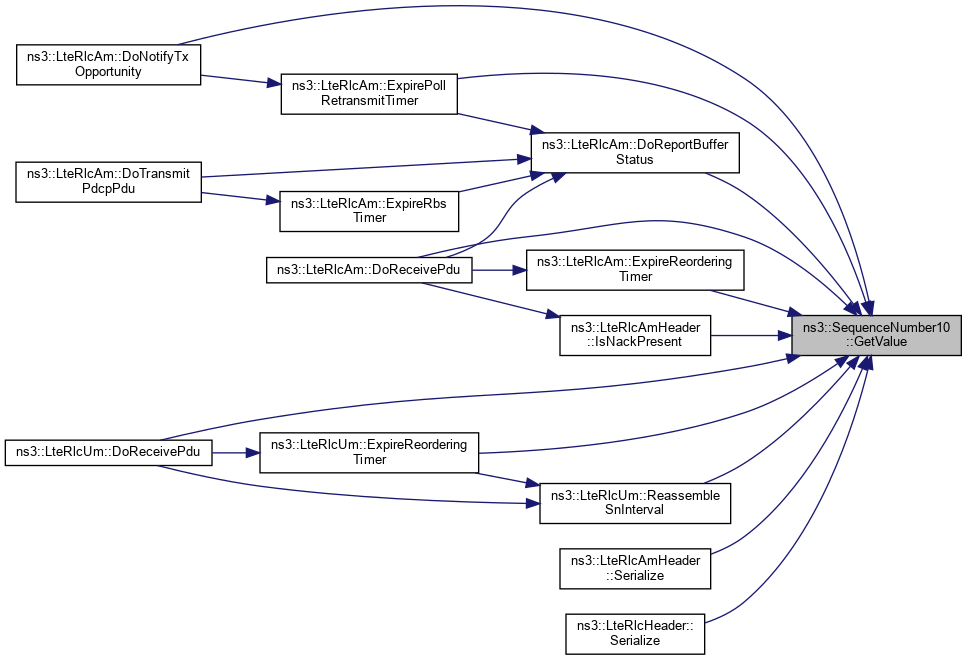

Here is the caller graph for this function:

◆ operator!=()

bool ns3::SequenceNumber10::operator!= ( const SequenceNumber10 & other ) const

inline

inequality operator

Parameters

other the object to compare

Returns: true if not equal

Definition at line 179 of file lte-rlc-sequence-number.h.

References m_value.

◆ operator+()

SequenceNumber10 ns3::SequenceNumber10::operator+ ( uint16_t delta ) const

inline

addition operator

Parameters

delta the amount to add

Returns: SequenceNumber10

Definition at line 121 of file lte-rlc-sequence-number.h.

References m_modulusBase, m_value, and SetModulusBase().

Here is the call graph for this function:

◆ operator++()

SequenceNumber10 ns3::SequenceNumber10::operator++ ( int )

inline

postfix ++ operator

Returns: SequenceNumber10

Definition at line 108 of file lte-rlc-sequence-number.h.

References m_modulusBase, m_value, and SetModulusBase().

Here is the call graph for this function:

◆ operator-() [1/2]

uint16_t ns3::SequenceNumber10::operator- ( const SequenceNumber10 & other ) const

inline

subtraction operator

Parameters

other the amount to subtract

Returns: SequenceNumber10

Definition at line 145 of file lte-rlc-sequence-number.h.

References m_value.

◆ operator-() [2/2]

SequenceNumber10 ns3::SequenceNumber10::operator- ( uint16_t delta ) const

inline

subtraction operator

Parameters

delta the amount to subtract

Returns: SequenceNumber10

Definition at line 133 of file lte-rlc-sequence-number.h.

References m_modulusBase, m_value, and SetModulusBase().

Here is the call graph for this function:

◆ operator<()

bool ns3::SequenceNumber10::operator< ( const SequenceNumber10 & other ) const

inline

less than operator

Parameters

other the object to compare

Returns: true if less than

Definition at line 209 of file lte-rlc-sequence-number.h.

References m_value, and operator>().

Here is the call graph for this function:

◆ operator<=()

bool ns3::SequenceNumber10::operator<= ( const SequenceNumber10 & other ) const

inline

less than or equal operator

Parameters

other the object to compare

Returns: true if less than or equal

Definition at line 189 of file lte-rlc-sequence-number.h.

◆ operator=()

SequenceNumber10& ns3::SequenceNumber10::operator= ( uint16_t value )

inline

Assignment operator.

Parameters

value the value

Returns: SequenceNumber10

Definition at line 70 of file lte-rlc-sequence-number.h.

References m_value.

◆ operator==()

bool ns3::SequenceNumber10::operator== ( const SequenceNumber10 & other ) const

inline

equality operator

Parameters

other the object to compare

Returns: true if equal

Definition at line 169 of file lte-rlc-sequence-number.h.

References m_value.

◆ operator>()

bool ns3::SequenceNumber10::operator> ( const SequenceNumber10 & other ) const

inline

greater than operator

Parameters

other the object to compare

Returns: true if greater than

Definition at line 156 of file lte-rlc-sequence-number.h.

References m_modulusBase, m_value, and NS_ASSERT.

Referenced by operator<().

Here is the caller graph for this function:

◆ operator>=()

bool ns3::SequenceNumber10::operator>= ( const SequenceNumber10 & other ) const

inline

greater than or equal operator

Parameters

other the object to compare

Returns: true if greater than or equal

Definition at line 199 of file lte-rlc-sequence-number.h.

◆ SetModulusBase() [1/2]

void ns3::SequenceNumber10::SetModulusBase ( SequenceNumber10 modulusBase )

inline

Set modulus base.

Parameters

modulusBase the modulus

Definition at line 90 of file lte-rlc-sequence-number.h.

References m_modulusBase, and m_value.

Referenced by ns3::LteRlcAm::DoNotifyTxOpportunity(), ns3::LteRlcAm::DoReceivePdu(), ns3::LteRlcUm::DoReceivePdu(), ns3::LteRlcAm::IsInsideReceivingWindow(), ns3::LteRlcUm::IsInsideReorderingWindow(), operator+(), operator++(), and operator-().

Here is the caller graph for this function:

◆ SetModulusBase() [2/2]

void ns3::SequenceNumber10::SetModulusBase ( uint16_t modulusBase )

inline

Set modulus base.

Parameters

modulusBase the modulus

Definition at line 99 of file lte-rlc-sequence-number.h.

References m_modulusBase.

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	os,
		const SequenceNumber10 &	val
	)

friend

Ostream output function.

Parameters

os	the output stream
val	the sequence number

Returns: the os

Definition at line 31 of file lte-rlc-sequence-number.cc.

Member Data Documentation

◆ m_modulusBase

uint16_t ns3::SequenceNumber10::m_modulusBase

private

the modulus base

Definition at line 219 of file lte-rlc-sequence-number.h.

Referenced by operator+(), operator++(), operator-(), operator>(), and SetModulusBase().

◆ m_value

uint16_t ns3::SequenceNumber10::m_value

private

the value

Definition at line 218 of file lte-rlc-sequence-number.h.

Referenced by GetValue(), operator!=(), operator+(), operator++(), operator-(), operator<(), operator=(), operator==(), operator>(), and SetModulusBase().

The documentation for this class was generated from the following file:

src/lte/model/lte-rlc-sequence-number.h
