The Random Number Generator (RNG) that returns a pattern of sequential values. More...

#include "random-variable-stream.h"

Inheritance diagram for ns3::SequentialRandomVariable:

Collaboration diagram for ns3::SequentialRandomVariable:

Public Member Functions
	SequentialRandomVariable ()
	Creates a sequential RNG with the default values for the sequence parameters. More...

uint32_t	GetConsecutive (void) const
	Get the number of times each distinct value of the sequence is repeated before incrementing to the next value. More...

Ptr< RandomVariableStream >	GetIncrement (void) const
	Get the increment for the sequence. More...

virtual uint32_t	GetInteger (void)
	Get the next random value as an integer drawn from the distribution. More...

double	GetMax (void) const
	Get the limit of the sequence, which is (at least) one more than the last value of the sequence. More...

double	GetMin (void) const
	Get the first value of the sequence. More...

virtual double	GetValue (void)
	Get the next random value as a double drawn from the distribution. More...

Public Member Functions inherited from ns3::RandomVariableStream
	RandomVariableStream ()
	Default constructor. More...

virtual	~RandomVariableStream ()
	Destructor. More...

int64_t	GetStream (void) const
	Returns the stream number for the RngStream. More...

bool	IsAntithetic (void) const
	Check if antithetic values will be generated. More...

void	SetAntithetic (bool isAntithetic)
	Specify whether antithetic values should be generated. More...

void	SetStream (int64_t stream)
	Specifies the stream number for the RngStream. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

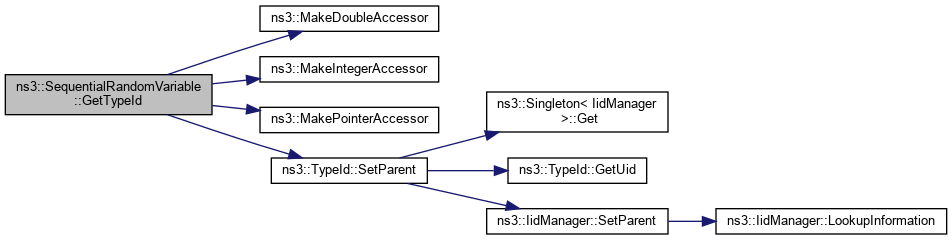

static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::RandomVariableStream
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_consecutive
	The number of times each distinct value is repeated. More...

double	m_current
	The current sequence value. More...

uint32_t	m_currentConsecutive
	The number of times the current distinct value has been repeated. More...

Ptr< RandomVariableStream >	m_increment
	Increment between distinct values. More...

bool	m_isCurrentSet
	Indicates if the current sequence value has been properly initialized. More...

double	m_max
	Strict upper bound on the sequence. More...

double	m_min
	The first value of the sequence. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::RandomVariableStream
RngStream *	Peek (void) const
	Get the pointer to the underlying RngStream. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The Random Number Generator (RNG) that returns a pattern of sequential values.

This RNG has four configuration attributes:

An increment, Increment.
A consecutive repeat numer, Consecutive.
The minimum value, Min.
The maximum value, Max.

The RNG starts at the Min value. Each return value is repeated Consecutive times, before advancing by the Increment. When the Increment would cause the value to equal or exceed Max it is reset to Min first.

For example, if an instance is configured with:

Attribute	Value
Min	2
Max	13
Increment	4
Consecutive	3

The sequence will repeat this pattern: 2 2 2 6 6 6 10 10 10.

Notice that Max will be a strict upper bound on the values: all values in the sequence will be less than Max.

Antithetic Values.

This RNG ignores the antithetic setting.

Config Paths

ns3::SequentialRandomVariable is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::SimpleNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::PointToPointNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Phy/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::RateErrorModel/RanVar/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/PhyEntities/[i]/PostReceptionErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::RateErrorModel/RanVar/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstStart/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::CsmaNetDevice/ReceiveErrorModel/$ns3::BurstErrorModel/BurstSize/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/ForwardingDelay/$ns3::SequentialRandomVariable"
"/NodeList/[i]/DeviceList/[i]/$ns3::SixLowPanNetDevice/MeshUnderJitter/$ns3::SequentialRandomVariable"
"/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OnTime/$ns3::SequentialRandomVariable"
"/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication/OffTime/$ns3::SequentialRandomVariable"
"/NodeList/[i]/ApplicationList/[i]/$ns3::DhcpClient/Transactions/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanVelocity/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanDirection/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::GaussMarkovMobilityModel/MeanPitch/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Speed/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomDirection2dMobilityModel/Pause/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Direction/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dMobilityModel/Speed/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Speed/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/Pause/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/X/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomRectanglePositionAllocator/Y/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/X/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Y/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomBoxPositionAllocator/Z/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Theta/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::RandomDiscPositionAllocator/Rho/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/X/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Y/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::OutdoorPositionAllocator/Z/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Direction/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWalk2dOutdoorMobilityModel/Speed/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::ArpL3Protocol/RequestJitter/$ns3::SequentialRandomVariable"
"/NodeList/[i]/$ns3::Icmpv6L4Protocol/SolicitationJitter/$ns3::SequentialRandomVariable"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::RandomPropagationLossModel/Variable/$ns3::SequentialRandomVariable"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationDelayModel/$ns3::RandomPropagationDelayModel/Variable/$ns3::SequentialRandomVariable"

Attributes

Min: The first value of the sequence.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
Max: One more than the last value of the sequence.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
Increment: The sequence random variable increment.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream>
- Initial value: ns3::ConstantRandomVariable[Constant=1]
- Flags: construct write read
Consecutive: The number of times each member of the sequence is repeated.
- Set with class: ns3::IntegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1
- Flags: construct write read

Attributes defined in parent class ns3::RandomVariableStream

Stream: The stream number for this RNG stream. -1 means "allocate a stream automatically". Note that if -1 is set, Get will return -1 so that it is not possible to know which value was automatically allocated.
- Set with class: ns3::IntegerValue
- Underlying type: int64_t -9223372036854775808:9223372036854775807
- Initial value: -1
- Flags: construct write read
Antithetic: Set this RNG stream to generate antithetic values
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 104 bytes (on a 64-bit architecture).

Definition at line 399 of file random-variable-stream.h.

Constructor & Destructor Documentation

◆ SequentialRandomVariable()

ns3::SequentialRandomVariable::SequentialRandomVariable ( )

Creates a sequential RNG with the default values for the sequence parameters.

Definition at line 294 of file random-variable-stream.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetConsecutive()

uint32_t ns3::SequentialRandomVariable::GetConsecutive ( void ) const

Get the number of times each distinct value of the sequence is repeated before incrementing to the next value.

Returns: The number of times each value is repeated.

Definition at line 327 of file random-variable-stream.cc.

References m_consecutive, and NS_LOG_FUNCTION.

◆ GetIncrement()

Ptr< RandomVariableStream > ns3::SequentialRandomVariable::GetIncrement ( void ) const

Get the increment for the sequence.

Returns: The increment between distinct values for the sequence.

Definition at line 320 of file random-variable-stream.cc.

References m_increment, and NS_LOG_FUNCTION.

◆ GetInteger()

uint32_t ns3::SequentialRandomVariable::GetInteger ( void )

virtual

Get the next random value as an integer drawn from the distribution.

Returns: An integer random value.

Implements ns3::RandomVariableStream.

Definition at line 360 of file random-variable-stream.cc.

References GetValue(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetMax()

double ns3::SequentialRandomVariable::GetMax ( void ) const

Get the limit of the sequence, which is (at least) one more than the last value of the sequence.

Returns: The limit of the sequence.

Definition at line 313 of file random-variable-stream.cc.

References m_max, and NS_LOG_FUNCTION.

◆ GetMin()

double ns3::SequentialRandomVariable::GetMin ( void ) const

Get the first value of the sequence.

Returns: The first value of the sequence.

Definition at line 306 of file random-variable-stream.cc.

References m_min, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::SequentialRandomVariable::GetTypeId ( void )

static

Register this type.

Returns: The object TypeId.

Definition at line 270 of file random-variable-stream.cc.

References m_consecutive, m_increment, m_max, m_min, ns3::MakeDoubleAccessor(), ns3::MakeIntegerAccessor(), ns3::MakePointerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetValue()

double ns3::SequentialRandomVariable::GetValue ( void )

virtual

Get the next random value as a double drawn from the distribution.

Returns: A floating point random value.

Implements ns3::RandomVariableStream.

Definition at line 334 of file random-variable-stream.cc.

References ns3::RandomVariableStream::GetValue(), m_consecutive, m_current, m_currentConsecutive, m_increment, m_isCurrentSet, m_max, m_min, and NS_LOG_FUNCTION.

Referenced by GetInteger().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_consecutive

uint32_t ns3::SequentialRandomVariable::m_consecutive

private

The number of times each distinct value is repeated.

Definition at line 455 of file random-variable-stream.h.

Referenced by GetConsecutive(), GetTypeId(), and GetValue().

◆ m_current

double ns3::SequentialRandomVariable::m_current

private

The current sequence value.

Definition at line 458 of file random-variable-stream.h.

Referenced by GetValue().

◆ m_currentConsecutive

uint32_t ns3::SequentialRandomVariable::m_currentConsecutive

private

The number of times the current distinct value has been repeated.

Definition at line 461 of file random-variable-stream.h.

Referenced by GetValue().

◆ m_increment

Ptr<RandomVariableStream> ns3::SequentialRandomVariable::m_increment

private

Increment between distinct values.

Definition at line 452 of file random-variable-stream.h.

Referenced by GetIncrement(), GetTypeId(), and GetValue().

◆ m_isCurrentSet

bool ns3::SequentialRandomVariable::m_isCurrentSet

private

Indicates if the current sequence value has been properly initialized.

Definition at line 464 of file random-variable-stream.h.

Referenced by GetValue().

◆ m_max

double ns3::SequentialRandomVariable::m_max

private

Strict upper bound on the sequence.

Definition at line 449 of file random-variable-stream.h.

Referenced by GetMax(), GetTypeId(), and GetValue().

◆ m_min

double ns3::SequentialRandomVariable::m_min

private

The first value of the sequence.

Definition at line 446 of file random-variable-stream.h.

Referenced by GetMin(), GetTypeId(), and GetValue().

The documentation for this class was generated from the following files:

src/core/model/random-variable-stream.h
src/core/model/random-variable-stream.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::RandomVariableStream

Constructor & Destructor Documentation

◆ SequentialRandomVariable()

Member Function Documentation

◆ GetConsecutive()

◆ GetIncrement()

◆ GetInteger()

◆ GetMax()

◆ GetMin()

◆ GetTypeId()

◆ GetValue()

Member Data Documentation

◆ m_consecutive

◆ m_current

◆ m_currentConsecutive

◆ m_increment

◆ m_isCurrentSet

◆ m_max

◆ m_min
