Outputs data in a format compatible with SQLite. More...

#include "sqlite-data-output.h"

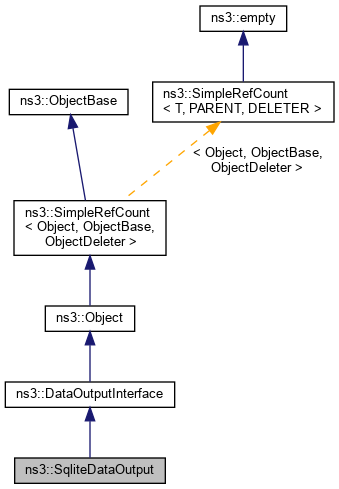

Inheritance diagram for ns3::SqliteDataOutput:

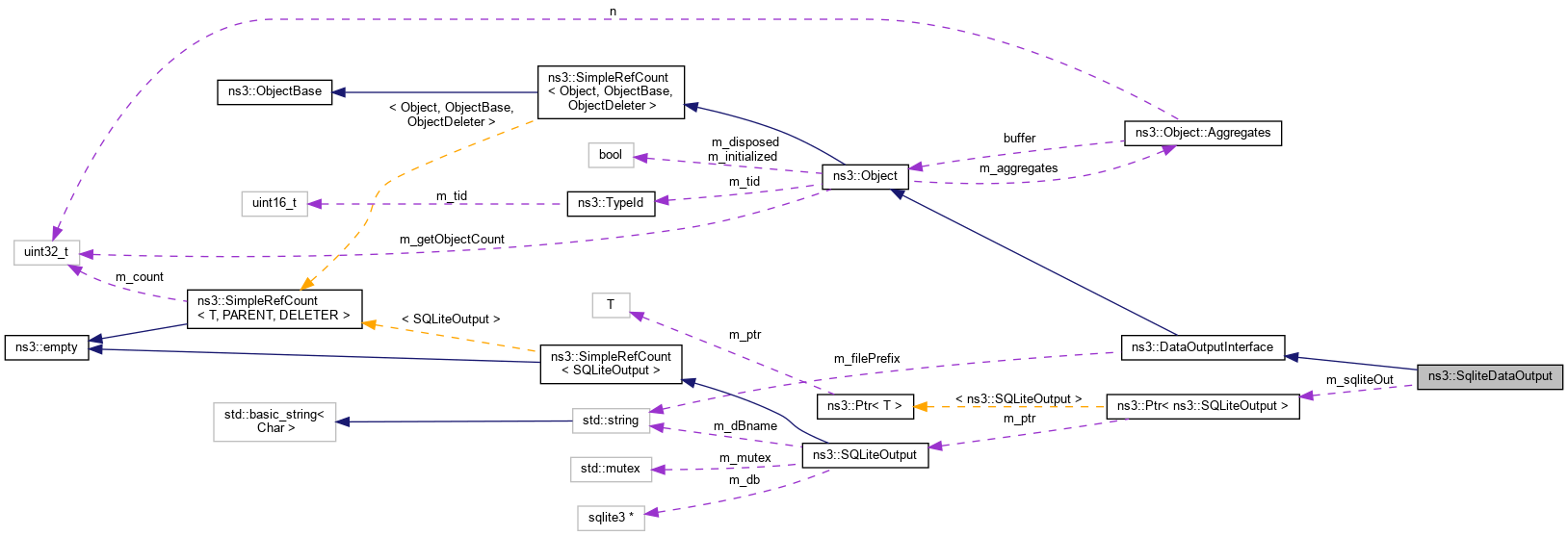

Collaboration diagram for ns3::SqliteDataOutput:

Classes
class	SqliteOutputCallback
	Class to generate OMNeT output. More...

Public Member Functions
	SqliteDataOutput ()

virtual	~SqliteDataOutput () override

virtual void	Output (DataCollector &dc) override
	Outputs information from the provided DataCollector. More...

Public Member Functions inherited from ns3::DataOutputInterface
	DataOutputInterface ()

virtual	~DataOutputInterface ()

std::string	GetFilePrefix () const
	Gets the file prefix of the DataOutputInterface. More...

void	SetFilePrefix (const std::string prefix)
	Sets the DataOutputInterface prefix to the provided prefix. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::DataOutputInterface
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ptr< SQLiteOutput >	m_sqliteOut
	Database. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::DataOutputInterface
virtual void	DoDispose ()
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::DataOutputInterface
std::string	m_filePrefix
	File prefix for the DataOutputInterface. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Outputs data in a format compatible with SQLite.

Definition at line 41 of file sqlite-data-output.h.

Constructor & Destructor Documentation

◆ SqliteDataOutput()

ns3::SqliteDataOutput::SqliteDataOutput ( )

Definition at line 35 of file sqlite-data-output.cc.

References ns3::DataOutputInterface::m_filePrefix, and NS_LOG_FUNCTION.

◆ ~SqliteDataOutput()

ns3::SqliteDataOutput::~SqliteDataOutput ( )

overridevirtual

Definition at line 42 of file sqlite-data-output.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetTypeId()

TypeId ns3::SqliteDataOutput::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 48 of file sqlite-data-output.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ Output()

void ns3::SqliteDataOutput::Output ( DataCollector & dc )

overridevirtual

Outputs information from the provided DataCollector.

Parameters

dc	DataCollector object

Implements ns3::DataOutputInterface.

Definition at line 59 of file sqlite-data-output.cc.

References ns3::DataCollector::DataCalculatorBegin(), ns3::DataCollector::DataCalculatorEnd(), ns3::DataCollector::GetDescription(), ns3::DataCollector::GetExperimentLabel(), ns3::DataCollector::GetInputLabel(), ns3::DataCollector::GetRunLabel(), ns3::DataCollector::GetStrategyLabel(), ns3::DataOutputInterface::m_filePrefix, m_sqliteOut, ns3::DataCollector::MetadataBegin(), ns3::DataCollector::MetadataEnd(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

◆ m_sqliteOut

Ptr<SQLiteOutput> ns3::SqliteDataOutput::m_sqliteOut

private

Database.

Definition at line 144 of file sqlite-data-output.h.

Referenced by Output().

The documentation for this class was generated from the following files:

src/stats/model/sqlite-data-output.h
src/stats/model/sqlite-data-output.cc
