Holds PDP Tap information (amplitude and delay) More...

#include "uan-prop-model.h"

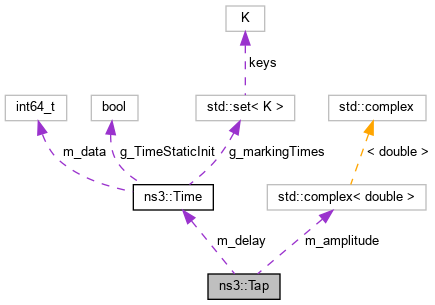

Collaboration diagram for ns3::Tap:

Public Member Functions
	Tap ()
	Default constructor. More...

	Tap (Time delay, std::complex< double > amp)
	Constructor. More...

std::complex< double >	GetAmp (void) const
	Get the complex amplitude of arrival. More...

Time	GetDelay (void) const
	Get the delay time, usually from first arrival of signal. More...

Private Attributes
std::complex< double >	m_amplitude
	The amplitude. More...

Time	m_delay
	The time delay. More...

Detailed Description

Holds PDP Tap information (amplitude and delay)

Definition at line 42 of file uan-prop-model.h.

Constructor & Destructor Documentation

◆ Tap() [1/2]

ns3::Tap::Tap ( )

Default constructor.

Creates Tap with delay=0, amp=0

Definition at line 81 of file uan-prop-model.cc.

◆ Tap() [2/2]

ns3::Tap::Tap	(	Time	delay,
		std::complex< double >	amp
	)

Constructor.

Parameters

delay	Time delay (usually from first arrival) of signal
amp	Complex amplitude of arrival

Definition at line 88 of file uan-prop-model.cc.

Member Function Documentation

◆ GetAmp()

std::complex< double > ns3::Tap::GetAmp ( void ) const

Get the complex amplitude of arrival.

Returns: The amplitude.

Definition at line 96 of file uan-prop-model.cc.

References m_amplitude.

◆ GetDelay()

Time ns3::Tap::GetDelay ( void ) const

Get the delay time, usually from first arrival of signal.

Returns: The time delay.

Definition at line 102 of file uan-prop-model.cc.

References m_delay.

Referenced by ns3::UanPhyCalcSinrFhFsk::CalcSinrDb().

Here is the caller graph for this function:

Member Data Documentation

◆ m_amplitude

std::complex<double> ns3::Tap::m_amplitude

private

The amplitude.

Definition at line 69 of file uan-prop-model.h.

Referenced by GetAmp().

◆ m_delay

Time ns3::Tap::m_delay

private

The time delay.

Definition at line 70 of file uan-prop-model.h.

Referenced by GetDelay().

The documentation for this class was generated from the following files:

src/uan/model/uan-prop-model.h
src/uan/model/uan-prop-model.cc
