socket factory implementation for native ns-3 TCP More...

#include "tcp-socket-factory-impl.h"

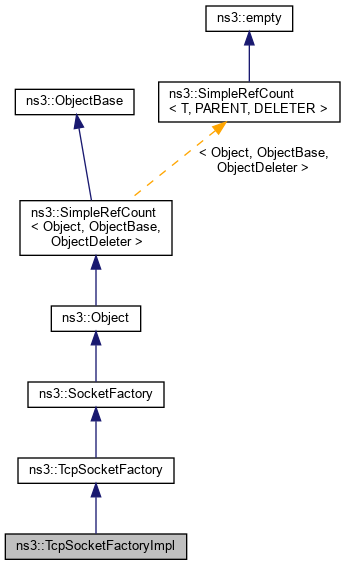

Inheritance diagram for ns3::TcpSocketFactoryImpl:

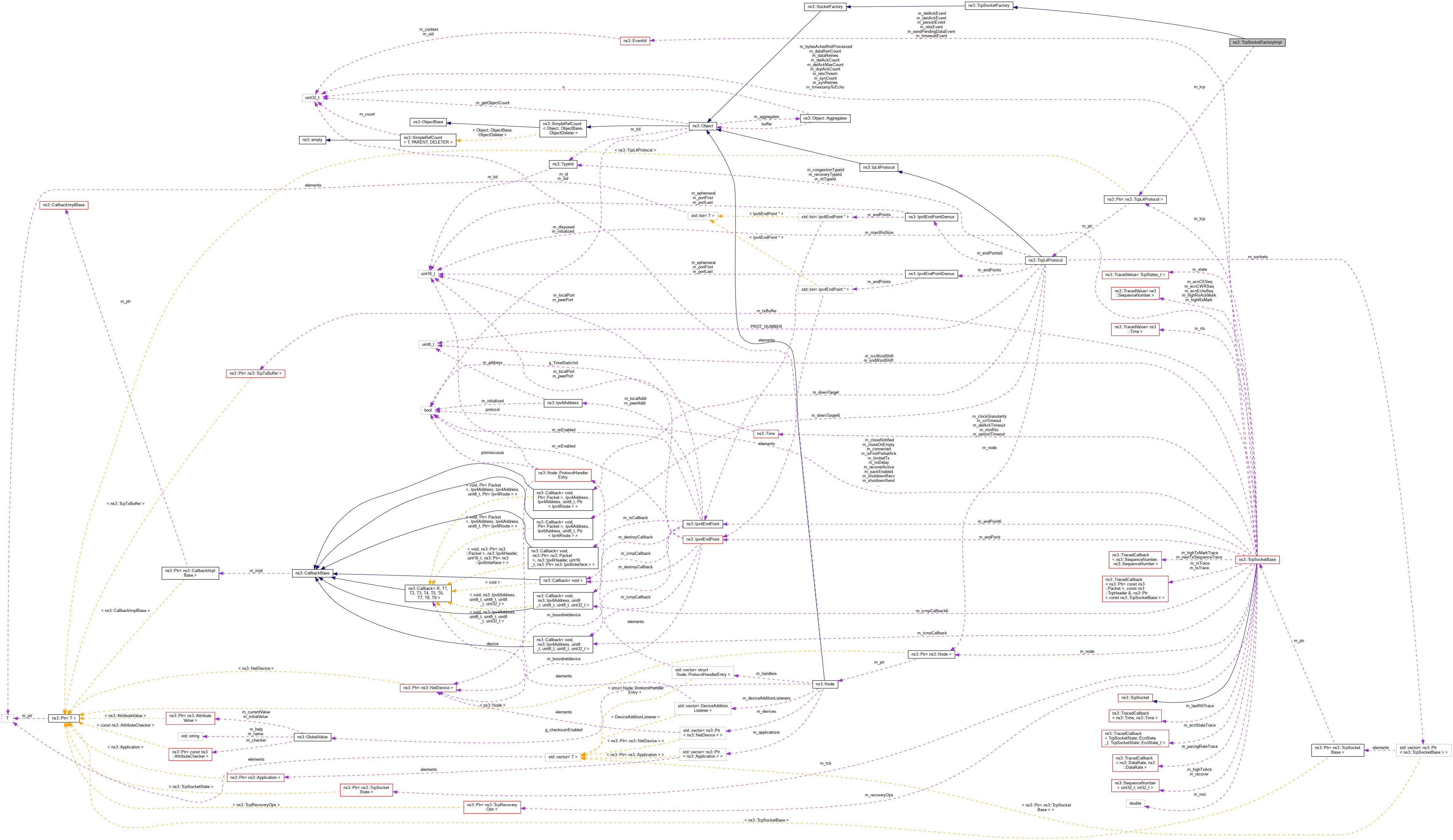

Collaboration diagram for ns3::TcpSocketFactoryImpl:

Public Member Functions
	TcpSocketFactoryImpl ()

virtual	~TcpSocketFactoryImpl ()

virtual Ptr< Socket >	CreateSocket (void)

void	SetTcp (Ptr< TcpL4Protocol > tcp)
	Set the associated TCP L4 protocol. More...

Public Member Functions inherited from ns3::SocketFactory
	SocketFactory ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Protected Member Functions
virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Ptr< TcpL4Protocol >	m_tcp
	the associated TCP L4 protocol More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::TcpSocketFactory
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::SocketFactory
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

socket factory implementation for native ns-3 TCP

This class serves to create sockets of the TcpSocketBase type.

Definition at line 39 of file tcp-socket-factory-impl.h.

Constructor & Destructor Documentation

◆ TcpSocketFactoryImpl()

ns3::TcpSocketFactoryImpl::TcpSocketFactoryImpl ( )

Definition at line 27 of file tcp-socket-factory-impl.cc.

◆ ~TcpSocketFactoryImpl()

ns3::TcpSocketFactoryImpl::~TcpSocketFactoryImpl ( )

virtual

Definition at line 31 of file tcp-socket-factory-impl.cc.

References m_tcp, and NS_ASSERT.

Member Function Documentation

◆ CreateSocket()

Ptr< Socket > ns3::TcpSocketFactoryImpl::CreateSocket ( void )

virtual

Returns: smart pointer to Socket

Base class method for creating socket instances.

Implements ns3::SocketFactory.

Definition at line 43 of file tcp-socket-factory-impl.cc.

References m_tcp.

◆ DoDispose()

void ns3::TcpSocketFactoryImpl::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 49 of file tcp-socket-factory-impl.cc.

References ns3::Object::DoDispose(), and m_tcp.

Here is the call graph for this function:

◆ SetTcp()

void ns3::TcpSocketFactoryImpl::SetTcp ( Ptr< TcpL4Protocol > tcp )

Set the associated TCP L4 protocol.

Parameters

tcp	the TCP L4 protocol

Definition at line 37 of file tcp-socket-factory-impl.cc.

References m_tcp.

Member Data Documentation

◆ m_tcp

Ptr<TcpL4Protocol> ns3::TcpSocketFactoryImpl::m_tcp

private

the associated TCP L4 protocol

Definition at line 56 of file tcp-socket-factory-impl.h.

Referenced by ~TcpSocketFactoryImpl(), CreateSocket(), DoDispose(), and SetTcp().

The documentation for this class was generated from the following files:

src/internet/model/tcp-socket-factory-impl.h
src/internet/model/tcp-socket-factory-impl.cc
