ns3::ThreeGppHttpServerHelper Class Reference

Helper to make it easier to instantiate an ThreeGppHttpServer on a set of nodes. More...

#include "three-gpp-http-helper.h"

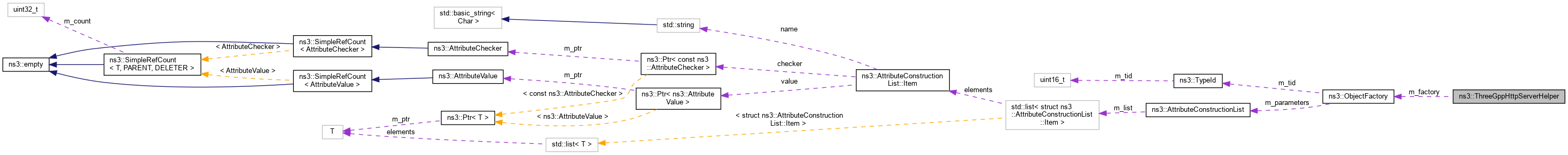

Collaboration diagram for ns3::ThreeGppHttpServerHelper:

Public Member Functions
	ThreeGppHttpServerHelper (const Address &address)
	Create a ThreeGppHttpServerHelper to make it easier to work with ThreeGppHttpServer applications. More...
ApplicationContainer	Install (const std::string &nodeName) const
	Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute(). More...
ApplicationContainer	Install (NodeContainer c) const
	Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute(). More...
ApplicationContainer	Install (Ptr< Node > node) const
	Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute(). More...
void	SetAttribute (const std::string &name, const AttributeValue &value)
	Helper function used to set the underlying application attributes, but not the socket attributes. More...

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const

Private Attributes
ObjectFactory	m_factory
	Used to instantiate a ThreeGppHttpServer instance. More...

Detailed Description

Helper to make it easier to instantiate an ThreeGppHttpServer on a set of nodes.

Definition at line 108 of file three-gpp-http-helper.h.

Constructor & Destructor Documentation

ThreeGppHttpServerHelper()

ns3::ThreeGppHttpServerHelper::ThreeGppHttpServerHelper

(

const Address &

address

)

Create a ThreeGppHttpServerHelper to make it easier to work with ThreeGppHttpServer applications.

Parameters

address

The address of the server.

Definition at line 85 of file three-gpp-http-helper.cc.

References first::address, m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

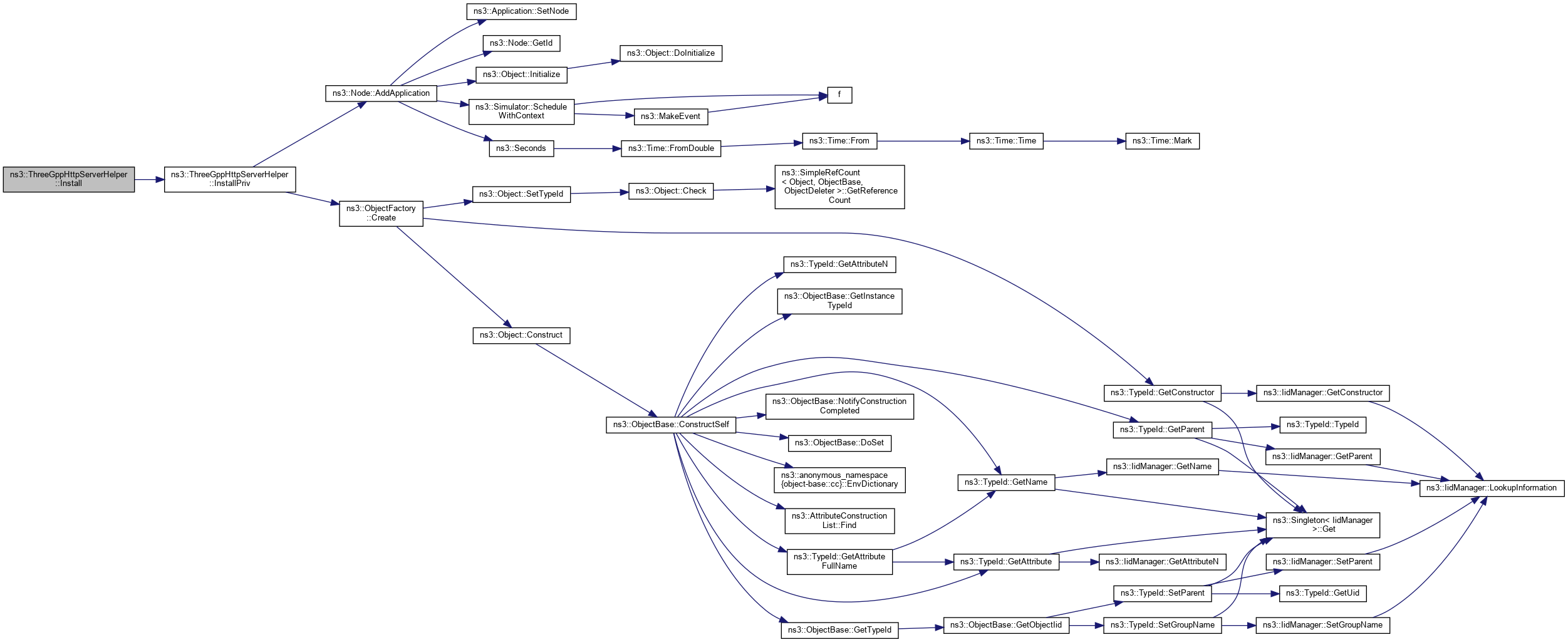

Here is the call graph for this function:

Member Function Documentation

Install() [1/3]

ApplicationContainer ns3::ThreeGppHttpServerHelper::Install

(

const std::string &

nodeName

)

const

Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

Parameters

nodeName

The name of the node on which an ThreeGppHttpServer will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 105 of file three-gpp-http-helper.cc.

References InstallPriv().

Here is the call graph for this function:

Install() [2/3]

ApplicationContainer ns3::ThreeGppHttpServerHelper::Install

(

NodeContainer

c

)

const

Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

Parameters

c	NodeContainer of the set of nodes on which an ThreeGppHttpServer will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 112 of file three-gpp-http-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by ThreeGppHttpObjectTestCase::DoRun().

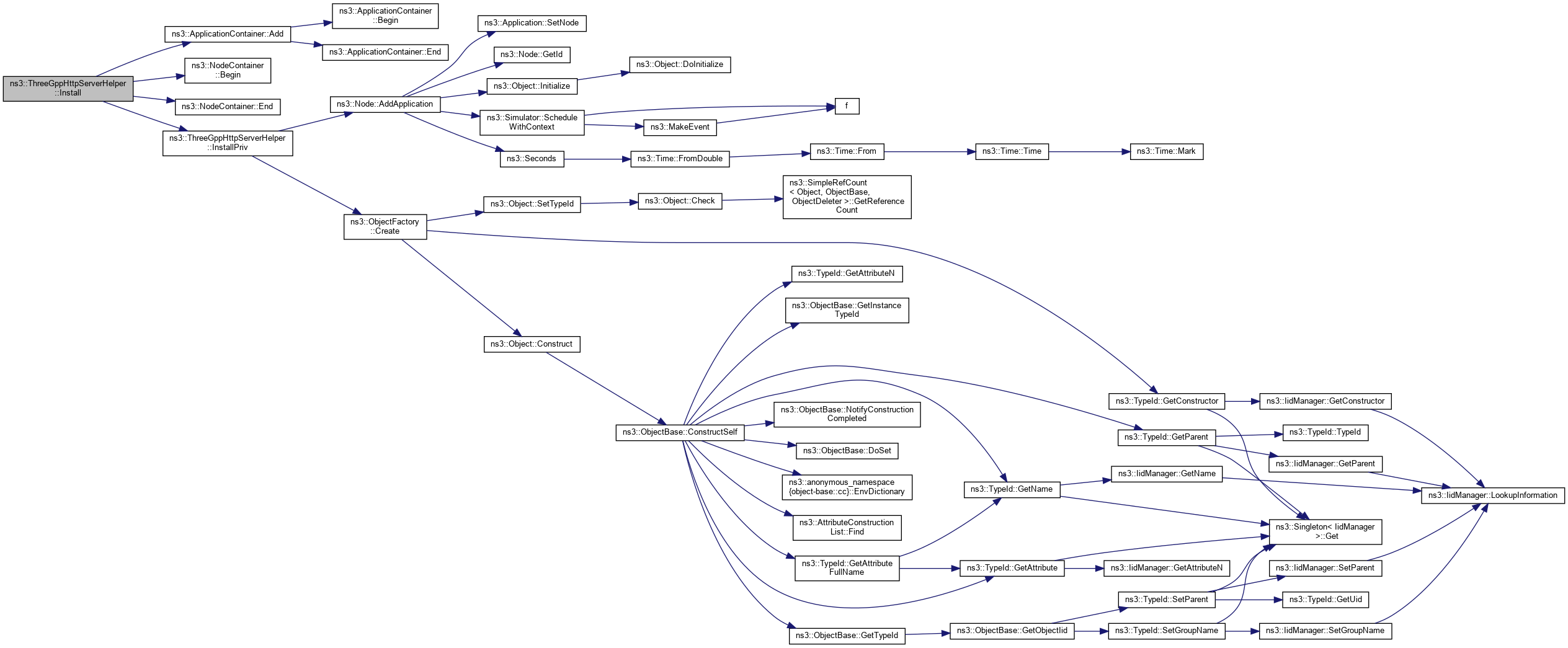

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [3/3]

ApplicationContainer ns3::ThreeGppHttpServerHelper::Install

(

Ptr< Node >

node

)

const

Install an ThreeGppHttpServer on each node of the input container configured with all the attributes set with SetAttribute().

Parameters

node	The node on which an ThreeGppHttpServer will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 99 of file three-gpp-http-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::ThreeGppHttpServerHelper::InstallPriv ( Ptr< Node >  node ) const

private

Internal:

Install an ThreeGppHttpServer on the node configured with all the attributes set with SetAttribute().

Parameters

node	The node on which an ThreeGppHttpServer will be installed.

Returns

Ptr to the application installed.

Definition at line 124 of file three-gpp-http-helper.cc.

References ns3::Node::AddApplication(), ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

SetAttribute()

void ns3::ThreeGppHttpServerHelper::SetAttribute	(	const std::string &	name,
		const AttributeValue &	value
	)

Helper function used to set the underlying application attributes, but not the socket attributes.

Parameters

name	The name of the application attribute to set.
value	The value of the application attribute to set.

Definition at line 92 of file three-gpp-http-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

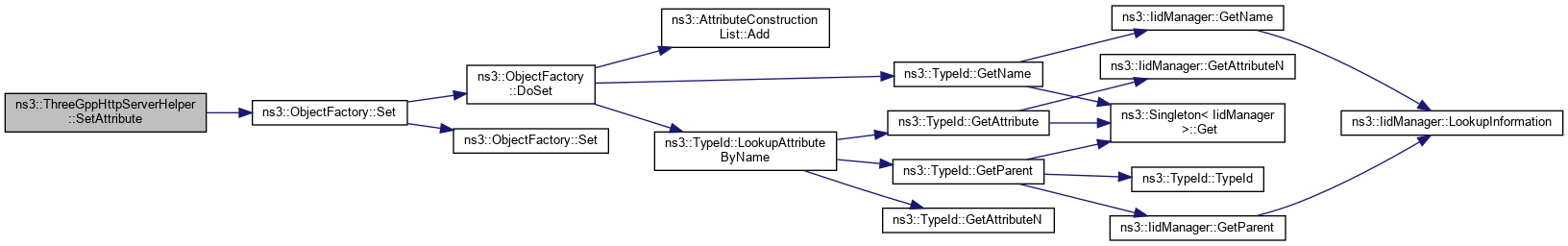

Here is the call graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::ThreeGppHttpServerHelper::m_factory

private

Used to instantiate a ThreeGppHttpServer instance.

Definition at line 164 of file three-gpp-http-helper.h.

Referenced by ThreeGppHttpServerHelper(), InstallPriv(), and SetAttribute().

---

The documentation for this class was generated from the following files:

• src/applications/helper/three-gpp-http-helper.h
• src/applications/helper/three-gpp-http-helper.cc
