Base class for the 3GPP propagation models. More...

#include "three-gpp-propagation-loss-model.h"

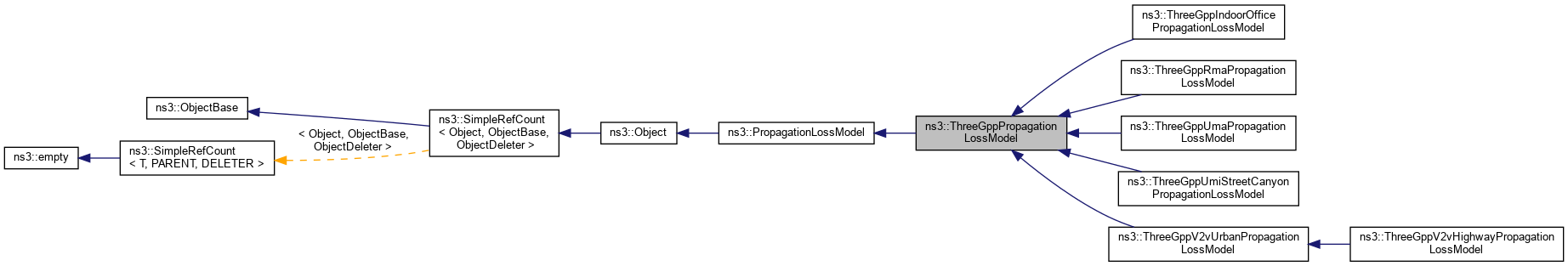

Inheritance diagram for ns3::ThreeGppPropagationLossModel:

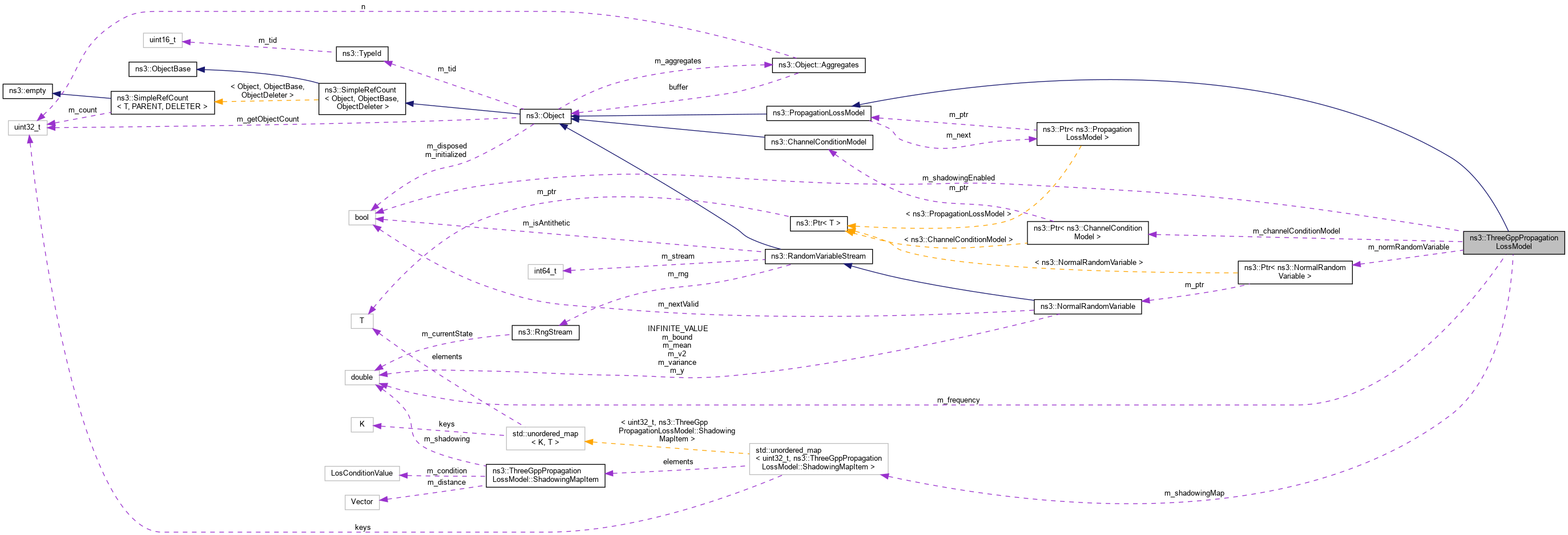

Collaboration diagram for ns3::ThreeGppPropagationLossModel:

Classes
struct	ShadowingMapItem
	Define a struct for the m_shadowingMap entries. More...

Public Member Functions
	ThreeGppPropagationLossModel ()
	Constructor. More...

	ThreeGppPropagationLossModel (const ThreeGppPropagationLossModel &)=delete
	Copy constructor. More...

virtual	~ThreeGppPropagationLossModel () override
	Destructor. More...

Ptr< ChannelConditionModel >	GetChannelConditionModel (void) const
	Returns the associated channel condition model. More...

double	GetFrequency (void) const
	Return the current central frequency. More...

ThreeGppPropagationLossModel &	operator= (const ThreeGppPropagationLossModel &)=delete
	Copy constructor. More...

void	SetChannelConditionModel (Ptr< ChannelConditionModel > model)
	Set the channel condition model used to determine the channel state (e.g., the LOS/NLOS condition) More...

void	SetFrequency (double f)
	Set the central frequency of the model. More...

Public Member Functions inherited from ns3::PropagationLossModel
	PropagationLossModel ()

	PropagationLossModel (const PropagationLossModel &)=delete

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)
	If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
	Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one. More...

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

PropagationLossModel &	operator= (const PropagationLossModel &)=delete

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Static Protected Member Functions
static double	Calculate2dDistance (Vector a, Vector b)
	Computes the 2D distance between two 3D vectors. More...

Protected Attributes
Ptr< ChannelConditionModel >	m_channelConditionModel
	pointer to the channel condition model More...

double	m_frequency
	operating frequency in Hz More...

Ptr< NormalRandomVariable >	m_normRandomVariable
	normal random variable More...

bool	m_shadowingEnabled
	enable/disable shadowing More...

std::unordered_map< uint32_t, ShadowingMapItem >	m_shadowingMap
	map to store the shadowing values More...

Private Member Functions
virtual int64_t	DoAssignStreams (int64_t stream) override
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const override
	Computes the received power by applying the pathloss model described in 3GPP TR 38.901. More...

double	GetLoss (Ptr< ChannelCondition > cond, double distance2D, double distance3D, double hUt, double hBs) const
	Computes the pathloss between a and b. More...

virtual double	GetLossLos (double distance2D, double distance3D, double hUt, double hBs) const =0
	Computes the pathloss between a and b considering that the line of sight is not obstructed. More...

virtual double	GetLossNlos (double distance2D, double distance3D, double hUt, double hBs) const =0
	Computes the pathloss between a and b considering that the line of sight is obstructed. More...

virtual double	GetLossNlosv (double distance2D, double distance3D, double hUt, double hBs) const
	Computes the pathloss between a and b considering that the line of sight is obstructed by a vehicle. More...

double	GetShadowing (Ptr< MobilityModel > a, Ptr< MobilityModel > b, ChannelCondition::LosConditionValue cond) const
	Retrieves the shadowing value by looking at m_shadowingMap. More...

virtual double	GetShadowingCorrelationDistance (ChannelCondition::LosConditionValue cond) const =0
	Returns the shadow fading correlation distance. More...

virtual double	GetShadowingStd (Ptr< MobilityModel > a, Ptr< MobilityModel > b, ChannelCondition::LosConditionValue cond) const =0
	Returns the shadow fading standard deviation. More...

virtual std::pair< double, double >	GetUtAndBsHeights (double za, double zb) const
	Determines hUT and hBS. More...

Static Private Member Functions
static uint32_t	GetKey (Ptr< MobilityModel > a, Ptr< MobilityModel > b)
	Returns an unique key for the channel between a and b. More...

static Vector	GetVectorDifference (Ptr< MobilityModel > a, Ptr< MobilityModel > b)
	Get the difference between the node position. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Base class for the 3GPP propagation models.

Config Paths

ns3::ThreeGppPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel"

Attributes

Frequency: The centre frequency in Hz.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5e+08
- Flags: construct write read
ShadowingEnabled: Enable/disable shadowing.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
ChannelConditionModel: Pointer to the channel condition model.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ChannelConditionModel>
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 128 bytes (on a 64-bit architecture).

Definition at line 33 of file three-gpp-propagation-loss-model.h.

Constructor & Destructor Documentation

◆ ThreeGppPropagationLossModel() [1/2]

ns3::ThreeGppPropagationLossModel::ThreeGppPropagationLossModel ( )

Constructor.

Definition at line 65 of file three-gpp-propagation-loss-model.cc.

References m_normRandomVariable, and NS_LOG_FUNCTION.

◆ ~ThreeGppPropagationLossModel()

ns3::ThreeGppPropagationLossModel::~ThreeGppPropagationLossModel ( )

overridevirtual

Destructor.

Definition at line 76 of file three-gpp-propagation-loss-model.cc.

References NS_LOG_FUNCTION.

◆ ThreeGppPropagationLossModel() [2/2]

ns3::ThreeGppPropagationLossModel::ThreeGppPropagationLossModel ( const ThreeGppPropagationLossModel & )

delete

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

◆ Calculate2dDistance()

double ns3::ThreeGppPropagationLossModel::Calculate2dDistance	(	Vector	a,
		Vector	b
	)

staticprotected

Computes the 2D distance between two 3D vectors.

Parameters

a	the first 3D vector
b	the second 3D vector

Returns: the 2D distance between a and b

Definition at line 257 of file three-gpp-propagation-loss-model.cc.

References sample-rng-plot::x.

Referenced by DoCalcRxPower(), and ns3::ThreeGppRmaPropagationLossModel::GetShadowingStd().

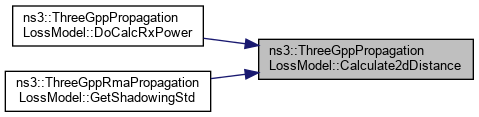

Here is the caller graph for this function:

◆ DoAssignStreams()

int64_t ns3::ThreeGppPropagationLossModel::DoAssignStreams ( int64_t stream )

overrideprivatevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Subclasses must implement this; those not using random variables can return zero.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::PropagationLossModel.

Reimplemented in ns3::ThreeGppUmaPropagationLossModel.

Definition at line 248 of file three-gpp-propagation-loss-model.cc.

References m_normRandomVariable, and NS_LOG_FUNCTION.

◆ DoCalcRxPower()

double ns3::ThreeGppPropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

overrideprivatevirtual

Computes the received power by applying the pathloss model described in 3GPP TR 38.901.

Parameters

txPowerDbm	tx power in dBm
a	tx mobility model
b	rx mobility model

Returns: the rx power in dBm

Implements ns3::PropagationLossModel.

Definition at line 119 of file three-gpp-propagation-loss-model.cc.

References Calculate2dDistance(), ns3::CalculateDistance(), GetLoss(), ns3::MobilityModel::GetPosition(), GetShadowing(), GetUtAndBsHeights(), m_channelConditionModel, m_frequency, m_shadowingEnabled, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoDispose()

void ns3::ThreeGppPropagationLossModel::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 82 of file three-gpp-propagation-loss-model.cc.

References m_channelConditionModel, and m_shadowingMap.

◆ GetChannelConditionModel()

Ptr< ChannelConditionModel > ns3::ThreeGppPropagationLossModel::GetChannelConditionModel ( void ) const

Returns the associated channel condition model.

Returns: the channel condition model

Definition at line 97 of file three-gpp-propagation-loss-model.cc.

References m_channelConditionModel, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetFrequency()

double ns3::ThreeGppPropagationLossModel::GetFrequency ( void ) const

Return the current central frequency.

Returns: The current central frequency

Definition at line 112 of file three-gpp-propagation-loss-model.cc.

References m_frequency, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ GetKey()

uint32_t ns3::ThreeGppPropagationLossModel::GetKey	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)

staticprivate

Returns an unique key for the channel between a and b.

The key is the value of the Cantor function calculated by using as first parameter the lowest node ID, and as a second parameter the highest node ID.

Parameters

a	tx mobility model
b	rx mobility model

Returns: channel key

Definition at line 267 of file three-gpp-propagation-loss-model.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), max, and min.

Referenced by GetShadowing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLoss()

double ns3::ThreeGppPropagationLossModel::GetLoss	(	Ptr< ChannelCondition >	cond,
		double	distance2D,
		double	distance3D,
		double	hUt,
		double	hBs
	)		const

private

Computes the pathloss between a and b.

Parameters

cond	the channel condition
distance2D	the 2D distance between tx and rx in meters
distance3D	the 3D distance between tx and rx in meters
hUt	the height of the UT in meters
hBs	the height of the BS in meters

Returns: pathloss value in dB

Definition at line 153 of file three-gpp-propagation-loss-model.cc.

References GetLossLos(), GetLossNlos(), GetLossNlosv(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoCalcRxPower().

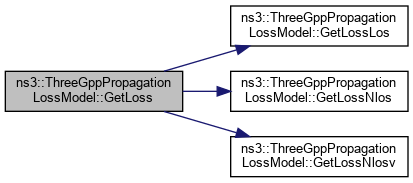

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLossLos()

virtual double ns3::ThreeGppPropagationLossModel::GetLossLos	(	double	distance2D,
		double	distance3D,
		double	hUt,
		double	hBs
	)		const

privatepure virtual

Computes the pathloss between a and b considering that the line of sight is not obstructed.

Parameters

distance2D	the 2D distance between tx and rx in meters
distance3D	the 3D distance between tx and rx in meters
hUt	the height of the UT in meters
hBs	the height of the BS in meters

Returns: pathloss value in dB

Implemented in ns3::ThreeGppV2vHighwayPropagationLossModel, ns3::ThreeGppV2vUrbanPropagationLossModel, ns3::ThreeGppIndoorOfficePropagationLossModel, ns3::ThreeGppUmiStreetCanyonPropagationLossModel, ns3::ThreeGppUmaPropagationLossModel, and ns3::ThreeGppRmaPropagationLossModel.

Referenced by GetLoss().

Here is the caller graph for this function:

◆ GetLossNlos()

virtual double ns3::ThreeGppPropagationLossModel::GetLossNlos	(	double	distance2D,
		double	distance3D,
		double	hUt,
		double	hBs
	)		const

privatepure virtual

Computes the pathloss between a and b considering that the line of sight is obstructed.

Parameters

distance2D	the 2D distance between tx and rx in meters
distance3D	the 3D distance between tx and rx in meters
hUt	the height of the UT in meters
hBs	the height of the BS in meters

Returns: pathloss value in dB

Implemented in ns3::ThreeGppV2vUrbanPropagationLossModel, ns3::ThreeGppIndoorOfficePropagationLossModel, ns3::ThreeGppUmiStreetCanyonPropagationLossModel, ns3::ThreeGppUmaPropagationLossModel, and ns3::ThreeGppRmaPropagationLossModel.

Referenced by GetLoss().

Here is the caller graph for this function:

◆ GetLossNlosv()

double ns3::ThreeGppPropagationLossModel::GetLossNlosv	(	double	distance2D,
		double	distance3D,
		double	hUt,
		double	hBs
	)		const

privatevirtual

Computes the pathloss between a and b considering that the line of sight is obstructed by a vehicle.

By default it raises an error to avoid misuse.

Parameters

distance2D	the 2D distance between tx and rx in meters
distance3D	the 3D distance between tx and rx in meters
hUt	the height of the UT in meters
hBs	the height of the BS in meters

Returns: pathloss value in dB

Reimplemented in ns3::ThreeGppV2vUrbanPropagationLossModel.

Definition at line 178 of file three-gpp-propagation-loss-model.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by GetLoss().

Here is the caller graph for this function:

◆ GetShadowing()

double ns3::ThreeGppPropagationLossModel::GetShadowing	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		ChannelCondition::LosConditionValue	cond
	)		const

private

Retrieves the shadowing value by looking at m_shadowingMap.

If not found or if the channel condition changed it generates a new independent realization and stores it in the map, otherwise it correlates the new value with the previous one using the autocorrelation function defined in 3GPP TR 38.901, Sec. 7.4.4.

Parameters

a	tx mobility model
b	rx mobility model
cond	the LOS/NLOS channel condition

Returns: shadowing loss in dB

Definition at line 186 of file three-gpp-propagation-loss-model.cc.

References GetKey(), ns3::Vector2D::GetLength(), GetShadowingCorrelationDistance(), GetShadowingStd(), GetVectorDifference(), m_normRandomVariable, m_shadowingMap, and NS_LOG_FUNCTION.

Referenced by DoCalcRxPower().

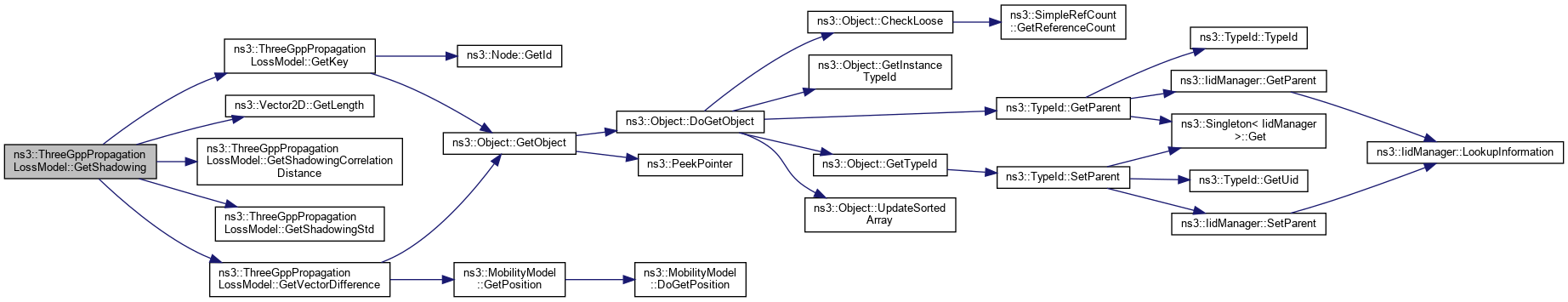

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetShadowingCorrelationDistance()

virtual double ns3::ThreeGppPropagationLossModel::GetShadowingCorrelationDistance ( ChannelCondition::LosConditionValue cond ) const

privatepure virtual

Returns the shadow fading correlation distance.

Parameters

cond	the LOS/NLOS channel condition

Returns: shadowing correlation distance in meters

Implemented in ns3::ThreeGppV2vUrbanPropagationLossModel, ns3::ThreeGppIndoorOfficePropagationLossModel, ns3::ThreeGppUmiStreetCanyonPropagationLossModel, ns3::ThreeGppUmaPropagationLossModel, and ns3::ThreeGppRmaPropagationLossModel.

Referenced by GetShadowing().

Here is the caller graph for this function:

◆ GetShadowingStd()

virtual double ns3::ThreeGppPropagationLossModel::GetShadowingStd	(	Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b,
		ChannelCondition::LosConditionValue	cond
	)		const

privatepure virtual

Returns the shadow fading standard deviation.

Parameters

a	tx mobility model
b	rx mobility model
cond	the LOS/NLOS channel condition

Returns: shadowing std in dB

Implemented in ns3::ThreeGppV2vUrbanPropagationLossModel, ns3::ThreeGppIndoorOfficePropagationLossModel, ns3::ThreeGppUmiStreetCanyonPropagationLossModel, ns3::ThreeGppUmaPropagationLossModel, and ns3::ThreeGppRmaPropagationLossModel.

Referenced by GetShadowing().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ThreeGppPropagationLossModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file three-gpp-propagation-loss-model.cc.

References GetChannelConditionModel(), GetFrequency(), m_shadowingEnabled, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), SetChannelConditionModel(), SetFrequency(), and ns3::TypeId::SetParent().

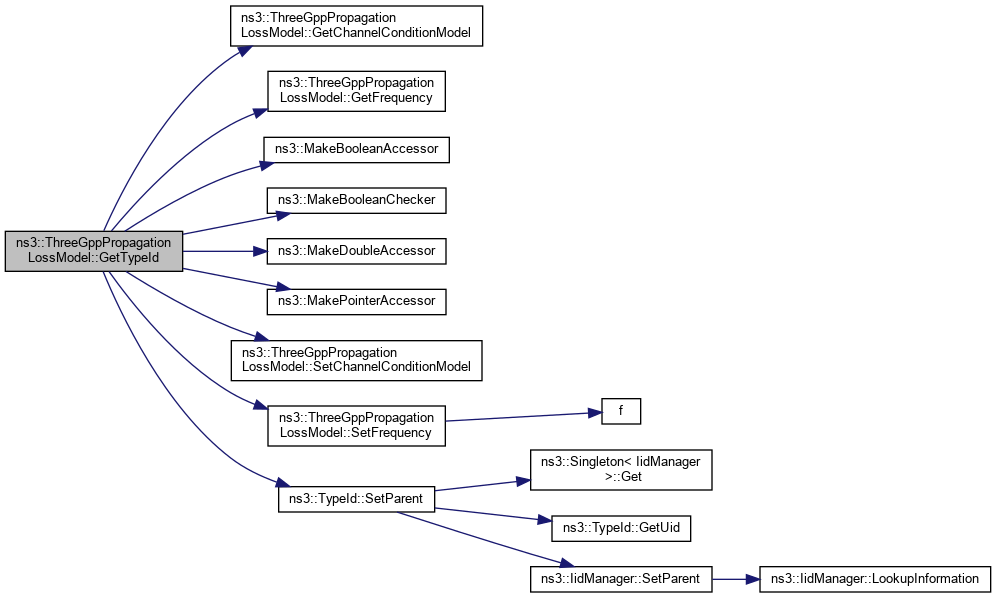

Here is the call graph for this function:

◆ GetUtAndBsHeights()

std::pair< double, double > ns3::ThreeGppPropagationLossModel::GetUtAndBsHeights	(	double	za,
		double	zb
	)		const

privatevirtual

Determines hUT and hBS.

The default implementation assumes that the tallest node is the BS and the smallest is the UT. The derived classes can change the default behavior by overriding this method.

Parameters
