Build a set of QueueDisc objects. More...

#include "traffic-control-helper.h"

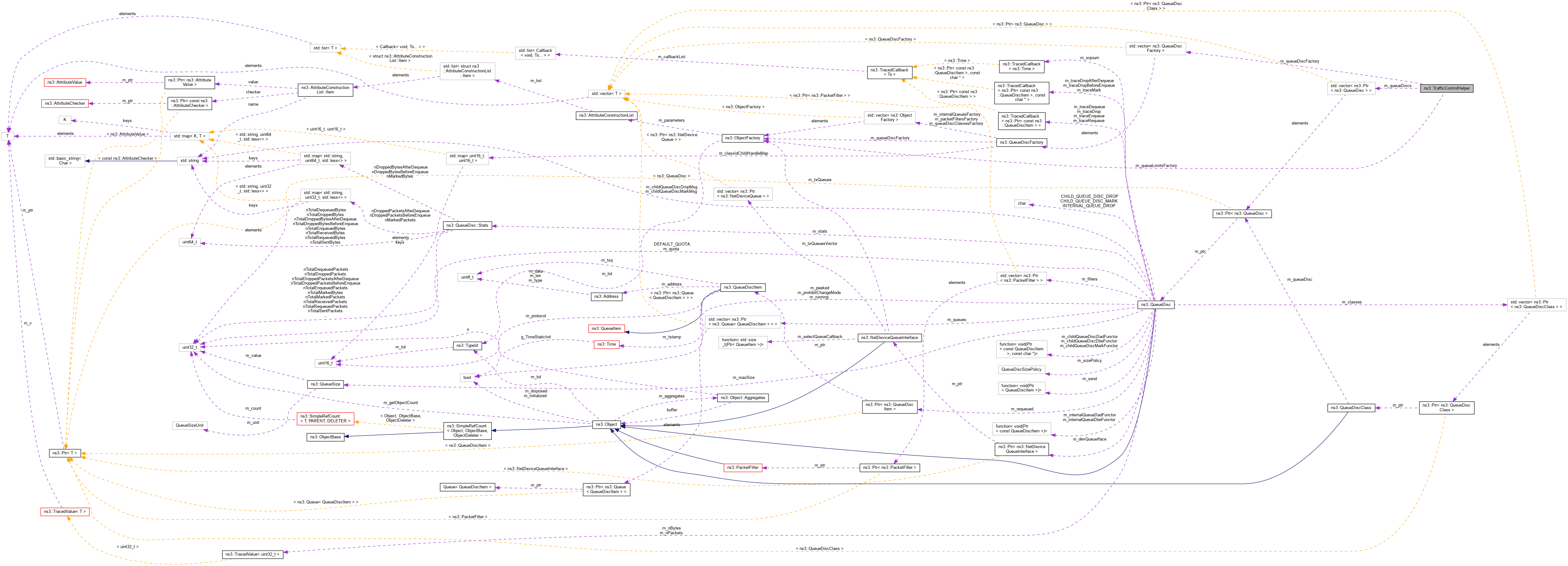

Collaboration diagram for ns3::TrafficControlHelper:

Public Types
typedef std::vector< uint16_t >	ClassIdList
	Container type for Class IDs. More...

typedef std::vector< uint16_t >	HandleList
	Container type for Handlers. More...

Public Member Functions
	TrafficControlHelper ()
	Create a TrafficControlHelper to make life easier when creating QueueDisc objects. More...

virtual	~TrafficControlHelper ()

template<typename... Args>
uint16_t	AddChildQueueDisc (uint16_t handle, uint16_t classId, const std::string &type, Args &&... args)
	Helper function used to attach a child queue disc (of the given type and with the given attributes) to a given class (included in the queue disc having the given handle). More...

template<typename... Args>
HandleList	AddChildQueueDiscs (uint16_t handle, const ClassIdList &classes, const std::string &type, Args &&... args)
	Helper function used to attach a child queue disc (of the given type and with the given attributes) to each of the given classes (included in the queue disc having the given handle). More...

template<typename... Args>
void	AddInternalQueues (uint16_t handle, uint16_t count, std::string type, Args &&... args)
	Helper function used to add the given number of internal queues (of the given type and with the given attributes) to the queue disc having the given handle. More...

template<typename... Args>
void	AddPacketFilter (uint16_t handle, const std::string &type, Args &&... args)
	Helper function used to add a packet filter (of the given type and with the given attributes) to the queue disc having the given handle. More...

template<typename... Args>
ClassIdList	AddQueueDiscClasses (uint16_t handle, uint16_t count, const std::string &type, Args &&... args)
	Helper function used to add the given number of queue disc classes (of the given type and with the given attributes) to the queue disc having the given handle. More...

QueueDiscContainer	Install (NetDeviceContainer c)

QueueDiscContainer	Install (Ptr< NetDevice > d)

template<typename... Args>
void	SetQueueLimits (std::string type, Args &&... args)
	Helper function used to add a queue limits object to the transmission queues of the devices. More...

template<typename... Args>
uint16_t	SetRootQueueDisc (const std::string &type, Args &&... args)
	Helper function used to set a root queue disc of the given type and with the given attributes. More...

void	Uninstall (NetDeviceContainer c)

void	Uninstall (Ptr< NetDevice > d)

Static Public Member Functions
static TrafficControlHelper	Default (std::size_t nTxQueues=1)

Private Member Functions
uint16_t	DoAddChildQueueDisc (uint16_t handle, uint16_t classId, ObjectFactory factory)
	Actual implementation of the AddChildQueueDisc method. More...

HandleList	DoAddChildQueueDiscs (uint16_t handle, const ClassIdList &classes, ObjectFactory factory)
	Actual implementation of the AddChildQueueDiscs method. More...

void	DoAddInternalQueues (uint16_t handle, uint16_t count, ObjectFactory factory)
	Actual implementation of the AddInternalQueues method. More...

void	DoAddPacketFilter (uint16_t handle, ObjectFactory factory)
	Actual implementation of the AddPacketFilter method. More...

ClassIdList	DoAddQueueDiscClasses (uint16_t handle, uint16_t count, ObjectFactory factory)
	Actual implementation of the AddQueueDiscClasses method. More...

uint16_t	DoSetRootQueueDisc (ObjectFactory factory)
	Actual implementation of the SetRootQueueDisc method. More...

Private Attributes
std::vector< QueueDiscFactory >	m_queueDiscFactory
	QueueDisc factory, stores the configuration of all the queue discs. More...

std::vector< Ptr< QueueDisc > >	m_queueDiscs
	Vector of all the created queue discs. More...

ObjectFactory	m_queueLimitsFactory
	Factory to create a queue limits object. More...

Detailed Description

Build a set of QueueDisc objects.

This class can help to create QueueDisc objects and map them to the corresponding devices. This map is stored at the Traffic Control layer.

Definition at line 115 of file traffic-control-helper.h.

Member Typedef Documentation

◆ ClassIdList

typedef std::vector<uint16_t> ns3::TrafficControlHelper::ClassIdList

Container type for Class IDs.

Definition at line 176 of file traffic-control-helper.h.

◆ HandleList

typedef std::vector<uint16_t> ns3::TrafficControlHelper::HandleList

Container type for Handlers.

Definition at line 210 of file traffic-control-helper.h.

Constructor & Destructor Documentation

◆ TrafficControlHelper()

ns3::TrafficControlHelper::TrafficControlHelper ( )

Create a TrafficControlHelper to make life easier when creating QueueDisc objects.

Definition at line 105 of file traffic-control-helper.cc.

◆ ~TrafficControlHelper()

virtual ns3::TrafficControlHelper::~TrafficControlHelper ( )

inlinevirtual

Definition at line 123 of file traffic-control-helper.h.

Member Function Documentation

◆ AddChildQueueDisc()

template<typename... Args>

uint16_t ns3::TrafficControlHelper::AddChildQueueDisc	(	uint16_t	handle,
		uint16_t	classId,
		const std::string &	type,
		Args &&...	args
	)

Helper function used to attach a child queue disc (of the given type and with the given attributes) to a given class (included in the queue disc having the given handle).

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

handle	the handle of the parent queue disc
classId	the class ID of the class to attach the queue disc to
type	the type of queue disc
args	A sequence of name-value pairs of the attributes to set.

Returns: the handle of the created child queue disc

Definition at line 401 of file traffic-control-helper.h.

References DoAddChildQueueDisc().

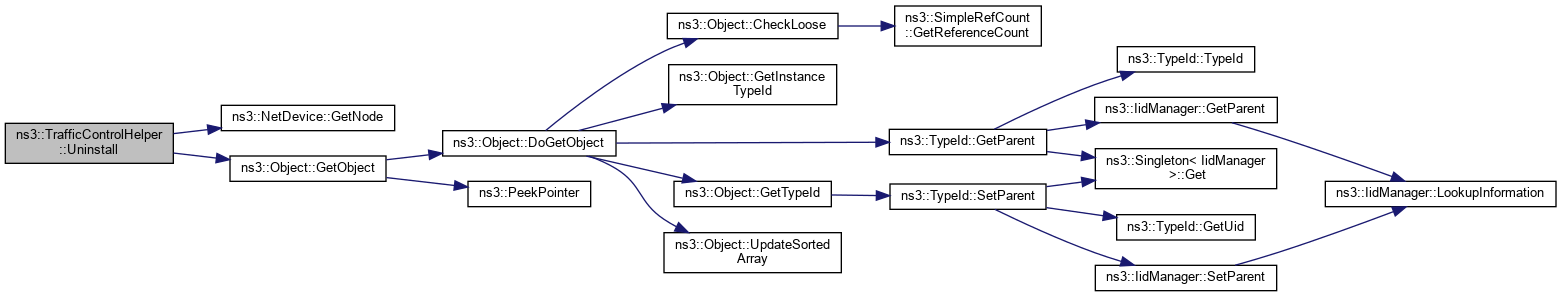

Here is the call graph for this function:

◆ AddChildQueueDiscs()

template<typename... Args>

TrafficControlHelper::HandleList ns3::TrafficControlHelper::AddChildQueueDiscs	(	uint16_t	handle,
		const ClassIdList &	classes,
		const std::string &	type,
		Args &&...	args
	)

Helper function used to attach a child queue disc (of the given type and with the given attributes) to each of the given classes (included in the queue disc having the given handle).

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

handle	the handle of the parent queue disc
classes	the class IDs of the classes to attach a queue disc to
type	the type of queue disc
args	A sequence of name-value pairs of the attributes to set.

Returns: the list of handles of the created child queue discs

Definition at line 409 of file traffic-control-helper.h.

References DoAddChildQueueDiscs().

Referenced by Default(), and WifiAcMappingTest::DoRun().

Here is the call graph for this function:

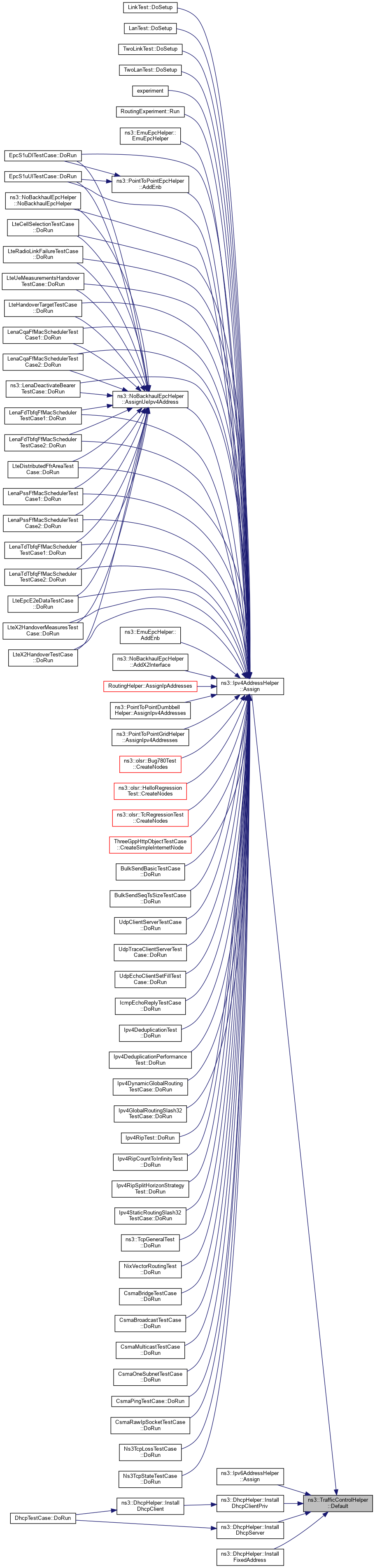

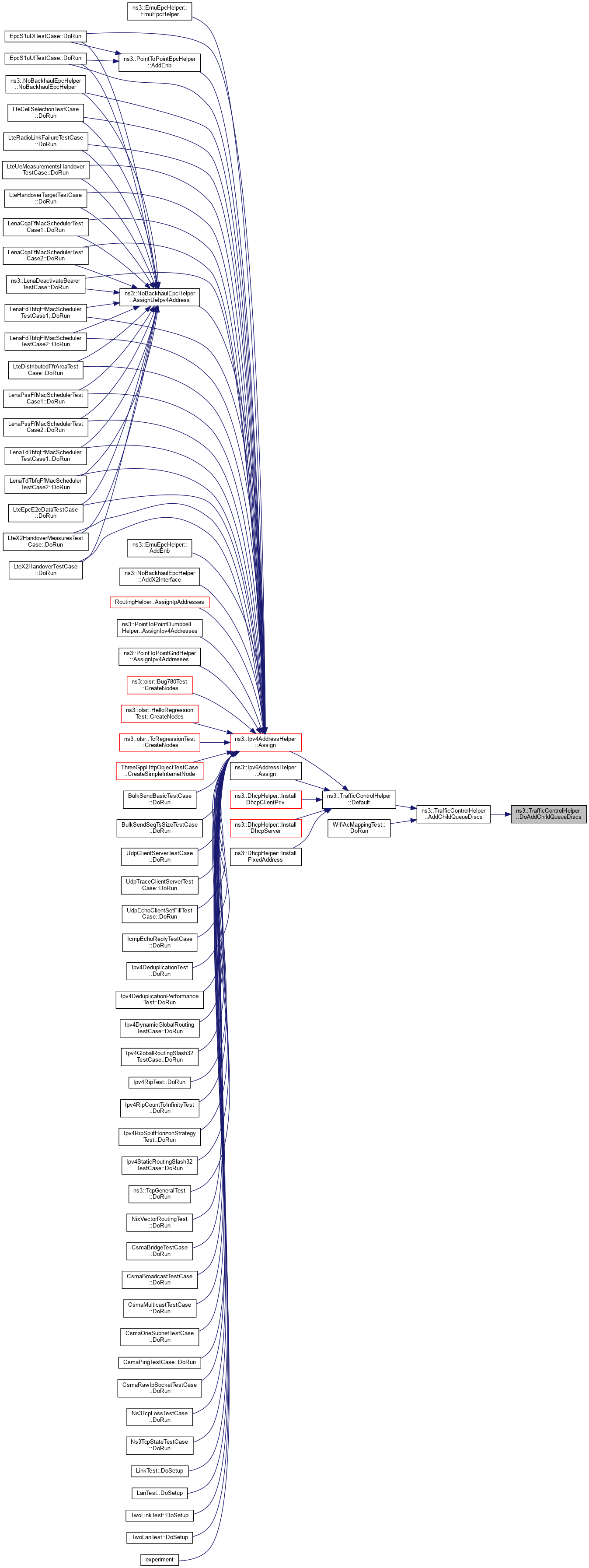

Here is the caller graph for this function:

◆ AddInternalQueues()

template<typename... Args>

void ns3::TrafficControlHelper::AddInternalQueues	(	uint16_t	handle,
		uint16_t	count,
		std::string	type,
		Args &&...	args
	)

Helper function used to add the given number of internal queues (of the given type and with the given attributes) to the queue disc having the given handle.

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

handle	the handle of the parent queue disc
count	the number of queues to add
type	the type of queue
args	A sequence of name-value pairs of the attributes to set.

Definition at line 377 of file traffic-control-helper.h.

References ns3::QueueBase::AppendItemTypeIfNotPresent(), and DoAddInternalQueues().

Referenced by experiment().

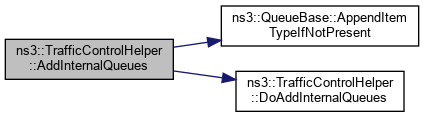

Here is the call graph for this function:

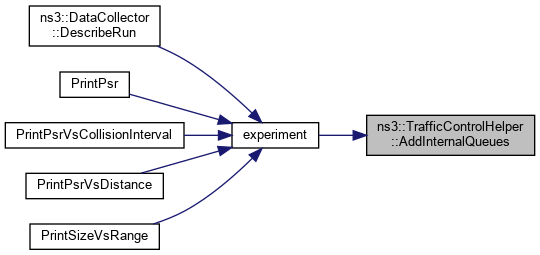

Here is the caller graph for this function:

◆ AddPacketFilter()

template<typename... Args>

void ns3::TrafficControlHelper::AddPacketFilter	(	uint16_t	handle,
		const std::string &	type,
		Args &&...	args
	)

Helper function used to add a packet filter (of the given type and with the given attributes) to the queue disc having the given handle.

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

handle	the handle of the parent queue disc
type	the type of packet filter
args	A sequence of name-value pairs of the attributes to set.

Definition at line 386 of file traffic-control-helper.h.

References DoAddPacketFilter().

Here is the call graph for this function:

◆ AddQueueDiscClasses()

template<typename... Args>

TrafficControlHelper::ClassIdList ns3::TrafficControlHelper::AddQueueDiscClasses	(	uint16_t	handle,
		uint16_t	count,
		const std::string &	type,
		Args &&...	args
	)

Helper function used to add the given number of queue disc classes (of the given type and with the given attributes) to the queue disc having the given handle.

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

handle	the handle of the parent queue disc
count	the number of queue disc classes to add
type	the type of queue disc class
args	A sequence of name-value pairs of the attributes to set.

Returns: the list of class IDs

Definition at line 393 of file traffic-control-helper.h.

References DoAddQueueDiscClasses().

Referenced by Default(), and WifiAcMappingTest::DoRun().

Here is the call graph for this function:

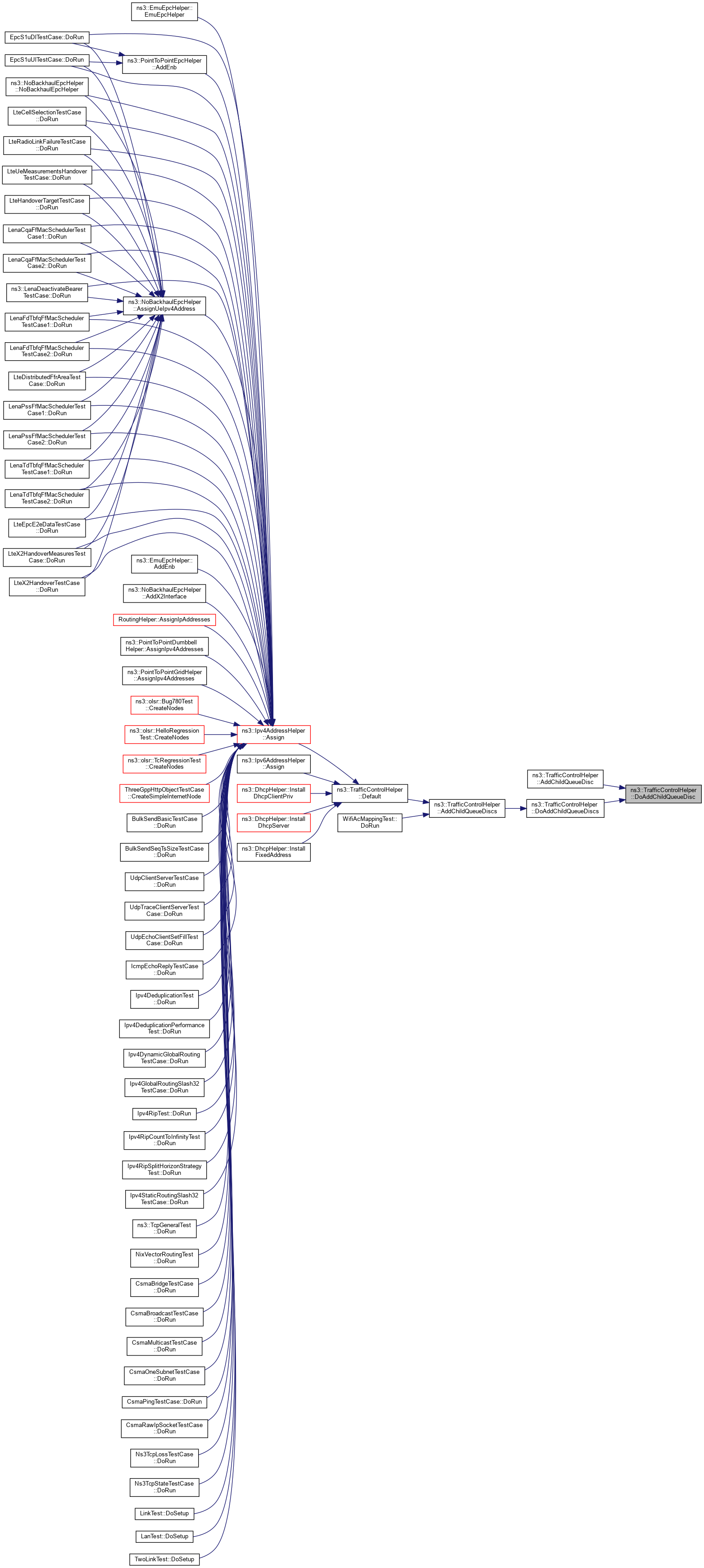

Here is the caller graph for this function:

◆ Default()

TrafficControlHelper ns3::TrafficControlHelper::Default ( std::size_t nTxQueues = 1 )

static

Parameters

nTxQueues the number of Tx queue disc classes

Returns: a new TrafficControlHelper with a default configuration

The default configuration is an FqCoDelQueueDisc, if the device has a single queue, or an MqQueueDisc with as many FqCoDelQueueDiscs as the number of device queues, otherwise.

Definition at line 110 of file traffic-control-helper.cc.

References AddChildQueueDiscs(), AddQueueDiscClasses(), NS_ABORT_MSG_IF, NS_LOG_FUNCTION, and SetRootQueueDisc().

Referenced by ns3::Ipv4AddressHelper::Assign(), ns3::Ipv6AddressHelper::Assign(), ns3::DhcpHelper::InstallDhcpClientPriv(), ns3::DhcpHelper::InstallDhcpServer(), and ns3::DhcpHelper::InstallFixedAddress().

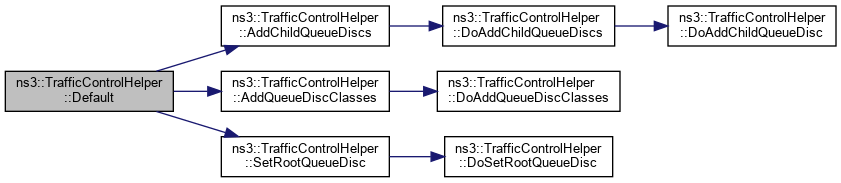

Here is the call graph for this function:

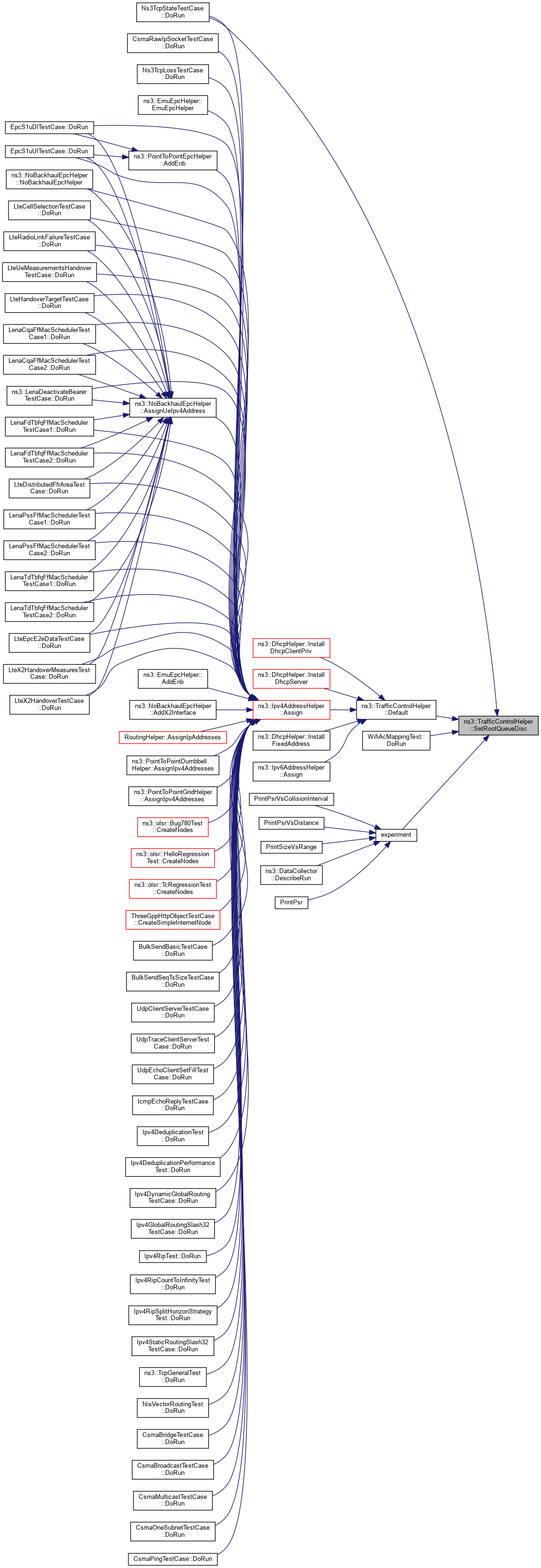

Here is the caller graph for this function:

◆ DoAddChildQueueDisc()

uint16_t ns3::TrafficControlHelper::DoAddChildQueueDisc	(	uint16_t	handle,
		uint16_t	classId,
		ObjectFactory	factory
	)

private

Actual implementation of the AddChildQueueDisc method.

Parameters

handle	the handle of the parent queue disc
classId	the class ID of the class to attach the queue disc to
factory	the factory used to add a child queue disc

Returns: the handle of the created child queue disc

Definition at line 177 of file traffic-control-helper.cc.

References m_queueDiscFactory, and NS_ABORT_MSG_IF.

Referenced by AddChildQueueDisc(), and DoAddChildQueueDiscs().

Here is the caller graph for this function:

◆ DoAddChildQueueDiscs()

TrafficControlHelper::HandleList ns3::TrafficControlHelper::DoAddChildQueueDiscs	(	uint16_t	handle,
		const ClassIdList &	classes,
		ObjectFactory	factory
	)

private

Actual implementation of the AddChildQueueDiscs method.

Parameters

handle	the handle of the parent queue disc
classes	the class IDs of the classes to attach a queue disc to
factory	the factory used to add child queue discs

Returns: the list of handles of the created child queue discs

Definition at line 190 of file traffic-control-helper.cc.

References DoAddChildQueueDisc(), and list.

Referenced by AddChildQueueDiscs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoAddInternalQueues()

void ns3::TrafficControlHelper::DoAddInternalQueues	(	uint16_t	handle,
		uint16_t	count,
		ObjectFactory	factory
	)

private

Actual implementation of the AddInternalQueues method.

Parameters

handle	the handle of the parent queue disc
count	the number of queues to add
factory	the factory used to add internal queues

Definition at line 139 of file traffic-control-helper.cc.

References m_queueDiscFactory, and NS_ABORT_MSG_IF.

Referenced by AddInternalQueues().

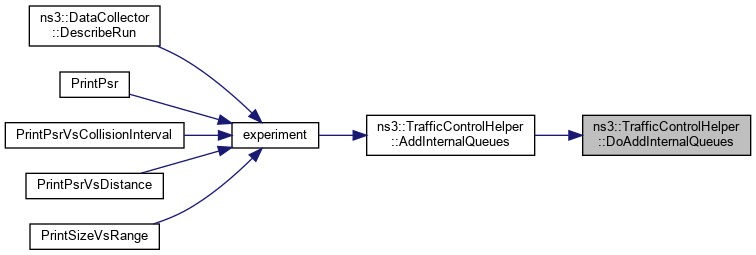

Here is the caller graph for this function:

◆ DoAddPacketFilter()

void ns3::TrafficControlHelper::DoAddPacketFilter	(	uint16_t	handle,
		ObjectFactory	factory
	)

private

Actual implementation of the AddPacketFilter method.

Parameters

handle	the handle of the parent queue disc
factory	the factory used to add a packet filter

Definition at line 151 of file traffic-control-helper.cc.

References m_queueDiscFactory, and NS_ABORT_MSG_IF.

Referenced by AddPacketFilter().

Here is the caller graph for this function:

◆ DoAddQueueDiscClasses()

TrafficControlHelper::ClassIdList ns3::TrafficControlHelper::DoAddQueueDiscClasses	(	uint16_t	handle,
		uint16_t	count,
		ObjectFactory	factory
	)

private

Actual implementation of the AddQueueDiscClasses method.

Parameters

handle	the handle of the parent queue disc
count	the number of queue disc classes to add
factory	the factory used to add queue disc classes

Returns: the list of class IDs

Definition at line 160 of file traffic-control-helper.cc.

References list, m_queueDiscFactory, and NS_ABORT_MSG_IF.

Referenced by AddQueueDiscClasses().

Here is the caller graph for this function:

◆ DoSetRootQueueDisc()

uint16_t ns3::TrafficControlHelper::DoSetRootQueueDisc ( ObjectFactory factory )

private

Actual implementation of the SetRootQueueDisc method.

Parameters

factory the factory used to create the root queue disc

Returns: zero on success

Definition at line 130 of file traffic-control-helper.cc.

References m_queueDiscFactory, and NS_ABORT_MSG_UNLESS.

Referenced by SetRootQueueDisc().

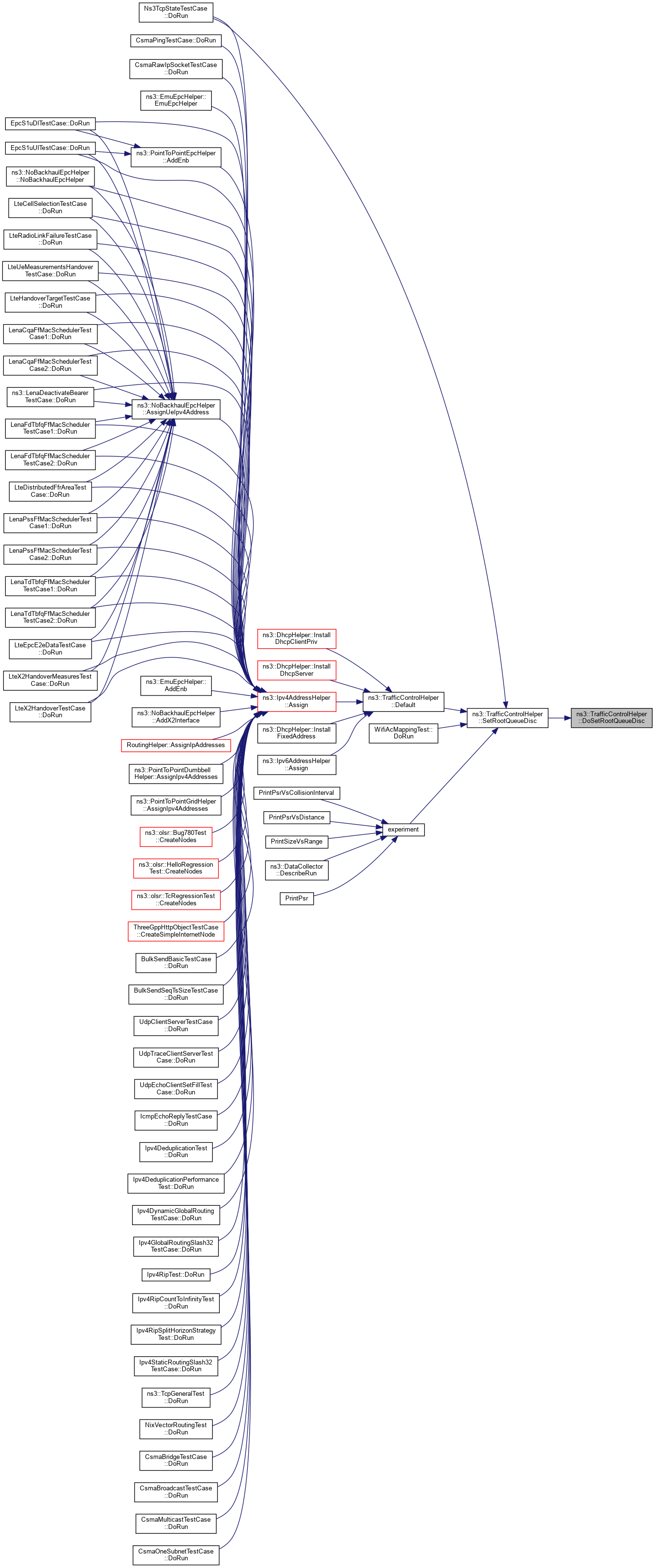

Here is the caller graph for this function:

◆ Install() [1/2]

QueueDiscContainer ns3::TrafficControlHelper::Install ( NetDeviceContainer c )

Parameters

c	set of devices

Returns: a QueueDisc container with the root queue discs installed on the devices

This method creates a QueueDisc object of the type and with the attributes configured by TrafficControlHelper::SetQueueDisc for each device in the container. Then, stores the mapping between a device and the associated queue disc into the traffic control layer of the corresponding node. This method creates the queue discs (along with their packet filters, internal queues, classes) configured with the methods provided by this class and installs them on each device in the given container. Additionally, if configured, a queue limits object is installed on each transmission queue of the devices.

Definition at line 248 of file traffic-control-helper.cc.

References ns3::QueueDiscContainer::Add(), ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

Referenced by ns3::Ipv4AddressHelper::Assign(), ns3::Ipv6AddressHelper::Assign(), UdpSocketImplTest::DoRun(), Ns3TcpStateTestCase::DoRun(), WifiAcMappingTest::DoRun(), TcFlowControlTestCase::DoRun(), experiment(), ns3::DhcpHelper::InstallDhcpClientPriv(), ns3::DhcpHelper::InstallDhcpServer(), and ns3::DhcpHelper::InstallFixedAddress().

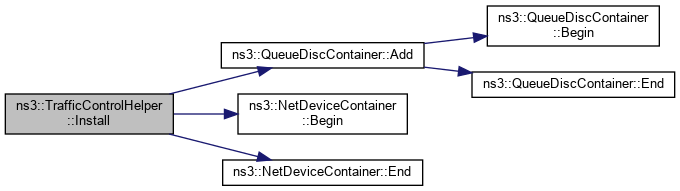

Here is the call graph for this function:

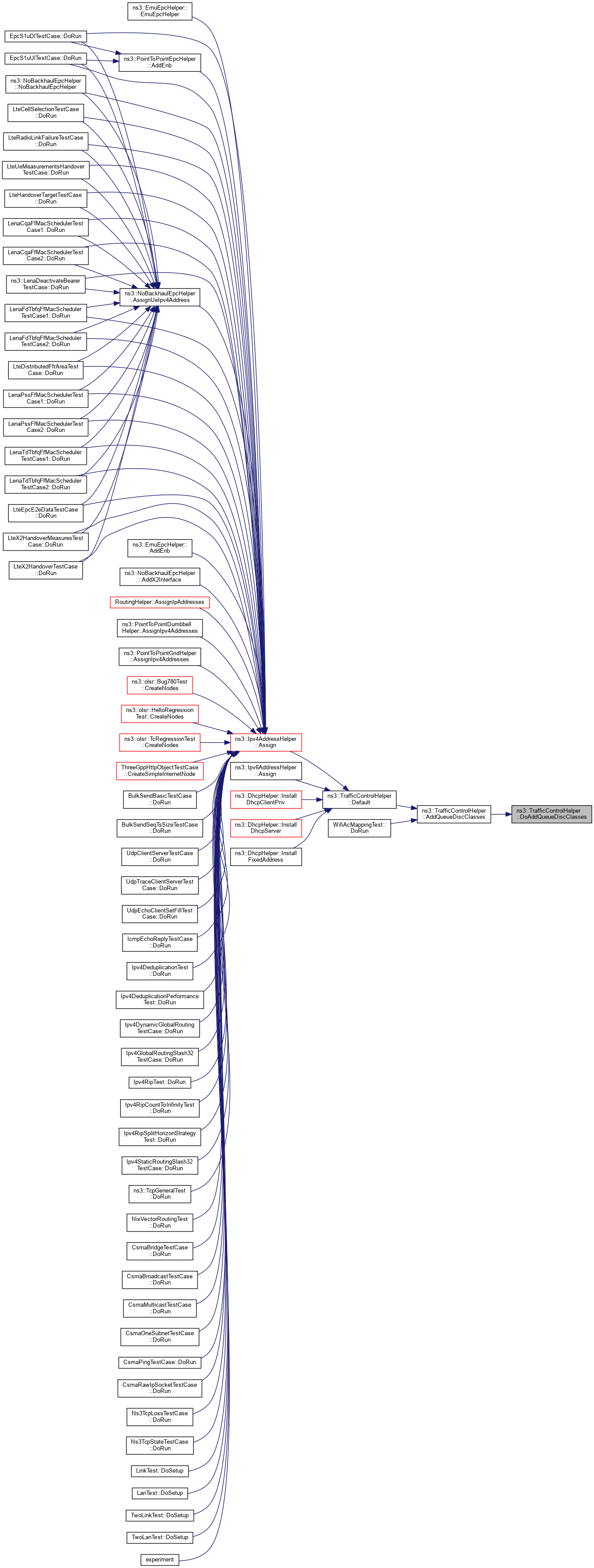

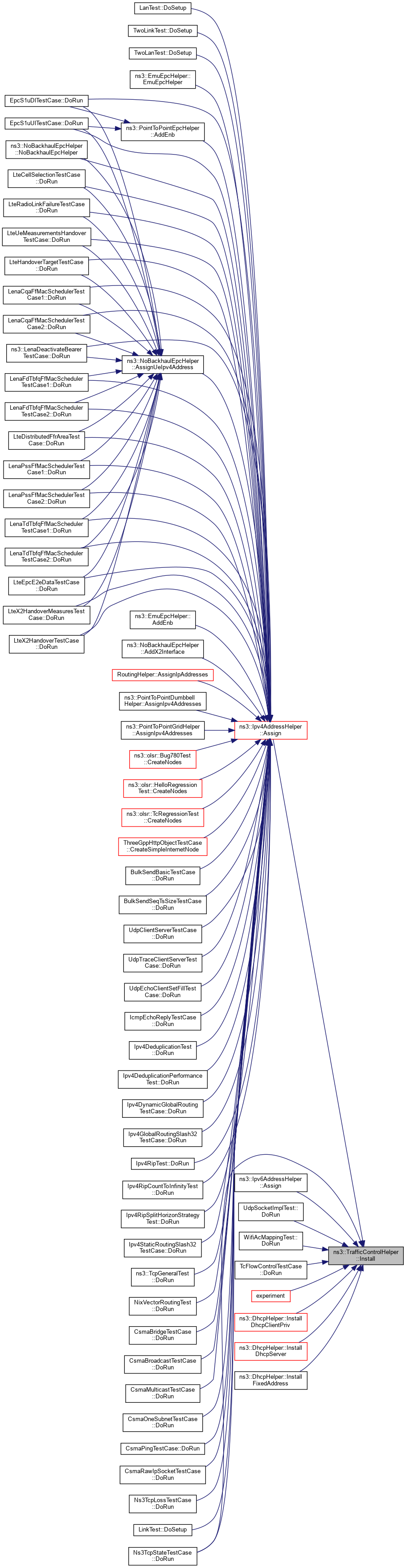

Here is the caller graph for this function:

◆ Install() [2/2]

QueueDiscContainer ns3::TrafficControlHelper::Install ( Ptr< NetDevice > d )

Parameters

d device

Returns: a QueueDisc container with the root queue disc installed on the device

This method creates the queue discs (along with their packet filters, internal queues, classes) configured with the methods provided by this class and installs them on the given device. Additionally, if configured, a queue limits object is installed on each transmission queue of the device.

Definition at line 203 of file traffic-control-helper.cc.

References ns3::QueueDiscContainer::Add(), ns3::ObjectFactory::Create(), ns3::NetDevice::GetNode(), ns3::Object::GetObject(), ns3::ObjectFactory::GetTypeId(), ns3::TypeId::GetUid(), m_queueDiscFactory, m_queueDiscs, m_queueLimitsFactory, NS_ABORT_MSG_IF, and NS_ASSERT.

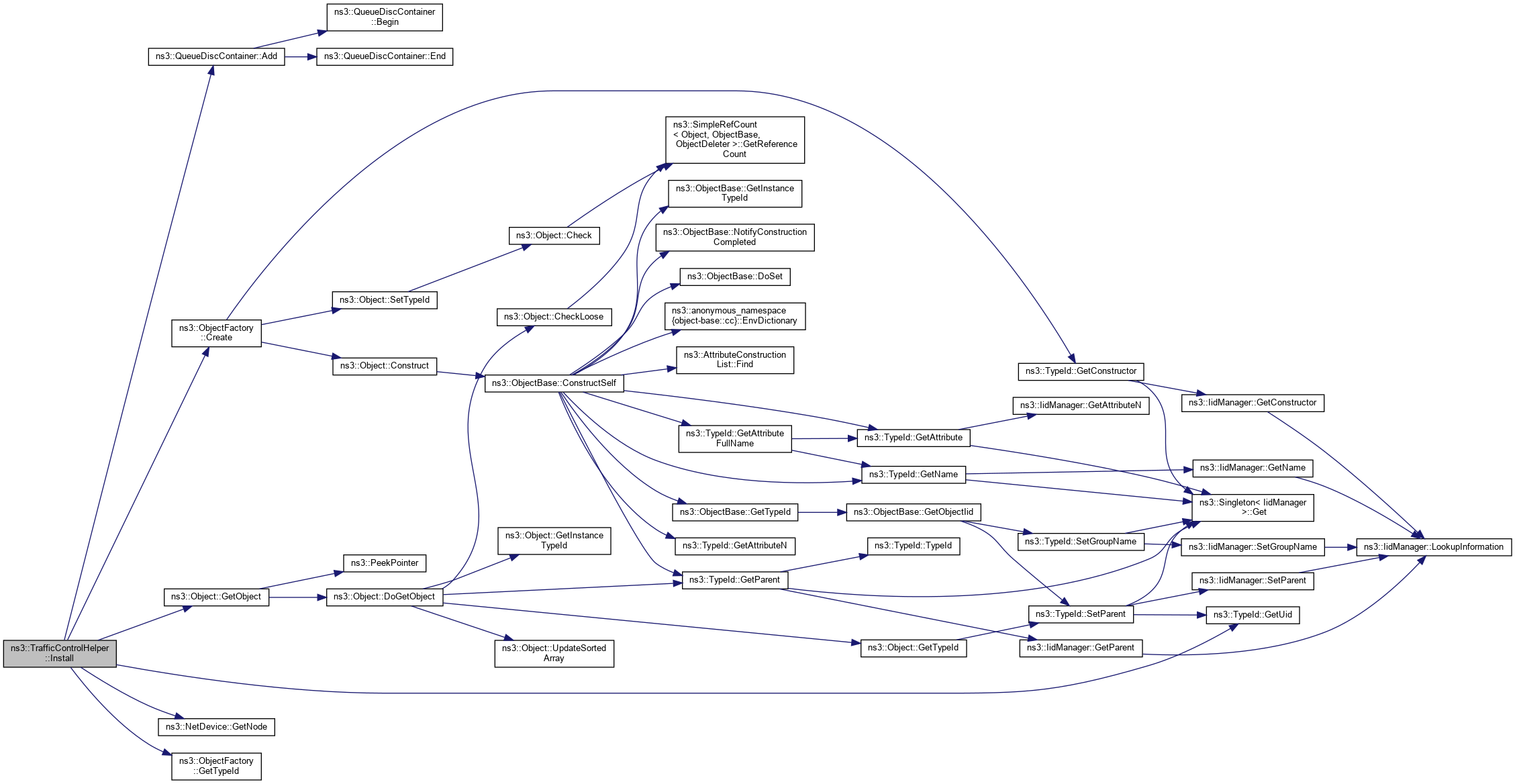

Here is the call graph for this function:

◆ SetQueueLimits()

template<typename... Args>

void ns3::TrafficControlHelper::SetQueueLimits	(	std::string	type,
		Args &&...	args
	)

Helper function used to add a queue limits object to the transmission queues of the devices.

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

type	the type of queue
args	A sequence of name-value pairs of the attributes to set.

Definition at line 417 of file traffic-control-helper.h.

References m_queueLimitsFactory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

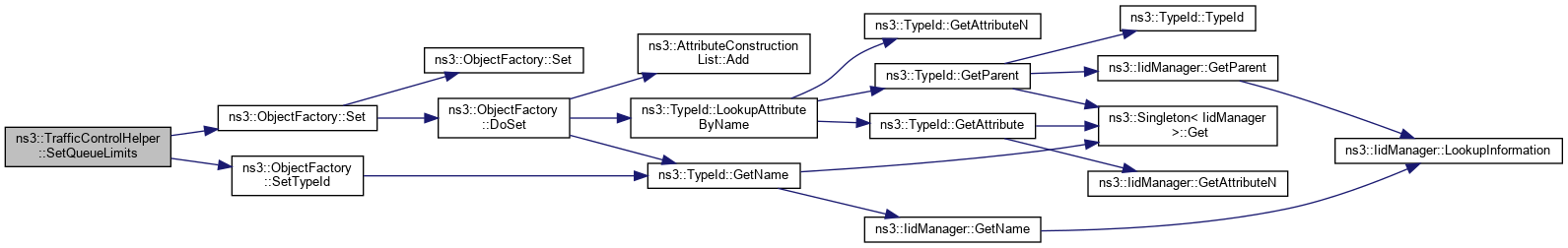

Here is the call graph for this function:

◆ SetRootQueueDisc()

template<typename... Args>

uint16_t ns3::TrafficControlHelper::SetRootQueueDisc	(	const std::string &	type,
		Args &&...	args
	)

Helper function used to set a root queue disc of the given type and with the given attributes.

To set the InternalQueueList, PacketFilterList and ChildQueueDiscList attributes, use the AddInternalQueue, AddPacketFilter and AddChildQueueDisc methods.

Template Parameters

Args	[deduced] Template type parameter pack for the sequence of name-value pairs.

Parameters

type	the type of queue disc
args	A sequence of name-value pairs of the attributes to set.

Returns: the handle of the root queue disc (zero)

Definition at line 370 of file traffic-control-helper.h.

References DoSetRootQueueDisc().

Referenced by Default(), Ns3TcpStateTestCase::DoRun(), WifiAcMappingTest::DoRun(), and experiment().

Here is the call graph for this function:

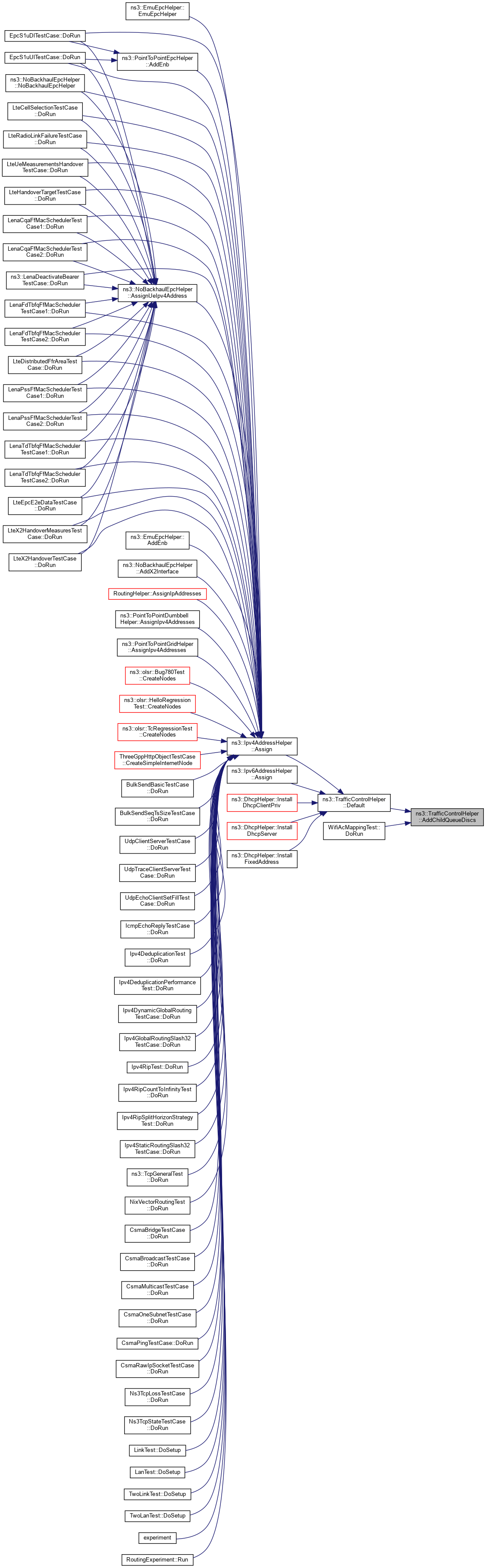

Here is the caller graph for this function:

◆ Uninstall() [1/2]

void ns3::TrafficControlHelper::Uninstall ( NetDeviceContainer c )

Parameters

c	set of devices

This method removes the root queue discs (and associated filters, classes and queues) installed on the given devices. Note that the traffic control layer will continue to perform flow control if the device has an aggregated NetDeviceQueueInterface. If you really want that the Traffic Control layer forwards packets down to the NetDevice even if there is no room for them in the NetDevice queue(s), then disable the flow control by using the DisableFlowControl method of the NetDevice helper.

Definition at line 279 of file traffic-control-helper.cc.

References ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

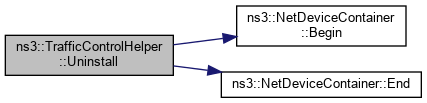

Here is the call graph for this function:

◆ Uninstall() [2/2]

void ns3::TrafficControlHelper::Uninstall ( Ptr< NetDevice > d )

Parameters

d device

This method removes the root queue disc (and associated filters, classes and queues) installed on the given device. Note that the traffic control layer will continue to perform flow control if the device has an aggregated NetDeviceQueueInterface. If you really want that the Traffic Control layer forwards packets down to the NetDevice even if there is no room for them in the NetDevice queue(s), then disable the flow control by using the DisableFlowControl method of the NetDevice helper.

Definition at line 261 of file traffic-control-helper.cc.

References ns3::NetDevice::GetNode(), ns3::Object::GetObject(), and NS_ASSERT.

Here is the call graph for this function:

Member Data Documentation

◆ m_queueDiscFactory

std::vector<QueueDiscFactory> ns3::TrafficControlHelper::m_queueDiscFactory

private

QueueDisc factory, stores the configuration of all the queue discs.

Definition at line 352 of file traffic-control-helper.h.

Referenced by DoAddChildQueueDisc(), DoAddInternalQueues(), DoAddPacketFilter(), DoAddQueueDiscClasses(), DoSetRootQueueDisc(), and Install().

◆ m_queueDiscs

std::vector<Ptr<QueueDisc> > ns3::TrafficControlHelper::m_queueDiscs

private

Vector of all the created queue discs.

Definition at line 354 of file traffic-control-helper.h.

Referenced by Install().

◆ m_queueLimitsFactory

ObjectFactory ns3::TrafficControlHelper::m_queueLimitsFactory

private

Factory to create a queue limits object.

Definition at line 356 of file traffic-control-helper.h.

Referenced by Install(), and SetQueueLimits().

The documentation for this class was generated from the following files:

src/traffic-control/helper/traffic-control-helper.h
src/traffic-control/helper/traffic-control-helper.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ClassIdList

◆ HandleList

Constructor & Destructor Documentation

◆ TrafficControlHelper()

◆ ~TrafficControlHelper()

Member Function Documentation

◆ AddChildQueueDisc()

◆ AddChildQueueDiscs()

◆ AddInternalQueues()

◆ AddPacketFilter()

◆ AddQueueDiscClasses()

◆ Default()

◆ DoAddChildQueueDisc()

◆ DoAddChildQueueDiscs()

◆ DoAddInternalQueues()

◆ DoAddPacketFilter()

◆ DoAddQueueDiscClasses()

◆ DoSetRootQueueDisc()

◆ Install() [1/2]

◆ Install() [2/2]

◆ SetQueueLimits()

◆ SetRootQueueDisc()

◆ Uninstall() [1/2]

◆ Uninstall() [2/2]

Member Data Documentation

◆ m_queueDiscFactory

◆ m_queueDiscs

◆ m_queueLimitsFactory
