Hold objects of type std::tuple<Args...>. More...

#include "tuple.h"

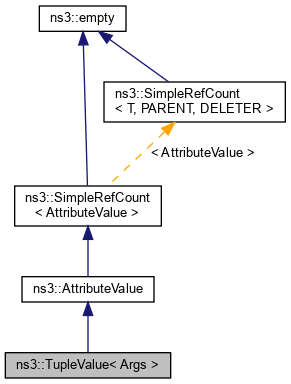

Inheritance diagram for ns3::TupleValue< Args >:

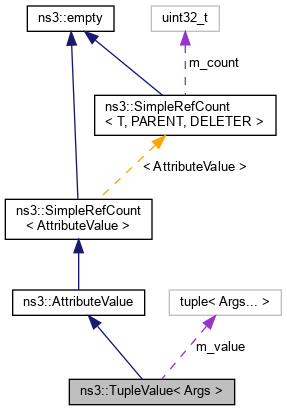

Collaboration diagram for ns3::TupleValue< Args >:

Public Types
typedef std::tuple< std::invoke_result_t< decltype(&Args::Get), Args >... >	result_type
	Type returned by Get or passed in Set. More...

typedef std::tuple< Args... >	value_type
	Type of value stored in the TupleValue. More...

Public Member Functions
	TupleValue ()

	TupleValue (const result_type &value)
	Construct this TupleValue from a std::tuple. More...

Ptr< AttributeValue >	Copy (void) const override

bool	DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker) override

result_type	Get (void) const
	Get the stored values as a std::tuple. More...

template<typename T >
bool	GetAccessor (T &value) const
	Set the given variable to the values stored by this TupleValue object. More...

value_type	GetValue (void) const
	Get the attribute values as a tuple. More...

std::string	SerializeToString (Ptr< const AttributeChecker > checker) const override

void	Set (const result_type &value)
	Set the stored values. More...

Public Member Functions inherited from ns3::AttributeValue
	AttributeValue ()

virtual	~AttributeValue ()

Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
template<std::size_t... Is>
bool	SetValueImpl (std::index_sequence< Is... >, const std::vector< Ptr< AttributeValue >> &values)
	Set the attribute values starting from the given values. More...

Private Attributes
value_type	m_value
	Tuple of attribute values. More...

Detailed Description

template<class... Args>
class ns3::TupleValue< Args >

Hold objects of type std::tuple<Args...>.

AttributeValue implementation for Tuple.

Template Parameters

Args	[explicit] The list of AttributeValues to be held by this TupleValue

See also: AttributeValue

Definition at line 69 of file tuple.h.

Member Typedef Documentation

◆ result_type

template<class... Args>

typedef std::tuple<std::invoke_result_t<decltype(&Args::Get),Args>...> ns3::TupleValue< Args >::result_type

Type returned by Get or passed in Set.

Definition at line 75 of file tuple.h.

◆ value_type

template<class... Args>

typedef std::tuple<Args...> ns3::TupleValue< Args >::value_type

Type of value stored in the TupleValue.

Definition at line 73 of file tuple.h.

Constructor & Destructor Documentation

◆ TupleValue() [1/2]

template<class... Args>

ns3::TupleValue< Args >::TupleValue

Definition at line 219 of file tuple.h.

◆ TupleValue() [2/2]

template<class... Args>

ns3::TupleValue< Args >::TupleValue ( const result_type & value )

Construct this TupleValue from a std::tuple.

Parameters

[in] value Value with which to construct.

Definition at line 225 of file tuple.h.

References ns3::Config::Set().

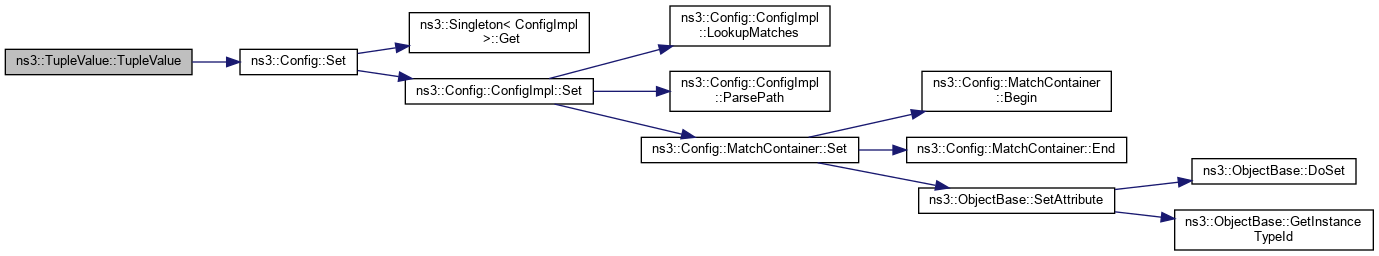

Here is the call graph for this function:

Member Function Documentation

◆ Copy()

template<class... Args>

Ptr< AttributeValue > ns3::TupleValue< Args >::Copy ( void ) const

overridevirtual

Returns: a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 232 of file tuple.h.

References ns3::Create().

Here is the call graph for this function:

◆ DeserializeFromString()

template<class... Args>

bool ns3::TupleValue< Args >::DeserializeFromString	(	std::string	value,
		Ptr< const AttributeChecker >	checker
	)

overridevirtual

Parameters

[in]	value	A string representation of the value
[in]	checker	A pointer to the checker associated to the attribute.

Returns: true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 255 of file tuple.h.

◆ Get()

template<class... Args>

std::tuple< Args... > ns3::TupleValue< Args >::Get ( void ) const

Get the stored values as a std::tuple.

This differs from the actual value stored in the object which is a tuple of Ptr<AV> where AV is a class derived from AttributeValue.

Returns: stored values as a std::tuple; The Tuple value.

Definition at line 314 of file tuple.h.

Referenced by TupleValueTestCase::DoRun().

Here is the caller graph for this function:

◆ GetAccessor()

template<class... Args>

template<typename T >

bool ns3::TupleValue< Args >::GetAccessor ( T & value ) const

Set the given variable to the values stored by this TupleValue object.

Access the Tuple value as type T.

Template Parameters

T	[deduced] the type of the given variable (normally, the argument type of a set method or the type of a data member)

Returns: true if the given variable was set

Template Parameters

T	[explicit] The type to cast to.

Parameters

[out] value The Tuple value, as type T.

Returns: true.

Definition at line 344 of file tuple.h.

◆ GetValue()

template<class... Args>

TupleValue< Args... >::value_type ns3::TupleValue< Args >::GetValue ( void ) const

Get the attribute values as a tuple.

Returns: the attribute values as a tuple

Definition at line 336 of file tuple.h.

◆ SerializeToString()

template<class... Args>

std::string ns3::TupleValue< Args >::SerializeToString ( Ptr< const AttributeChecker > checker ) const

overridevirtual

Parameters

[in] checker The checker associated to the attribute

Returns: A string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 305 of file tuple.h.

◆ Set()

template<class... Args>

void ns3::TupleValue< Args >::Set ( const result_type & value )

Set the stored values.

Set the value.

Parameters

[in] value The value to adopt.

Definition at line 325 of file tuple.h.

Referenced by WifiPrimaryChannelsTest::DoSetup().

Here is the caller graph for this function:

◆ SetValueImpl()

template<class... Args>

template<std::size_t... Is>

bool ns3::TupleValue< Args >::SetValueImpl	(	std::index_sequence< Is... >	,
		const std::vector< Ptr< AttributeValue >> &	values
	)

private

Set the attribute values starting from the given values.

Used by DeserializeFromString method.

Template Parameters

Is	[deduced] index sequence

Parameters

values the given attribute values

Returns: true if the attribute values of this object were set

Definition at line 240 of file tuple.h.

Member Data Documentation

◆ m_value

template<class... Args>

std::tuple< Args... > ns3::TupleValue< Args >::m_value

private

Tuple of attribute values.

The stored Tuple instance.

Definition at line 131 of file tuple.h.

The documentation for this class was generated from the following files:

src/core/model/tuple.h
doc/introspected-doxygen.h
