ns3::UanModesList Class Reference

Container for UanTxModes. More...

#include "uan-tx-mode.h"

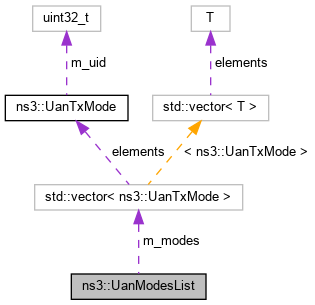

Collaboration diagram for ns3::UanModesList:

Public Member Functions
	UanModesList ()
	Constructor. More...
virtual	~UanModesList ()
	Destructor. More...
void	AppendMode (UanTxMode mode)
	Add mode to this list. More...
void	DeleteMode (uint32_t num)
	Delete the mode at given index. More...
uint32_t	GetNModes (void) const
	Get the number of modes in this list. More...
UanTxMode	operator[] (uint32_t index) const
	Retrieve a mode by index. More...

Private Attributes
std::vector< UanTxMode >	m_modes
	The vector of modes in this list. More...

Friends
std::ostream &	operator<< (std::ostream &os, const UanModesList &ml)
	Write UanModesList to stream os. More...
std::istream &	operator>> (std::istream &is, UanModesList &ml)
	Read UanModesList from stream is. More...

Detailed Description

Container for UanTxModes.

See also

UanModesList Attribute

Definition at line 257 of file uan-tx-mode.h.

Constructor & Destructor Documentation

UanModesList()

ns3::UanModesList::UanModesList

(

void

)

Constructor.

Definition at line 222 of file uan-tx-mode.cc.

~UanModesList()

ns3::UanModesList::~UanModesList ( void  )

virtual

Destructor.

Definition at line 226 of file uan-tx-mode.cc.

References m_modes.

Member Function Documentation

AppendMode()

void ns3::UanModesList::AppendMode

(

UanTxMode

mode

)

Add mode to this list.

Parameters

mode	The mode to add.

Definition at line 232 of file uan-tx-mode.cc.

References m_modes.

Referenced by Experiment::CreateDualModes(), UanTest::DoPhyTests(), and ns3::UanPhyGen::GetDefaultModes().

Here is the caller graph for this function:

DeleteMode()

void ns3::UanModesList::DeleteMode

(

uint32_t

num

)

Delete the mode at given index.

Parameters

num	Index of mode to delete.

Definition at line 238 of file uan-tx-mode.cc.

References m_modes, and NS_ASSERT.

GetNModes()

uint32_t ns3::UanModesList::GetNModes

(

void

)

const

Get the number of modes in this list.

Returns

Number of modes.

Definition at line 259 of file uan-tx-mode.cc.

References m_modes.

Referenced by ns3::UanPhyGen::GetMode(), and ns3::UanPhyGen::GetNModes().

Here is the caller graph for this function:

operator[]()

UanTxMode ns3::UanModesList::operator[]

(

uint32_t

index

)

const

Retrieve a mode by index.

Parameters

index

Mode index.

Returns

Mode at given index.

Definition at line 252 of file uan-tx-mode.cc.

References m_modes, and NS_ASSERT.

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  os, const UanModesList &  ml  )

friend

Write UanModesList to stream os.

Parameters

os	The output stream.
ml	The mode list.

Returns

The stream.

Definition at line 264 of file uan-tx-mode.cc.

operator>>

std::istream& operator>> ( std::istream &  is, UanModesList &  ml  )

friend

Read UanModesList from stream is.

Parameters

is	The input stream.
ml	The mode list to fill.

Returns

The stream.

Definition at line 277 of file uan-tx-mode.cc.

Member Data Documentation

m_modes

std::vector<UanTxMode> ns3::UanModesList::m_modes

private

The vector of modes in this list.

Definition at line 290 of file uan-tx-mode.h.

Referenced by ~UanModesList(), AppendMode(), DeleteMode(), GetNModes(), and operator[]().

---

The documentation for this class was generated from the following files:

• src/uan/model/uan-tx-mode.h
• src/uan/model/uan-tx-mode.cc
