Default Packet Error Rate calculator for UanPhyGen. More...

#include "uan-phy-gen.h"

Inheritance diagram for ns3::UanPhyPerGenDefault:

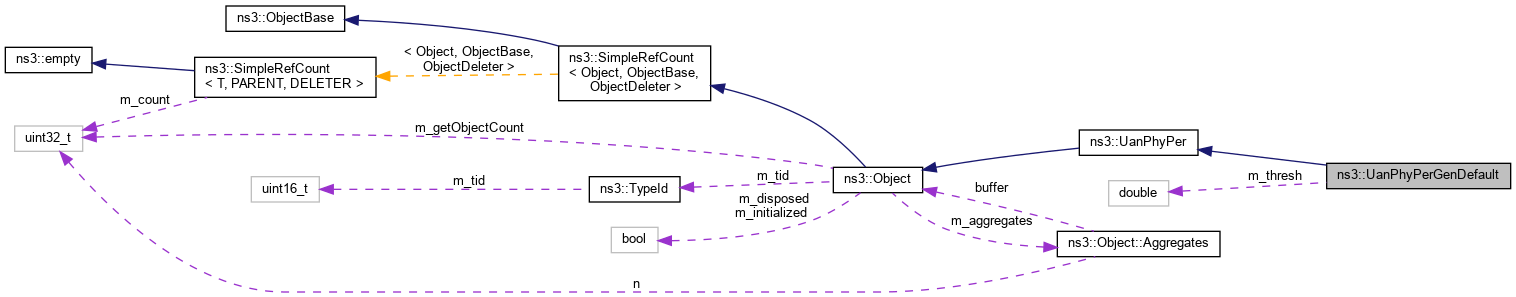

Collaboration diagram for ns3::UanPhyPerGenDefault:

Public Member Functions
	UanPhyPerGenDefault ()
	Constructor. More...

virtual	~UanPhyPerGenDefault ()
	Destructor. More...

virtual double	CalcPer (Ptr< Packet > pkt, double sinrDb, UanTxMode mode)
	Calculate the packet error probability based on SINR at the receiver and a tx mode. More...

Public Member Functions inherited from ns3::UanPhyPer
virtual void	Clear (void)
	Clear all pointer references. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanPhyPer
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_thresh
	SINR threshold. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::UanPhyPer
virtual void	DoDispose (void)
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Default Packet Error Rate calculator for UanPhyGen.

Considers no error if SINR is > user defined threshold (configured by an attribute).

Config Paths

ns3::UanPhyPerGenDefault is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual/PerModelPhy1/$ns3::UanPhyPerGenDefault"
"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual/PerModelPhy2/$ns3::UanPhyPerGenDefault"
"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyGen/PerModel/$ns3::UanPhyPerGenDefault"

Attributes

Threshold: SINR cutoff for good packet reception.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 8
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 44 of file uan-phy-gen.h.

Constructor & Destructor Documentation

◆ UanPhyPerGenDefault()

ns3::UanPhyPerGenDefault::UanPhyPerGenDefault ( )

Constructor.

Definition at line 211 of file uan-phy-gen.cc.

◆ ~UanPhyPerGenDefault()

ns3::UanPhyPerGenDefault::~UanPhyPerGenDefault ( )

virtual

Destructor.

Definition at line 216 of file uan-phy-gen.cc.

Member Function Documentation

◆ CalcPer()

double ns3::UanPhyPerGenDefault::CalcPer	(	Ptr< Packet >	pkt,
		double	sinrDb,
		UanTxMode	mode
	)

virtual

Calculate the packet error probability based on SINR at the receiver and a tx mode.

Parameters

pkt	Packet which is under consideration.
sinrDb	SINR at receiver.
mode	TX mode used to transmit packet.

Returns: Probability of packet error.

Implements ns3::UanPhyPer.

Definition at line 238 of file uan-phy-gen.cc.

References m_thresh.

◆ GetTypeId()

TypeId ns3::UanPhyPerGenDefault::GetTypeId ( void )

static

Register this type.

Returns: The TypeId.

Definition at line 221 of file uan-phy-gen.cc.

References m_thresh, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

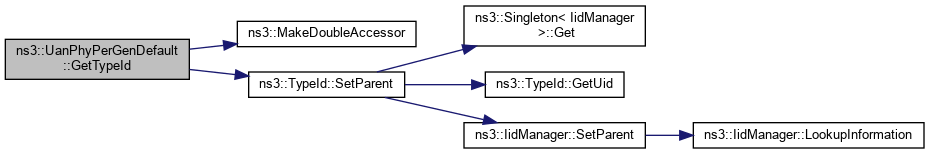

Here is the call graph for this function:

Member Data Documentation

◆ m_thresh

double ns3::UanPhyPerGenDefault::m_thresh

private

SINR threshold.

Definition at line 60 of file uan-phy-gen.h.

Referenced by CalcPer(), and GetTypeId().

The documentation for this class was generated from the following files:

src/uan/model/uan-phy-gen.h
src/uan/model/uan-phy-gen.cc
