ns3::UdpServerHelper Class Reference

Create a server application which waits for input UDP packets and uses the information carried into their payload to compute delay and to determine if some packets are lost. More...

#include "udp-client-server-helper.h"

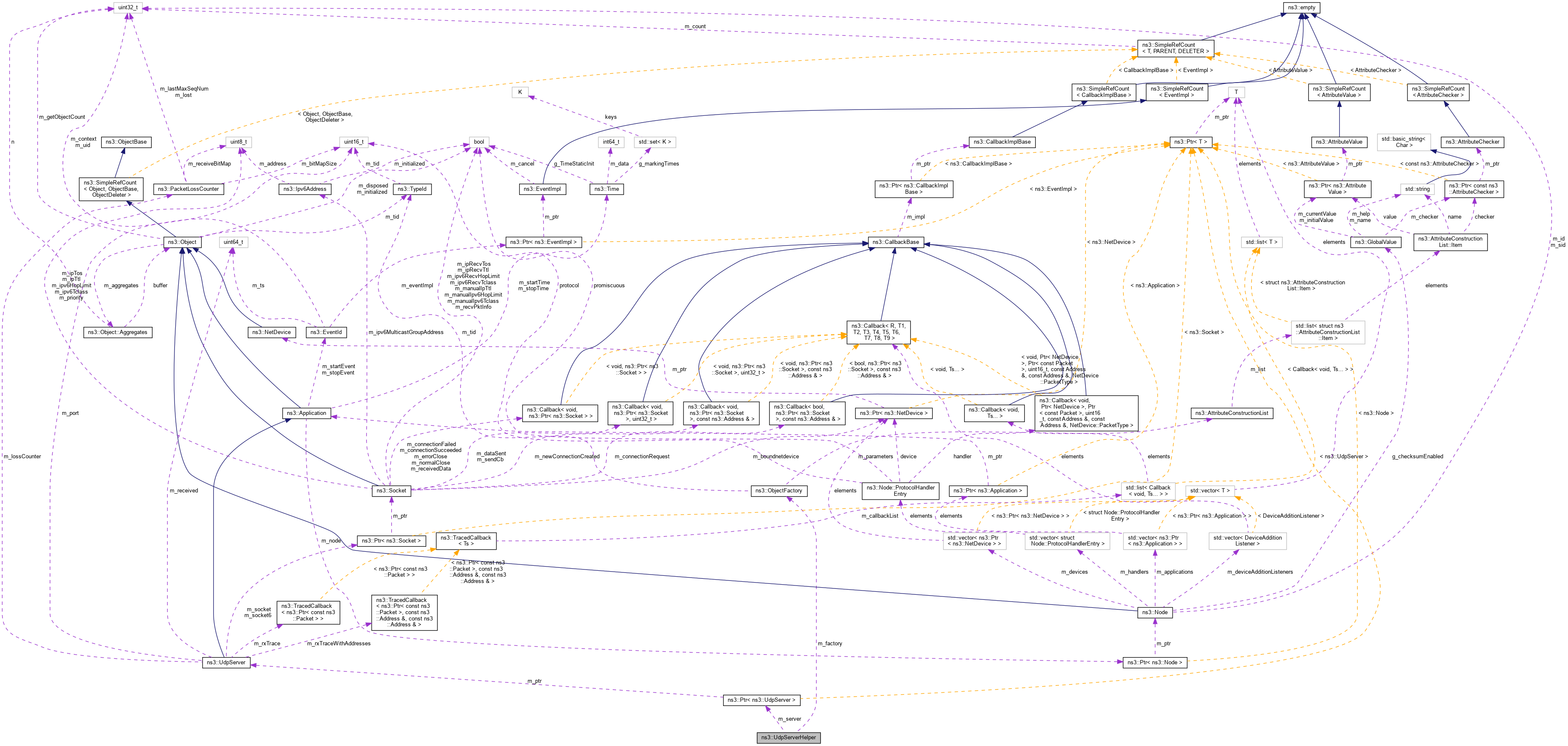

Collaboration diagram for ns3::UdpServerHelper:

Public Member Functions
	UdpServerHelper ()
	Create UdpServerHelper which will make life easier for people trying to set up simulations with udp-client-server application. More...
	UdpServerHelper (uint16_t port)
	Create UdpServerHelper which will make life easier for people trying to set up simulations with udp-client-server application. More...
Ptr< UdpServer >	GetServer (void)
	Return the last created server. More...
ApplicationContainer	Install (NodeContainer c)
	Create one UDP server application on each of the Nodes in the NodeContainer. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Record an attribute to be set in each Application after it is is created. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...
Ptr< UdpServer >	m_server
	The last created server application. More...

Detailed Description

Create a server application which waits for input UDP packets and uses the information carried into their payload to compute delay and to determine if some packets are lost.

Definition at line 37 of file udp-client-server-helper.h.

Constructor & Destructor Documentation

UdpServerHelper() [1/2]

ns3::UdpServerHelper::UdpServerHelper

(

)

Create UdpServerHelper which will make life easier for people trying to set up simulations with udp-client-server application.

Definition at line 29 of file udp-client-server-helper.cc.

References ns3::UdpServer::GetTypeId(), m_factory, and ns3::ObjectFactory::SetTypeId().

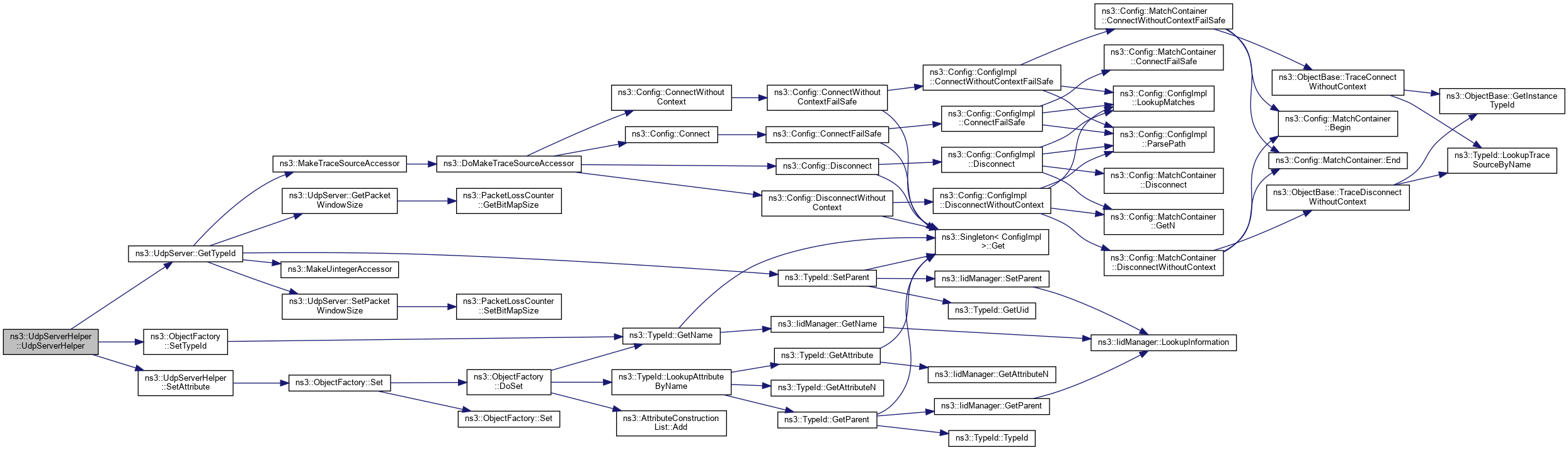

Here is the call graph for this function:

UdpServerHelper() [2/2]

ns3::UdpServerHelper::UdpServerHelper

(

uint16_t

port

)

Create UdpServerHelper which will make life easier for people trying to set up simulations with udp-client-server application.

Parameters

port	The port the server will wait on for incoming packets

Definition at line 34 of file udp-client-server-helper.cc.

References ns3::UdpServer::GetTypeId(), m_factory, port, SetAttribute(), and ns3::ObjectFactory::SetTypeId().

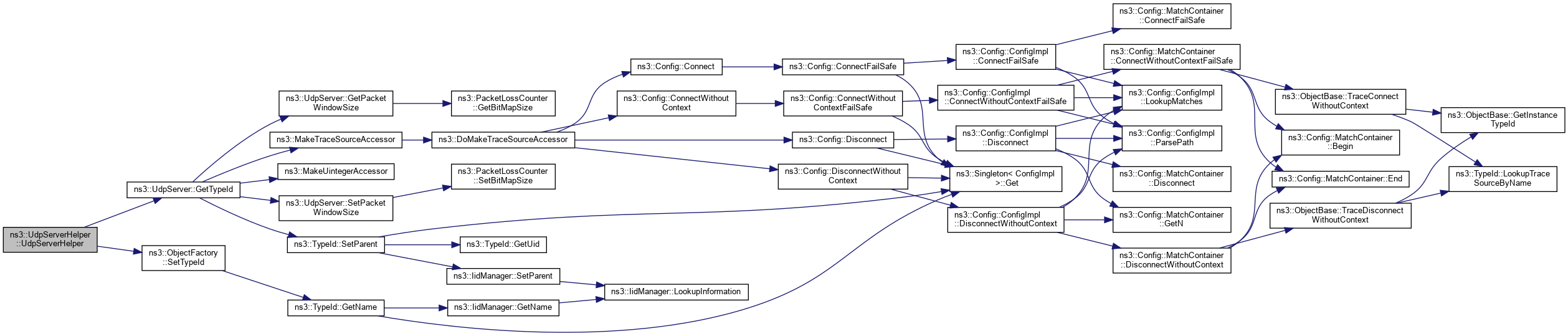

Here is the call graph for this function:

Member Function Documentation

GetServer()

Ptr< UdpServer > ns3::UdpServerHelper::GetServer

(

void

)

Return the last created server.

This function is mainly used for testing.

Returns

a Ptr to the last created server application

Definition at line 63 of file udp-client-server-helper.cc.

References m_server.

Referenced by UdpClientServerTestCase::DoRun(), and UdpTraceClientServerTestCase::DoRun().

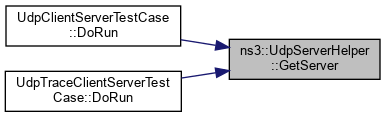

Here is the caller graph for this function:

Install()

ApplicationContainer ns3::UdpServerHelper::Install

(

NodeContainer

c

)

Create one UDP server application on each of the Nodes in the NodeContainer.

Parameters

c	The nodes on which to create the Applications. The nodes are specified by a NodeContainer.

Returns

The applications created, one Application per Node in the NodeContainer.

Definition at line 47 of file udp-client-server-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::Node::AddApplication(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), ns3::NodeContainer::End(), m_factory, and m_server.

Referenced by UdpClientServerTestCase::DoRun(), UdpTraceClientServerTestCase::DoRun(), Issue211Test::DoRun(), and Experiment::Run().

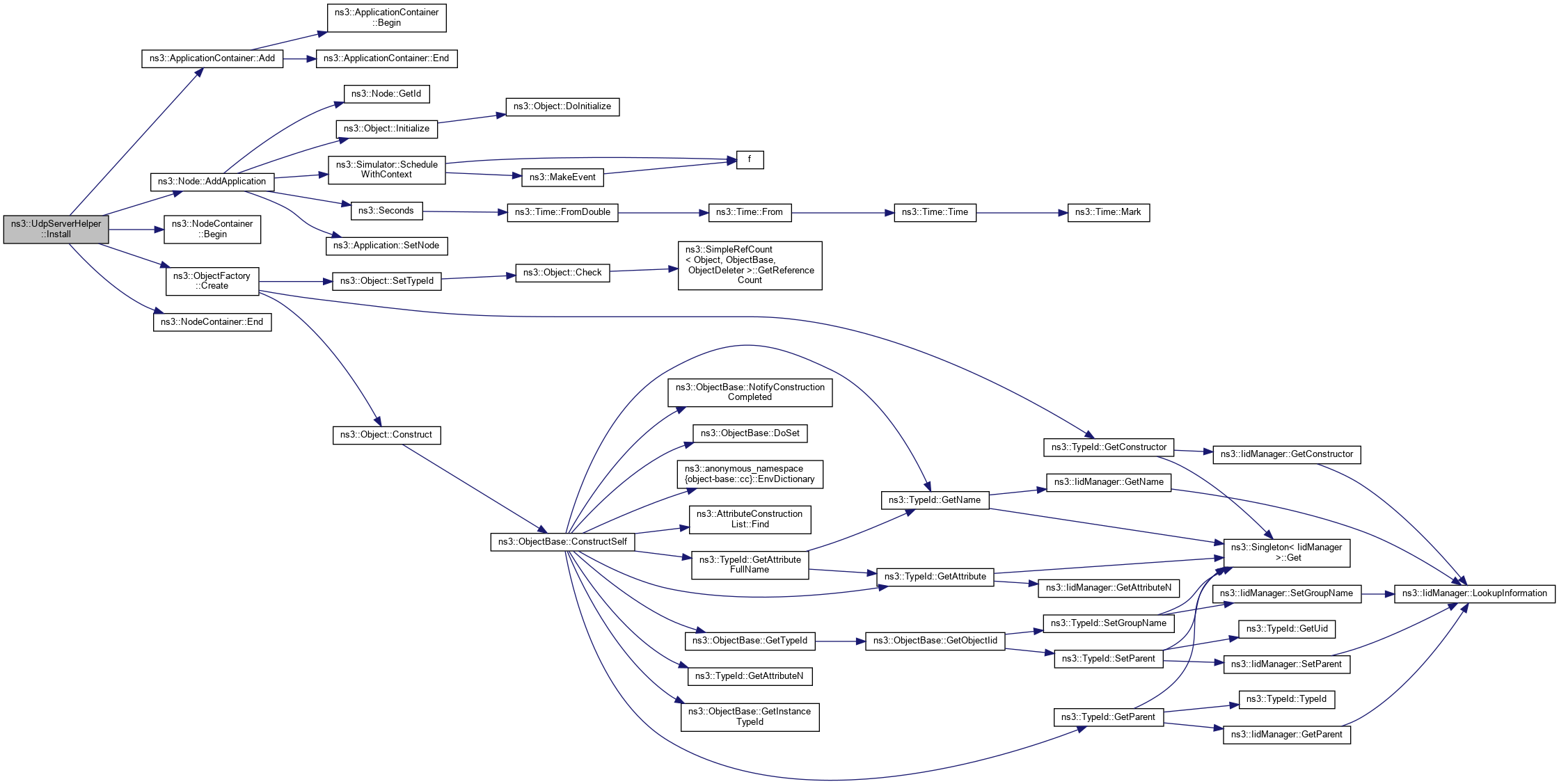

Here is the call graph for this function:

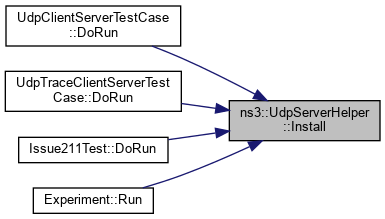

Here is the caller graph for this function:

SetAttribute()

void ns3::UdpServerHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Record an attribute to be set in each Application after it is is created.

Parameters

name	the name of the attribute to set
value	the value of the attribute to set

Definition at line 41 of file udp-client-server-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by UdpServerHelper().

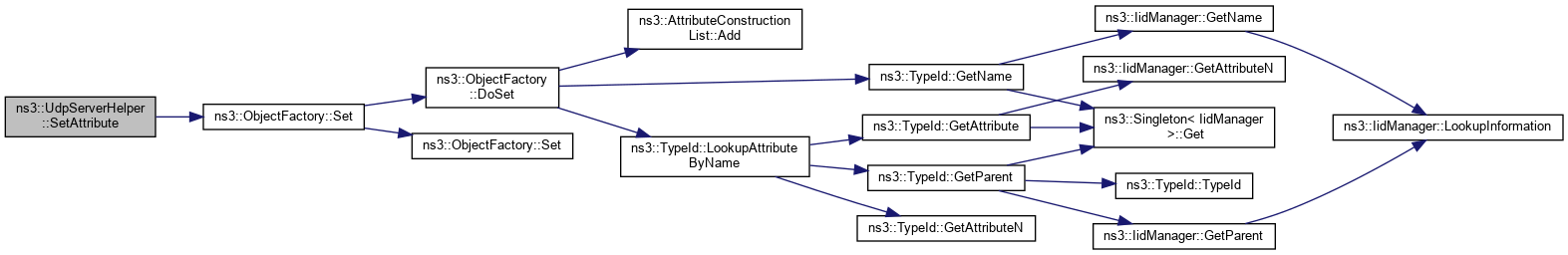

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::UdpServerHelper::m_factory

private

Object factory.

Definition at line 83 of file udp-client-server-helper.h.

Referenced by UdpServerHelper(), Install(), and SetAttribute().

m_server

Ptr<UdpServer> ns3::UdpServerHelper::m_server

private

The last created server application.

Definition at line 84 of file udp-client-server-helper.h.

Referenced by GetServer(), and Install().

---

The documentation for this class was generated from the following files:

• src/applications/helper/udp-client-server-helper.h
• src/applications/helper/udp-client-server-helper.cc
