Allocate the positions uniformly (with constant density) randomly within a disc. More...

#include "position-allocator.h"

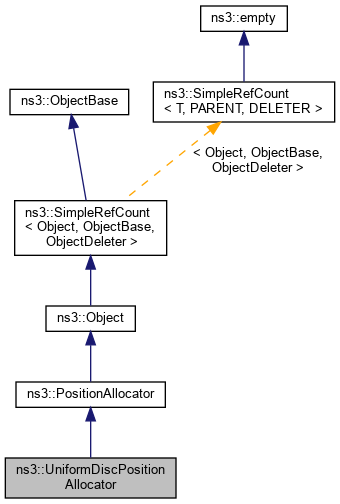

Inheritance diagram for ns3::UniformDiscPositionAllocator:

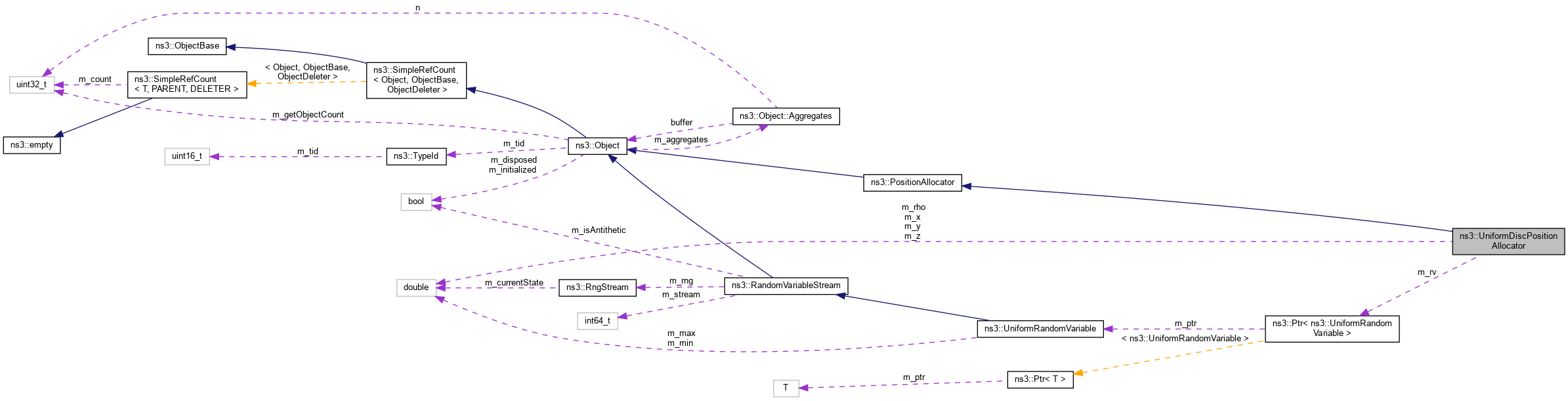

Collaboration diagram for ns3::UniformDiscPositionAllocator:

Public Member Functions
	UniformDiscPositionAllocator ()

virtual	~UniformDiscPositionAllocator ()

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual Vector	GetNext (void) const

void	SetRho (double rho)

void	SetX (double x)

void	SetY (double y)

void	SetZ (double z)

Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()

virtual	~PositionAllocator ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type with the TypeId system. More...

Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId	GetTypeId (void)
	Register this type with the TypeId system. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
double	m_rho
	value of the radius of the disc More...

Ptr< UniformRandomVariable >	m_rv
	pointer to uniform random variable More...

double	m_x
	x coordinate of center of disc More...

double	m_y
	y coordinate of center of disc More...

double	m_z
	z coordinate of the disc More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Allocate the positions uniformly (with constant density) randomly within a disc.

UniformDiscPositionAllocator allocates the positions randomly within a disc lying on the plane and having center at coordinates and radius $\rho$ . The random positions are chosen such that, for any subset $S \subset D$ , the expected value of the fraction of points which fall into $S \subset D$ corresponds to $\frac{|S|}{|D|}$ , i.e., to the ratio of the area of the subset to the area of the whole disc.

Note: using UniformDiscPositionAllocator is not equivalent to using a RandomDiscPositionAllocator with a uniformly-distributed radius, since doing that would results in a point distribution which is more dense towards the center of the disc.

Config Paths

ns3::UniformDiscPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/$ns3::MobilityModel/$ns3::RandomWaypointMobilityModel/PositionAllocator/$ns3::UniformDiscPositionAllocator"

Attributes

rho: The radius of the disc
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
X: The x coordinate of the center of the disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
Y: The y coordinate of the center of the disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
Z: The z coordinate of all the positions in the disc.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 380 of file position-allocator.h.

Constructor & Destructor Documentation

◆ UniformDiscPositionAllocator()

ns3::UniformDiscPositionAllocator::UniformDiscPositionAllocator ( )

Definition at line 561 of file position-allocator.cc.

References m_rv.

◆ ~UniformDiscPositionAllocator()

ns3::UniformDiscPositionAllocator::~UniformDiscPositionAllocator ( )

virtual

Definition at line 566 of file position-allocator.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::UniformDiscPositionAllocator::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

This method must be implement in subclasses.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 611 of file position-allocator.cc.

References m_rv, and ns3::RandomVariableStream::SetStream().

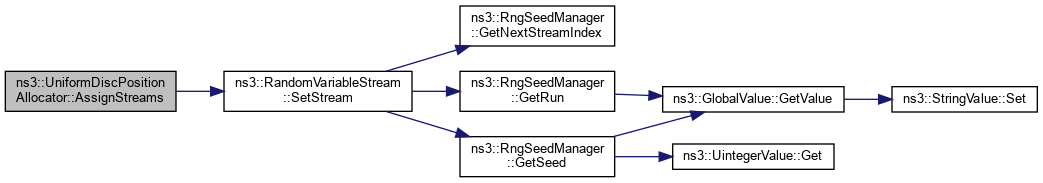

Here is the call graph for this function:

◆ GetNext()

Vector ns3::UniformDiscPositionAllocator::GetNext ( void ) const

virtual

Returns: the next chosen position.

This method must be implement in subclasses.

Implements ns3::PositionAllocator.

Definition at line 594 of file position-allocator.cc.

References ns3::UniformRandomVariable::GetValue(), m_rho, m_rv, m_x, m_y, m_z, NS_LOG_DEBUG, and sample-rng-plot::x.

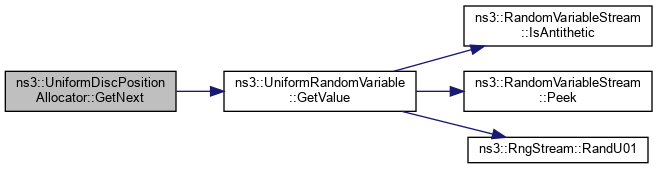

Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::UniformDiscPositionAllocator::GetTypeId ( void )

static

Register this type with the TypeId system.

Returns: the object TypeId

Definition at line 531 of file position-allocator.cc.

References m_rho, m_x, m_y, m_z, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

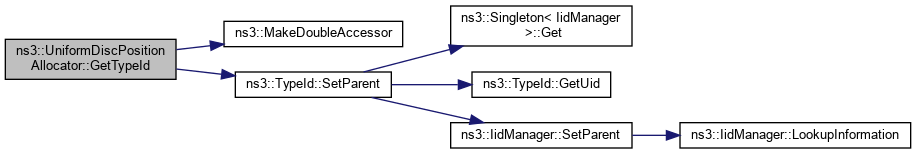

Here is the call graph for this function:

◆ SetRho()

void ns3::UniformDiscPositionAllocator::SetRho ( double rho )

Parameters

rho	the value of the radius of the disc

Definition at line 570 of file position-allocator.cc.

References m_rho.

◆ SetX()

void ns3::UniformDiscPositionAllocator::SetX ( double x )

Parameters

x	the X coordinate of the center of the disc

Definition at line 576 of file position-allocator.cc.

References m_x, and sample-rng-plot::x.

◆ SetY()

void ns3::UniformDiscPositionAllocator::SetY ( double y )

Parameters

y	the Y coordinate of the center of the disc

Definition at line 582 of file position-allocator.cc.

References m_y.

◆ SetZ()

void ns3::UniformDiscPositionAllocator::SetZ ( double z )

Parameters

z	the Z coordinate of all the positions allocated

Definition at line 588 of file position-allocator.cc.

References m_z.

Member Data Documentation

◆ m_rho

double ns3::UniformDiscPositionAllocator::m_rho

private

value of the radius of the disc

Definition at line 416 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetRho().

◆ m_rv

Ptr<UniformRandomVariable> ns3::UniformDiscPositionAllocator::m_rv

private

pointer to uniform random variable

Definition at line 415 of file position-allocator.h.

Referenced by UniformDiscPositionAllocator(), AssignStreams(), and GetNext().

◆ m_x

double ns3::UniformDiscPositionAllocator::m_x

private

x coordinate of center of disc

Definition at line 417 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetX().

◆ m_y

double ns3::UniformDiscPositionAllocator::m_y

private

y coordinate of center of disc

Definition at line 418 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetY().

◆ m_z

double ns3::UniformDiscPositionAllocator::m_z

private

z coordinate of the disc

Definition at line 419 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetZ().

The documentation for this class was generated from the following files:

src/mobility/model/position-allocator.h
src/mobility/model/position-allocator.cc
