VHT PHY header (VHT-SIG-A1/A2/B). More...

#include "vht-ppdu.h"

Inheritance diagram for ns3::VhtPpdu::VhtSigHeader:

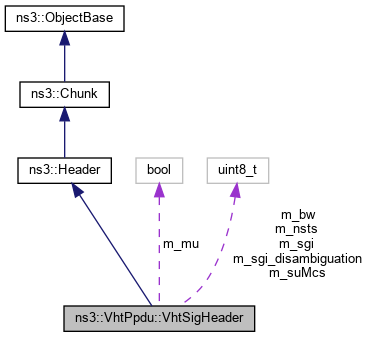

Collaboration diagram for ns3::VhtPpdu::VhtSigHeader:

Public Member Functions
	VhtSigHeader ()

virtual	~VhtSigHeader ()

uint32_t	Deserialize (Buffer::Iterator start) override

uint16_t	GetChannelWidth (void) const
	Return the channel width (in MHz). More...

TypeId	GetInstanceTypeId (void) const override
	Get the most derived TypeId for this Object. More...

uint8_t	GetNStreams (void) const
	Return the number of streams. More...

uint32_t	GetSerializedSize (void) const override

bool	GetShortGuardInterval (void) const
	Return the short GI field of VHT-SIG-A2. More...

bool	GetShortGuardIntervalDisambiguation (void) const
	Return the short GI NSYM disambiguation field of VHT-SIG-A2. More...

uint8_t	GetSuMcs (void) const
	Return the SU VHT MCS field of VHT-SIG-A2. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetChannelWidth (uint16_t channelWidth)
	Fill the channel width field of VHT-SIG-A1 (in MHz). More...

void	SetMuFlag (bool mu)
	Set the Multi-User (MU) flag. More...

void	SetNStreams (uint8_t nStreams)
	Fill the number of streams field of VHT-SIG-A1. More...

void	SetShortGuardInterval (bool sgi)
	Fill the short guard interval field of VHT-SIG-A2. More...

void	SetShortGuardIntervalDisambiguation (bool disambiguation)
	Fill the short GI NSYM disambiguation field of VHT-SIG-A2. More...

void	SetSuMcs (uint8_t mcs)
	Fill the SU VHT MCS field of VHT-SIG-A2. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_bw
	BW. More...

bool	m_mu
	This is used to decide whether MU SIG-B should be added or not. More...

uint8_t	m_nsts
	NSTS. More...

uint8_t	m_sgi
	Short GI. More...

uint8_t	m_sgi_disambiguation
	Short GI NSYM Disambiguation. More...

uint8_t	m_suMcs
	SU VHT MCS. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

VHT PHY header (VHT-SIG-A1/A2/B).

See section 21.3.8 in IEEE 802.11-2016.

Definition at line 52 of file vht-ppdu.h.

Constructor & Destructor Documentation

◆ VhtSigHeader()

ns3::VhtPpdu::VhtSigHeader::VhtSigHeader ( )

Definition at line 98 of file vht-ppdu.cc.

◆ ~VhtSigHeader()

ns3::VhtPpdu::VhtSigHeader::~VhtSigHeader ( )

virtual

Definition at line 108 of file vht-ppdu.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::VhtPpdu::VhtSigHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 277 of file vht-ppdu.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

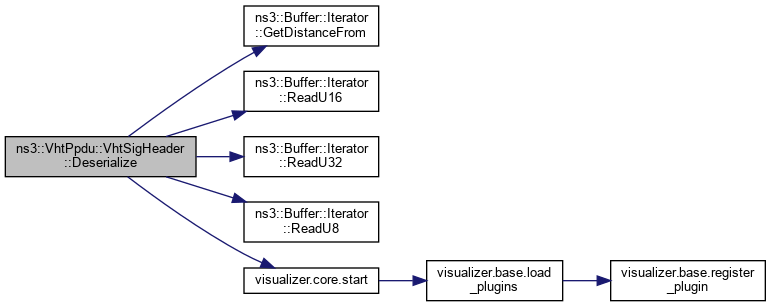

Here is the call graph for this function:

◆ GetChannelWidth()

uint16_t ns3::VhtPpdu::VhtSigHeader::GetChannelWidth ( void ) const

Return the channel width (in MHz).

Returns: the channel width (in MHz)

Definition at line 180 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::DoGetTxVector().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::VhtPpdu::VhtSigHeader::GetInstanceTypeId ( void ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 124 of file vht-ppdu.cc.

◆ GetNStreams()

uint8_t ns3::VhtPpdu::VhtSigHeader::GetNStreams ( void ) const

Return the number of streams.

Returns: the number of streams

Definition at line 208 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::DoGetTxVector().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::VhtPpdu::VhtSigHeader::GetSerializedSize ( void ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 140 of file vht-ppdu.cc.

◆ GetShortGuardInterval()

bool ns3::VhtPpdu::VhtSigHeader::GetShortGuardInterval ( void ) const

Return the short GI field of VHT-SIG-A2.

Returns: the short GI field of VHT-SIG-A2

Definition at line 220 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::DoGetTxVector(), and ns3::VhtPpdu::GetTxDuration().

Here is the caller graph for this function:

◆ GetShortGuardIntervalDisambiguation()

bool ns3::VhtPpdu::VhtSigHeader::GetShortGuardIntervalDisambiguation ( void ) const

Return the short GI NSYM disambiguation field of VHT-SIG-A2.

Returns: the short GI NSYM disambiguation field of VHT-SIG-A2

Definition at line 232 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::GetTxDuration().

Here is the caller graph for this function:

◆ GetSuMcs()

uint8_t ns3::VhtPpdu::VhtSigHeader::GetSuMcs ( void ) const

Return the SU VHT MCS field of VHT-SIG-A2.

Returns: the SU VHT MCS field of VHT-SIG-A2

Definition at line 245 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::DoGetTxVector().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::VhtPpdu::VhtSigHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 113 of file vht-ppdu.cc.

References ns3::TypeId::SetParent().

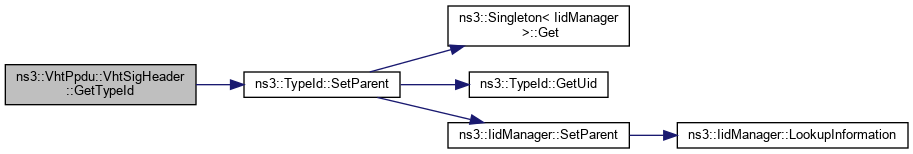

Here is the call graph for this function:

◆ Print()

void ns3::VhtPpdu::VhtSigHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 130 of file vht-ppdu.cc.

◆ Serialize()

void ns3::VhtPpdu::VhtSigHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 251 of file vht-ppdu.cc.

References visualizer.core::start().

Here is the call graph for this function:

◆ SetChannelWidth()

void ns3::VhtPpdu::VhtSigHeader::SetChannelWidth ( uint16_t channelWidth )

Fill the channel width field of VHT-SIG-A1 (in MHz).

Parameters

channelWidth the channel width (in MHz)

Definition at line 159 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::VhtPpdu().

Here is the caller graph for this function:

◆ SetMuFlag()

void ns3::VhtPpdu::VhtSigHeader::SetMuFlag ( bool mu )

Set the Multi-User (MU) flag.

Parameters

mu	the MU flag

Definition at line 153 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::VhtPpdu().

Here is the caller graph for this function:

◆ SetNStreams()

void ns3::VhtPpdu::VhtSigHeader::SetNStreams ( uint8_t nStreams )

Fill the number of streams field of VHT-SIG-A1.

Parameters

nStreams the number of streams

Definition at line 201 of file vht-ppdu.cc.

References NS_ASSERT.

Referenced by ns3::VhtPpdu::VhtPpdu().

Here is the caller graph for this function:

◆ SetShortGuardInterval()

void ns3::VhtPpdu::VhtSigHeader::SetShortGuardInterval ( bool sgi )

Fill the short guard interval field of VHT-SIG-A2.

Parameters

sgi	whether short guard interval is used or not

Definition at line 214 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::VhtPpdu().

Here is the caller graph for this function:

◆ SetShortGuardIntervalDisambiguation()

void ns3::VhtPpdu::VhtSigHeader::SetShortGuardIntervalDisambiguation ( bool disambiguation )

Fill the short GI NSYM disambiguation field of VHT-SIG-A2.

Parameters

disambiguation whether short GI NSYM disambiguation is set or not

Definition at line 226 of file vht-ppdu.cc.

Referenced by ns3::VhtPpdu::VhtPpdu().

Here is the caller graph for this function:

◆ SetSuMcs()

void ns3::VhtPpdu::VhtSigHeader::SetSuMcs ( uint8_t mcs )

Fill the SU VHT MCS field of VHT-SIG-A2.

Parameters

mcs	the SU VHT MCS field of VHT-SIG-A2

Definition at line 238 of file vht-ppdu.cc.

References NS_ASSERT.

Referenced by ns3::VhtPpdu::VhtPpdu().

Here is the caller graph for this function:

Member Data Documentation

◆ m_bw

uint8_t ns3::VhtPpdu::VhtSigHeader::m_bw

private

BW.

Definition at line 141 of file vht-ppdu.h.

◆ m_mu

bool ns3::VhtPpdu::VhtSigHeader::m_mu

private

This is used to decide whether MU SIG-B should be added or not.

Definition at line 150 of file vht-ppdu.h.

◆ m_nsts

uint8_t ns3::VhtPpdu::VhtSigHeader::m_nsts

private

NSTS.

Definition at line 142 of file vht-ppdu.h.

◆ m_sgi

uint8_t ns3::VhtPpdu::VhtSigHeader::m_sgi

private

Short GI.

Definition at line 145 of file vht-ppdu.h.

◆ m_sgi_disambiguation

uint8_t ns3::VhtPpdu::VhtSigHeader::m_sgi_disambiguation

private

Short GI NSYM Disambiguation.

Definition at line 146 of file vht-ppdu.h.

◆ m_suMcs

uint8_t ns3::VhtPpdu::VhtSigHeader::m_suMcs

private

SU VHT MCS.

Definition at line 147 of file vht-ppdu.h.

The documentation for this class was generated from the following files:

src/wifi/model/vht/vht-ppdu.h
src/wifi/model/vht/vht-ppdu.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ VhtSigHeader()

◆ ~VhtSigHeader()

Member Function Documentation

◆ Deserialize()

◆ GetChannelWidth()

◆ GetInstanceTypeId()

◆ GetNStreams()

◆ GetSerializedSize()

◆ GetShortGuardInterval()

◆ GetShortGuardIntervalDisambiguation()

◆ GetSuMcs()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetChannelWidth()

◆ SetMuFlag()

◆ SetNStreams()

◆ SetShortGuardInterval()

◆ SetShortGuardIntervalDisambiguation()

◆ SetSuMcs()

Member Data Documentation

◆ m_bw

◆ m_mu

◆ m_nsts

◆ m_sgi

◆ m_sgi_disambiguation

◆ m_suMcs
