ns3::WifiRemoteStationInfo Class Reference

TID independent remote station statistics. More...

#include "wifi-remote-station-info.h"

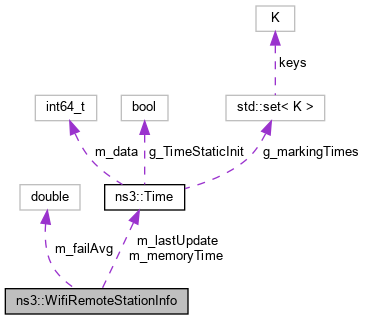

Collaboration diagram for ns3::WifiRemoteStationInfo:

Public Member Functions
	WifiRemoteStationInfo ()
virtual	~WifiRemoteStationInfo ()
double	GetFrameErrorRate () const
	Return frame error rate (probability that frame is corrupted due to transmission error). More...
void	NotifyTxFailed ()
	Updates average frame error rate when final data or RTS has failed. More...
void	NotifyTxSuccess (uint32_t retryCounter)
	Updates average frame error rate when data or RTS was transmitted successfully. More...

Private Member Functions
double	CalculateAveragingCoefficient ()
	Calculate averaging coefficient for frame error rate. More...

Private Attributes
double	m_failAvg
	moving percentage of failed frames More...
Time	m_lastUpdate
	when last update has occurred More...
Time	m_memoryTime
	averaging coefficient depends on the memory time More...

Detailed Description

TID independent remote station statistics.

Structure is similar to struct sta_info in Linux kernel (see net/mac80211/sta_info.h)

Definition at line 35 of file wifi-remote-station-info.h.

Constructor & Destructor Documentation

WifiRemoteStationInfo()

ns3::WifiRemoteStationInfo::WifiRemoteStationInfo

(

)

Definition at line 26 of file wifi-remote-station-info.cc.

~WifiRemoteStationInfo()

ns3::WifiRemoteStationInfo::~WifiRemoteStationInfo ( )

virtual

Definition at line 33 of file wifi-remote-station-info.cc.

Member Function Documentation

CalculateAveragingCoefficient()

double ns3::WifiRemoteStationInfo::CalculateAveragingCoefficient ( )

private

Calculate averaging coefficient for frame error rate.

Depends on time of the last update.

Attention

Calling this method twice gives different results, because it resets time of last update.

Returns

average coefficient for frame error rate

Definition at line 38 of file wifi-remote-station-info.cc.

References m_lastUpdate, m_memoryTime, ns3::Now(), and ns3::Simulator::Now().

Referenced by NotifyTxFailed(), and NotifyTxSuccess().

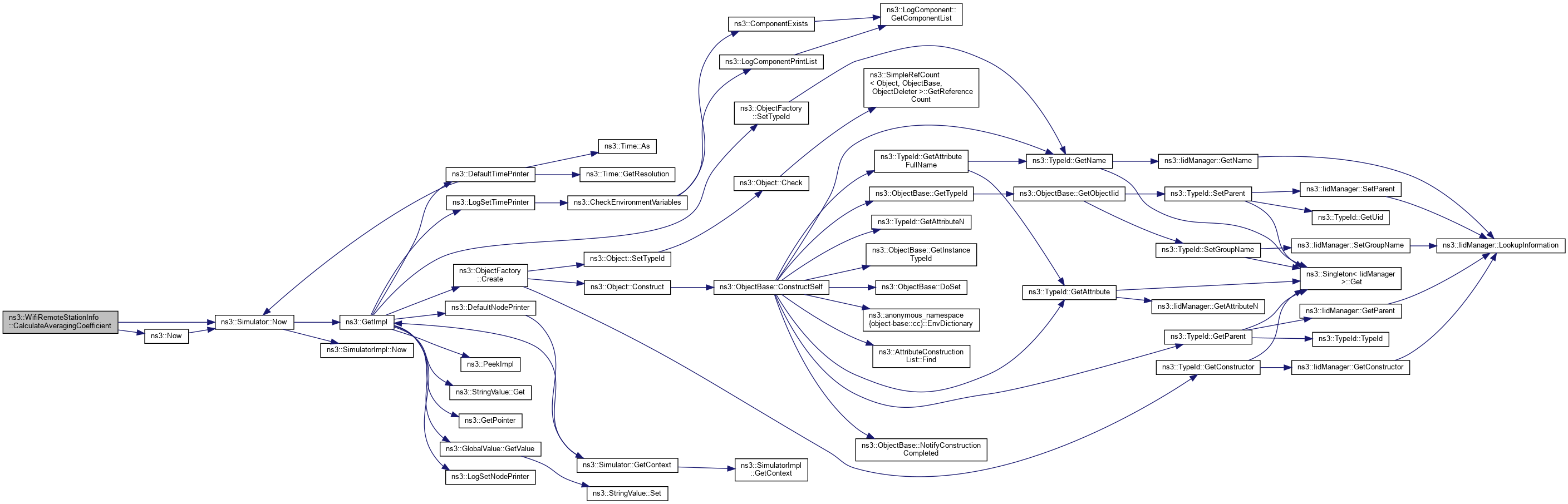

Here is the call graph for this function:

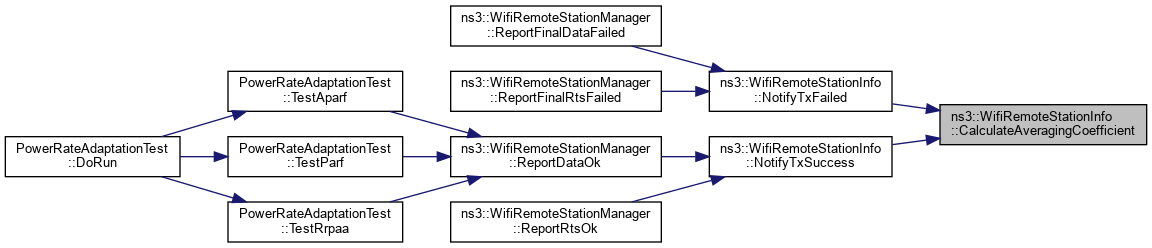

Here is the caller graph for this function:

GetFrameErrorRate()

double ns3::WifiRemoteStationInfo::GetFrameErrorRate

(

)

const

Return frame error rate (probability that frame is corrupted due to transmission error).

Returns

the frame error rate

Definition at line 60 of file wifi-remote-station-info.cc.

References m_failAvg.

NotifyTxFailed()

void ns3::WifiRemoteStationInfo::NotifyTxFailed

(

)

Updates average frame error rate when final data or RTS has failed.

Definition at line 53 of file wifi-remote-station-info.cc.

References CalculateAveragingCoefficient(), and m_failAvg.

Referenced by ns3::WifiRemoteStationManager::ReportFinalDataFailed(), and ns3::WifiRemoteStationManager::ReportFinalRtsFailed().

Here is the call graph for this function:

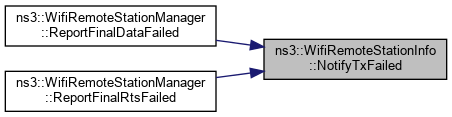

Here is the caller graph for this function:

NotifyTxSuccess()

void ns3::WifiRemoteStationInfo::NotifyTxSuccess

(

uint32_t

retryCounter

)

Updates average frame error rate when data or RTS was transmitted successfully.

Parameters

retryCounter

is SLRC or SSRC value at the moment of success transmission.

Definition at line 46 of file wifi-remote-station-info.cc.

References CalculateAveragingCoefficient(), and m_failAvg.

Referenced by ns3::WifiRemoteStationManager::ReportDataOk(), and ns3::WifiRemoteStationManager::ReportRtsOk().

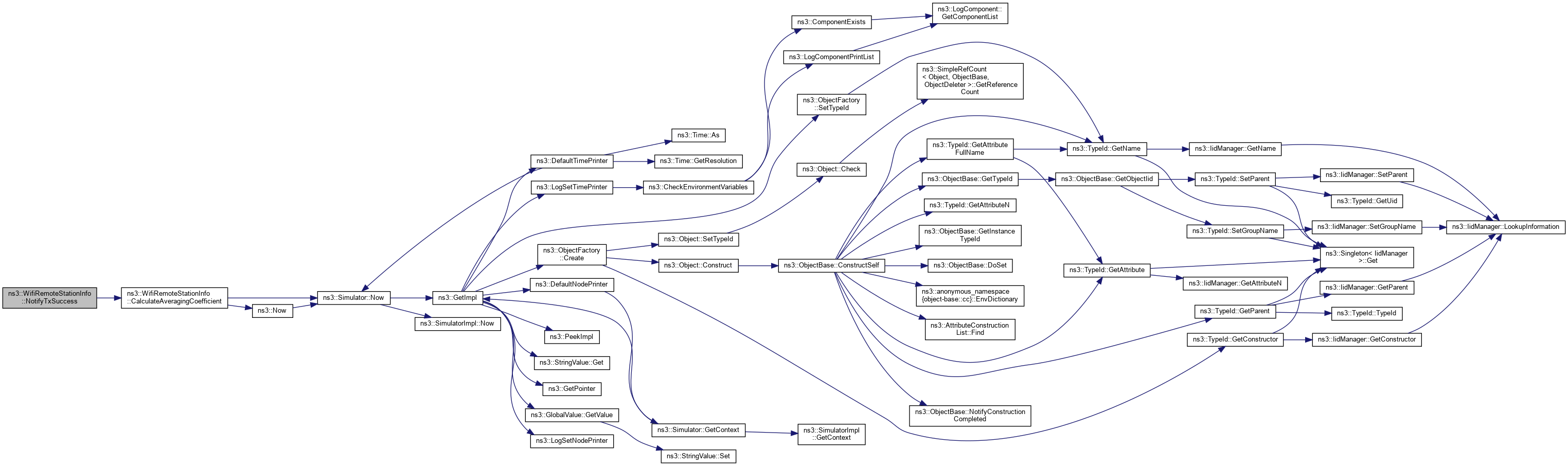

Here is the call graph for this function:

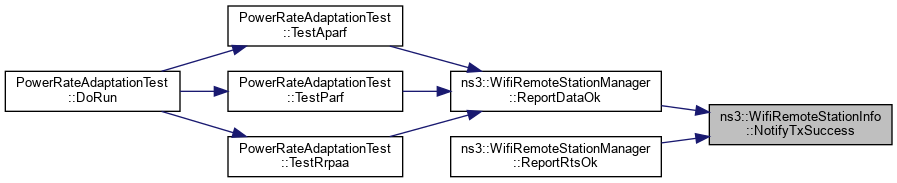

Here is the caller graph for this function:

Member Data Documentation

m_failAvg

double ns3::WifiRemoteStationInfo::m_failAvg

private

moving percentage of failed frames

Definition at line 69 of file wifi-remote-station-info.h.

Referenced by GetFrameErrorRate(), NotifyTxFailed(), and NotifyTxSuccess().

m_lastUpdate

Time ns3::WifiRemoteStationInfo::m_lastUpdate

private

when last update has occurred

Definition at line 68 of file wifi-remote-station-info.h.

Referenced by CalculateAveragingCoefficient().

m_memoryTime

Time ns3::WifiRemoteStationInfo::m_memoryTime

private

averaging coefficient depends on the memory time

Definition at line 67 of file wifi-remote-station-info.h.

Referenced by CalculateAveragingCoefficient().

---

The documentation for this class was generated from the following files:

• src/wifi/model/wifi-remote-station-info.h
• src/wifi/model/wifi-remote-station-info.cc
