The Routing table used by DSDV protocol. More...

#include "dsdv-rtable.h"

Collaboration diagram for ns3::dsdv::RoutingTable:

Public Member Functions
	RoutingTable ()
	c-tor More...

bool	AddIpv4Event (Ipv4Address address, EventId id)
	Add an event for a destination address so that the update to for that destination is sent after the event is completed. More...

bool	AddRoute (RoutingTableEntry &r)
	Add routing table entry if it doesn't yet exist in routing table. More...

bool	AnyRunningEvent (Ipv4Address address)
	Force delete an update waiting for settling time to complete as a better update to same destination was received. More...

void	Clear ()
	Delete all entries from routing table. More...

void	DeleteAllRoutesFromInterface (Ipv4InterfaceAddress iface)
	Delete all route from interface with address iface. More...

bool	DeleteIpv4Event (Ipv4Address address)
	Clear up the entry from the map after the event is completed. More...

bool	DeleteRoute (Ipv4Address dst)
	Delete routing table entry with destination address dst, if it exists. More...

bool	ForceDeleteIpv4Event (Ipv4Address address)
	Force delete an update waiting for settling time to complete as a better update to same destination was received. More...

EventId	GetEventId (Ipv4Address address)
	Get the EcentId associated with that address. More...

Time	Getholddowntime () const
	Get hold down time (time until an invalid route may be deleted) More...

void	GetListOfAllRoutes (std::map< Ipv4Address, RoutingTableEntry > &allRoutes)
	Lookup list of all addresses in the routing table. More...

void	GetListOfDestinationWithNextHop (Ipv4Address nxtHp, std::map< Ipv4Address, RoutingTableEntry > &dstList)
	Lookup list of addresses for which nxtHp is the next Hop address. More...

bool	LookupRoute (Ipv4Address dst, RoutingTableEntry &rt)
	Lookup routing table entry with destination address dst. More...

bool	LookupRoute (Ipv4Address id, RoutingTableEntry &rt, bool forRouteInput)
	Lookup routing table entry with destination address dst. More...

void	Print (Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S) const
	Print routing table. More...

void	Purge (std::map< Ipv4Address, RoutingTableEntry > &removedAddresses)
	Delete all outdated entries if Lifetime is expired. More...

uint32_t	RoutingTableSize ()
	Provides the number of routes present in that nodes routing table. More...

void	Setholddowntime (Time t)
	Set hold down time (time until an invalid route may be deleted) More...

bool	Update (RoutingTableEntry &rt)
	Updating the routing Table with routing table entry rt. More...

Private Attributes
Time	m_holddownTime
	hold down time of an expired route More...

std::map< Ipv4Address, RoutingTableEntry >	m_ipv4AddressEntry
	an entry in the routing table. More...

std::map< Ipv4Address, EventId >	m_ipv4Events
	an entry in the event table. More...

Detailed Description

The Routing table used by DSDV protocol.

Definition at line 320 of file dsdv-rtable.h.

Constructor & Destructor Documentation

◆ RoutingTable()

ns3::dsdv::RoutingTable::RoutingTable ( )

c-tor

Definition at line 67 of file dsdv-rtable.cc.

Member Function Documentation

◆ AddIpv4Event()

bool ns3::dsdv::RoutingTable::AddIpv4Event	(	Ipv4Address	address,
		EventId	id
	)

Add an event for a destination address so that the update to for that destination is sent after the event is completed.

Parameters

address	destination address for which this event is running.
id	unique eventid that was generated.

Returns: true on success

Definition at line 298 of file dsdv-rtable.cc.

References first::address, m_ipv4Events, and test-ns3::result.

Referenced by ns3::dsdv::RoutingProtocol::RecvDsdv().

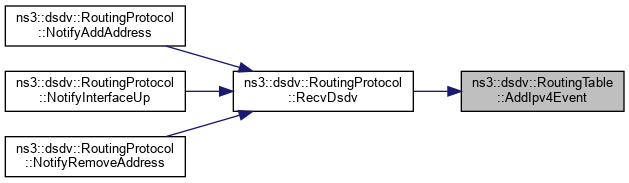

Here is the caller graph for this function:

◆ AddRoute()

bool ns3::dsdv::RoutingTable::AddRoute ( RoutingTableEntry & r )

Add routing table entry if it doesn't yet exist in routing table.

Parameters

r	routing table entry

Returns: true in success

Definition at line 128 of file dsdv-rtable.cc.

References ns3::dsdv::RoutingTableEntry::GetDestination(), m_ipv4AddressEntry, and test-ns3::result.

Referenced by DsdvTableTestCase::DoRun(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::dsdv::RoutingProtocol::RouteOutput(), and ns3::dsdv::RoutingProtocol::SetIpv4().

Here is the call graph for this function:

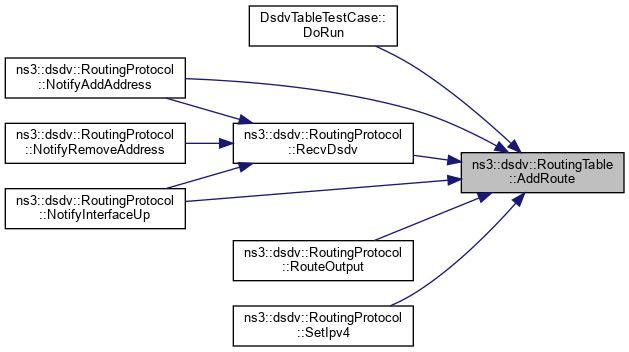

Here is the caller graph for this function:

◆ AnyRunningEvent()

bool ns3::dsdv::RoutingTable::AnyRunningEvent ( Ipv4Address address )

Force delete an update waiting for settling time to complete as a better update to same destination was received.

Parameters

address destination address for which this event is running.

Returns: true on success

Definition at line 306 of file dsdv-rtable.cc.

References first::address, ns3::EventId::IsRunning(), and m_ipv4Events.

Referenced by ns3::dsdv::RoutingProtocol::MergeTriggerPeriodicUpdates(), ns3::dsdv::RoutingProtocol::RecvDsdv(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Clear()

void ns3::dsdv::RoutingTable::Clear ( void )

inline

Delete all entries from routing table.

Definition at line 384 of file dsdv-rtable.h.

References m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::NotifyInterfaceDown().

Here is the caller graph for this function:

◆ DeleteAllRoutesFromInterface()

void ns3::dsdv::RoutingTable::DeleteAllRoutesFromInterface ( Ipv4InterfaceAddress iface )

Delete all route from interface with address iface.

Parameters

iface the interface

Definition at line 148 of file dsdv-rtable.cc.

References m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::NotifyInterfaceDown().

Here is the caller graph for this function:

◆ DeleteIpv4Event()

bool ns3::dsdv::RoutingTable::DeleteIpv4Event ( Ipv4Address address )

Clear up the entry from the map after the event is completed.

Parameters

address destination address for which this event is running.

Returns: true on success

Definition at line 345 of file dsdv-rtable.cc.

References first::address, ns3::EventId::IsExpired(), ns3::EventId::IsRunning(), and m_ipv4Events.

Referenced by ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeleteRoute()

bool ns3::dsdv::RoutingTable::DeleteRoute ( Ipv4Address dst )

Delete routing table entry with destination address dst, if it exists.

Parameters

dst	destination address

Returns: true on success

Definition at line 111 of file dsdv-rtable.cc.

References m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::MergeTriggerPeriodicUpdates(), ns3::dsdv::RoutingProtocol::RecvDsdv(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

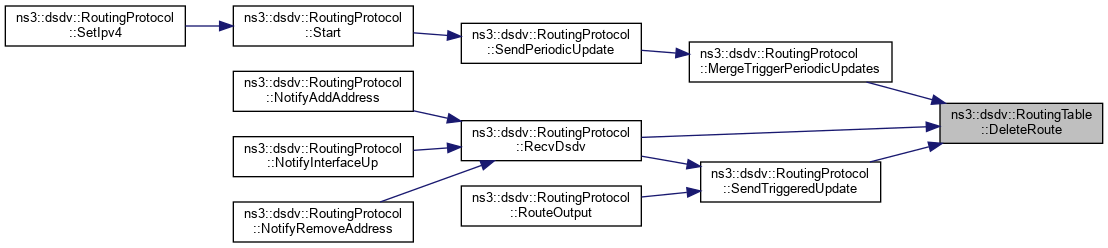

Here is the caller graph for this function:

◆ ForceDeleteIpv4Event()

bool ns3::dsdv::RoutingTable::ForceDeleteIpv4Event ( Ipv4Address address )

Force delete an update waiting for settling time to complete as a better update to same destination was received.

Parameters

address destination address for which this event is running.

Returns: true on finding out that an event is already running for that destination address.

Definition at line 330 of file dsdv-rtable.cc.

References first::address, ns3::Simulator::Cancel(), and m_ipv4Events.

Referenced by ns3::dsdv::RoutingProtocol::RecvDsdv().

Here is the call graph for this function:

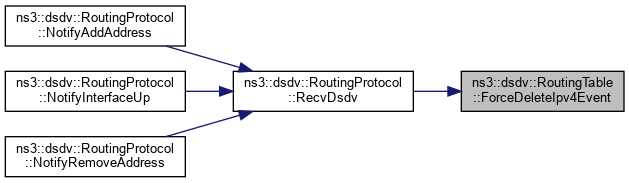

Here is the caller graph for this function:

◆ GetEventId()

EventId ns3::dsdv::RoutingTable::GetEventId ( Ipv4Address address )

Get the EcentId associated with that address.

Parameters

address destination address for which this event is running.

Returns: EventId on finding out an event is associated else return NULL.

Definition at line 372 of file dsdv-rtable.cc.

References first::address, and m_ipv4Events.

Referenced by ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

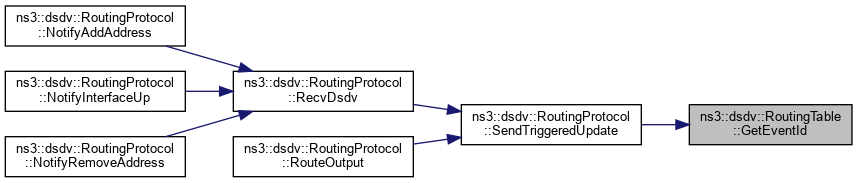

Here is the caller graph for this function:

◆ Getholddowntime()

Time ns3::dsdv::RoutingTable::Getholddowntime ( ) const

inline

Get hold down time (time until an invalid route may be deleted)

Returns: the hold down time

Definition at line 451 of file dsdv-rtable.h.

References m_holddownTime.

◆ GetListOfAllRoutes()

void ns3::dsdv::RoutingTable::GetListOfAllRoutes ( std::map< Ipv4Address, RoutingTableEntry > & allRoutes )

Lookup list of all addresses in the routing table.

Parameters

allRoutes is the list that will hold all these addresses present in the nodes routing table

Definition at line 170 of file dsdv-rtable.cc.

References m_ipv4AddressEntry, and ns3::dsdv::VALID.

Referenced by ns3::dsdv::RoutingProtocol::LookForQueuedPackets(), ns3::dsdv::RoutingProtocol::MergeTriggerPeriodicUpdates(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

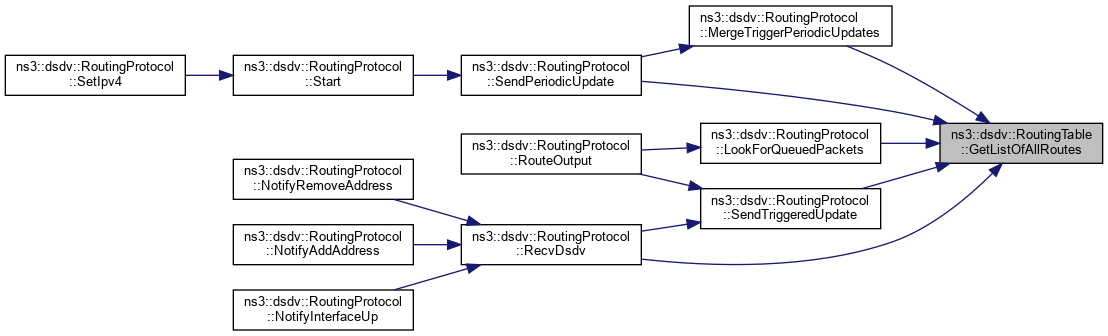

Here is the caller graph for this function:

◆ GetListOfDestinationWithNextHop()

void ns3::dsdv::RoutingTable::GetListOfDestinationWithNextHop	(	Ipv4Address	nxtHp,
		std::map< Ipv4Address, RoutingTableEntry > &	dstList
	)

Lookup list of addresses for which nxtHp is the next Hop address.

Parameters

nxtHp	nexthop's address for which we want the list of destinations
dstList	is the list that will hold all these destination addresses

Definition at line 183 of file dsdv-rtable.cc.

References m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::RecvDsdv().

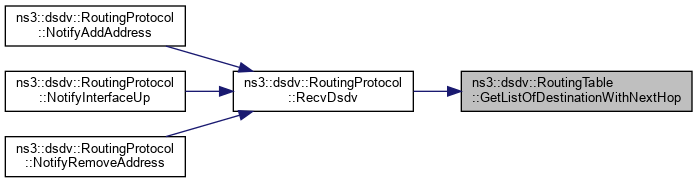

Here is the caller graph for this function:

◆ LookupRoute() [1/2]

bool ns3::dsdv::RoutingTable::LookupRoute	(	Ipv4Address	dst,
		RoutingTableEntry &	rt
	)

Lookup routing table entry with destination address dst.

Parameters

dst	destination address
rt	entry with destination address dst, if exists

Returns: true on success

Definition at line 72 of file dsdv-rtable.cc.

References m_ipv4AddressEntry.

Referenced by DsdvTableTestCase::DoRun(), ns3::dsdv::RoutingProtocol::GetSettlingTime(), ns3::dsdv::RoutingProtocol::LookForQueuedPackets(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

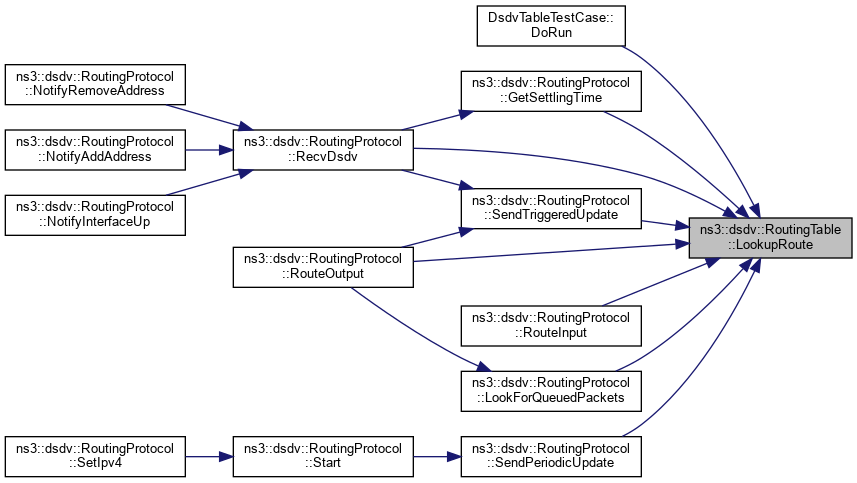

Here is the caller graph for this function:

◆ LookupRoute() [2/2]

bool ns3::dsdv::RoutingTable::LookupRoute	(	Ipv4Address	id,
		RoutingTableEntry &	rt,
		bool	forRouteInput
	)

Lookup routing table entry with destination address dst.

Parameters

id	destination address
rt	entry with destination address dst, if exists
forRouteInput	for routing input

Returns: true on success

Definition at line 89 of file dsdv-rtable.cc.

References m_ipv4AddressEntry.

◆ Print()

void ns3::dsdv::RoutingTable::Print	(	Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = `Time::S`
	)		const

Print routing table.

Parameters

stream	the output stream
unit	the Time unit

Definition at line 270 of file dsdv-rtable.cc.

References ns3::OutputStreamWrapper::GetStream(), and m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::PrintRoutingTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Purge()

void ns3::dsdv::RoutingTable::Purge ( std::map< Ipv4Address, RoutingTableEntry > & removedAddresses )

Delete all outdated entries if Lifetime is expired.

Parameters

removedAddresses is the list of addresses to purge

Todo:: Need to decide when to invalidate a route

Definition at line 226 of file dsdv-rtable.cc.

References m_holddownTime, and m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::RouteOutput(), and ns3::dsdv::RoutingProtocol::SendPeriodicUpdate().

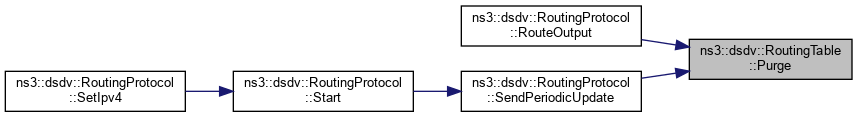

Here is the caller graph for this function:

◆ RoutingTableSize()

uint32_t ns3::dsdv::RoutingTable::RoutingTableSize ( )

Provides the number of routes present in that nodes routing table.

Returns: the number of routes

Definition at line 122 of file dsdv-rtable.cc.

References m_ipv4AddressEntry.

Referenced by DsdvTableTestCase::DoRun().

Here is the caller graph for this function:

◆ Setholddowntime()

void ns3::dsdv::RoutingTable::Setholddowntime ( Time t )

inline

Set hold down time (time until an invalid route may be deleted)

Parameters

t	the hold down time

Definition at line 459 of file dsdv-rtable.h.

References m_holddownTime.

Referenced by ns3::dsdv::RoutingProtocol::Start().

Here is the caller graph for this function:

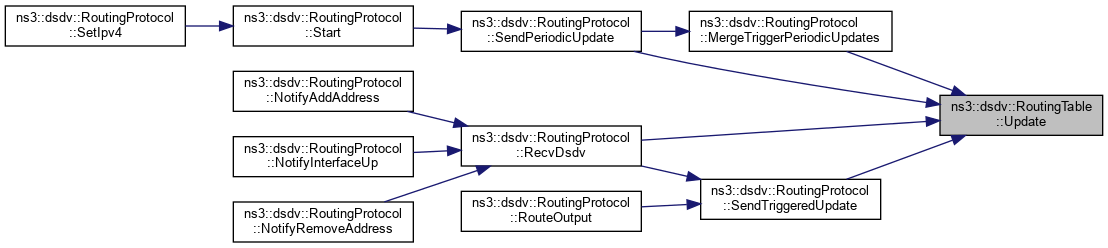

◆ Update()

bool ns3::dsdv::RoutingTable::Update ( RoutingTableEntry & rt )

Updating the routing Table with routing table entry rt.

Parameters

rt	routing table entry

Returns: true on success

Definition at line 136 of file dsdv-rtable.cc.

References ns3::dsdv::RoutingTableEntry::GetDestination(), and m_ipv4AddressEntry.

Referenced by ns3::dsdv::RoutingProtocol::MergeTriggerPeriodicUpdates(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::dsdv::RoutingProtocol::SendPeriodicUpdate(), and ns3::dsdv::RoutingProtocol::SendTriggeredUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_holddownTime

Time ns3::dsdv::RoutingTable::m_holddownTime

private

hold down time of an expired route

Definition at line 471 of file dsdv-rtable.h.

Referenced by Getholddowntime(), Purge(), and Setholddowntime().

◆ m_ipv4AddressEntry

std::map<Ipv4Address, RoutingTableEntry> ns3::dsdv::RoutingTable::m_ipv4AddressEntry

private

an entry in the routing table.

Definition at line 467 of file dsdv-rtable.h.

Referenced by AddRoute(), Clear(), DeleteAllRoutesFromInterface(), DeleteRoute(), GetListOfAllRoutes(), GetListOfDestinationWithNextHop(), LookupRoute(), Print(), Purge(), RoutingTableSize(), and Update().

◆ m_ipv4Events

std::map<Ipv4Address, EventId> ns3::dsdv::RoutingTable::m_ipv4Events

private

an entry in the event table.

Definition at line 469 of file dsdv-rtable.h.

Referenced by AddIpv4Event(), AnyRunningEvent(), DeleteIpv4Event(), ForceDeleteIpv4Event(), and GetEventId().

The documentation for this class was generated from the following files:

src/dsdv/model/dsdv-rtable.h
src/dsdv/model/dsdv-rtable.cc

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ RoutingTable()

Member Function Documentation

◆ AddIpv4Event()

◆ AddRoute()

◆ AnyRunningEvent()

◆ Clear()

◆ DeleteAllRoutesFromInterface()

◆ DeleteIpv4Event()

◆ DeleteRoute()

◆ ForceDeleteIpv4Event()

◆ GetEventId()

◆ Getholddowntime()

◆ GetListOfAllRoutes()

◆ GetListOfDestinationWithNextHop()

◆ LookupRoute() [1/2]

◆ LookupRoute() [2/2]

◆ Print()

◆ Purge()

◆ RoutingTableSize()

◆ Setholddowntime()

◆ Update()

Member Data Documentation

◆ m_holddownTime

◆ m_ipv4AddressEntry

◆ m_ipv4Events
