DSR error buffer. More...

#include "dsr-errorbuff.h"

Collaboration diagram for ns3::dsr::DsrErrorBuffer:

Public Member Functions
	DsrErrorBuffer ()
	Default constructor. More...

bool	Dequeue (Ipv4Address dst, DsrErrorBuffEntry &entry)
	Return first found (the earliest) entry for given destination. More...

void	DropPacketForErrLink (Ipv4Address source, Ipv4Address nextHop)
	Remove all packets with the error link. More...

bool	Enqueue (DsrErrorBuffEntry &entry)
	Push entry in queue, if there is no entry with the same packet and destination address in queue. More...

bool	Find (Ipv4Address dst)
	Finds whether a packet with destination dst exists in the queue. More...

std::vector< DsrErrorBuffEntry > &	GetBuffer ()
	Get error buffer entry. More...

Time	GetErrorBufferTimeout () const
	Get error buffer timeout. More...

uint32_t	GetMaxQueueLen () const
	Get maximum queue length. More...

uint32_t	GetSize ()
	Returns the number of entries in the queue. More...

void	SetErrorBufferTimeout (Time t)
	Set error buffer timeout. More...

void	SetMaxQueueLen (uint32_t len)
	Set maximum queue length. More...

Private Member Functions
void	Drop (DsrErrorBuffEntry en, std::string reason)
	Notify that packet is dropped from queue by timeout. More...

void	DropLink (DsrErrorBuffEntry en, std::string reason)
	Notify that packet is dropped from queue by link error. More...

void	Purge ()
	Remove all expired entries. More...

Private Attributes
std::vector< DsrErrorBuffEntry >	m_errorBuffer
	The send buffer to cache unsent packet. More...

Time	m_errorBufferTimeout
	The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds. More...

uint32_t	m_maxLen
	The maximum number of packets that we allow a routing protocol to buffer. More...

Detailed Description

DSR error buffer.

Definition at line 196 of file dsr-errorbuff.h.

Constructor & Destructor Documentation

◆ DsrErrorBuffer()

ns3::dsr::DsrErrorBuffer::DsrErrorBuffer ( )

inline

Default constructor.

Definition at line 202 of file dsr-errorbuff.h.

Member Function Documentation

◆ Dequeue()

bool ns3::dsr::DsrErrorBuffer::Dequeue	(	Ipv4Address	dst,
		DsrErrorBuffEntry &	entry
	)

Return first found (the earliest) entry for given destination.

Parameters

[in]	dst	The destination to look for
[out]	entry	The entry

Returns: true if an entry is found

Definition at line 111 of file dsr-errorbuff.cc.

References ns3::dsr::DsrErrorBuffEntry::GetPacket(), ns3::Packet::GetSize(), m_errorBuffer, NS_LOG_DEBUG, and Purge().

Referenced by ns3::dsr::DsrRouting::SendPacketFromBuffer().

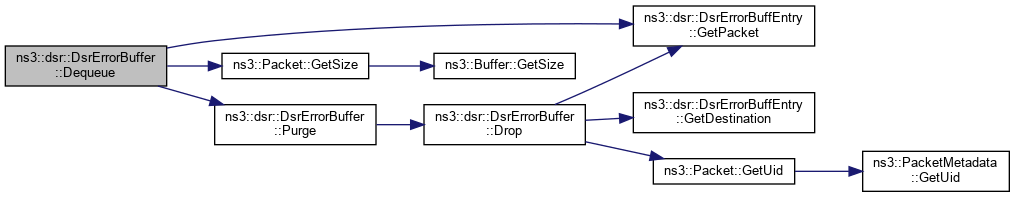

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Drop()

void ns3::dsr::DsrErrorBuffer::Drop	(	DsrErrorBuffEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by timeout.

Parameters

en	Error Buffer Entry
reason	Drop reason.

Definition at line 186 of file dsr-errorbuff.cc.

References ns3::dsr::DsrErrorBuffEntry::GetDestination(), ns3::dsr::DsrErrorBuffEntry::GetPacket(), ns3::Packet::GetUid(), and NS_LOG_LOGIC.

Referenced by Enqueue(), and Purge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DropLink()

void ns3::dsr::DsrErrorBuffer::DropLink	(	DsrErrorBuffEntry	en,
		std::string	reason
	)

private

Notify that packet is dropped from queue by link error.

Parameters

en	Error Buffer Entry
reason	Drop reason.

Definition at line 195 of file dsr-errorbuff.cc.

References ns3::dsr::DsrErrorBuffEntry::GetNextHop(), ns3::dsr::DsrErrorBuffEntry::GetPacket(), ns3::dsr::DsrErrorBuffEntry::GetSource(), ns3::Packet::GetUid(), and NS_LOG_LOGIC.

Referenced by DropPacketForErrLink().

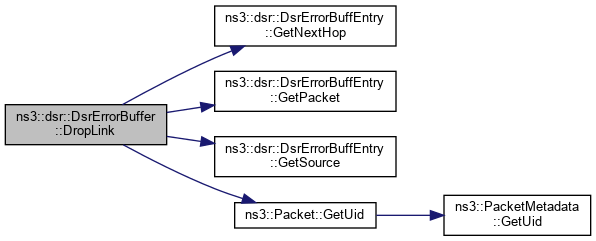

Here is the call graph for this function:

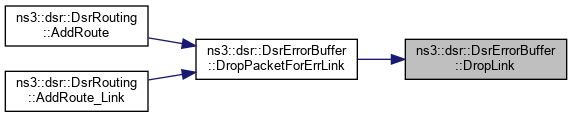

Here is the caller graph for this function:

◆ DropPacketForErrLink()

void ns3::dsr::DsrErrorBuffer::DropPacketForErrLink	(	Ipv4Address	source,
		Ipv4Address	nextHop
	)

Remove all packets with the error link.

Parameters

source	The source
nextHop	The next hop

Definition at line 85 of file dsr-errorbuff.cc.

References DropLink(), list, m_errorBuffer, NS_LOG_FUNCTION, and Purge().

Referenced by ns3::dsr::DsrRouting::AddRoute(), and ns3::dsr::DsrRouting::AddRoute_Link().

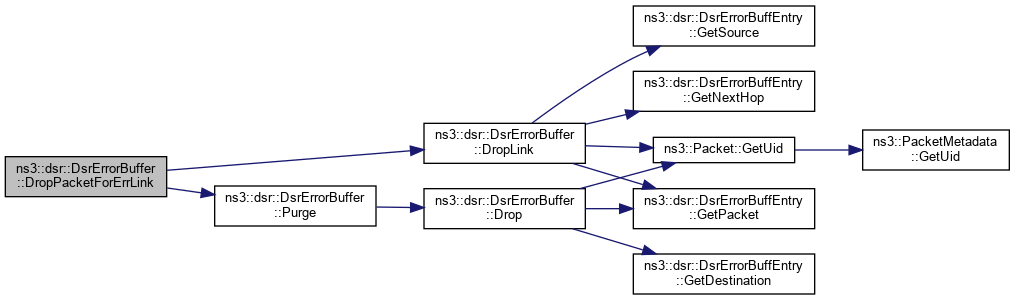

Here is the call graph for this function:

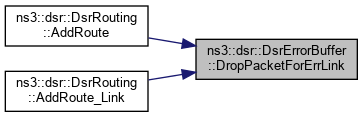

Here is the caller graph for this function:

◆ Enqueue()

bool ns3::dsr::DsrErrorBuffer::Enqueue ( DsrErrorBuffEntry & entry )

Push entry in queue, if there is no entry with the same packet and destination address in queue.

Parameters

entry error buffer entry

Returns: true if entry added

Todo:: check the source and destination over here

Definition at line 53 of file dsr-errorbuff.cc.

References Drop(), ns3::dsr::DsrErrorBuffEntry::GetDestination(), ns3::dsr::DsrErrorBuffEntry::GetNextHop(), ns3::dsr::DsrErrorBuffEntry::GetPacket(), ns3::dsr::DsrErrorBuffEntry::GetSource(), ns3::Packet::GetUid(), m_errorBuffer, m_errorBufferTimeout, m_maxLen, NS_LOG_INFO, Purge(), and ns3::dsr::DsrErrorBuffEntry::SetExpireTime().

Referenced by ns3::dsr::DsrRouting::SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Find()

bool ns3::dsr::DsrErrorBuffer::Find ( Ipv4Address dst )

Finds whether a packet with destination dst exists in the queue.

Parameters

dst	The destination

Returns: true if a packet is found.

Definition at line 131 of file dsr-errorbuff.cc.

References m_errorBuffer, and NS_LOG_DEBUG.

Referenced by ns3::dsr::DsrRouting::SendPacketFromBuffer().

Here is the caller graph for this function:

◆ GetBuffer()

std::vector<DsrErrorBuffEntry>& ns3::dsr::DsrErrorBuffer::GetBuffer ( )

inline

Get error buffer entry.

Returns: the DSR error buffer

Definition at line 274 of file dsr-errorbuff.h.

References m_errorBuffer.

◆ GetErrorBufferTimeout()

Time ns3::dsr::DsrErrorBuffer::GetErrorBufferTimeout ( ) const

inline

Get error buffer timeout.

Returns: the error buffer timeout

Definition at line 258 of file dsr-errorbuff.h.

References m_errorBufferTimeout.

◆ GetMaxQueueLen()

uint32_t ns3::dsr::DsrErrorBuffer::GetMaxQueueLen ( ) const

inline

Get maximum queue length.

Returns: the maximum queue length

Definition at line 242 of file dsr-errorbuff.h.

References m_maxLen.

◆ GetSize()

uint32_t ns3::dsr::DsrErrorBuffer::GetSize ( void )

Returns the number of entries in the queue.

Returns: the number of entries in the queue.

Definition at line 46 of file dsr-errorbuff.cc.

References m_errorBuffer, and Purge().

Referenced by ns3::dsr::DsrRouting::SendPacketFromBuffer().

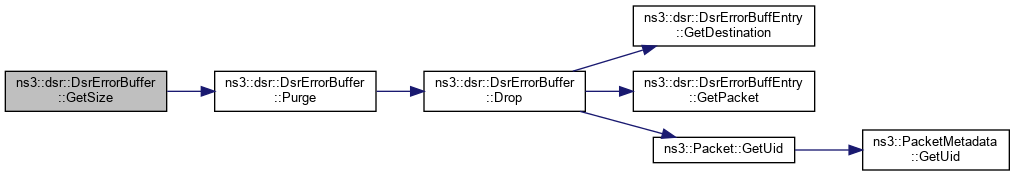

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Purge()

void ns3::dsr::DsrErrorBuffer::Purge ( )

private

Remove all expired entries.

Definition at line 165 of file dsr-errorbuff.cc.

References Drop(), m_errorBuffer, and NS_LOG_DEBUG.

Referenced by Dequeue(), DropPacketForErrLink(), Enqueue(), and GetSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetErrorBufferTimeout()

void ns3::dsr::DsrErrorBuffer::SetErrorBufferTimeout ( Time t )

inline

Set error buffer timeout.

Parameters

t	the error buffer timeout

Definition at line 266 of file dsr-errorbuff.h.

References m_errorBufferTimeout.

Referenced by ns3::dsr::DsrRouting::Start().

Here is the caller graph for this function:

◆ SetMaxQueueLen()

void ns3::dsr::DsrErrorBuffer::SetMaxQueueLen ( uint32_t len )

inline

Set maximum queue length.

Parameters

len	the maximum queue length

Definition at line 250 of file dsr-errorbuff.h.

References m_maxLen.

Referenced by ns3::dsr::DsrRouting::Start().

Here is the caller graph for this function:

Member Data Documentation

◆ m_errorBuffer

std::vector<DsrErrorBuffEntry> ns3::dsr::DsrErrorBuffer::m_errorBuffer

private

The send buffer to cache unsent packet.

Definition at line 281 of file dsr-errorbuff.h.

Referenced by Dequeue(), DropPacketForErrLink(), Enqueue(), Find(), GetBuffer(), GetSize(), and Purge().

◆ m_errorBufferTimeout

Time ns3::dsr::DsrErrorBuffer::m_errorBufferTimeout

private

The maximum period of time that a routing protocol is allowed to buffer a packet for, seconds.

Definition at line 300 of file dsr-errorbuff.h.

Referenced by Enqueue(), GetErrorBufferTimeout(), and SetErrorBufferTimeout().

◆ m_maxLen

uint32_t ns3::dsr::DsrErrorBuffer::m_maxLen

private

The maximum number of packets that we allow a routing protocol to buffer.

Definition at line 298 of file dsr-errorbuff.h.

Referenced by Enqueue(), GetMaxQueueLen(), and SetMaxQueueLen().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-errorbuff.h
src/dsr/model/dsr-errorbuff.cc
