maintain the gratuitous reply More...
#include "dsr-gratuitous-reply-table.h"
Classes | |
struct | IsExpired |
Check if the entry is expired or not. More... | |
Public Member Functions | |
DsrGraReply () | |
virtual | ~DsrGraReply () |
bool | AddEntry (GraReplyEntry &graTableEntry) |
Add a new gratuitous reply entry. More... | |
void | Clear () |
Remove all entries. More... | |
bool | FindAndUpdate (Ipv4Address replyTo, Ipv4Address replyFrom, Time gratReplyHoldoff) |
Update the route entry if found. More... | |
uint32_t | GetGraTableSize () const |
Get the gratuitous reply table size. More... | |
void | Purge () |
Remove all expired entries. More... | |
void | SetGraTableSize (uint32_t g) |
Set the gratuitous reply table size. More... | |
Public Member Functions inherited from ns3::Object | |
Object () | |
Constructor. More... | |
virtual | ~Object () |
Destructor. More... | |
void | AggregateObject (Ptr< Object > other) |
Aggregate two Objects together. More... | |
void | Dispose (void) |
Dispose of this Object. More... | |
AggregateIterator | GetAggregateIterator (void) const |
Get an iterator to the Objects aggregated to this one. More... | |
virtual TypeId | GetInstanceTypeId (void) const |
Get the most derived TypeId for this Object. More... | |
template<> | |
Ptr< Object > | GetObject () const |
Specialization of () for objects of type ns3::Object. More... | |
template<typename T > | |
Ptr< T > | GetObject (TypeId tid) const |
Get a pointer to the requested aggregated Object by TypeId. More... | |
template<> | |
Ptr< Object > | GetObject (TypeId tid) const |
Specialization of (TypeId tid) for objects of type ns3::Object. More... | |
template<typename T > | |
Ptr< T > | GetObject (void) const |
Get a pointer to the requested aggregated Object. More... | |
void | Initialize (void) |
Invoke DoInitialize on all Objects aggregated to this one. More... | |
bool | IsInitialized (void) const |
Check if the object has been initialized. More... | |
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
SimpleRefCount () | |
Default constructor. More... | |
SimpleRefCount (const SimpleRefCount &o[[maybe_unused]]) | |
Copy constructor. More... | |
uint32_t | GetReferenceCount (void) const |
Get the reference count of the object. More... | |
SimpleRefCount & | operator= ([[maybe_unused]] const SimpleRefCount &o) |
Assignment operator. More... | |
void | Ref (void) const |
Increment the reference count. More... | |
void | Unref (void) const |
Decrement the reference count. More... | |
Public Member Functions inherited from ns3::ObjectBase | |
virtual | ~ObjectBase () |
Virtual destructor. More... | |
void | GetAttribute (std::string name, AttributeValue &value) const |
Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
Get the value of an attribute without raising erros. More... | |
void | SetAttribute (std::string name, const AttributeValue &value) |
Set a single attribute, raising fatal errors if unsuccessful. More... | |
bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
Set a single attribute without raising errors. More... | |
bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
Connect a TraceSource to a Callback with a context. More... | |
bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
Connect a TraceSource to a Callback without a context. More... | |
bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected with a context. More... | |
bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
static TypeId | GetTypeId () |
Get the type ID. More... | |
Static Public Member Functions inherited from ns3::Object | |
static TypeId | GetTypeId (void) |
Register this type. More... | |
Static Public Member Functions inherited from ns3::ObjectBase | |
static TypeId | GetTypeId (void) |
Get the type ID. More... | |
Private Attributes | |
uint32_t | GraReplyTableSize |
The max # of gratuitous reply entries to hold. More... | |
std::vector< GraReplyEntry > | m_graReply |
Vector of entries. More... | |
Additional Inherited Members | |
Protected Member Functions inherited from ns3::Object | |
Object (const Object &o) | |
Copy an Object. More... | |
virtual void | DoDispose (void) |
Destructor implementation. More... | |
virtual void | DoInitialize (void) |
Initialize() implementation. More... | |
virtual void | NotifyNewAggregate (void) |
Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
Protected Member Functions inherited from ns3::ObjectBase | |
void | ConstructSelf (const AttributeConstructionList &attributes) |
Complete construction of ObjectBase; invoked by derived classes. More... | |
virtual void | NotifyConstructionCompleted (void) |
Notifier called once the ObjectBase is fully constructed. More... | |
Related Functions inherited from ns3::ObjectBase | |
static TypeId | GetObjectIid (void) |
Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
maintain the gratuitous reply
Introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).
Definition at line 72 of file dsr-gratuitous-reply-table.h.
ns3::dsr::DsrGraReply::DsrGraReply | ( | ) |
Definition at line 54 of file dsr-gratuitous-reply-table.cc.
|
virtual |
Definition at line 58 of file dsr-gratuitous-reply-table.cc.
References NS_LOG_FUNCTION_NOARGS.
bool ns3::dsr::DsrGraReply::AddEntry | ( | GraReplyEntry & | graTableEntry | ) |
Add a new gratuitous reply entry.
graTableEntry | The gratuitous reply entry |
Definition at line 81 of file dsr-gratuitous-reply-table.cc.
References m_graReply.
Referenced by ns3::dsr::DsrRouting::SendGratuitousReply().
|
inline |
Remove all entries.
Definition at line 109 of file dsr-gratuitous-reply-table.h.
References m_graReply.
bool ns3::dsr::DsrGraReply::FindAndUpdate | ( | Ipv4Address | replyTo, |
Ipv4Address | replyFrom, | ||
Time | gratReplyHoldoff | ||
) |
Update the route entry if found.
replyTo | Entry directed to |
replyFrom | Entry heard from |
gratReplyHoldoff | New gratuitous reply holdoff time |
Definition at line 64 of file dsr-gratuitous-reply-table.cc.
References m_graReply, max, ns3::Simulator::Now(), NS_LOG_DEBUG, and Purge().
Referenced by ns3::dsr::DsrRouting::SendGratuitousReply().
|
inline |
Get the gratuitous reply table size.
Definition at line 92 of file dsr-gratuitous-reply-table.h.
References GraReplyTableSize.
|

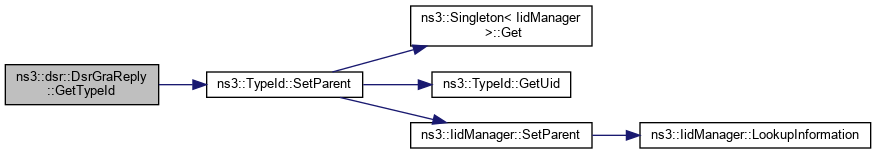

static |
Get the type ID.
Definition at line 44 of file dsr-gratuitous-reply-table.cc.
References ns3::TypeId::SetParent().
void ns3::dsr::DsrGraReply::Purge | ( | ) |
Remove all expired entries.
Definition at line 88 of file dsr-gratuitous-reply-table.cc.
References m_graReply.
Referenced by FindAndUpdate().
|
inline |
Set the gratuitous reply table size.
g | The gratuitous reply table size |
Definition at line 86 of file dsr-gratuitous-reply-table.h.
References GraReplyTableSize.
Referenced by ns3::dsr::DsrRouting::Start().
|
private |
The max # of gratuitous reply entries to hold.
Definition at line 118 of file dsr-gratuitous-reply-table.h.
Referenced by GetGraTableSize(), and SetGraTableSize().
|
private |
Vector of entries.
Definition at line 116 of file dsr-gratuitous-reply-table.h.
Referenced by AddEntry(), Clear(), FindAndUpdate(), and Purge().
