Route Error (RERR) Unsupported option Message Format. More...

#include "dsr-option-header.h"

Inheritance diagram for ns3::dsr::DsrOptionRerrUnsupportHeader:

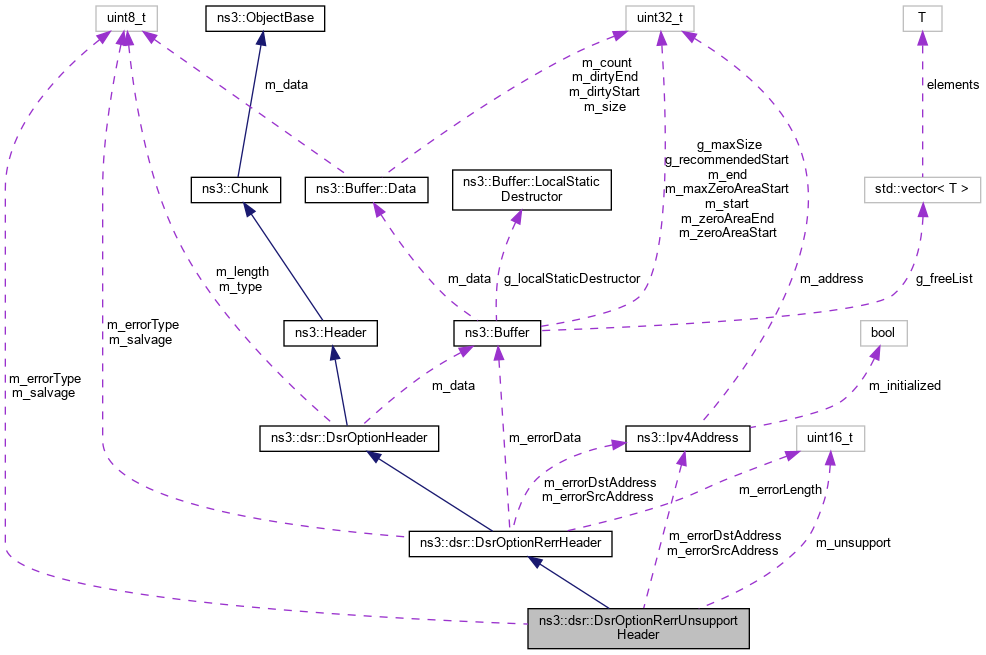

Collaboration diagram for ns3::dsr::DsrOptionRerrUnsupportHeader:

Public Member Functions
	DsrOptionRerrUnsupportHeader ()
	Constructor. More...

virtual	~DsrOptionRerrUnsupportHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual Ipv4Address	GetErrorDst () const
	Get the error destination ip address. More...

virtual Ipv4Address	GetErrorSrc () const
	Get the route error source address. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

virtual uint8_t	GetSalvage () const
	Get the salvage value of the packet. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

uint16_t	GetUnsupported () const
	Get the unsupported option type value. More...

virtual void	Print (std::ostream &os) const
	Print some information about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

virtual void	SetErrorDst (Ipv4Address errorDstAddress)
	Set the error destination ip address. More...

virtual void	SetErrorSrc (Ipv4Address errorSrcAddress)
	Set the route error source address. More...

virtual void	SetSalvage (uint8_t salvage)
	Set the salvage value of the packet. More...

void	SetUnsupported (uint16_t optionType)
	Set the unsupported option type value. More...

Public Member Functions inherited from ns3::dsr::DsrOptionRerrHeader
	DsrOptionRerrHeader ()
	Constructor. More...

virtual	~DsrOptionRerrHeader ()
	Destructor. More...

uint8_t	GetErrorType () const
	Get the route error type. More...

void	SetErrorType (uint8_t errorType)
	Set the route error type. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionRerrHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv4Address	m_errorDstAddress
	The error destination address. More...

Ipv4Address	m_errorSrcAddress
	The error source address. More...

uint8_t	m_errorType
	The error type or route error option. More...

uint8_t	m_salvage
	The salavage field. More...

uint16_t	m_unsupport
	The unsupported option. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Route Error (RERR) Unsupported option Message Format.

Introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |   Error Type  |Reservd| Salvage|
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                      Error Source Address                     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                    Error Destination Address                  |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 .                                                               .
 .                    Type-Specific Information                  .
 .                                                               .
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 128 bytes (on a 64-bit architecture).

Definition at line 1029 of file dsr-option-header.h.

Constructor & Destructor Documentation

◆ DsrOptionRerrUnsupportHeader()

ns3::dsr::DsrOptionRerrUnsupportHeader::DsrOptionRerrUnsupportHeader ( )

Constructor.

Definition at line 930 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionRerrHeader::SetErrorType(), ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

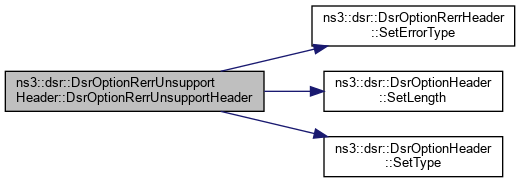

Here is the call graph for this function:

◆ ~DsrOptionRerrUnsupportHeader()

ns3::dsr::DsrOptionRerrUnsupportHeader::~DsrOptionRerrUnsupportHeader ( )

virtual

Destructor.

Definition at line 938 of file dsr-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dsr::DsrOptionRerrUnsupportHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 1010 of file dsr-option-header.cc.

References GetSerializedSize(), m_errorDstAddress, m_errorSrcAddress, m_salvage, m_unsupport, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionRerrHeader::SetErrorType(), ns3::dsr::DsrOptionHeader::SetLength(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetAlignment()

DsrOptionHeader::Alignment ns3::dsr::DsrOptionRerrUnsupportHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 1025 of file dsr-option-header.cc.

◆ GetErrorDst()

Ipv4Address ns3::dsr::DsrOptionRerrUnsupportHeader::GetErrorDst ( ) const

virtual

Get the error destination ip address.

Returns: The error destination address

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 967 of file dsr-option-header.cc.

References m_errorDstAddress.

◆ GetErrorSrc()

Ipv4Address ns3::dsr::DsrOptionRerrUnsupportHeader::GetErrorSrc ( ) const

virtual

Get the route error source address.

Returns: The error source address

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 957 of file dsr-option-header.cc.

References m_errorSrcAddress.

◆ GetInstanceTypeId()

TypeId ns3::dsr::DsrOptionRerrUnsupportHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 925 of file dsr-option-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetSalvage()

uint8_t ns3::dsr::DsrOptionRerrUnsupportHeader::GetSalvage ( ) const

virtual

Get the salvage value of the packet.

Returns: The salvage value of the packet

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 947 of file dsr-option-header.cc.

References m_salvage.

◆ GetSerializedSize()

uint32_t ns3::dsr::DsrOptionRerrUnsupportHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 991 of file dsr-option-header.cc.

Referenced by Deserialize(), and ns3::dsr::DsrOptionRerr::Process().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::dsr::DsrOptionRerrUnsupportHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 915 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUnsupported()

uint16_t ns3::dsr::DsrOptionRerrUnsupportHeader::GetUnsupported ( ) const

Get the unsupported option type value.

Returns: The unsupported option type value

Definition at line 977 of file dsr-option-header.cc.

References m_unsupport.

◆ Print()

void ns3::dsr::DsrOptionRerrUnsupportHeader::Print ( std::ostream & os ) const

virtual

Print some information about the packet.

Parameters

os	output stream

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 982 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_errorDstAddress, m_errorSrcAddress, m_errorType, m_salvage, and m_unsupport.

Here is the call graph for this function:

◆ Serialize()

void ns3::dsr::DsrOptionRerrUnsupportHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 996 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionRerrHeader::GetErrorType(), ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_errorDstAddress, m_errorSrcAddress, m_salvage, m_unsupport, visualizer.core::start(), ns3::WriteTo(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetErrorDst()

void ns3::dsr::DsrOptionRerrUnsupportHeader::SetErrorDst ( Ipv4Address errorDstAddress )

virtual

Set the error destination ip address.

Parameters

errorDstAddress The error destination address

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 962 of file dsr-option-header.cc.

References m_errorDstAddress.

◆ SetErrorSrc()

void ns3::dsr::DsrOptionRerrUnsupportHeader::SetErrorSrc ( Ipv4Address errorSrcAddress )

virtual

Set the route error source address.

Parameters

errorSrcAddress The error source address

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 952 of file dsr-option-header.cc.

References m_errorSrcAddress.

◆ SetSalvage()

void ns3::dsr::DsrOptionRerrUnsupportHeader::SetSalvage ( uint8_t salvage )

virtual

Set the salvage value of the packet.

Parameters

salvage the salvage value

Reimplemented from ns3::dsr::DsrOptionRerrHeader.

Definition at line 942 of file dsr-option-header.cc.

References m_salvage.

◆ SetUnsupported()

void ns3::dsr::DsrOptionRerrUnsupportHeader::SetUnsupported ( uint16_t optionType )

Set the unsupported option type value.

Parameters

optionType The unsupported option type value

Definition at line 972 of file dsr-option-header.cc.

References m_unsupport.

Member Data Documentation

◆ m_errorDstAddress

Ipv4Address ns3::dsr::DsrOptionRerrUnsupportHeader::m_errorDstAddress

private

The error destination address.

Definition at line 1133 of file dsr-option-header.h.

Referenced by Deserialize(), GetErrorDst(), Print(), Serialize(), and SetErrorDst().

◆ m_errorSrcAddress

Ipv4Address ns3::dsr::DsrOptionRerrUnsupportHeader::m_errorSrcAddress

private

The error source address.

Definition at line 1129 of file dsr-option-header.h.

Referenced by Deserialize(), GetErrorSrc(), Print(), Serialize(), and SetErrorSrc().

◆ m_errorType

uint8_t ns3::dsr::DsrOptionRerrUnsupportHeader::m_errorType

private

The error type or route error option.

Definition at line 1121 of file dsr-option-header.h.

Referenced by Print().

◆ m_salvage

uint8_t ns3::dsr::DsrOptionRerrUnsupportHeader::m_salvage

private

The salavage field.

Definition at line 1125 of file dsr-option-header.h.

Referenced by Deserialize(), GetSalvage(), Print(), Serialize(), and SetSalvage().

◆ m_unsupport

uint16_t ns3::dsr::DsrOptionRerrUnsupportHeader::m_unsupport

private

The unsupported option.

Definition at line 1137 of file dsr-option-header.h.

Referenced by Deserialize(), GetUnsupported(), Print(), Serialize(), and SetUnsupported().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DsrOptionRerrUnsupportHeader()

◆ ~DsrOptionRerrUnsupportHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAlignment()

◆ GetErrorDst()

◆ GetErrorSrc()

◆ GetInstanceTypeId()

◆ GetSalvage()

◆ GetSerializedSize()

◆ GetTypeId()

◆ GetUnsupported()

◆ Print()

◆ Serialize()

◆ SetErrorDst()

◆ SetErrorSrc()

◆ SetSalvage()

◆ SetUnsupported()

Member Data Documentation

◆ m_errorDstAddress

◆ m_errorSrcAddress

◆ m_errorType

◆ m_salvage

◆ m_unsupport
