Route Reply (RREP) Message Format. More...

#include "dsr-option-header.h"

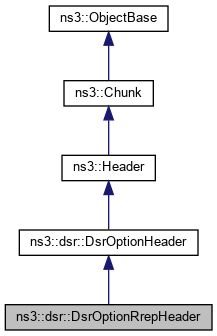

Inheritance diagram for ns3::dsr::DsrOptionRrepHeader:

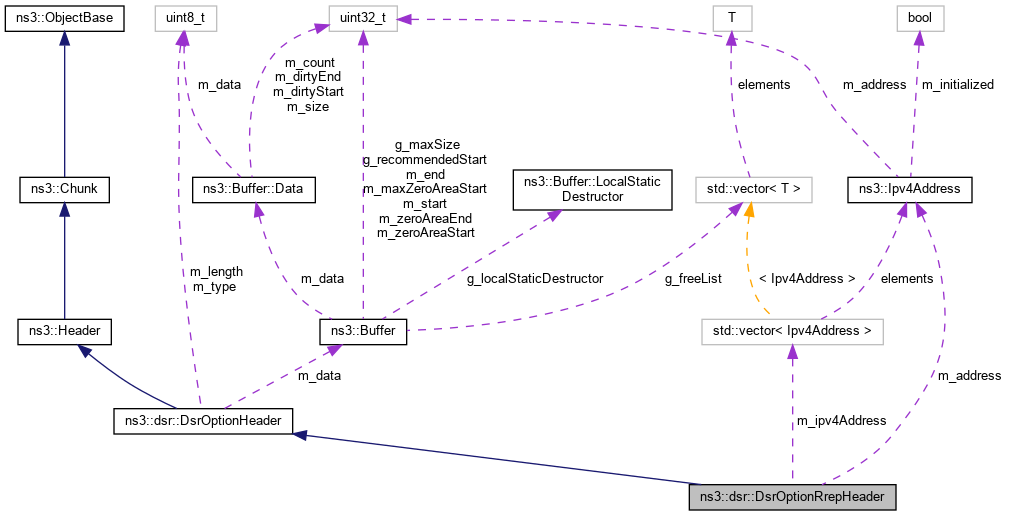

Collaboration diagram for ns3::dsr::DsrOptionRrepHeader:

Public Member Functions
	DsrOptionRrepHeader ()
	Constructor. More...

virtual	~DsrOptionRrepHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv4Address	GetNodeAddress (uint8_t index) const
	Get a Node IPv4 Address. More...

std::vector< Ipv4Address >	GetNodesAddress () const
	Get the vector of ipv4 address. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

Ipv4Address	GetTargetAddress (std::vector< Ipv4Address > ipv4Address) const
	Get the target node Ip address. More...

virtual void	Print (std::ostream &os) const
	Print some information about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetNodeAddress (uint8_t index, Ipv4Address addr)
	Set a Node IPv4 Address. More...

void	SetNodesAddress (std::vector< Ipv4Address > ipv4Address)
	Set the vector of ipv4 address. More...

void	SetNumberAddress (uint8_t n)
	Set the number of ipv4 address. More...

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ipv4Address >	VectorIpv4Address_t
	type def A vector of IPv4 Address. More...

Private Attributes
Ipv4Address	m_address
	The Ip address to write to when deserialize the packet. More...

VectorIpv4Address_t	m_ipv4Address
	The vector of Nodes' IPv4 Address. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Route Reply (RREP) Message Format.

Introspection did not find any typical Config paths.

Header of Dsr Option Route Reply.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
                -+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
                |  Option Type  |  Opt Data Len |L|   Reserved   |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Route Reply (RREP) Message Format

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type  |  Opt Data Len |L|   Reserved   |   Reserved   |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 444 of file dsr-option-header.h.

Member Typedef Documentation

◆ VectorIpv4Address_t

typedef std::vector<Ipv4Address> ns3::dsr::DsrOptionRrepHeader::VectorIpv4Address_t

private

type def A vector of IPv4 Address.

Definition at line 533 of file dsr-option-header.h.

Constructor & Destructor Documentation

◆ DsrOptionRrepHeader()

ns3::dsr::DsrOptionRrepHeader::DsrOptionRrepHeader ( )

Constructor.

Definition at line 414 of file dsr-option-header.cc.

References m_ipv4Address, ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

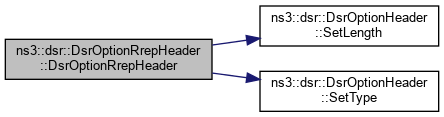

Here is the call graph for this function:

◆ ~DsrOptionRrepHeader()

ns3::dsr::DsrOptionRrepHeader::~DsrOptionRrepHeader ( )

virtual

Destructor.

Definition at line 421 of file dsr-option-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::dsr::DsrOptionRrepHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 491 of file dsr-option-header.cc.

References ns3::Ipv4Address::Deserialize(), GetSerializedSize(), m_address, m_ipv4Address, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), SetNodeAddress(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

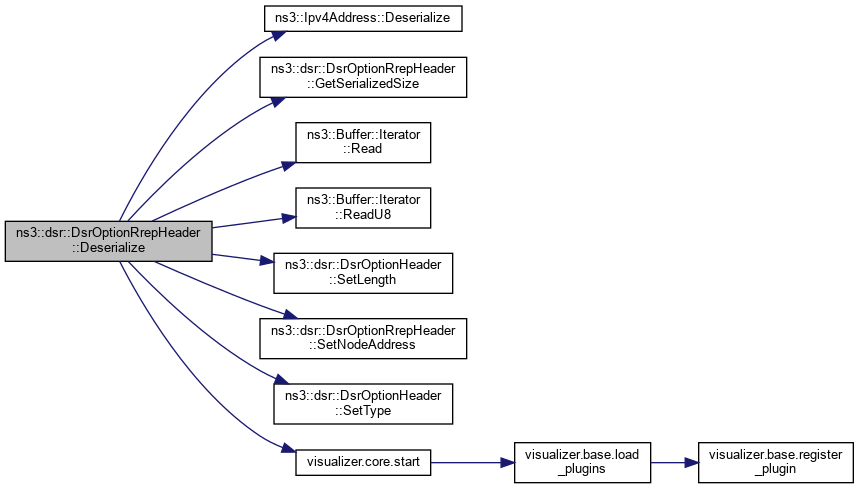

Here is the call graph for this function:

◆ GetAlignment()

DsrOptionHeader::Alignment ns3::dsr::DsrOptionRrepHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 513 of file dsr-option-header.cc.

◆ GetInstanceTypeId()

TypeId ns3::dsr::DsrOptionRrepHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 409 of file dsr-option-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetNodeAddress()

Ipv4Address ns3::dsr::DsrOptionRrepHeader::GetNodeAddress ( uint8_t index ) const

Get a Node IPv4 Address.

Parameters

index the index of the IPv4 Address

Returns: the router IPv4 Address

Definition at line 447 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by DsrRrepHeaderTest::DoRun().

Here is the caller graph for this function:

◆ GetNodesAddress()

std::vector< Ipv4Address > ns3::dsr::DsrOptionRrepHeader::GetNodesAddress ( ) const

Get the vector of ipv4 address.

Returns: the vector of ipv4 address

Definition at line 437 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrOptionRrep::Process().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::dsr::DsrOptionRrepHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 469 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize(), and ns3::dsr::DsrOptionRrep::Process().

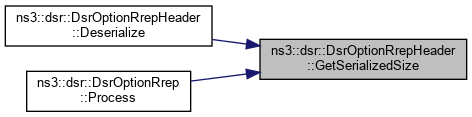

Here is the caller graph for this function:

◆ GetTargetAddress()

Ipv4Address ns3::dsr::DsrOptionRrepHeader::GetTargetAddress ( std::vector< Ipv4Address > ipv4Address ) const

Get the target node Ip address.

Parameters

ipv4Address target address

Returns: the target address

Definition at line 452 of file dsr-option-header.cc.

References m_ipv4Address.

◆ GetTypeId()

TypeId ns3::dsr::DsrOptionRrepHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 399 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::dsr::DsrOptionRrepHeader::Print ( std::ostream & os ) const

virtual

Print some information about the packet.

Parameters

os	output stream

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 457 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), and m_ipv4Address.

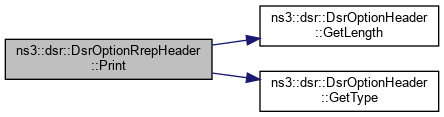

Here is the call graph for this function:

◆ Serialize()

void ns3::dsr::DsrOptionRrepHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 474 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_ipv4Address, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

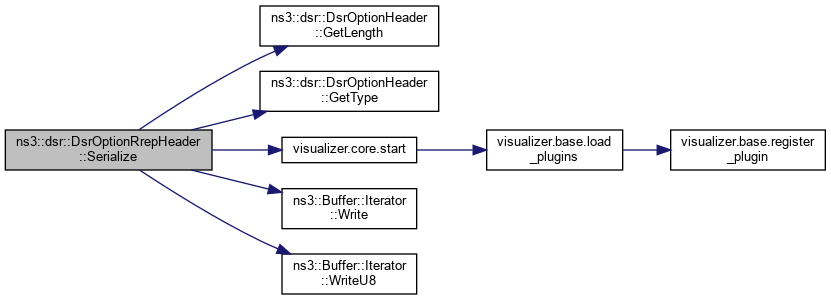

Here is the call graph for this function:

◆ SetNodeAddress()

void ns3::dsr::DsrOptionRrepHeader::SetNodeAddress	(	uint8_t	index,
		Ipv4Address	addr
	)

Set a Node IPv4 Address.

Parameters

index	the index of the IPv4 Address
addr	the new IPv4 Address

Definition at line 442 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ SetNodesAddress()

void ns3::dsr::DsrOptionRrepHeader::SetNodesAddress ( std::vector< Ipv4Address > ipv4Address )

Set the vector of ipv4 address.

Parameters

ipv4Address the vector of ipv4 address

Definition at line 431 of file dsr-option-header.cc.

References m_ipv4Address, and ns3::dsr::DsrOptionHeader::SetLength().

Referenced by DsrRrepHeaderTest::DoRun(), ns3::dsr::DsrOptionRreq::Process(), and ns3::dsr::DsrRouting::SendGratuitousReply().

Here is the call graph for this function:

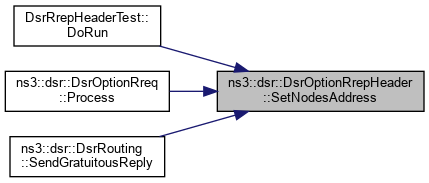

Here is the caller graph for this function:

◆ SetNumberAddress()

void ns3::dsr::DsrOptionRrepHeader::SetNumberAddress ( uint8_t n )

Set the number of ipv4 address.

Parameters

n	the number of ipv4 address

Definition at line 425 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by DsrRrepHeaderTest::DoRun(), and ns3::dsr::DsrOptionRrep::Process().

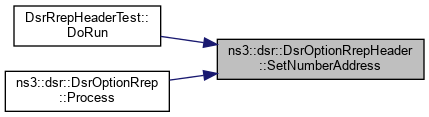

Here is the caller graph for this function:

Member Data Documentation

◆ m_address

Ipv4Address ns3::dsr::DsrOptionRrepHeader::m_address

private

The Ip address to write to when deserialize the packet.

Definition at line 529 of file dsr-option-header.h.

Referenced by Deserialize().

◆ m_ipv4Address

VectorIpv4Address_t ns3::dsr::DsrOptionRrepHeader::m_ipv4Address

private

The vector of Nodes' IPv4 Address.

Definition at line 537 of file dsr-option-header.h.

Referenced by DsrOptionRrepHeader(), Deserialize(), GetNodeAddress(), GetNodesAddress(), GetSerializedSize(), GetTargetAddress(), Print(), Serialize(), SetNodeAddress(), SetNodesAddress(), and SetNumberAddress().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ VectorIpv4Address_t

Constructor & Destructor Documentation

◆ DsrOptionRrepHeader()

◆ ~DsrOptionRrepHeader()

Member Function Documentation

◆ Deserialize()

◆ GetAlignment()

◆ GetInstanceTypeId()

◆ GetNodeAddress()

◆ GetNodesAddress()

◆ GetSerializedSize()

◆ GetTargetAddress()

◆ GetTypeId()

◆ Print()

◆ Serialize()

◆ SetNodeAddress()

◆ SetNodesAddress()

◆ SetNumberAddress()

Member Data Documentation

◆ m_address

◆ m_ipv4Address
